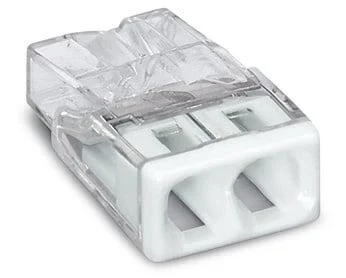

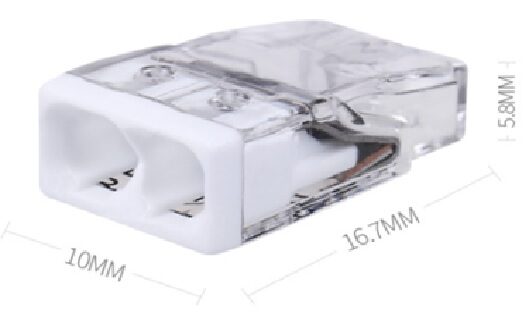

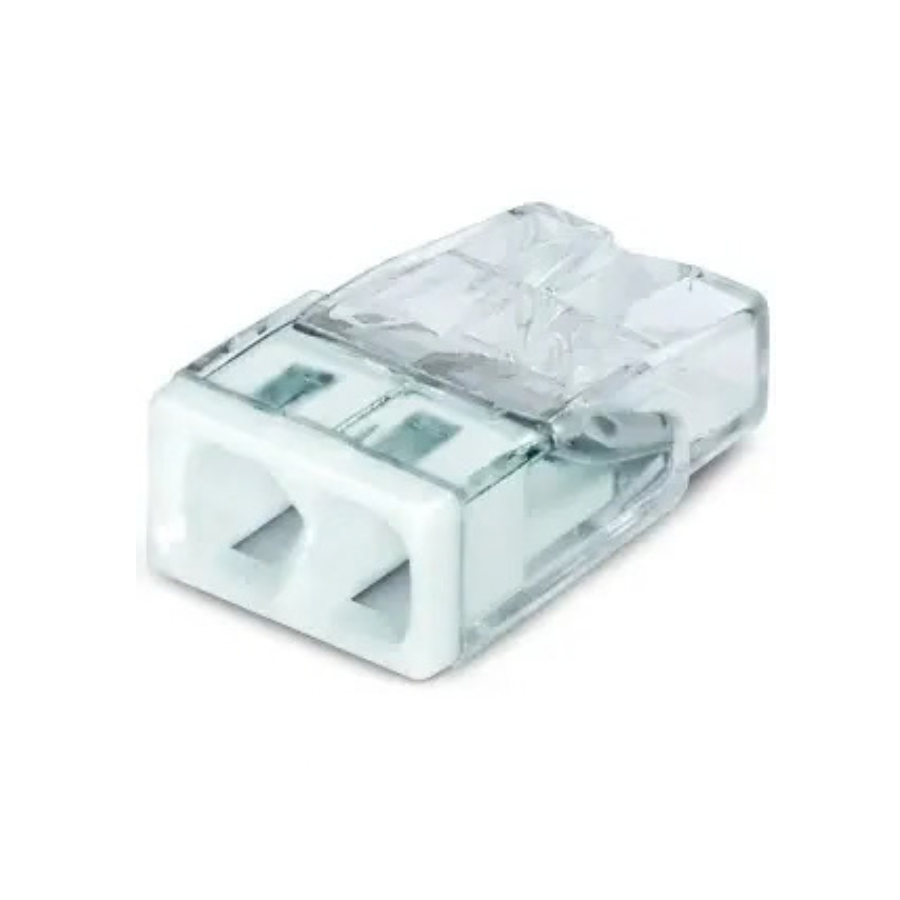

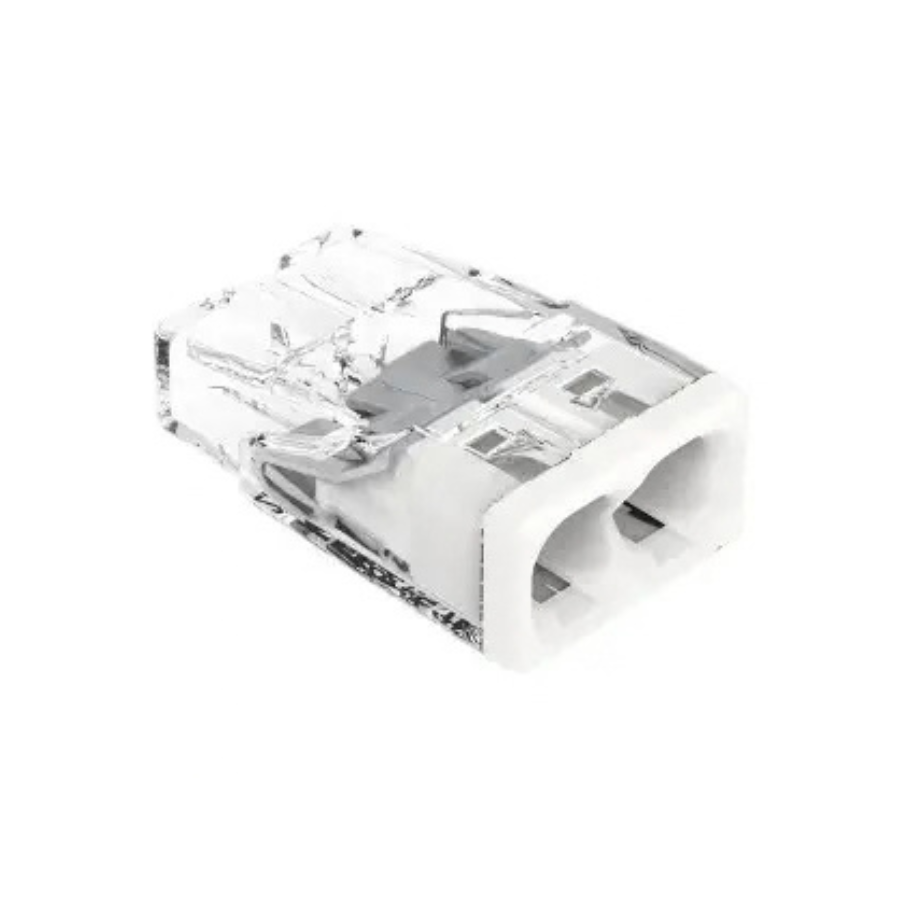

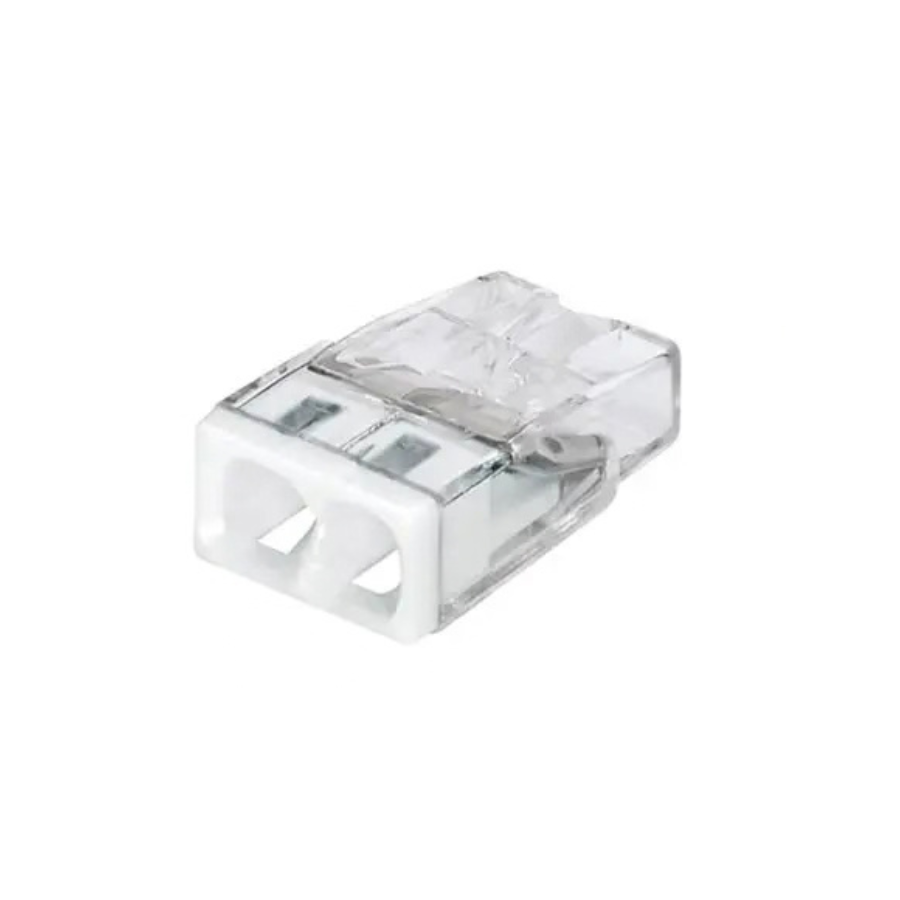

WAGO 2273-202 Connection Terminal

Electrical data.

Data assigned according to IEC/EN 60664-1.
Rated voltage (II/2): 450V
Rated shock voltage (II/2): 4 kV.
Rated Current: 24A

Connection data:

Connection technology: PUSH WIRE®.
Actuation type: Push in
Connectable conductive materials: copper/aluminum.
Single-line conductor: 0.5 – 2.5 mm²/20 – 14 AWG.
Stripping length: 11 mm.
Total number of clamping points: 2.
Total number of potentials: 1.
Wiring Type: Side Wiring.
Cross section of conductor: 0.5 mm².

Material data:

Colour: transparent.
Lid colour: white.
Flammability class according to UL 94: V2.
Fire load: 0.014 MJ.

Environmental conditions

Continuous operating temperature: 105°C.
T marking according to EN 60998: T60.
