PRODUCT DESCRIPTION
A battery protection board is an integrated circuit board that protects rechargeable batteries (mainly lithium batteries) from overcharging, over-discharging, overcurrent, short circuit, and extreme temperature conditions. Because of the material properties of lithium batteries, they always need a protection board with a sampling resistor and a current fuse. This 3S BMS board can connect 3 x 18650 batteries to form a battery pack that can provide up to 15V DC output at 15A current for heavy-duty applications.

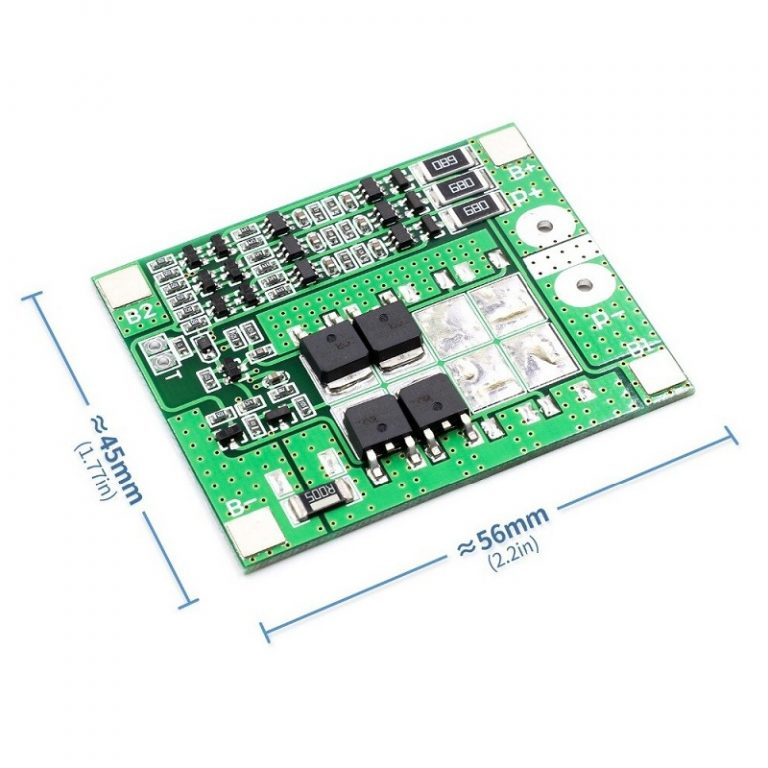

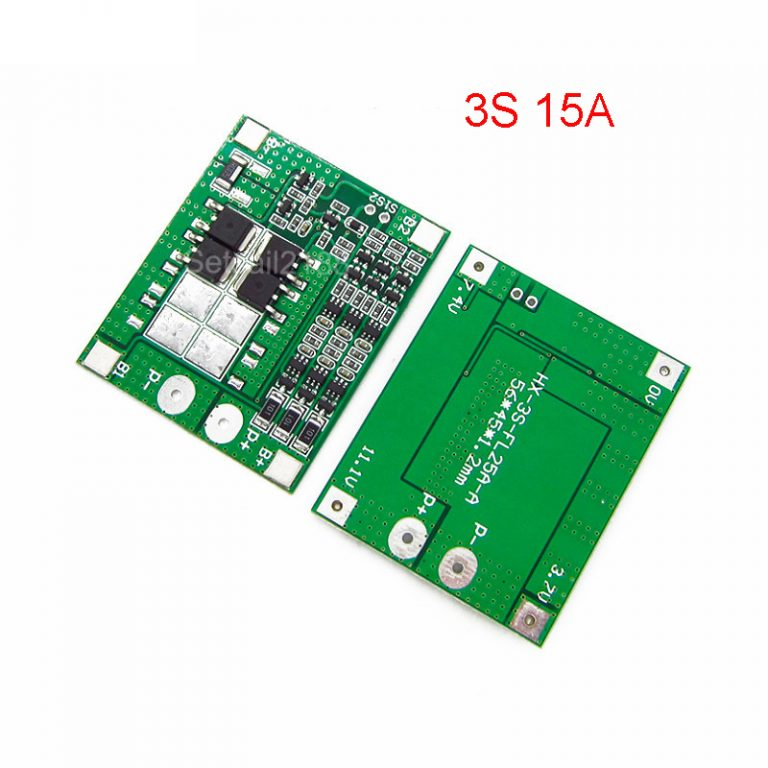

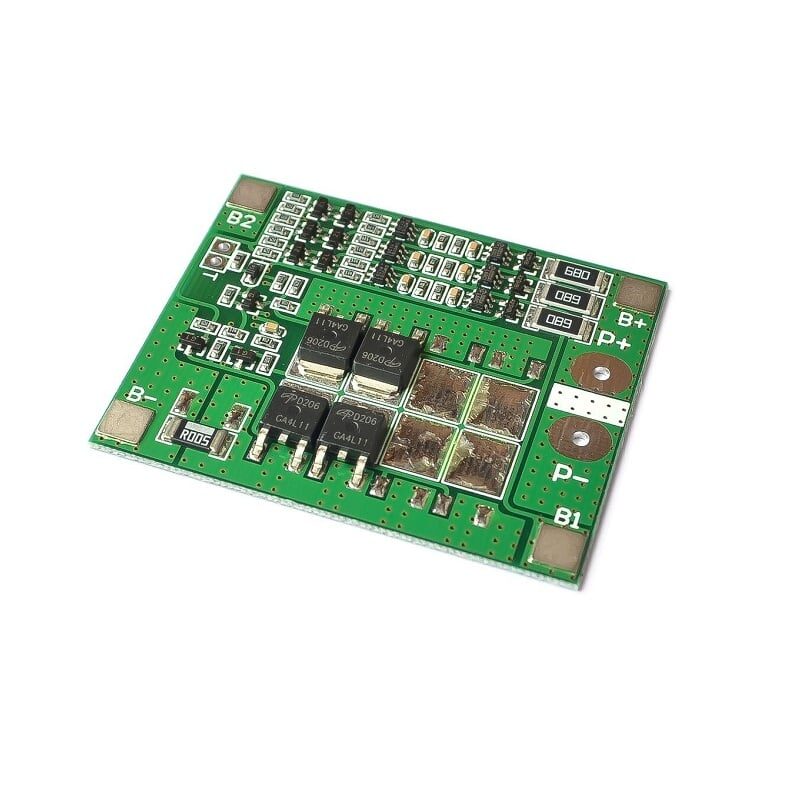

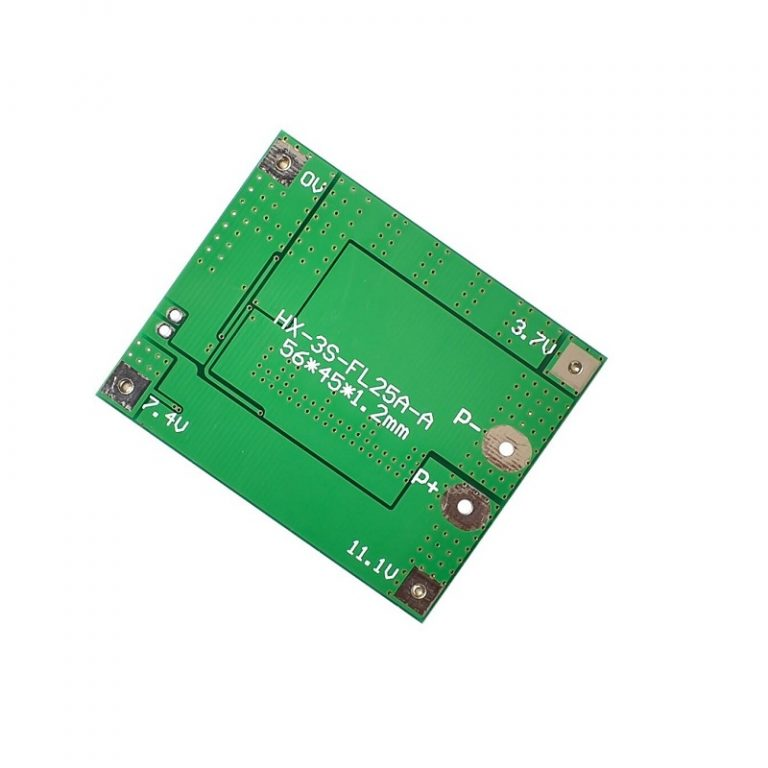

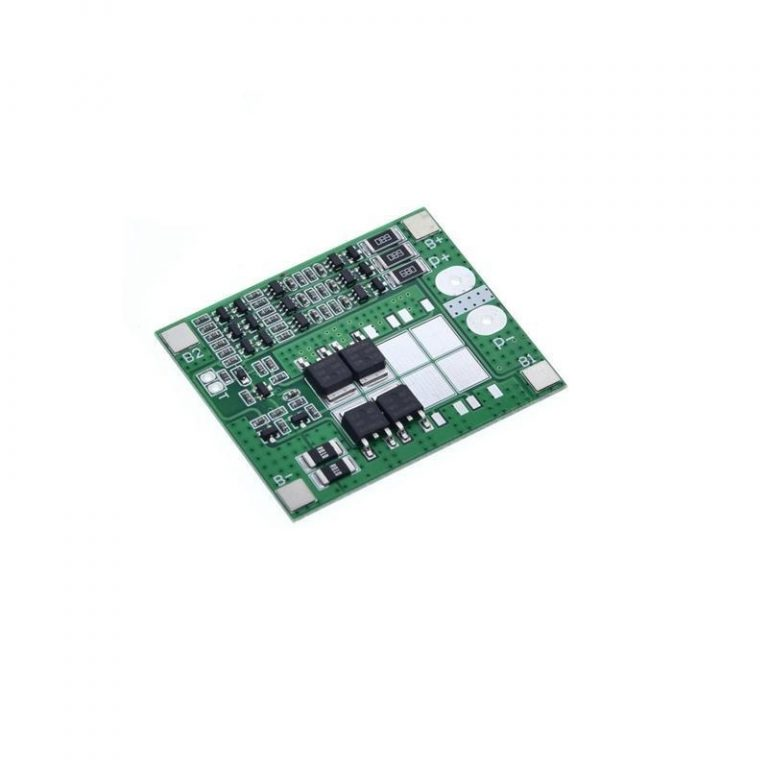

Note: Product Image May vary from actual product in terms of Model name and labels printed
Features:
- Overcharging and Over Discharging Protection
- Short circuit protection: Yes
- Applicable assembly: Nominal 3.7V Batteries / 3 strings.
Specification:
| Model | HX-3S-FL25A-A |
|---|---|
| Charging voltage range | 12V |
| Over-discharge recovery voltage | 2.5v ± 0.05v, |
| Over-Discharge-Delay-Time | 144ms
M |
| Maximum Working Current | 10A |
| Maximum Peak current | 20A |
| Static current | Less than 8uA |
| Resistance | Less than 4mΩ |
| Length (mm): | 56 |
| Width (mm) | 45 |
| Height (mm) | 2 |
| Weight (gm) | 8 |
| Shipping Weight | 0.012 kg |
| Shipping Dimensions | 5 × 4 × 1 cm |
Package Includes:
1 x 3S 15A 18650 Lithium Battery Protection Board
3S 15A 18650 Lithium Battery Protection Board Overview
The 3S 15A 18650 Lithium Battery Protection Board is a compact BMS designed to safeguard a series pack of three 18650 lithium cells. It delivers reliable overcharge, over-discharge, overcurrent and short-circuit protection, ensuring your 3.7 V nominal batteries operate safely up to a 15 A continuous load.
Key Features of 3S 15A 18650 Lithium Battery Protection Board
- 3S Configuration: Supports three 18650 cells in series for up to 11.1 V nominal output.
- 15 A Continuous Current: Handles heavy-duty applications with steady 15 A discharge capability.
- Overcharge & Over-Discharge Protection: Prevents cell voltages from exceeding safe limits and stops deep discharge.
- Short-Circuit & Overcurrent Protection: Instant cutoff during fault conditions to protect batteries and load.
- Temperature Monitoring: Built-in safeguards against extreme cell temperatures.
- Genuine & Fast Shipping: Authentic component with quick dispatch across India from Zbotic.
Applications and Use Cases
- DIY portable power banks and battery packs for camping or fieldwork.
- Custom RC vehicles and small robotics projects requiring stable 11–12 V supply.
- LED lighting modules and emergency lighting with consistent current draw.
- Backup power for routers, sensors or low-power communication equipment.
- 3D printer hotend or bed heating circuits needing regulated battery backup.
- Solar garden lights and off-grid micro-energy storage assemblies.
How to Use 3S 15A 18650 Lithium Battery Protection Board

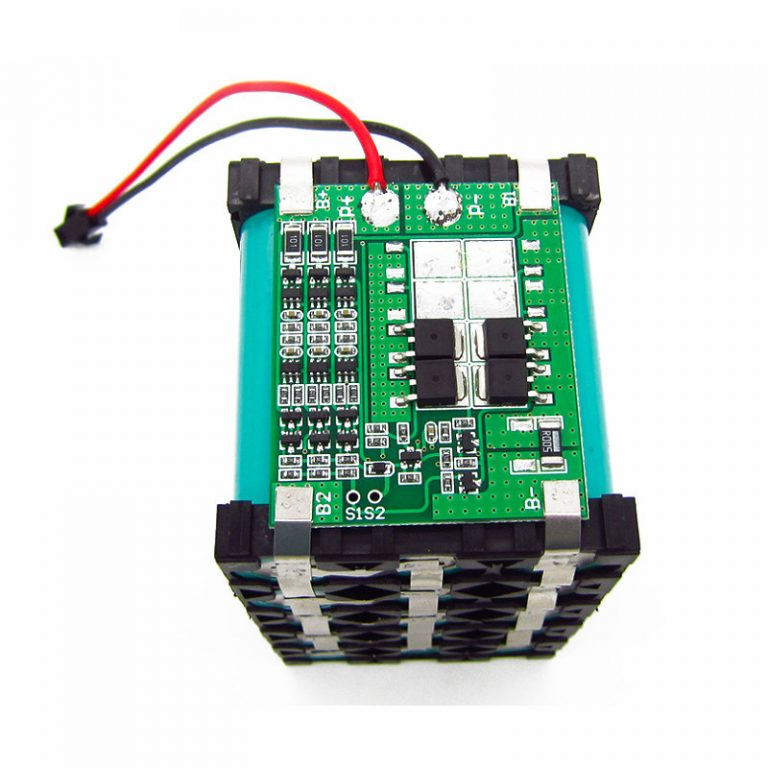

First, assemble three matched 18650 cells in series and connect their junction points to the board’s B1, B2 and B3 terminals. Attach the pack positive and negative leads to P+ and P–, then wire your charger or load to the same outputs. Ensure correct polarity, secure all connections, and insulate exposed contacts before operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I charge the battery pack at 15 A?
While the board handles up to 15 A discharge, charging current should match the cells’ recommended C-rate (typically 0.5–1C). Use a regulated charger set for 3S Li-ion and adjust current below 15 A to ensure safe charging.
Are all 18650 cells compatible?
Yes, you can use any standard 18650 cells of similar capacity and chemistry. For balanced performance and safety, choose high-quality cells with matching voltage and capacity from the same manufacturer.
How do I know if the board is working correctly?
After wiring, the board’s internal circuits will allow normal charge/discharge. If an overcurrent, overvoltage or short occurs, it will instantly disconnect. Test by applying a normal load and verifying uninterrupted power, then simulate an overvoltage to confirm cutoff.
