Looking for 30a Esc? 30A BLHELI ESC is available at Zbotic with fast shipping across India.

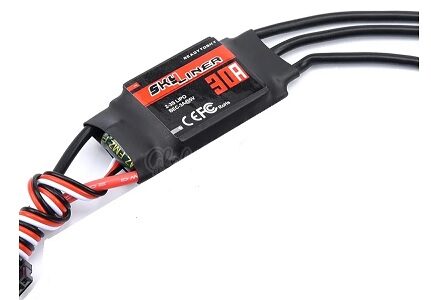

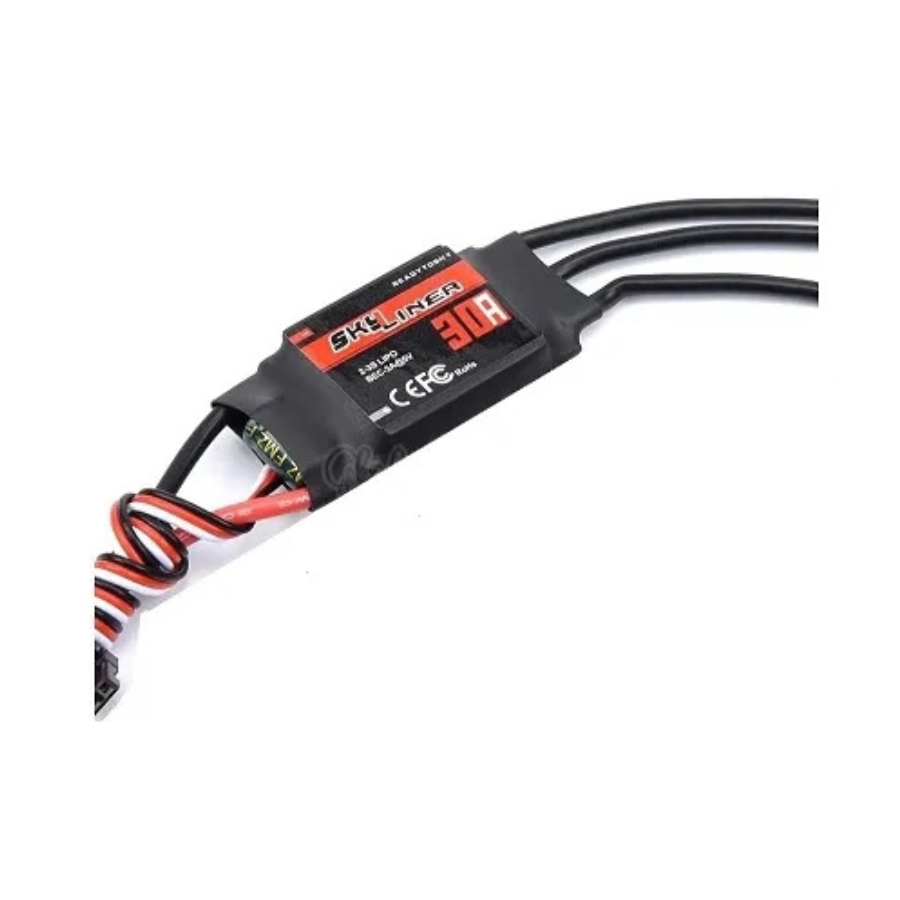

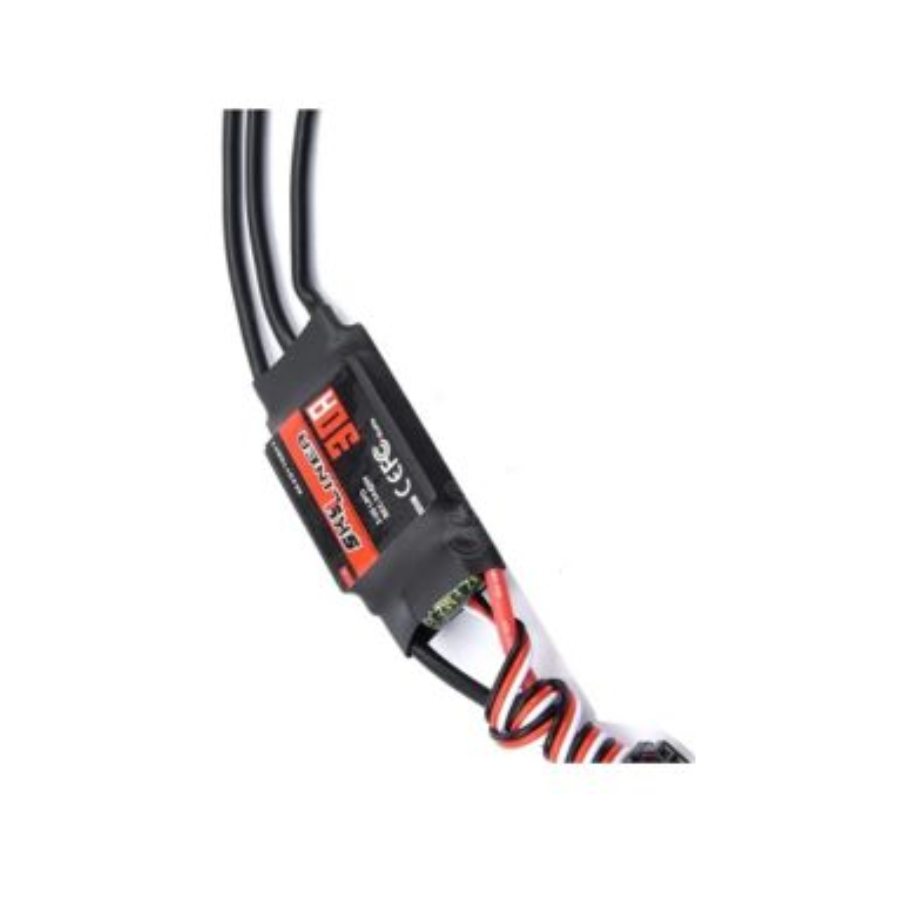

30A BLHELI ESC
High-quality components ensure the reliability and superior performance of the SkyWalker series of aircraft ESCs. The inclusion of multiple protection features, such as abnormal input voltage, ESC thermal overload, throttle signal loss (Fail Safe), and low voltage cutoff, significantly extends the ESC’s lifespan.
Features:
- High Quality & Reliability
- Programmable Parameters
- Multiple Protections
Specification:
- Brushed/Brushless: BL
- Cont./Peak Current: 30A/40A
- Input: 2-3S LiPo
- BEC Output: Linear mode:5V,2A
- Input Wires: Red-18AWG-100mm*1, Black-18AWG-100mm*1
- Output Wires:Black-18AWG-75mm*3
- Input Connectors: 3.5 Gold Connectors (Female)
- Output Connecotors: No
- LED Program Card: Supported
- WiFi Module: Not Supported
- Size: 68.0×25.0×8.0mm
- Weight: 37g
Package Includes:
1 x 30A Blheli ESC
30A BLHELI ESC Overview
The 30A BLHELI ESC is a brushless electronic speed controller designed for 2-3S LiPo-powered multirotors and RC aircraft. With 30A continuous and 40A peak current handling, it delivers smooth throttle response and reliable power management for hobby and racing drones.
Key Features of 30A BLHELI ESC
- 30A continuous / 40A peak current rating for brushless motors
- Compatible with 2-3S LiPo batteries, supporting up to 11.1V input
- Built-in linear BEC output: 5V at 2A for flight controller and receiver
- Programmable via LED Program Card with BLHeli firmware
- Multiple protection circuits: input over-voltage, thermal overload, throttle signal loss (failsafe), low-voltage cutoff
- Robust wiring: Red/Black 18AWG 100mm input leads with 3.5mm gold female connectors; Black 18AWG 75mm motor leads
- Fast shipping from Zbotic across India
Applications and Use Cases
- 250–350 size FPV racing quads running 2S or 3S LiPo packs
- Lightweight aerial photography drones requiring precise speed control
- DIY multicopter builds for hobbyists and university projects
- Fixed-wing RC planes with brushless outrunner motors
- Robotics platforms needing compact high-current motor drivers
How to Use 30A BLHELI ESC
Mount the ESC in a well-ventilated area on your airframe, solder or mate the 3.5mm gold connectors to your 2-3S LiPo battery, and attach the three motor leads to your brushless motor. Connect the throttle signal cable to your flight controller or receiver, then power up the system to perform throttle calibration and program any timing or braking features using the LED Program Card.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use this ESC with a 4S LiPo battery?
No. This 30A BLHELI ESC is rated for 2S–3S LiPo input (up to 11.1V). Using a 4S pack may damage the ESC and void any warranty.
Does the ESC come with motor connectors installed?
No. The three black 18AWG output wires are bare leads. You can solder your preferred bullet connectors or directly solder to your brushless motor tabs.
How do I adjust parameters like timing or brake?
Use an LED Program Card compatible with BLHeli firmware. Plug the ESC’s signal wire into the card, navigate the menu by tapping the ESC, and set timing, PWM frequency, brake, and other options.
Drone Obstacle Avoidance: Optical Flow and Lidar Sensors Explained
Table of ContentsIntroductionWhat Is Drone Obstacle Avoidance?Optical Flow Sensors: How They WorkLidar Sensors for DronesOptical Flow vs Lidar:...
Read More →
How to Get a DGCA Drone Pilot License in India (2026)
How to Get a DGCA Drone Pilot License in India (2026) India's drone sector has exploded over the...
Read More →
How to Fix Drone ESC Beeping Errors After Arming: Complete Troubleshooting Guide
You have assembled your drone, connected your battery, armed the flight controller — and instead of the clean,...
Read More →Technical Specifications
| Current Rating | 30A |
|---|---|
| SKU | AI1159 |
| Weight | 0.012 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 30A BLHELI ESC (ESC) Drone Speed Controller is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
