Pin Definitions:
- VCC: Voltage Supply (5V)
- GND: Ground
- L: Signal from the left infrared sensor (high / low)
- C: Signal from the center infrared sensor (high / low)
- R: Signal from the right infrared sensor (high / low)
Features:
- Three-channel tracking sensors, essential for Arduino DIY Robot Projects.
- Utilizes infrared light detection with anti-jamming capability.
- Incorporates CTRT5000 sensor for reliable performance.
- Adjustable sensitivity for fine-tuning according to project requirements.
- Stable performance even in varying environmental conditions.
- Working voltage: 5V
- Equipped with lights for better visibility.
- Fixed bolt hole for easy installation.
Specifications:
| Specification | Details |
|---|---|
| Working Voltage | 5V |
| Number of Channels | 3 (Left, Center, Right) |
| Sensor Type | CTRT5000 (Infrared) |
| Detection Method | Infrared light detection |
| Anti-Jamming Capability | Yes |
| Sensitivity | Adjustable |
| Stability | Stable performance |
| Indicator | Equipped with lights for visual indication |
| Mounting | Fixed bolt hole for easy installation |
| Compatibility | Arduino, AVR, ARM, PIC, etc. |
This module is ideal for projects requiring precise line tracking functionality, such as maze-solving robots, line-following robots, or any application where accurate navigation based on line detection is necessary.
Package Includes:
1 x 3 Channel Path Tracing Module
Tutorial:
https://www.scribd.com/document/427777824/3way-Line-Tracker-Sensor-Tutorial
3 Channel Path Tracing Module Overview

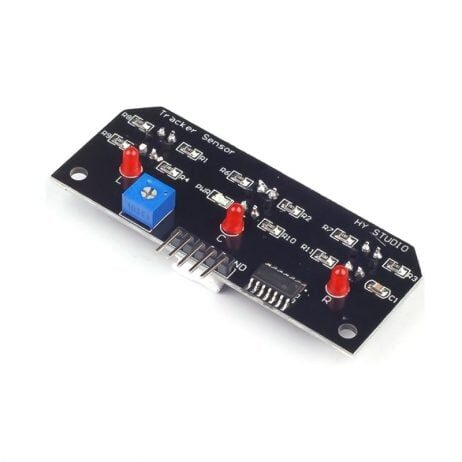

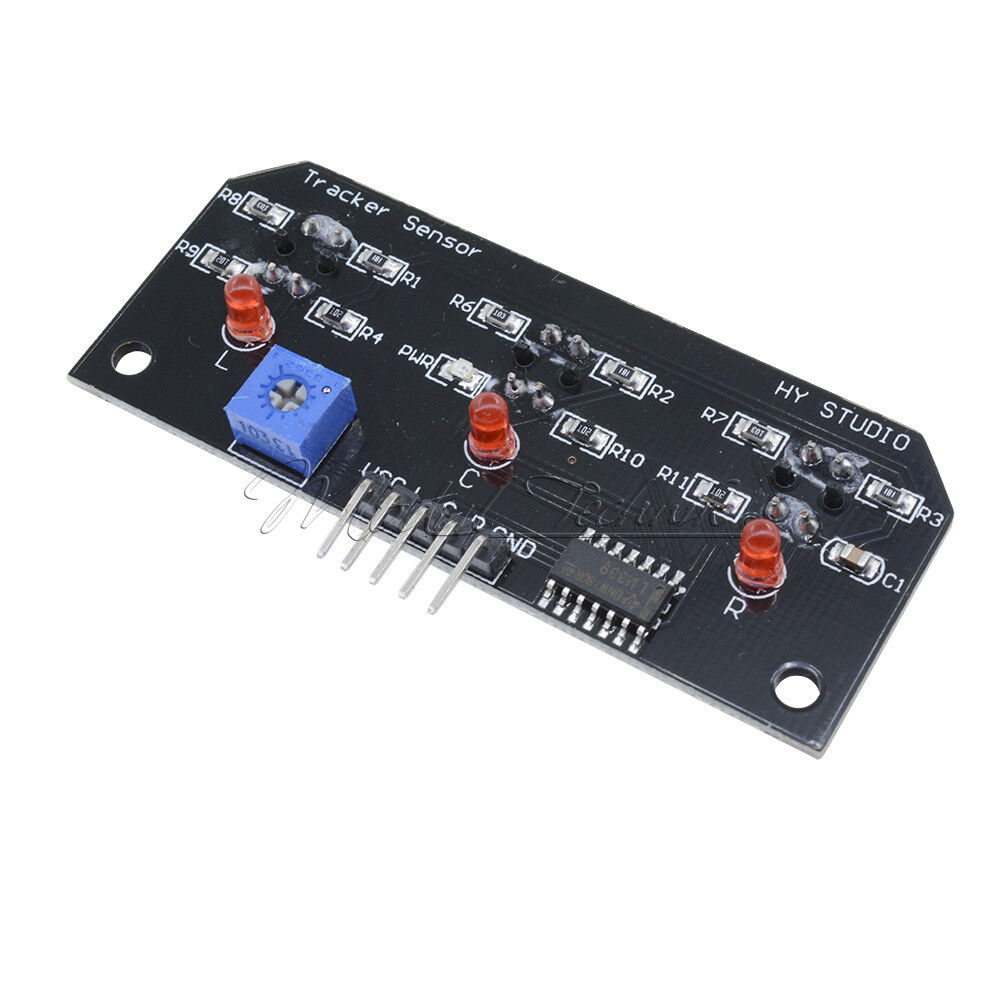

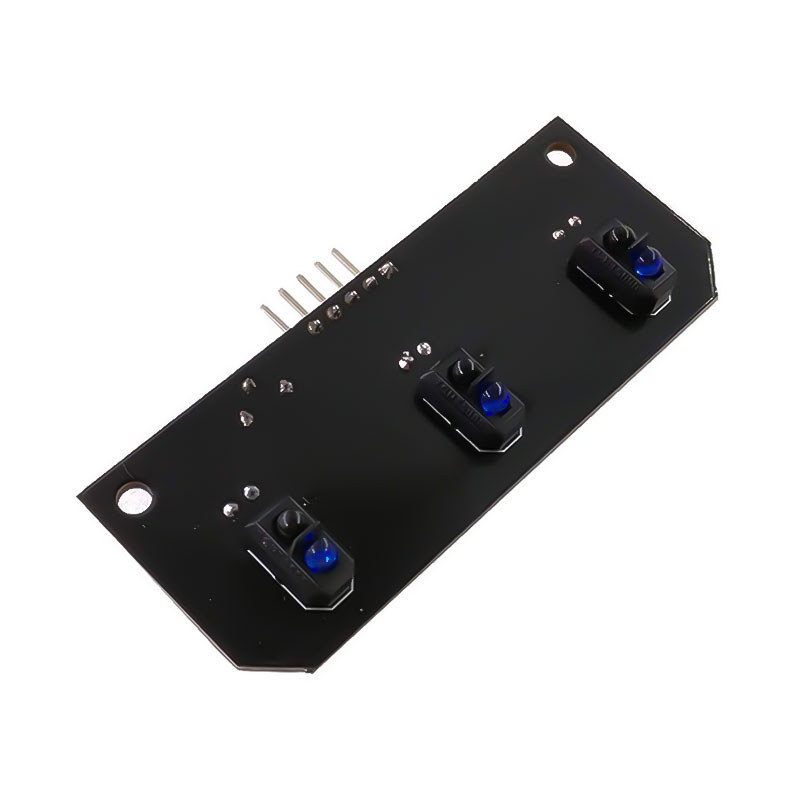

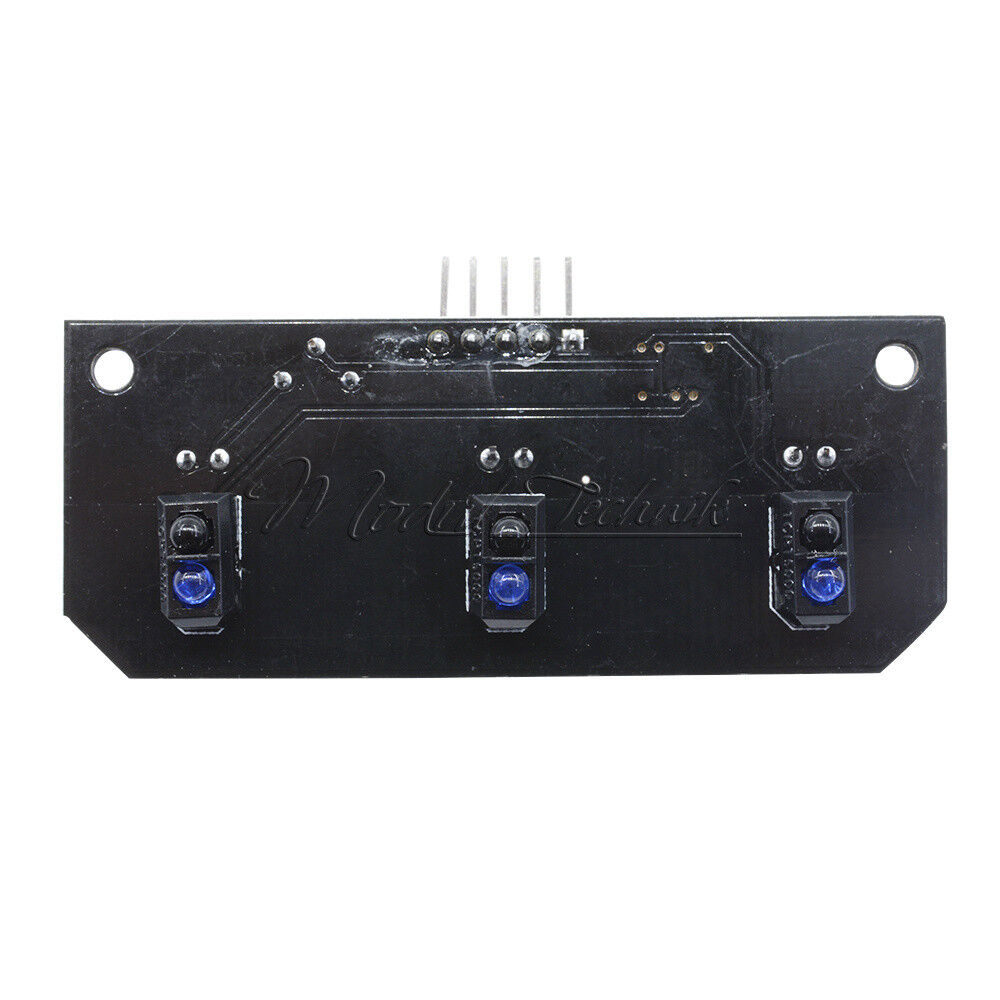

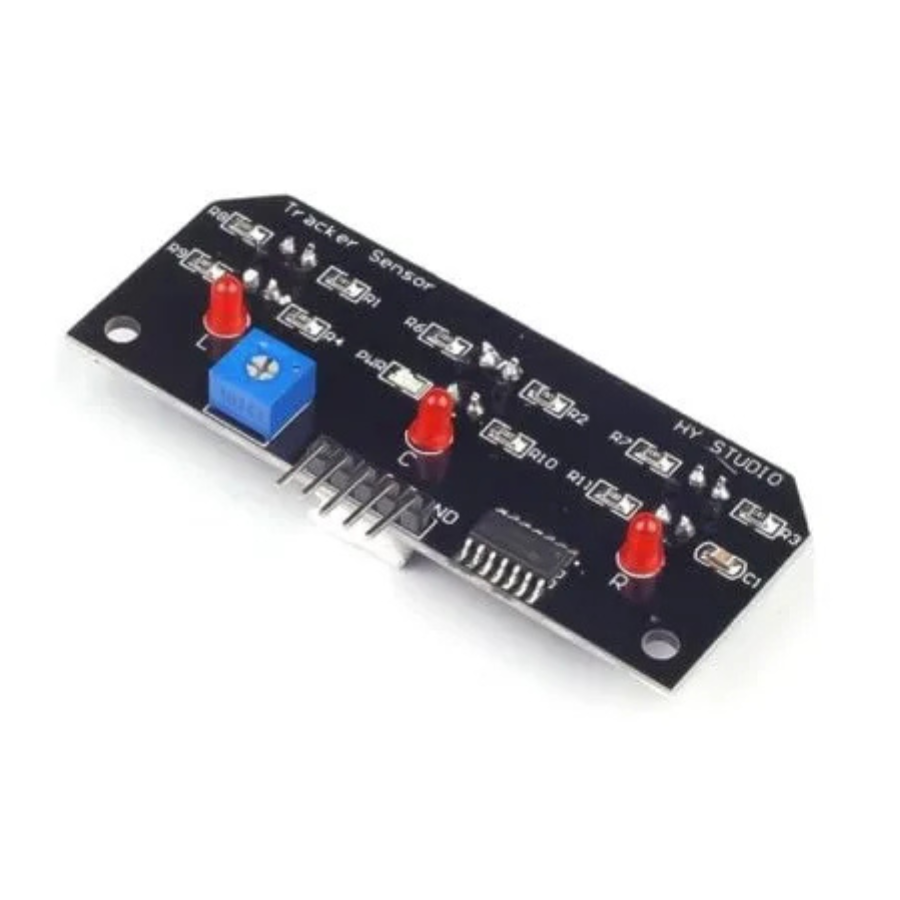

The 3 Channel Path Tracing Module is an infrared line-tracking sensor assembly featuring left, center and right CTRT5000 detectors. Designed for 5V microcontroller platforms like Arduino, AVR, ARM and PIC, it enables precise path detection in robotics and automation projects.
Key Features of 3 Channel Path Tracing Module
- Three independent infrared sensors (Left, Center, Right) for accurate line tracking
- CTRT5000 sensor elements with anti-jamming capability for stable performance
- Adjustable onboard sensitivity potentiometers to fine-tune detection thresholds
- 5V operating voltage compatible with Arduino, AVR, ARM and PIC development boards
- Simple pinout (VCC, GND, L, C, R) for straightforward integration
- Genuine product, fast shipping from Zbotic within 24 hours (non-backordered items)
Applications and Use Cases
- Line-following robots for educational and hobbyist competitions
- Automated guided vehicles (AGVs) for warehouse path navigation
- Maze-solving robot projects requiring multi-channel feedback
- Conveyor belt lane detection and object sorting systems
- Edge-detection and boundary monitoring in mobile platforms
How to Use 3 Channel Path Tracing Module
Connect VCC to your 5V rail and GND to ground, then wire the L, C and R output pins to your microcontroller’s digital inputs. Adjust each channel’s potentiometer while observing output LEDs or serial readings to set the ideal threshold for your surface contrast. Use simple digitalRead() logic or interrupt routines to respond when a sensor detects or loses the line.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I connect the module to an Arduino?
Wire VCC to the Arduino’s 5V pin, GND to GND, and the L, C, R outputs to three digital input pins. In your sketch, use digitalRead() on those pins to detect high/low states when the sensors cross a line.
How can I adjust the detection sensitivity?
Each channel has a small potentiometer next to the sensor. Turn the screw clockwise to increase sensitivity (detect lighter lines) or counterclockwise to decrease it, then test on your surface until the output toggles reliably.
Will ambient light affect the sensors?
The CTRT5000 elements include anti-jamming design to reduce interference from ambient infrared sources. For best results, perform calibration in your operating environment and cover the module from direct sunlight.
