PRODUCT DESCRIPTION

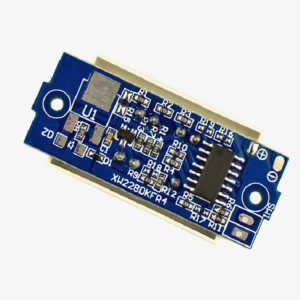

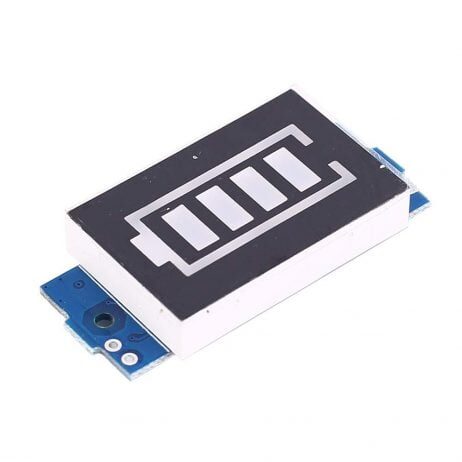

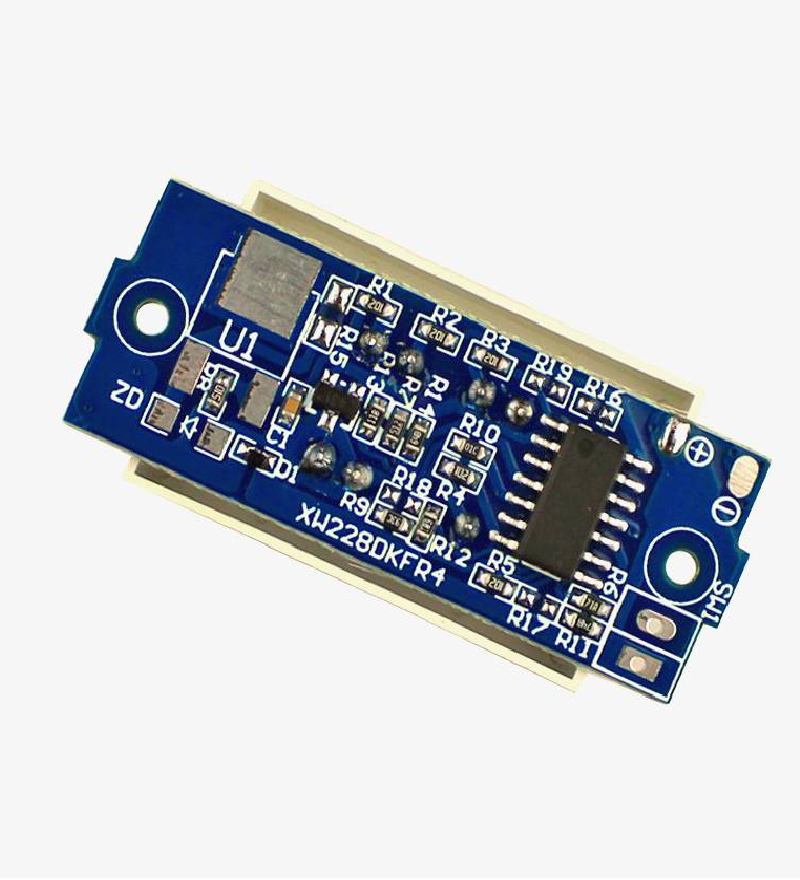

This battery capacity indicator module features an intuitive and aesthetically pleasing display. It is versatile, suitable for a broad array of applications including nickel-metal hydride batteries, 18650 and polymer lithium battery packs, lead-acid storage, and electric vehicle batteries. The module is equipped with a reverse connection protection function, ensuring it won’t burn out if connected incorrectly. To operate, simply connect the display board’s positive and negative terminals to the corresponding terminals of the battery being tested. The digital tube will then show the battery’s real-time power level.
Features:
- Battery type of electricity quantity display.
- Wide application fields: lithium battery.
- Using Method: connect display board positive and negative port with tested battery positive.
and negative port, the digital tube will display real-time battery electricity quantity. - Digital Color: outline red, display block blue (when the battery electricity quantity is full, it will be all on).
Package Includes:
1 x Li-po Lithium Battery Capacity Indicator Module
Power Distribution Board: Clean Wiring for Projects
Table of ContentsWhat Is a Power Distribution Board Designing for Multiple Voltages PCB Layout Best Practices Using Terminal...
Read More →
USB Power Bank Circuit: Build with TP4056, MT3608 & 18650
USB Power Bank Circuit: Build with TP4056, MT3608 & 18650 A USB power bank circuit DIY is one...
Read More →
How to Build a Custom Battery Pack (18650 & LiPo)
Building a DIY battery pack from 18650 cells or LiPo pouches is one of the most rewarding projects...
Read More →Technical Specifications
| Cell Configuration | 2S |
|---|---|
| SKU | AI3454 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 2S 18650 Li-po Lithium Battery Capacity Indicator Module is a versatile lipo voltage checker used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
