PRODUCT DESCRIPTION

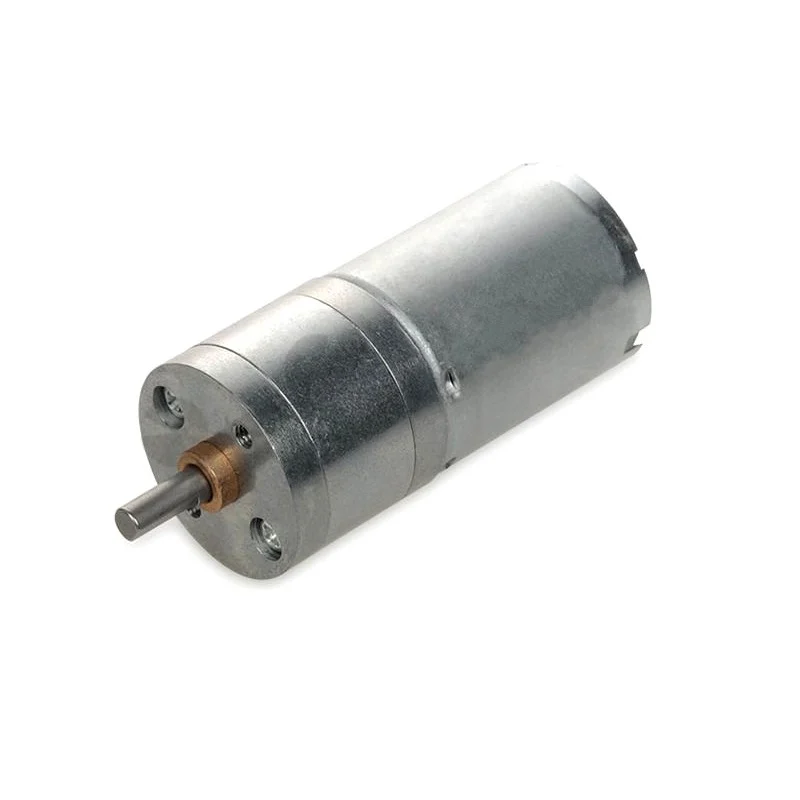

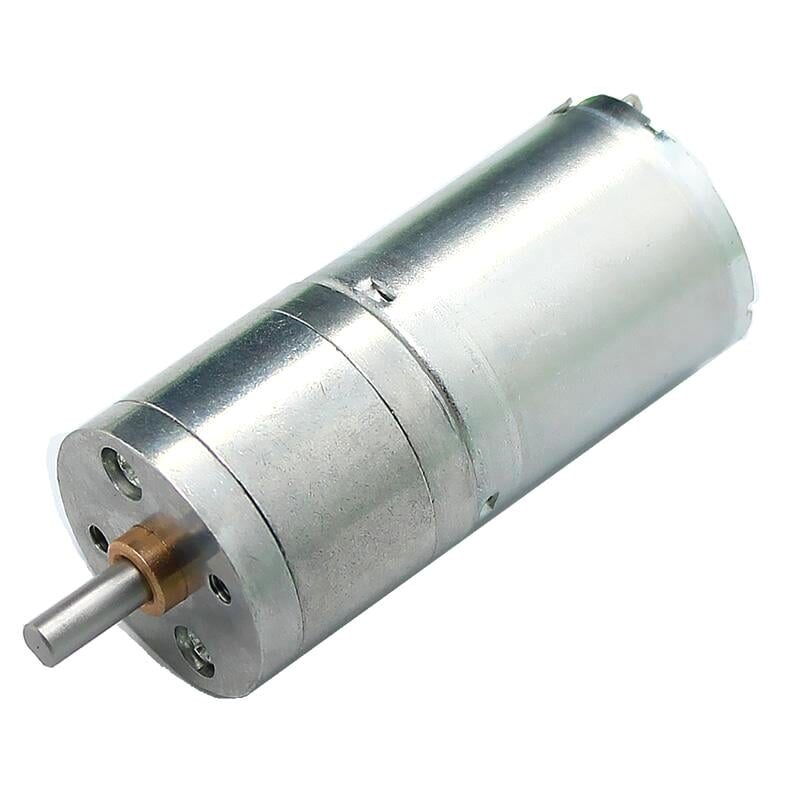

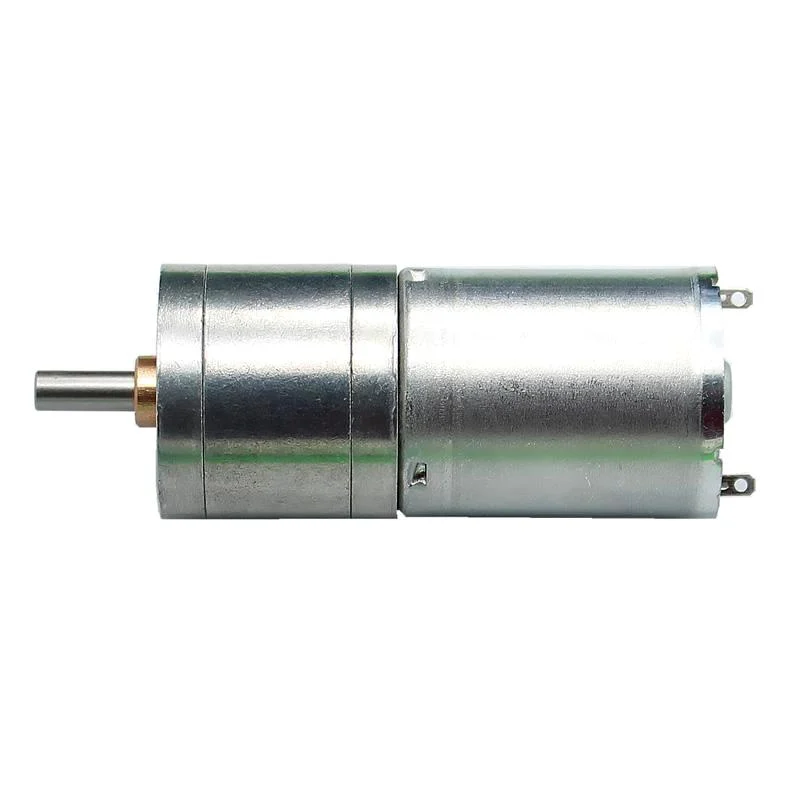

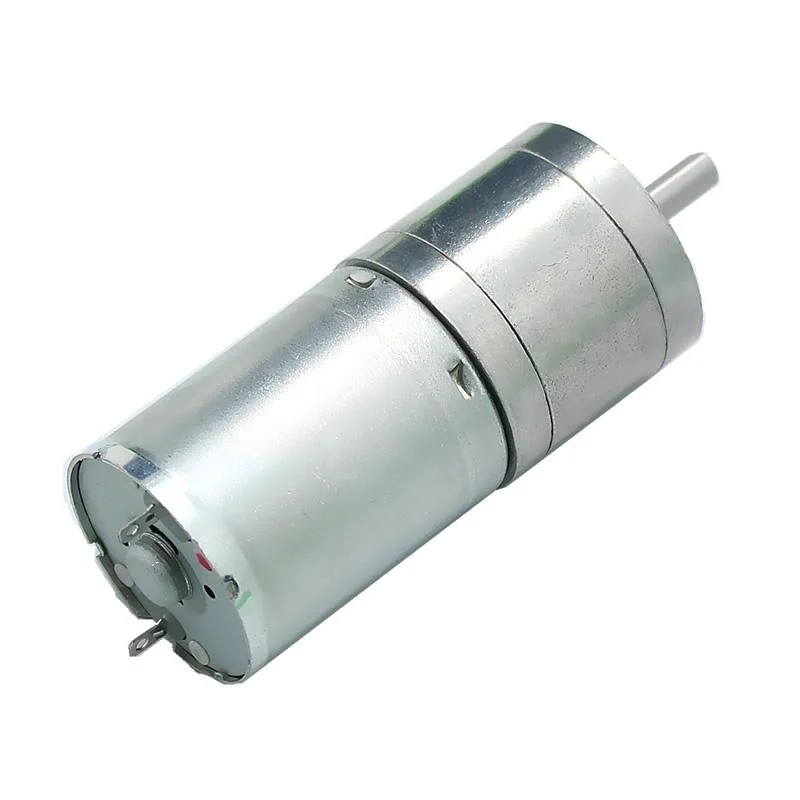

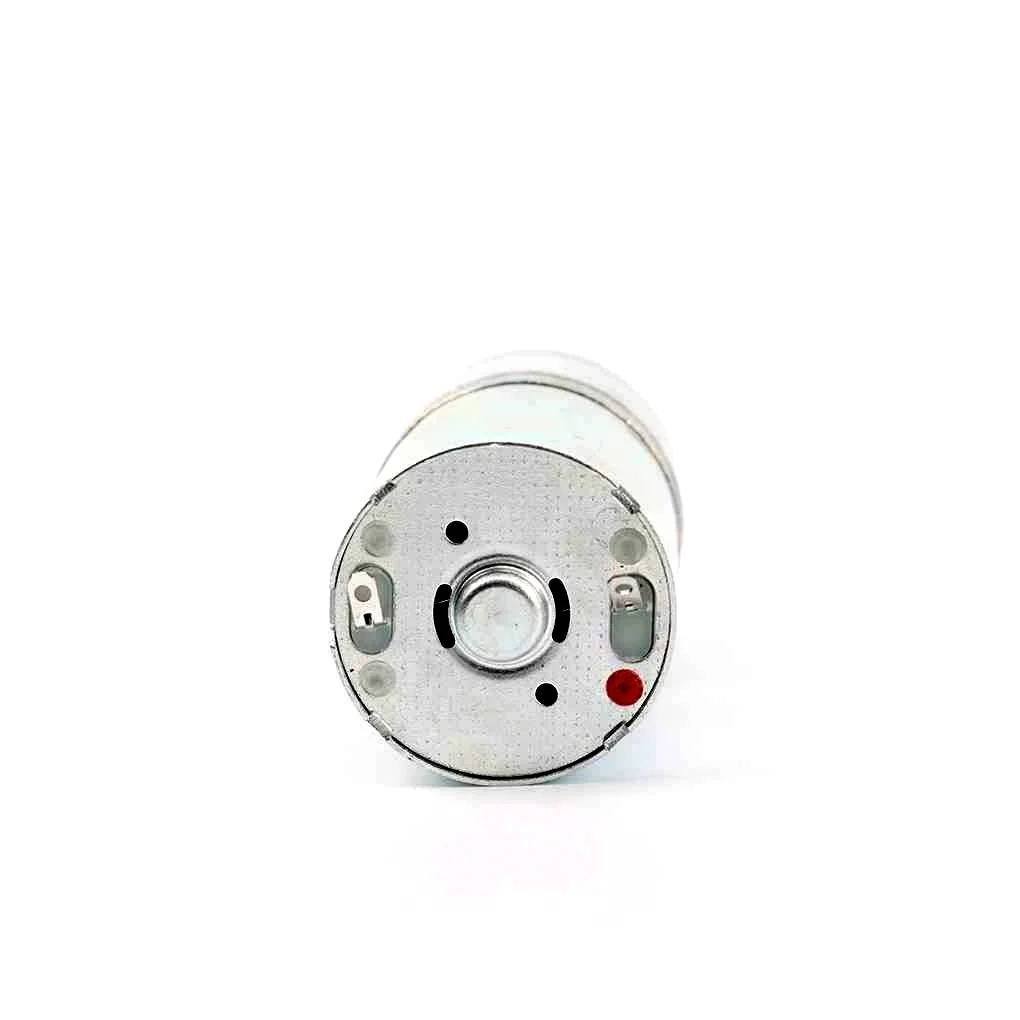

The GA25-370 DC Gear motor is an easy-to-mount device that is ideal for building robots. It offers various configurations to meet different design requirements. The motor has a cylindrical shape with a 25 mm diameter, a 4 mm diameter shaft, and two terminal connectors.
The motor can produce high torque with low current consumption. It can replace damaged or rusty DC geared speed reduction motors on machines. It also operates with low noise and high durability.

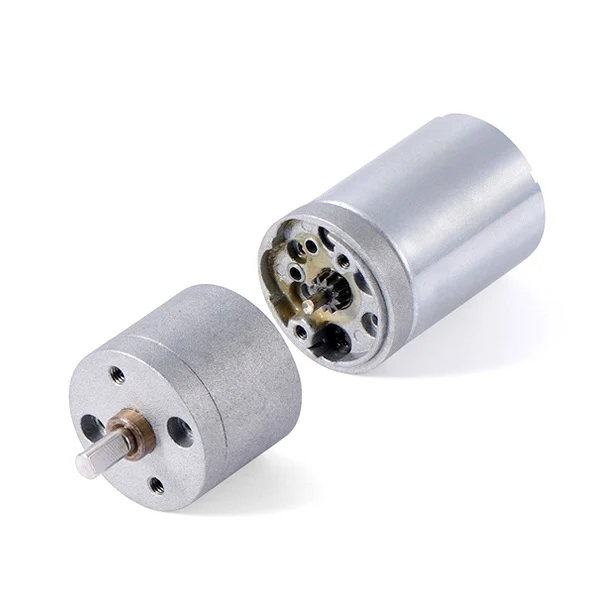

The motor runs on 24V DC and has a 25 mm diameter gearbox that matches the motor base. The gearbox contains metal gears and a center shaft. The motor shaft has a D-shape and a metal bush for smooth operation and wear resistance.
We highly suggest you this motor for the general-purpose automation projects requiring considerable torque range.
Features:Â
- It has a sturdy construction.
- Low Noise
- Shaft equips metal bushes for long life.
- Metal Gears for High performance
- It comes with High-Quality gears.
- High torque at very low Current Consumptions
Specification:
| Operating Voltage (VDC) | 24 |
|---|---|
| Load Current Max (mA) | 160 |
| No Load Current (mA) | 0.04 |
| Rated Speed (RPM) | 60 |
| Rated Torque(kg-cm) | 2 |
| Stall Torque(Kg-Cm) | 7.3 |
| Gear Material | Metal |
| Gearbox Diameter (mm) | 24 |
| Motor Diameter(mm) | 25 |
| Shaft Diameter (mm) | 4 |
| Shaft Length (mm) | 9.4 |
| Weight (gm) | 89 |
| Shipping Weight | 0.092 kg |
| Shipping Dimensions | 6 × 5 × 3 cm |
Package Includes:
1 x 25GA-370-24V-60 RPM DC Gear Motor
