PRODUCT DESCRIPTION

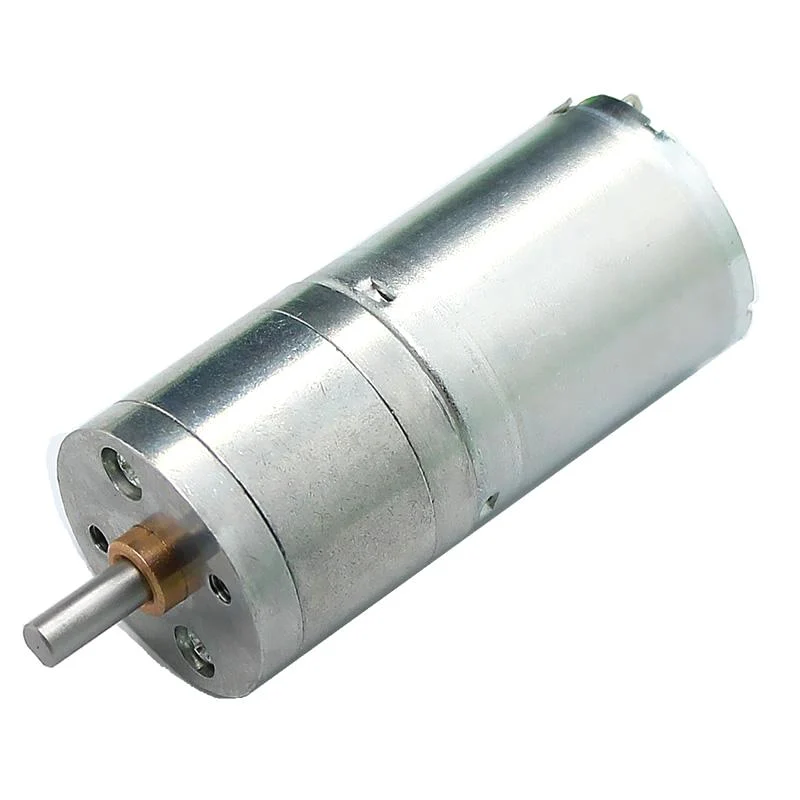

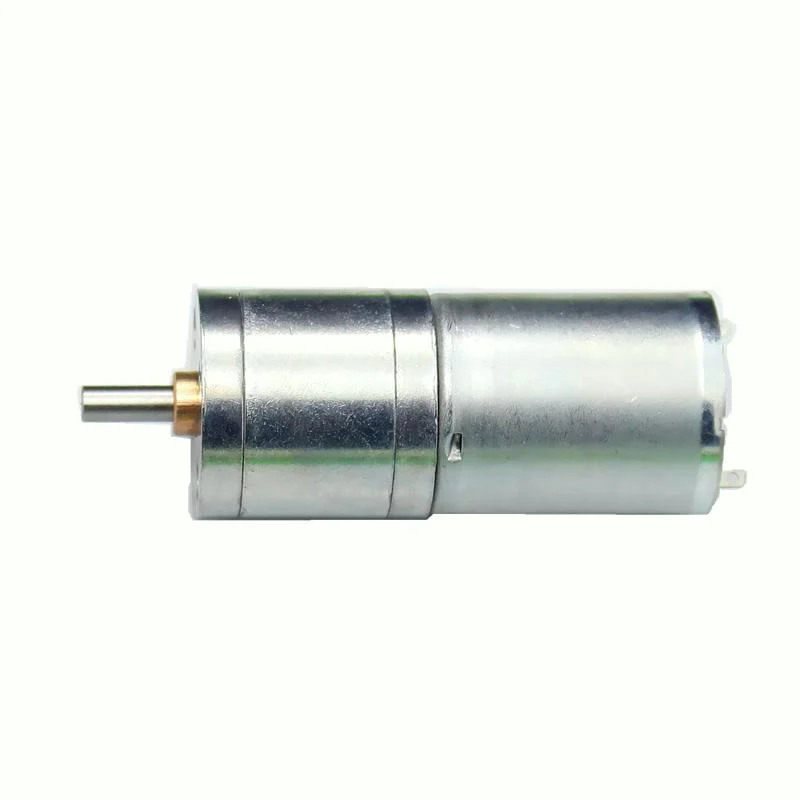

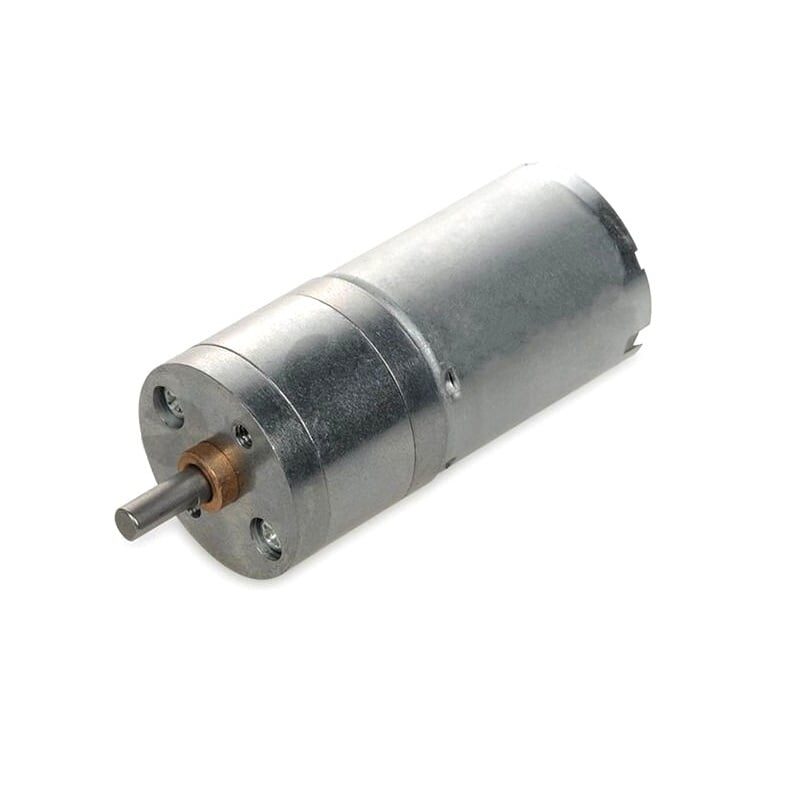

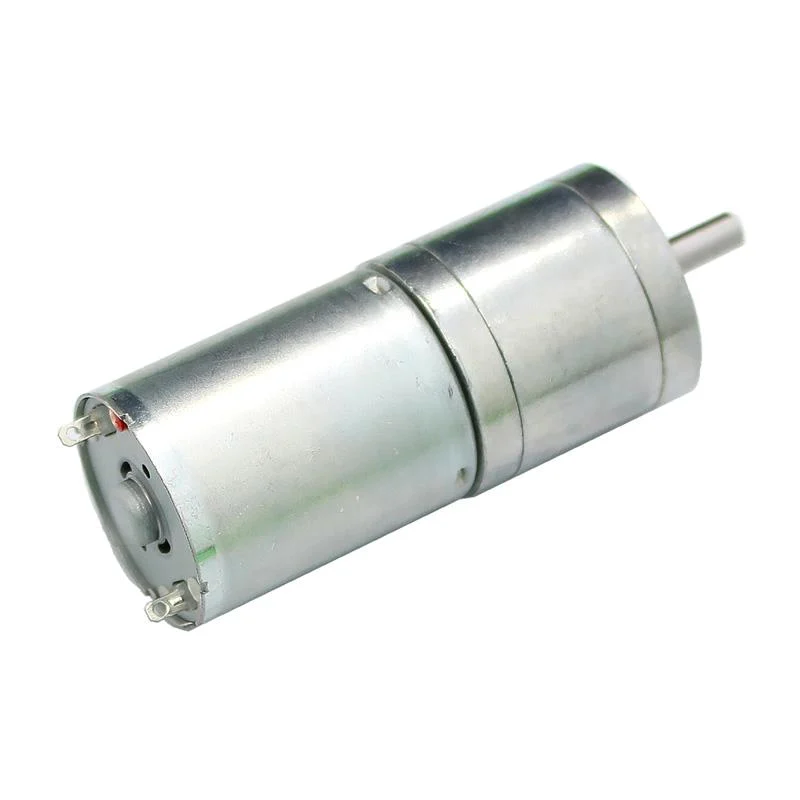

The GA25-370 DC Gear motor is an easy-to-mount device that is ideal for building robots. It has various configurations to suit different design needs. The motor has a cylindrical shape with a 25 mm diameter, a 4 mm diameter shaft, and two terminal connectors.
The motor can produce high torque with low current consumption. It can replace damaged or rusty DC geared speed reduce motors on machines. It also operates with low noise and high durability.

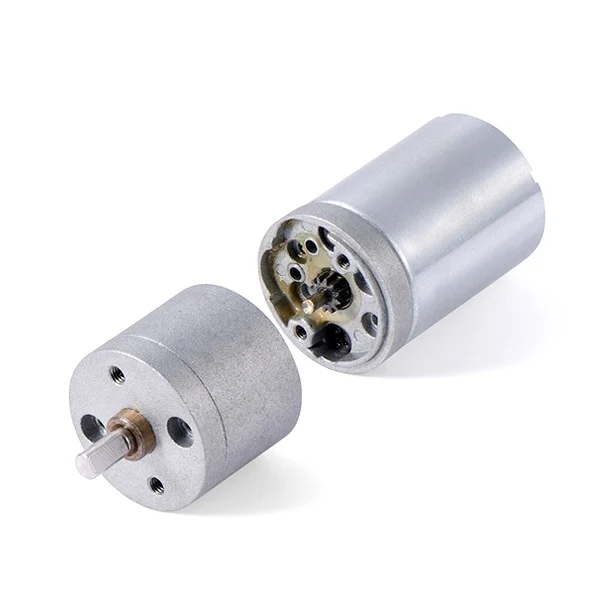

The motor runs on 12V DC and has a 25 mm diameter gearbox that matches the motor base body. The gearbox has metal gears and a centre shaft. The motor has a D-shape shaft with a metal bush for smooth operation and wear resistance.

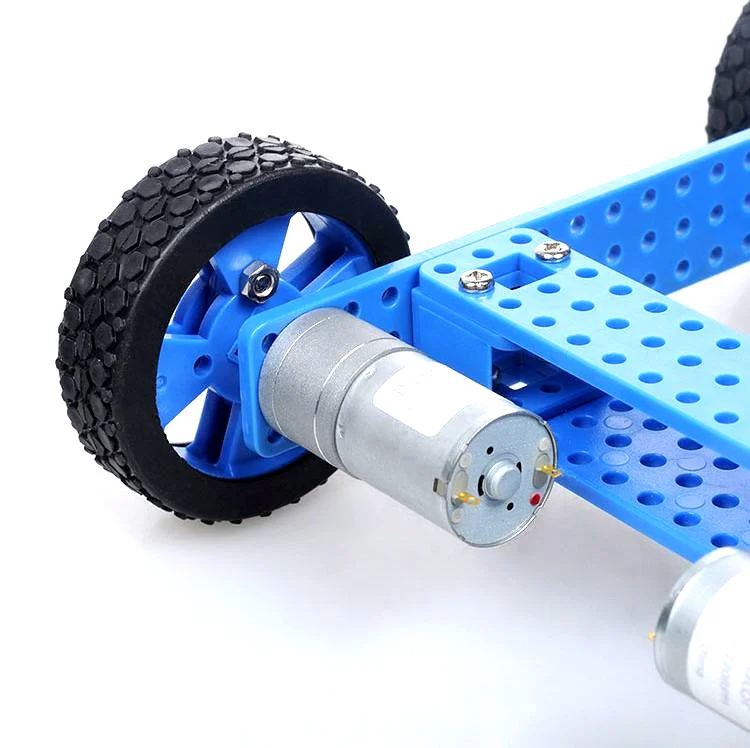

This motor is recommended for general purpose automation projects that require a considerable torque range.
Features:Â
- It has a sturdy construction.
- Low Noise
- Shaft equips metal bushes for long life.
- Metal Gears for High performance
- It comes with High-Quality gears.
- High torque at very low Current Consumptions
Specification:
| Gear Material | Metal |
|---|---|
| Rated Speed (RPM) | 60 |
| Operating Voltage (VDC) | 12 |
| Rated Torque(kg-cm) | 1 |
| Stall Torque(Kg-Cm) | 4 |
| Load Current Max (mA) | 240 |
| No-Load Current (mA) | 85 |
| Gearbox Diameter (mm) | 25 |
| Motor Diameter(mm) | 25 |
| Motor Length (mm) | 54 |
| Shaft Diameter (mm) | 4 |
| Shaft Length (mm) | 9.4 |
| Weight (gm) | 89 |
| Shipping Weight | 0.1 kg |
| Shipping Dimensions | 6 × 3 × 3 cm |
Package Includes:
1 x 25GA-370 12V/60RPM DC Gear Motor.
