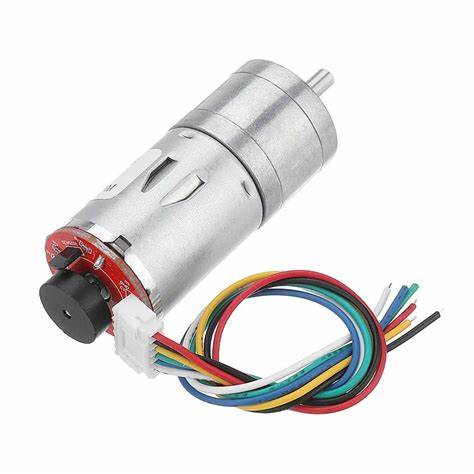

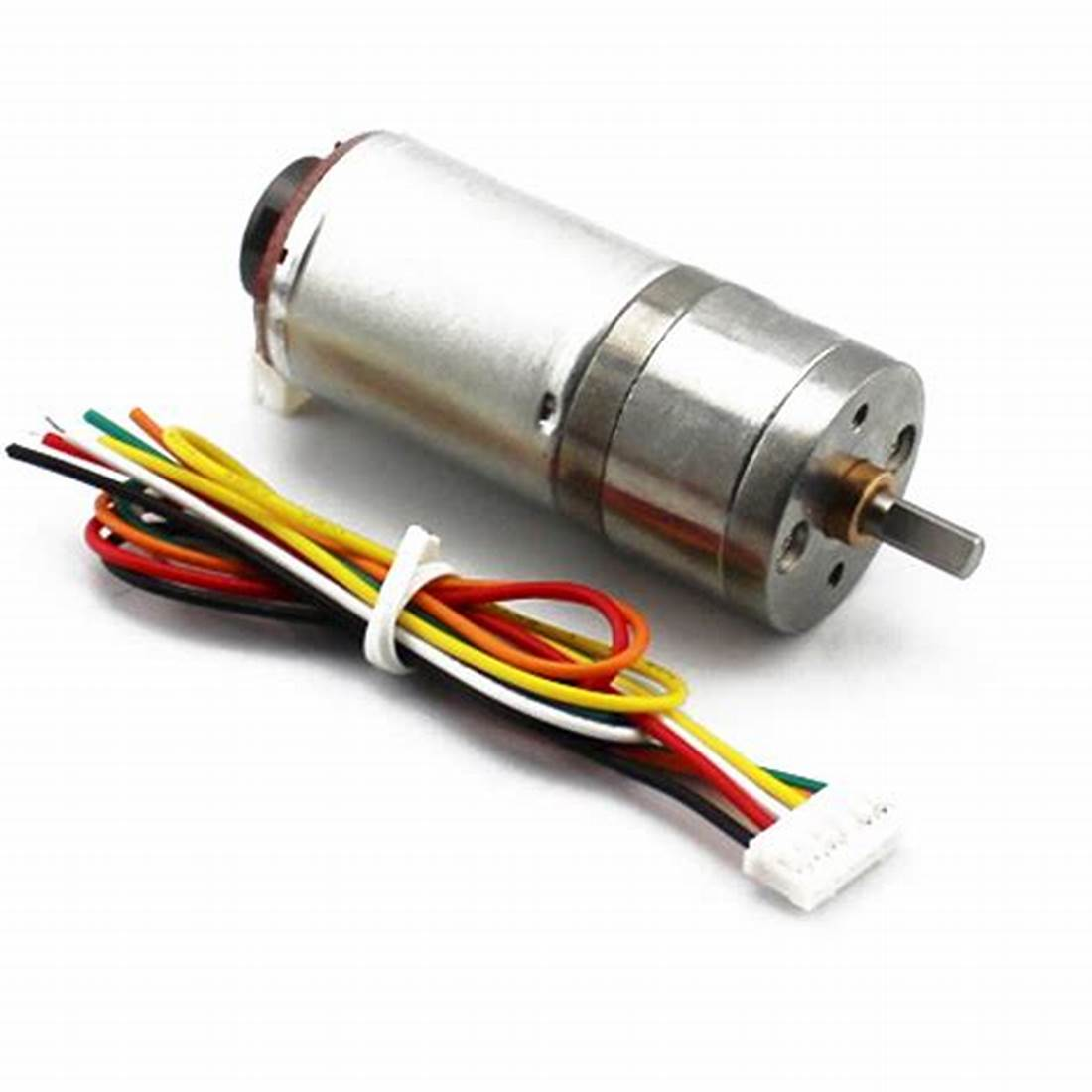

25GA-370 12V 400RPM DC Reducer Gear Motor with Encoder

This is the Red variant of the 25GA-370 12V 400RPM DC Reducer Gear Motor with Encoder in 25GA motor. Available at ₹610.06 (₹517.00 + GST) with free shipping across India.

Looking for 12v Gear Motor? 25GA-370 12V 400RPM DC Reducer Gear Motor with Encoder is available at Zbotic with fast shipping across India.

25GA-370 12V 400RPM DC Reducer Gear Motor with Encoder

The 25GA-370 12V 400RPM DC Reducer Gear Motor with Encoder is a versatile and powerful motor suitable for a wide range of applications. With its 12V DC voltage requirement and 400 revolutions per minute (RPM) speed, this motor provides efficient and precise motion control.

Equipped with an encoder, this motor allows for accurate position feedback, enabling precise control over motor movement. This feature makes it ideal for applications where precise motion control is essential.

The motor’s compact cylindrical shape, standard shaft diameter, and included encoder enhance its compatibility and ease of use in various projects. Whether it’s used in robotics, automation systems, CNC machines, or other applications requiring controlled motion, the 25GA-370 12V 400RPM DC Reducer Gear Motor with Encoder offers reliability and performance.

Additionally, the motor’s high torque output and low current consumption make it suitable for demanding tasks while ensuring efficient power usage. Overall, this motor is a dependable choice for projects requiring controlled and precise motion.

Wirings:

Red Wire – positive power supply of +) (change positive and negative of motor the rotation will change)

White Wire – negative power supply of -) (change positive and negative of motor the rotation will change))

Yellow Wire – signal feedback (motor one turn has 11 signals)

Green Wire – signal feedback (motor one turn has 11 signals)

Blue Wire – positive of encoder power supply(+) (3.3-5V), cannot be wrong.

Black Wire – negative of encoder power supply(-) (3.3-5V), cannot be wrong.

Specification:

Voltage: DC 12V

Retarder Reduction Ratio: 1:110

Specification Material: Metal

No-load current: 50mA

Locked-rotor current: 1A

Load Speed : 280RPM

No-load speed: 400rpm

Suitable Voltage: 6-12V(32-64rmp)

Reduction Ratio: 1:110

Weight: 74G

L = 19mm

Package Include:

1 x 25GA-370 12V 400RPM DC Reducer Gear Motor with Encoder

25GA-370 12V 400RPM DC Reducer Gear Motor with Encoder Overview

The 25GA-370 12V 400RPM DC Reducer Gear Motor with Encoder is a compact, metal-geared motor delivering a no-load speed of 400 RPM at 12 V. Its integrated encoder provides precise position feedback, making it ideal for applications requiring controlled motion and accurate speed regulation.

Key Features of 25GA-370 12V 400RPM DC Reducer Gear Motor with Encoder

• 12 V DC operation with a no-load speed of 400 RPM and load speed of 280 RPM
• High reduction ratio of 1:110 for increased torque output
• Built-in incremental encoder for accurate position and speed feedback
• Low no-load current draw of 50 mA and locked-rotor current of 1 A
• Durable all-metal gearbox housing, weighing just 74 g
• Genuine product with fast shipping across India from Zbotic

Applications and Use Cases

• Precision robotics joints and linear actuators requiring closed-loop control
• Small automated conveyor systems for parts handling
• Pan-tilt camera mounts needing accurate position tracking
• Educational and hobbyist projects involving motor speed experiments
• Automated door locks or latches with feedback on shaft position

How to Use 25GA-370 12V 400RPM DC Reducer Gear Motor with Encoder

Mount the 25GA-370 motor securely using its standard mounting holes, connect the motor terminals to a 6–12 V DC power supply, and wire the encoder outputs to your controller’s digital inputs. Adjust your drive voltage to set speed and use pulse counts from the encoder to implement precise position or speed control in your application.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What reduction ratio does the 25GA-370 motor use?

This motor features a 1:110 gear reduction ratio, providing higher torque at lower shaft speeds and improved load-handling capability.

Can I run the motor at voltages below 12 V?

Yes, the 25GA-370 operates within 6–12 V DC. At 6 V, you can expect roughly half the no-load speed (around 200 RPM) and proportionally lower torque.

How do I interface the integrated encoder?

The encoder outputs incremental pulses on two channels. Connect its Vcc and GND to your controller’s 5 V and ground, then wire the A/B signal lines to digital input pins. Use interrupt routines to count pulses for accurate position and speed feedback.
