Looking for 20kg Digital Aluminium Servo? 20KG Digital Servo Aluminium Metal Gears Default 270 is available at Zbotic with fast shipping across India.

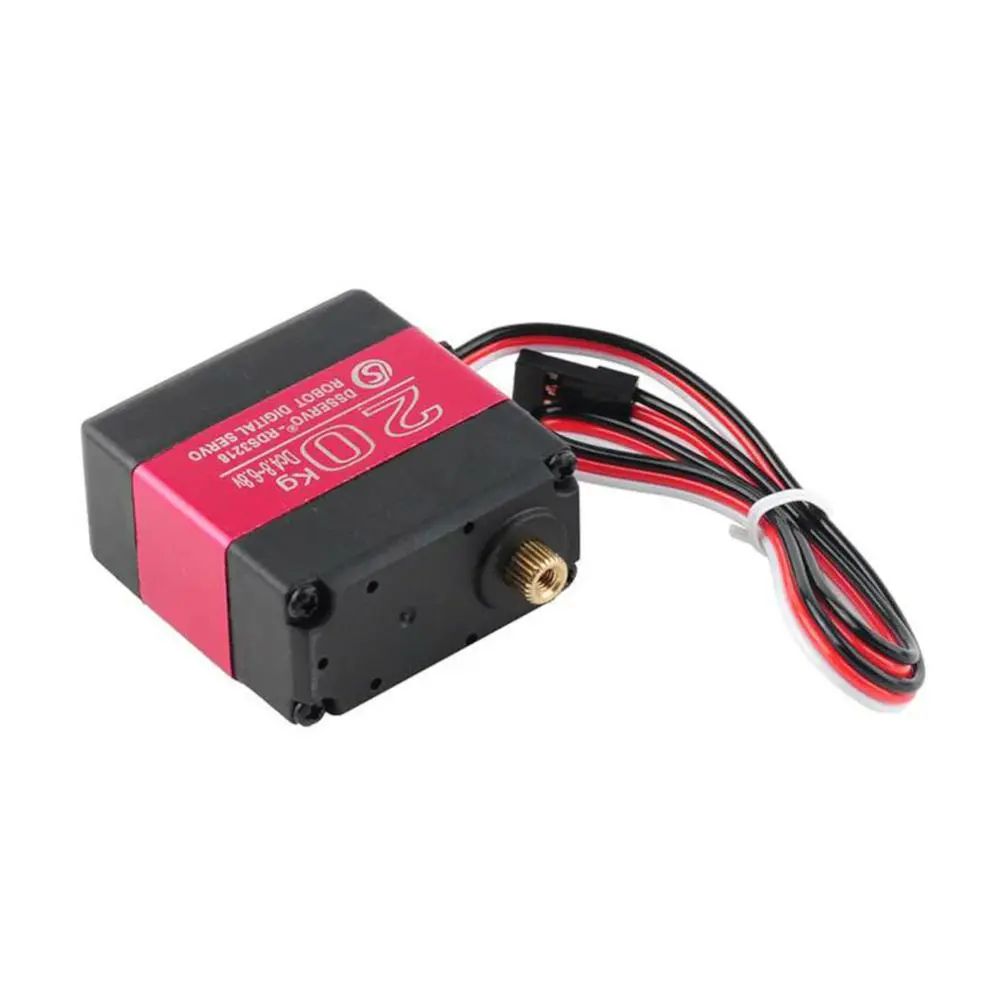

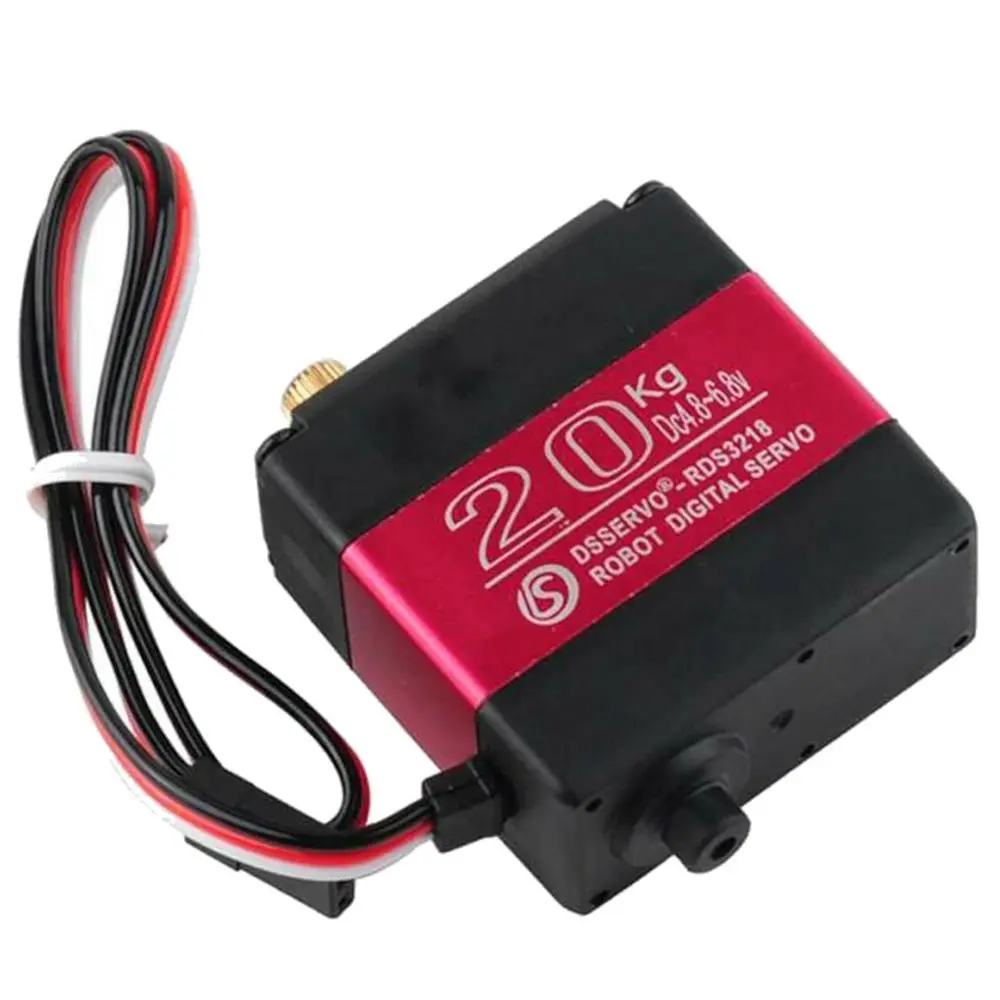

The 20Kg Digital Servo with Aluminum Metal Gears is designed for RC car enthusiasts. The RDS3218 Digital Servo offers 20KG of torque, a dual shaft, and a 270-degree rotation with a metal bracket. It is water-resistant and features high torque, metal gears, fast heat dissipation, sensitivity, and responsiveness. This high-quality servo is perfect for RC hobbyists, providing a unique and enjoyable experience.
Servo motors are ideal for applications requiring precise positional control. These servos rotate only 270 degrees, and the shaft can be adjusted to any angle using a PWM signal. They are user-friendly, requiring no external motor drivers or feedback sensors. Simply connect the servo motor to a microcontroller’s digital IO pin to start controlling it.
The servo also boasts high-precision metal gears with hard anodizing, a CNC aluminum middle shell, and waterproof rubber seals and screws.
Features:
- High-performance digital standard servo
- High-precision metal gears with hard anodizing
- CNC aluminum middle Shell
- Dual ball bearings
Specification:
- Operating Voltage: 4.8 ~ 6.8 DC Volts
- Stall Torque (5V): 19 kg/cm (263.8oz/in)
- Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
- Speed : 0.16 sec/60°(5V) / 0.14 sec/60°(6.8V)
- Dead band: 3μs
- Working frequency: 1520μs / 333hz
- Size:
- 40*20*40.5(servo)
- Weight:60g
1 x 20KG Digital Servo Aluminium Metal Gears Default 270
20KG Digital Servo Aluminium Metal Gears Default 270 Overview
The 20KG Digital Servo Aluminium Metal Gears Default 270 is a high-torque, precision-positioning servo designed for RC cars and robotic applications. Featuring aluminium metal gears, dual output shafts and a 270° rotation range, it delivers smooth, responsive control for steering, suspension and pan-tilt mechanisms.
Key Features of 20KG Digital Servo Aluminium Metal Gears Default 270
- High Stall Torque: 19 kg·cm at 5 V and 21.5 kg·cm at 6.8 V for heavy-load applications
- Fast Response: 0.16 s/60° at 5 V and 0.14 s/60° at 6.8 V for rapid position changes
- Durable Construction: Aluminium case and metal gears for enhanced heat dissipation and longevity
- Wide Rotation: 270° sweep with dual shafts and metal mounting bracket for versatile linkage setups
- Water-Resistant Design: Sealed internals to protect against splashes and light moisture
- Compact & Lightweight: 40 × 20 × 40.5 mm housing at just 78 g; fast shipping from Zbotic across India
Applications and Use Cases
- Steering and throttle control in 1/10–1/8 scale RC cars
- Pan-tilt camera rigs for onboard video or FPV setups
- Robotic arms and gripper joints requiring precise angular positioning
- RC boats for rudder actuation and sail trimming
- DIY mechatronics projects needing a robust, mid-torque servo
How to Use 20KG Digital Servo Aluminium Metal Gears Default 270
Mount the servo securely using the included metal bracket, then wire the power leads to a 4.8–6.8 V supply and connect the signal line to your PWM controller or receiver. Send standard PWM pulses (approx. 500–2500 µs at ~333 Hz) to command any angle within the 270° range. Calibrate end-points in your transmitter/software before operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum torque this servo can deliver?
At 5 V the servo delivers 19 kg·cm of stall torque, increasing to 21.5 kg·cm when driven at 6.8 V, making it suitable for steering and heavy-linkage tasks.
Which PWM signal parameters are required?
Use a standard PWM control signal of approx. 500–2500 µs pulse width at around 333 Hz. This range covers the full 270° rotation with fine positional control and a 3 µs deadband.
Is this servo fully waterproof?
The servo features water-resistant seals to handle splashes and light rain in RC applications, but it is not intended for full submersion.
