This is the 5V variant of the 2 x 18650 Lithium Battery Shield V8 Mobile Power Expansion Board Module 5V/3A 3V/1A Micro USB for Arduino ESP32 ESP8266 in Battery Charging Boards, Battery Chargers. Available at ₹355.18 (₹301.00 + GST) with free shipping across India.
2 x 18650 Lithium Battery Shield V8 Mobile Power Expansion Board Module 5V/3A 3V/1A Micro USB for Arduino ESP32 ESP8266

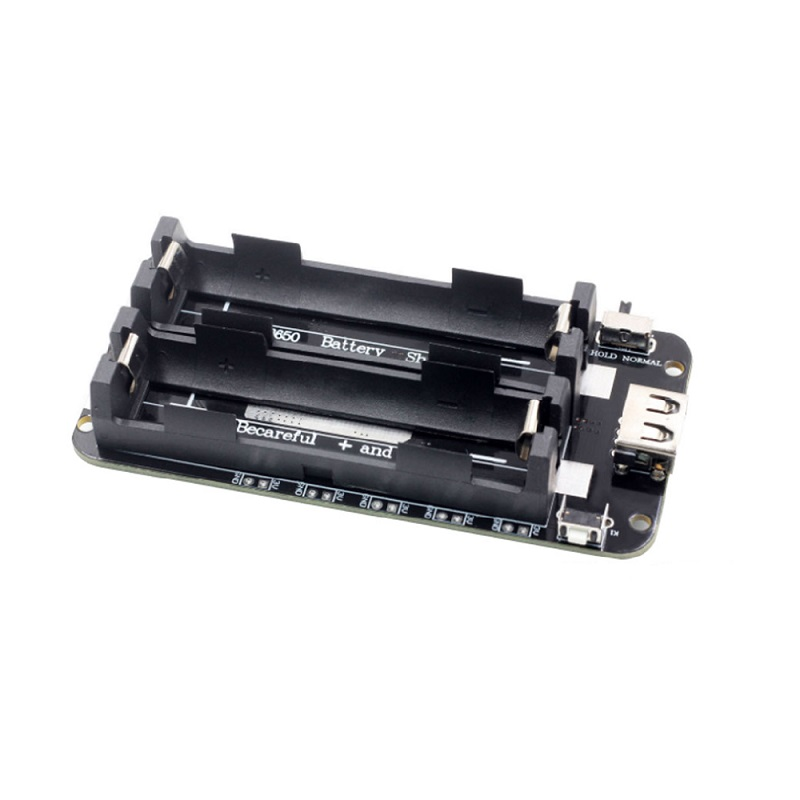

The Lithium Battery Shield V8 is a versatile module designed to power devices like Arduino, ESP32, and ESP8266 with two 18650 batteries. It includes an integrated lithium battery protection IC that guards against overcurrent, overvoltage, and undervoltage, ensuring safe and reliable operation. The module provides two output voltages: 3V/1A and 5V/3A, catering to a range of power needs.
To use the module, make sure the positive and negative terminals are aligned correctly as indicated on the board. Incorrect battery installation can damage the module. The batteries should be within the typical voltage range of 3.2V to 4.2V. The 5V output is rated at 3A, with a maximum output of 3.6A; exceeding this limit may damage the module and reduce its lifespan. Please note that the actual output current may vary depending on the quality of the 18650 batteries used.
Features:
- Supports 3V 1A voltage outputs.
- Supports 5V 3A voltage outputs.
- Micro USB charging current is 600mA-800mA.
- Supports up to two 18650 batteries. It is recommended to use two 18650 batteries, which can be longer.
Specification:
| Width (mm) | 50 |
|---|---|
| Height (mm) | 20 |
| Weight (gm) | 38 |
| Shipping Weight | 0.042 kg |
| Shipping Dimensions | 10 × 8 × 1 cm |
Package Includes:
2 x 18650 Lithium Battery Shield V8 Mobile Power Expansion Board Module 5V/3A 3V/1A Micro USB for Arduino ESP32 ESP8266
2 x 18650 Lithium Battery Shield V8 Mobile Power Expansion Overview
The 2 x 18650 Lithium Battery Shield V8 is a mobile power expansion module that uses two 18650 Li-ion cells to deliver regulated 5V/3A or 3.3V/1A outputs. It’s designed to power development boards such as Arduino, ESP32, and ESP8266 in off-grid or portable applications.
Key Features of 2 x 18650 Lithium Battery Shield V8 Mobile Power Expansion
- Dual 18650 battery holder with Micro USB charging port for easy recharging
- Integrated protection IC guards against overcharge, over-discharge and overcurrent
- Selectable 5V output up to 3A via USB port or header
- 3.3V output rail rated at 1A for low-voltage modules
- High conversion efficiency up to 95% for minimal energy loss
- Fast shipping from Zbotic: ready to ship within 24 hours
Applications and Use Cases
- Portable Arduino Uno or Nano projects without a mains supply
- ESP32 Wi-Fi and Bluetooth prototypes in the field
- ESP8266 sensor nodes for remote data logging
- DIY battery-powered robotics and mobile robots
- Outdoor LED lighting or portable charging stations
- Emergency backup power for low-current electronics
How to Use 2 x 18650 Lithium Battery Shield V8 Mobile Power Expansion

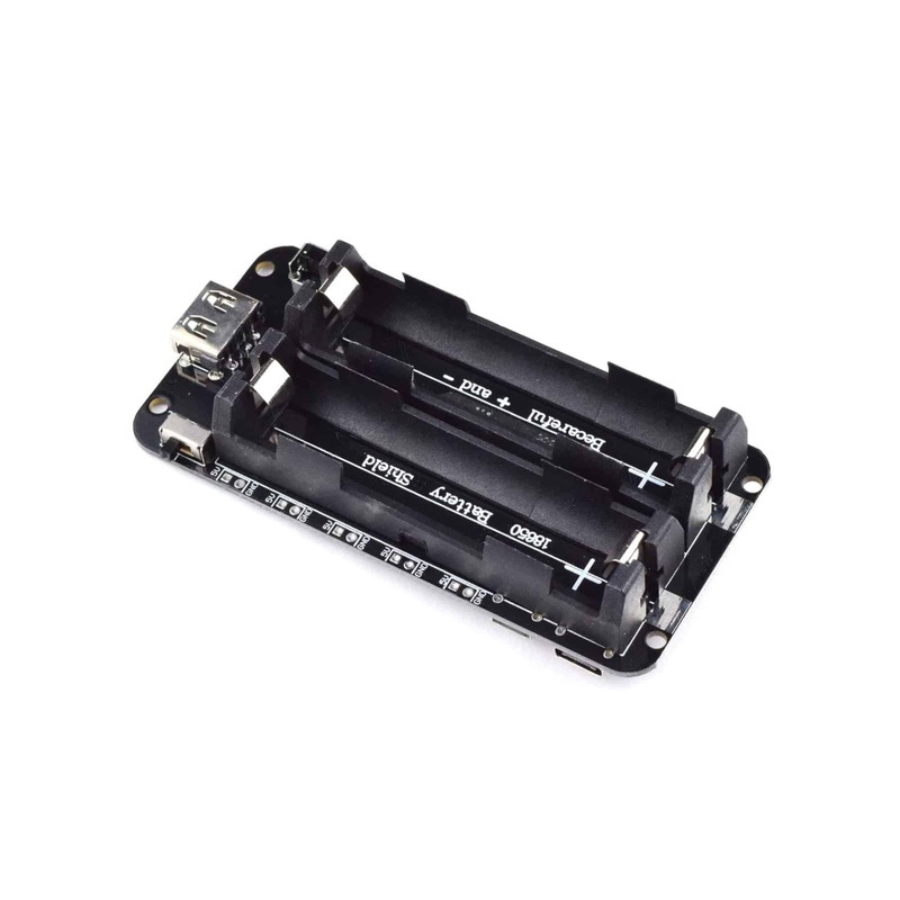

Insert two 18650 cells into the holder observing the polarity markings on the board. Connect a Micro USB cable to charge the batteries (typical cell voltage 3.2–4.2 V). Use the onboard USB port for 5 V/3 A devices or the expansion header pins for 3.3 V/1 A outputs. Ensure your load does not exceed the rated current for safe operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What output connectors are available on this module?
The board provides a standard USB Type-A port for 5 V/3 A output and a 3-pin expansion header exposing 5 V, 3.3 V and GND for direct wiring to your development board.
What maximum current can I draw from each output?
You can draw up to 3 A from the 5 V USB output and up to 1 A from the 3.3 V pin header, making it suitable for most Arduino, ESP32 and ESP8266 applications.
How do I power an ESP8266 safely with this shield?
Connect the ESP8266 VCC to the 3.3 V pin on the expansion header, ensuring the current draw stays under 1 A. Ground the ESP8266 to the module’s GND pin to complete the circuit.
USB Power Bank Circuit: Build with TP4056, MT3608 & 18650
USB Power Bank Circuit: Build with TP4056, MT3608 & 18650 A USB power bank circuit DIY is one...
Read More →
Battery Formation: First Charge Process Explained
The battery formation process is the critical first charge cycle that transforms raw electrode materials into a functional...
Read More →
Super Capacitor Bank: High-Current Burst Power Source
A super capacitor bank stores energy electrostatically rather than chemically, delivering massive burst currents (hundreds of amps) with...
Read More →Technical Specifications
| Voltage Range | 3V - 5V |
|---|---|
| Current Rating | 3A |
| Interface / Protocol | USB |
| Connector Type | Micro USB |
| Package Quantity | 18650 pcs |
| SKU | AI3462 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 2 x 18650 Lithium Battery Shield V8 Mobile Power Expansion Board Module 5V/3A 3V/1A Micro USB for Arduino ESP32 ESP8266 is a versatile battery charging boards used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
