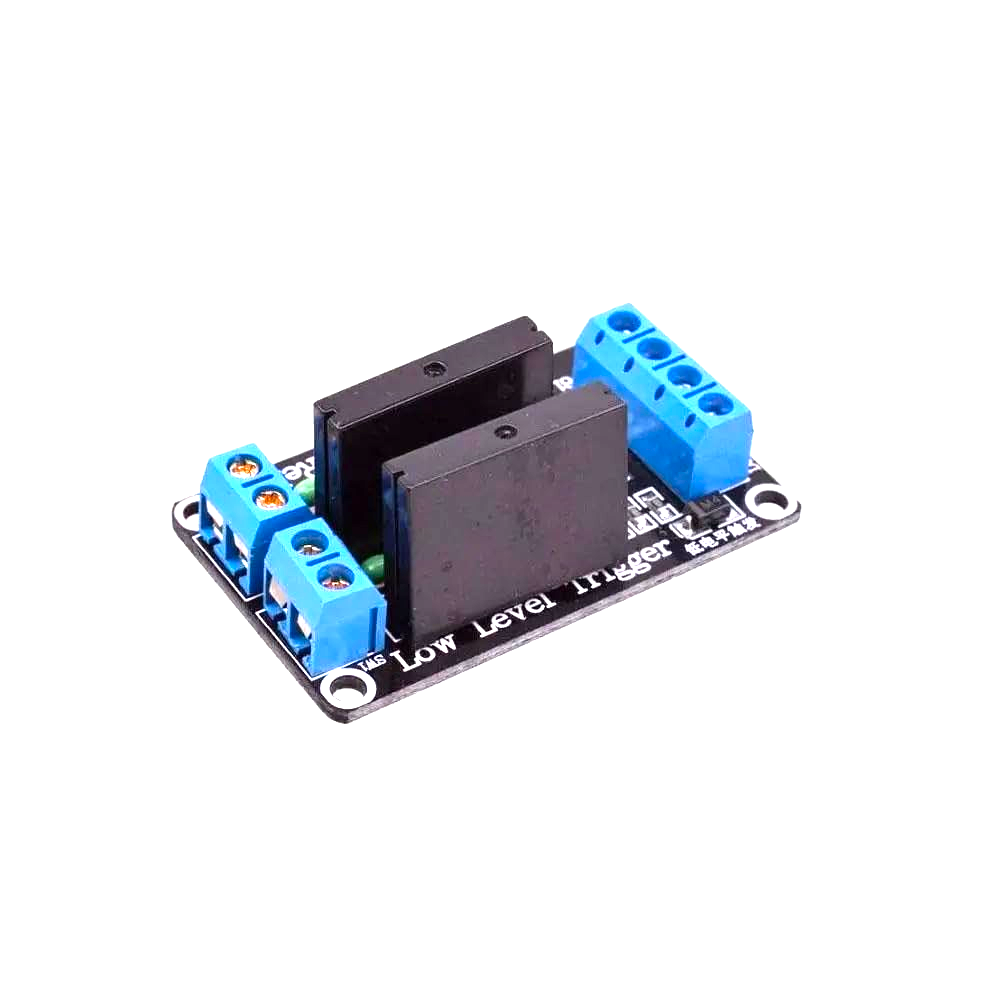

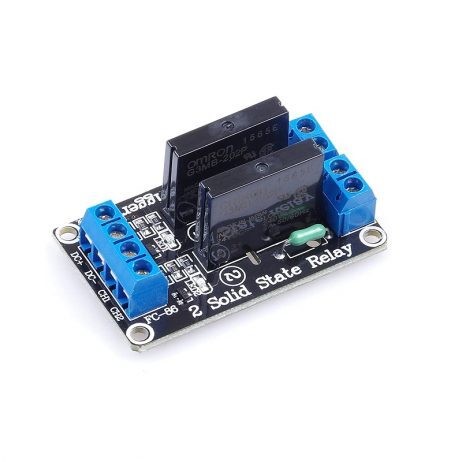

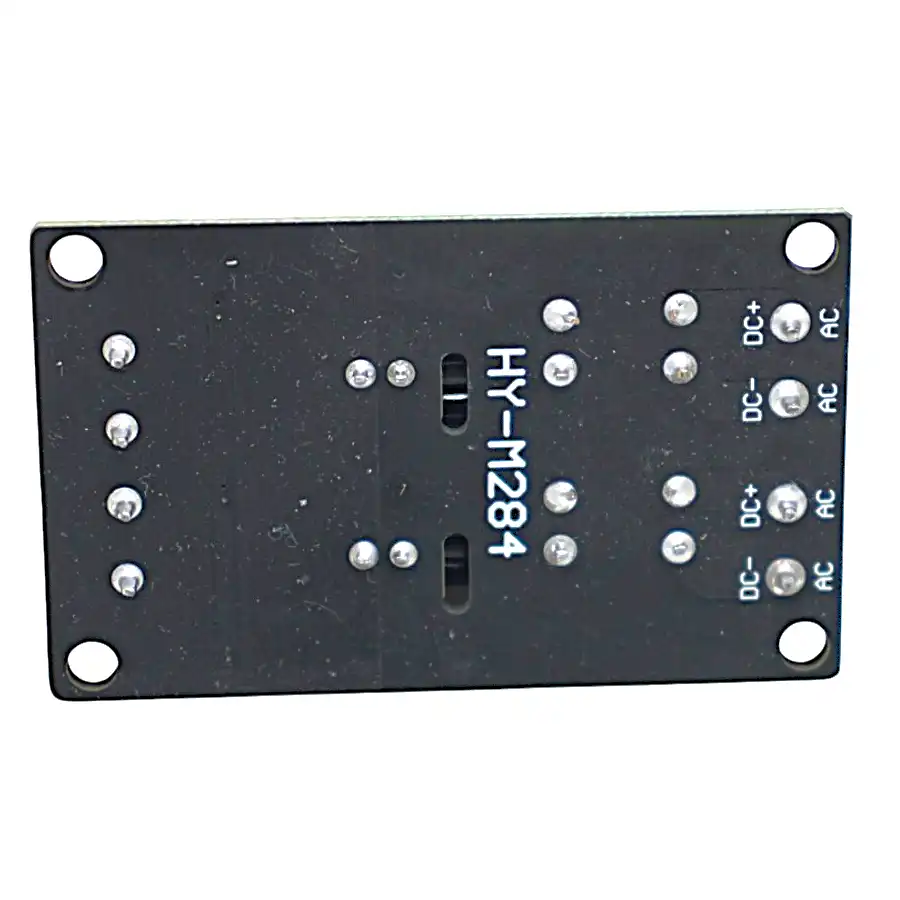

2 Channel 24V Relay Module Solid State Low Level SSR DC Control 250V 2A with Resistive Fuse

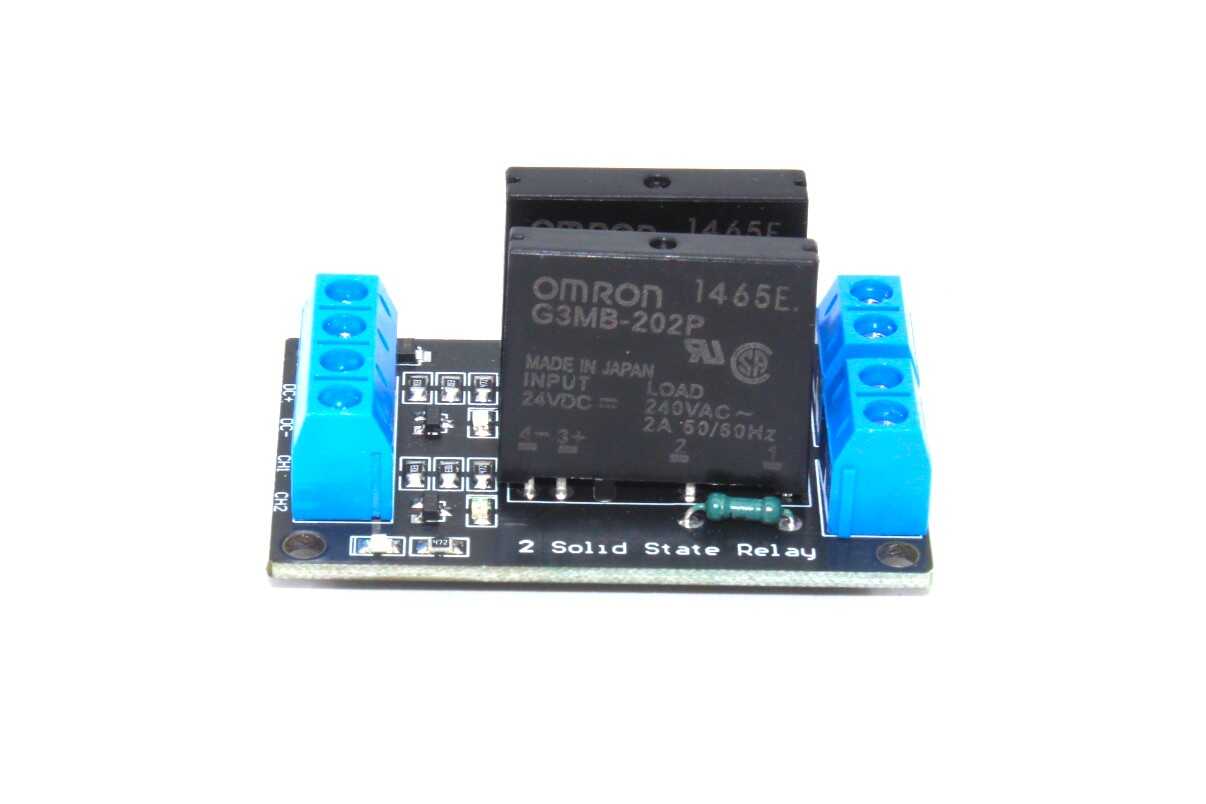

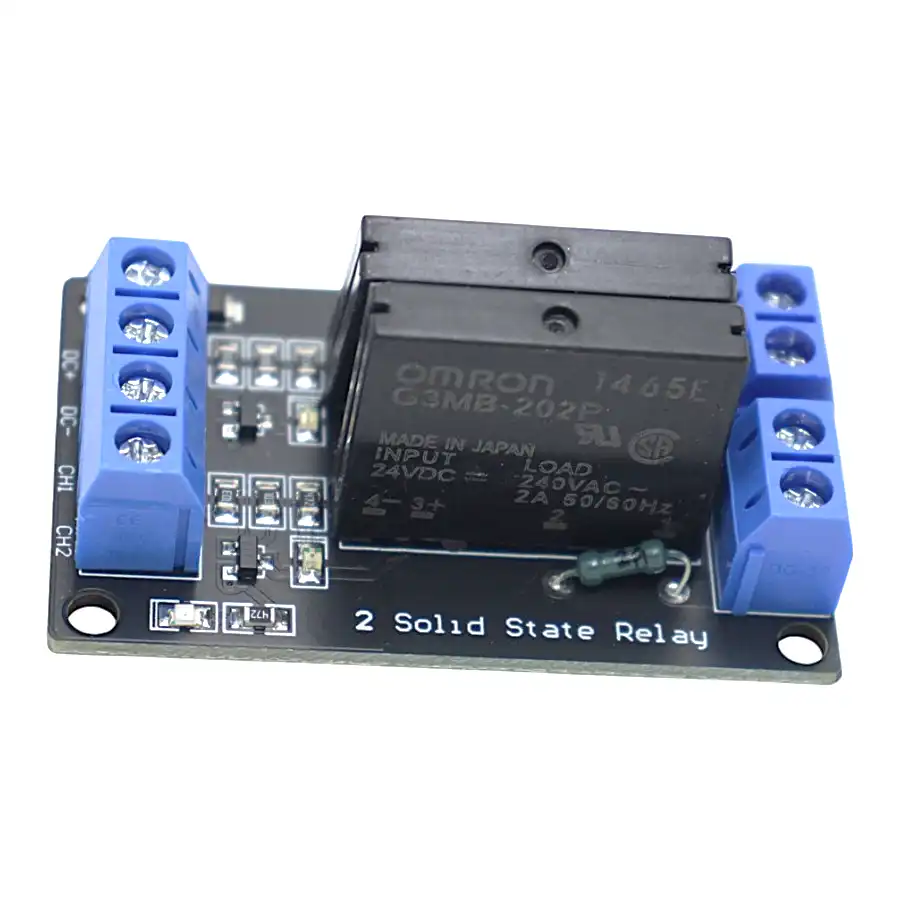

Upgrade your control system with the 24V 2-Channel SSR Solid State Relay Module, featuring reliable switching capabilities for high-voltage AC loads. Built on the Omron G3MB-202P SSR relay, this module can control loads of up to 2A at 240VAC per channel. Each relay channel includes three separate terminals: NO (Normal Open), COM (Common), and NC (Normal Closed), providing versatile switching options for your applications.

Features:

• Solid State Relay Technology: Utilizes solid-state relay (SSR) technology, offering noise-free operation and an extended lifespan compared to mechanical relays.
• 2-Channel Configuration: Control up to 2 independent loads with ease, providing flexibility in your control setup.
• High Load Capacity: Each channel supports loads of up to 2A at 240VAC, making it suitable for various lighting, holiday displays, and other applications.
• LED Indicator: Equipped with LED indicators for each relay, allowing for easy status monitoring.
• Assembled and Tested: The module comes pre-assembled and has undergone electrical testing to ensure reliable performance.
• Microcontroller Compatibility: Can be controlled directly by a microcontroller, facilitating seamless integration into your control system.

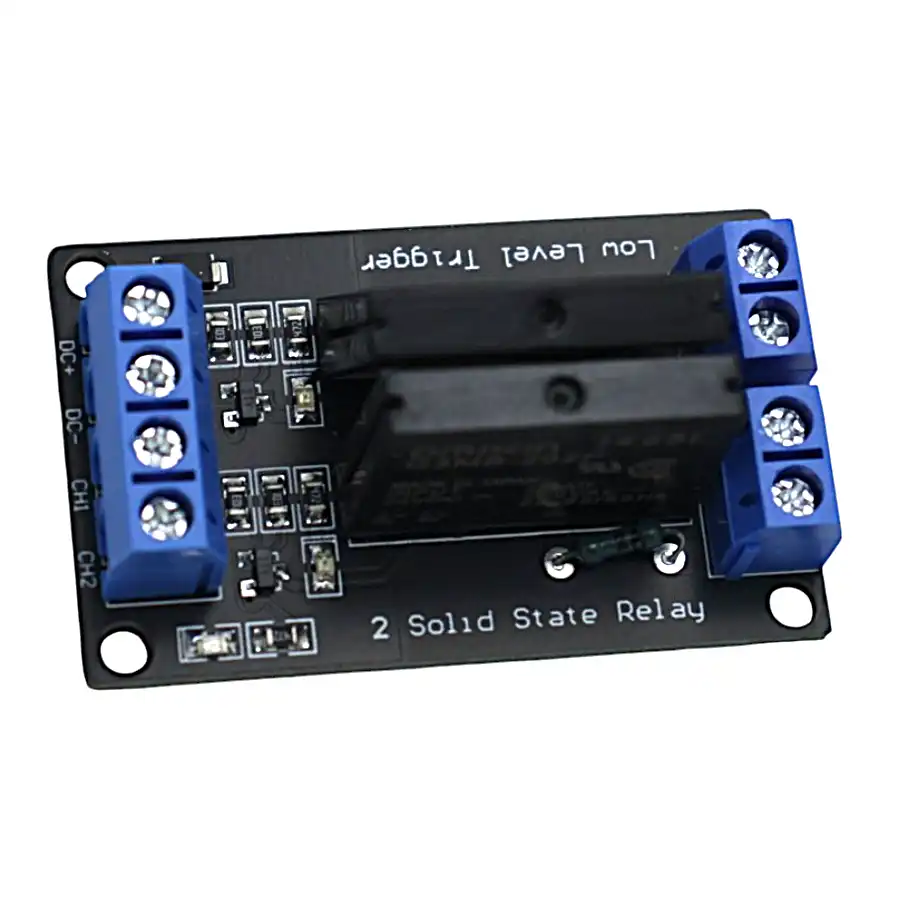

• Convenient Input Connectivity: Features DC+ and DC- terminals for power connection, as well as CH1 and CH2 terminals for input control signal connection.
• Versatile Applications: Ideal for controlling various appliances and equipment with large currents, providing versatility in usage scenarios.

Input Parts:

• DC+: Connects to power positive for the relay voltage.
• DC-: Connects to power negative for the ground connection.
• CH1 and CH2: Individual relay module signal trigger points, effective at the low level, enabling precise control over each channel.

Enhance your control capabilities with the 24V 2-Channel SSR Solid State Relay Module, offering reliable switching performance and versatility for a wide range of AC load control applications. Whether you’re controlling lighting systems, holiday displays, or other equipment, this module provides an efficient and durable solution for your needs.
