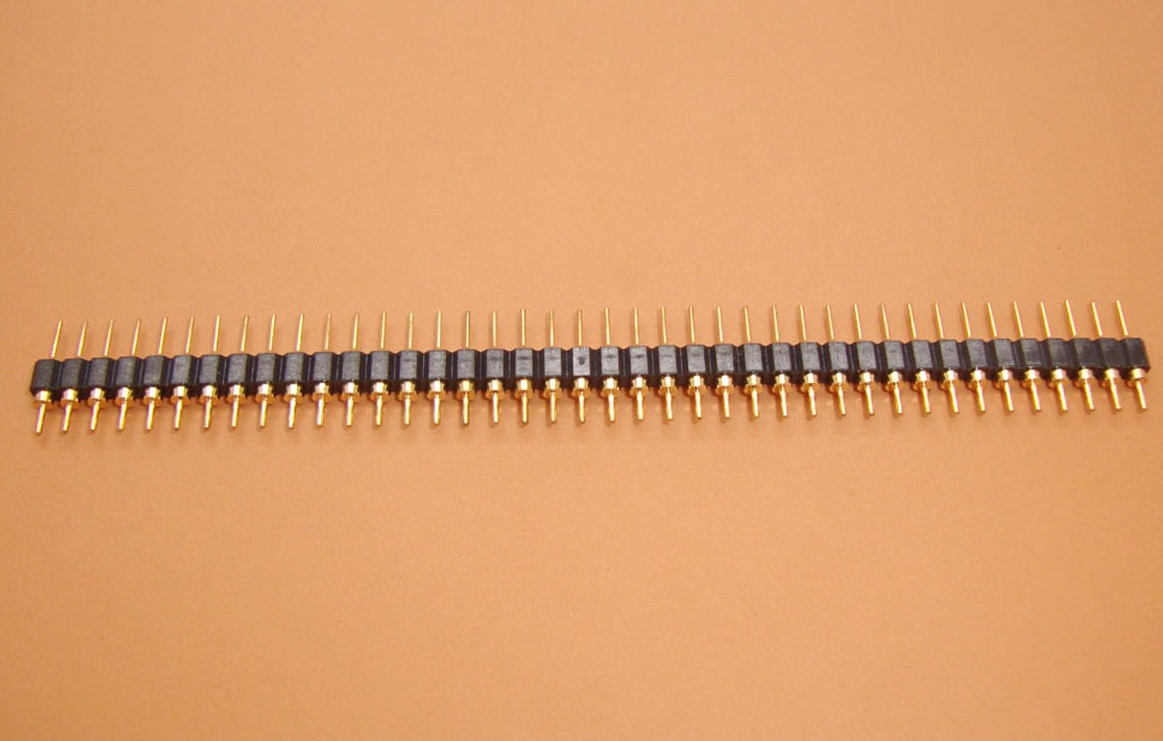

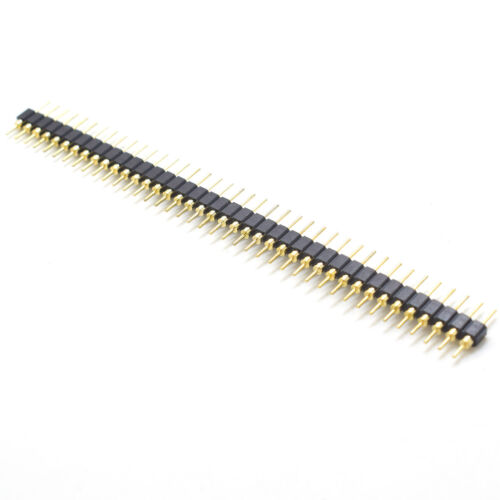

2.54mm High Quality Gold Plating 1*40pin Straight Single Row Round Pin Header

2.54mm High Quality Gold Plating 1*40pin Straight Single Row Round Pin Header

The Pin Header Strip Gold Plated Male Single Row 40 Pin 2.54mm Male Connector Breakable Strip, also known as the 40×1 Round Header male, is a versatile connector commonly employed in custom PCBs and general header applications. This connector strip can be easily cut into desired sections to accommodate specific project requirements.

With a pitch of 2.54 mm, this pin header serves as an ideal connector for PCB boards and integrated circuits, making it widely utilized in computer systems and breadboard setups. It offers flexibility and convenience in connecting various electronic components, facilitating smooth signal transmission and circuit integration.

Key tags associated with this pin header include 40×1 Round Pin Header, 4×40 Round Pin Header, 1×40 Round Male Pin Header, 40Pin Male Pin Header, 40×1 Male Header, and 1×40 Pin Male Pin Berg Strip. Whether you’re building custom PCB layouts or prototyping electronic circuits on a breadboard, this pin header strip provides a reliable and adaptable solution for your connectivity needs.

Features/Specs:

• Gender: Male header
• Rated current: 3A.
• Dielectric strength: 1000V RMS
• Contact resistance: 10mΩ max.
• Lead Spacing: 2.54mm Pitch.
• Plating: Gold
• Pin Type: Round Machine Pin
• Mounting Style: Through Hole
• Package/Case: DIP-40

Application:

• Wide Application: All of our products can be widely used in most the electronic
• Equipment: Digital Camera
• Mobile phone
• Computer Mainframe
• LED display, Household Electric Appliances, etc.

Specification:

Gender: Male header

Rated Current: 3A.

Lead Spacing: 2.54mm Pitch.

Plating: Gold

PACKAGE INCLUDES

1 X 2.54mm High Quality Gold Plating 1*40pin Straight Single Row Round Pin Header
