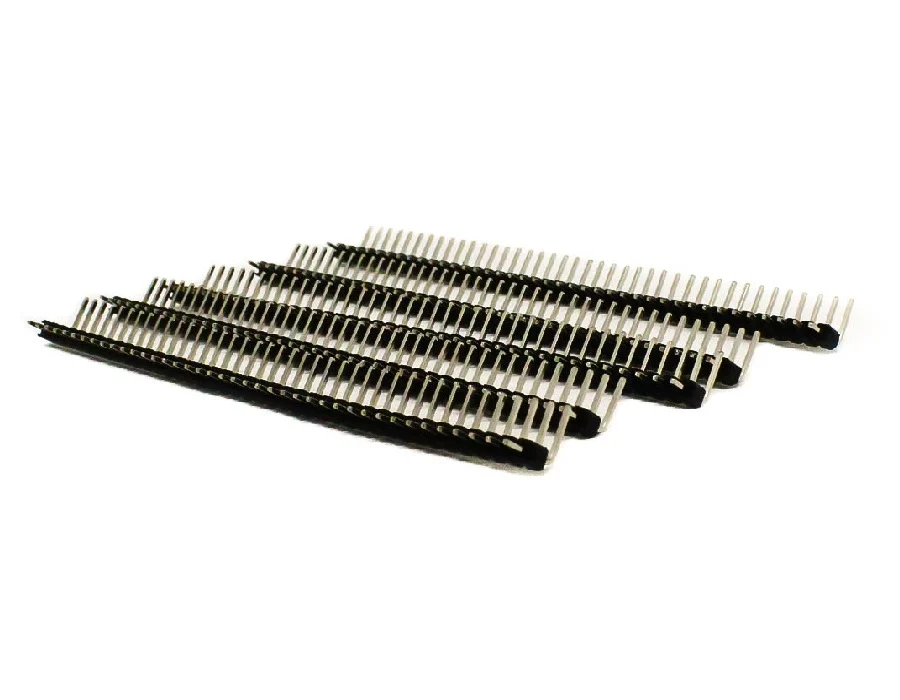

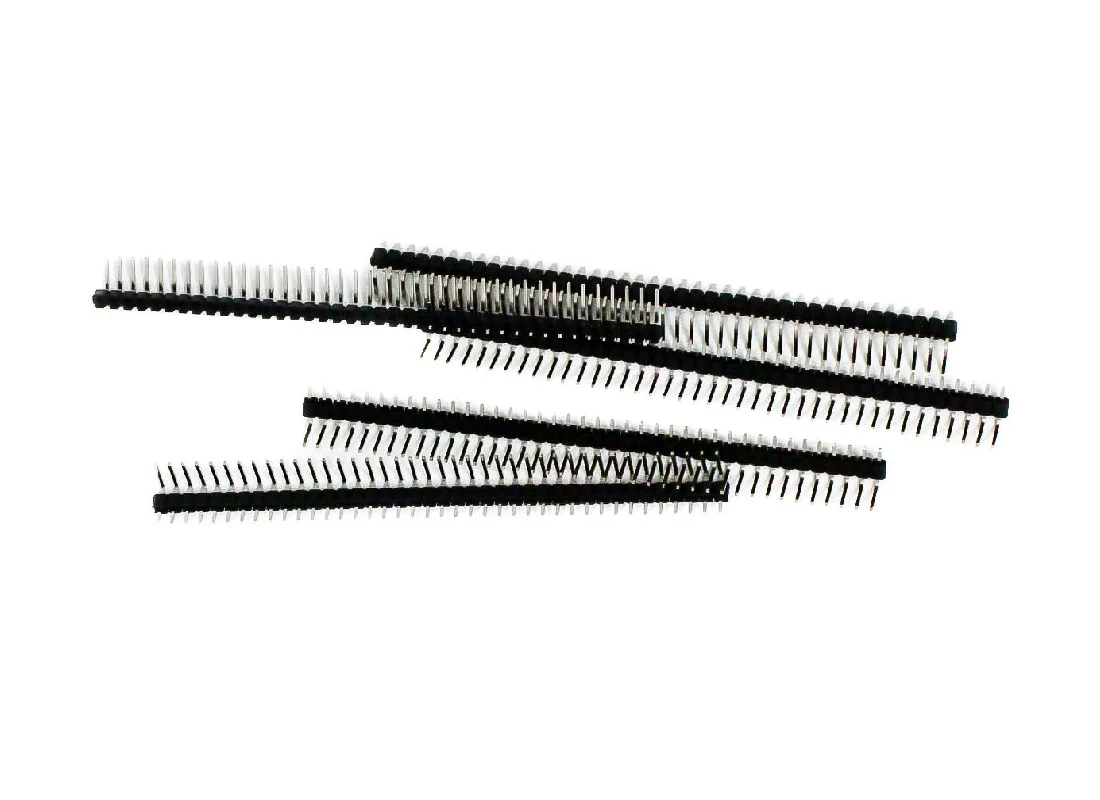

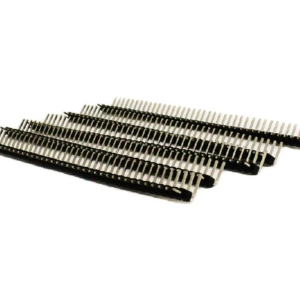

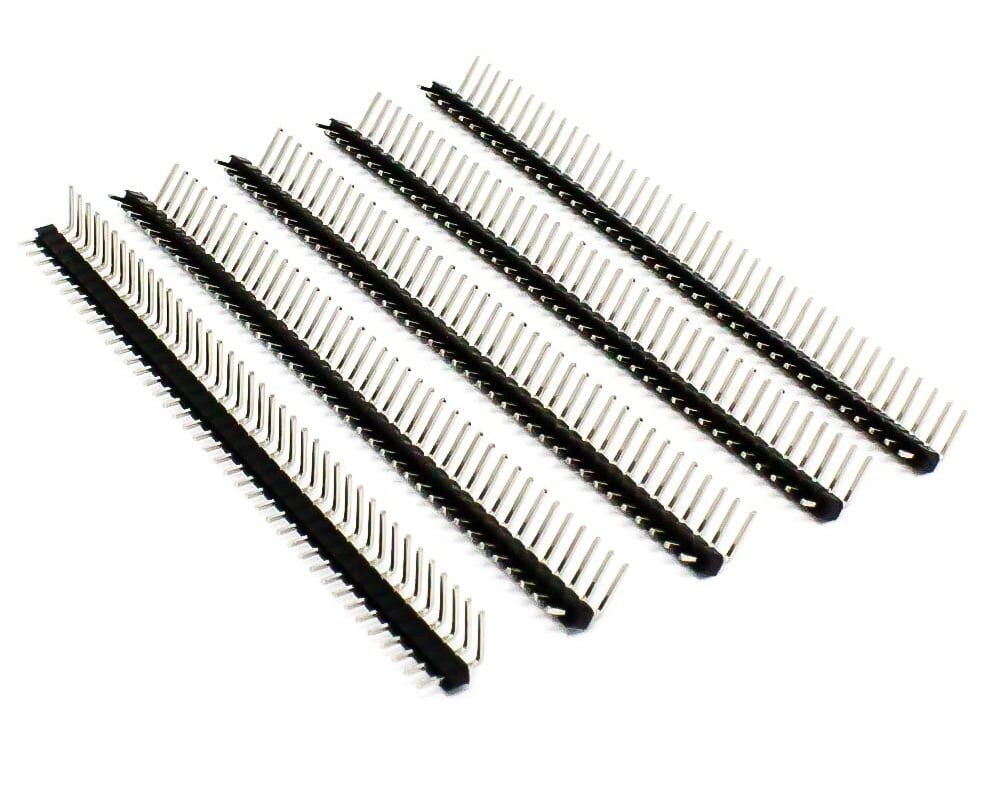

1×40 Right Angle Male Berg Strip Connector
1×40 Right Angle Male Berg Strip connectors are specifically designed to seamlessly fit into various setups. These connectors can be easily broken to adjust to desired lengths, offering flexibility in customization. They are commonly employed in custom PCBs or general custom headers. With their convenient 90° bend, these connectors are well-suited for numerous applications, particularly in prototyping scenarios where frequent connection and disconnection are necessary.
Specifications:
- Pins: 40
- Pin Spacing: 2.54mm
- Length of Strip: 100mm
- Pin Height: ~9mm.
- Weight: 15 gm.
| Connector System | Board to Board, Wire to Board |
|---|---|
| Contact Material | Gold |
| Pitch | 2.54mm |
| Mounting Angle | Right Angle |
| Termination Method | Solder |
| Shrouded/Unshrouded | Unshrouded |
| Current Rating | 3A |
| Mounting Type | Through Hole |
| Number Of Contacts | 40 |
| Contact Gender | Pin (Male) |
Package Includes:
1 x 1×40 Right Angle Male Berg Strip Connector (Pack of 5)
Technical Specifications
| Package Quantity | 5 pcs |
|---|---|
| SKU | AI2357 |
| Weight | 0.045500 kg |
| Availability | In Stock |
Applications & Use Cases
The 1×40 Right Angle Male Berg Strip Connector (Pack of 5) is a versatile ffc, fpc, berg connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
