This is the 11mm variant of the 10 Pin Female 11mm tall stackable Header Connector – (Pack of 5) in FFC, FPC, Berg connectors. Available at ₹44.37 (₹37.60 + GST) with free shipping across India.
Product Description:

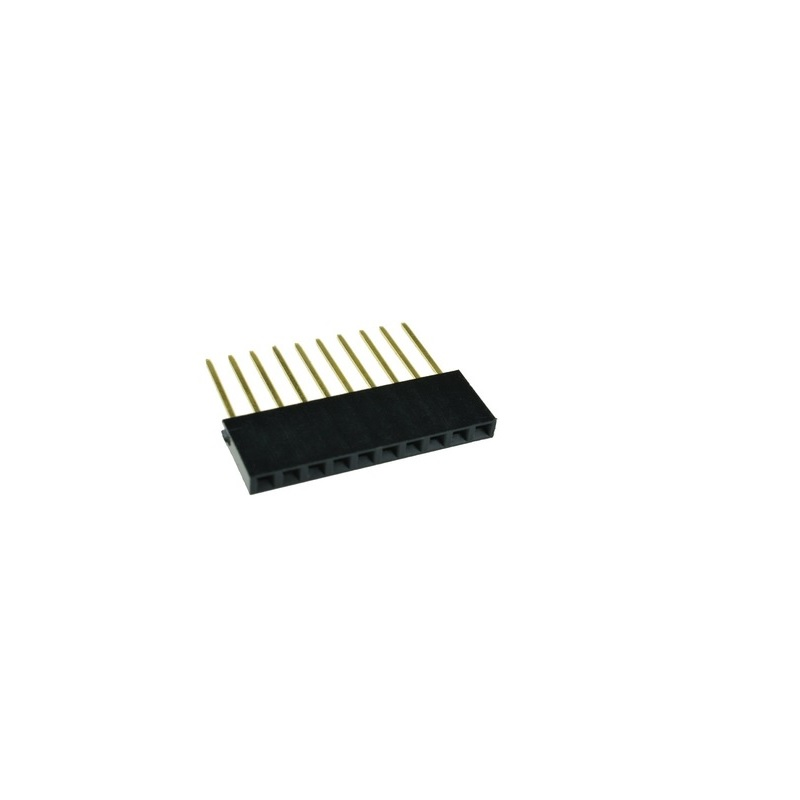

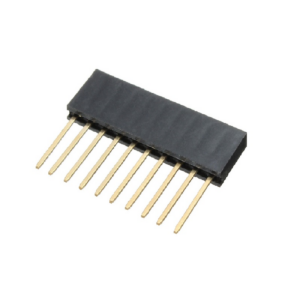

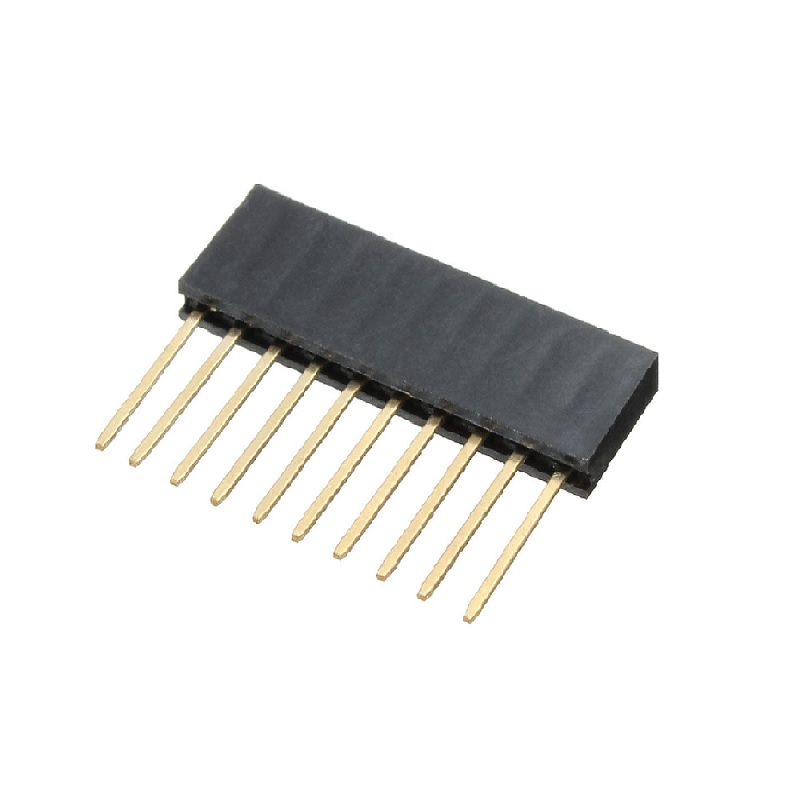

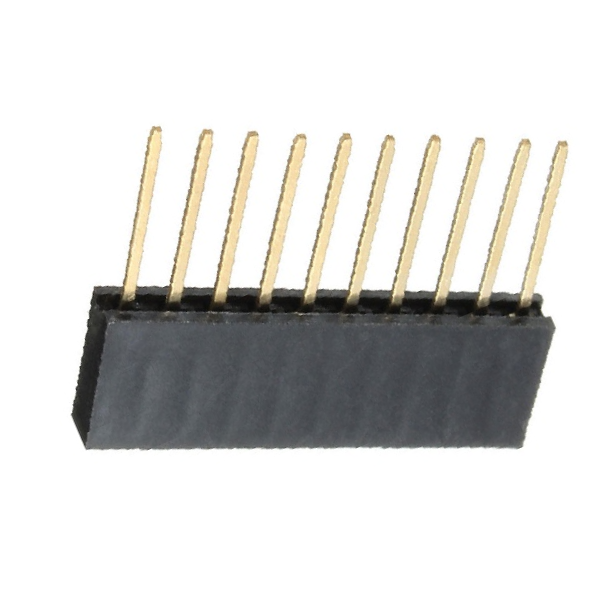

This is a 10-pin female header connector with a stackable design for Arduino. It has a stitch length of 11mm, which makes it ideal for stacking Arduino shields on the Arduino shield board control panel.
Stacking headers have female sockets on top and extended male pins on the bottom. They can fit into the female sockets of many microcontrollers, such as Arduino, and allow for easy and neat connection of circuit boards that can be removed later.
This header has one row of 10 pins. The female sockets are 8.5mm tall and the male pins are 11mm long. You will get one 10-pin stacking header in each order.
Features:
- Bass metal contact points
- Best Built Quality
- Breadboard compatible
Specification:
| Pitch | 2.54mm. |
|---|---|
| Contact Pins Material | Brass |
| Pin Length | 11mm |
| Plastic height | 8.5mm |
| Gender of Connector | Female |
| Number of Pins | 10 Pin |
| Type of Row | Single-Row |
| Body Orientation | Straight |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 4 × 4 × 1 cm |
Package Includes:

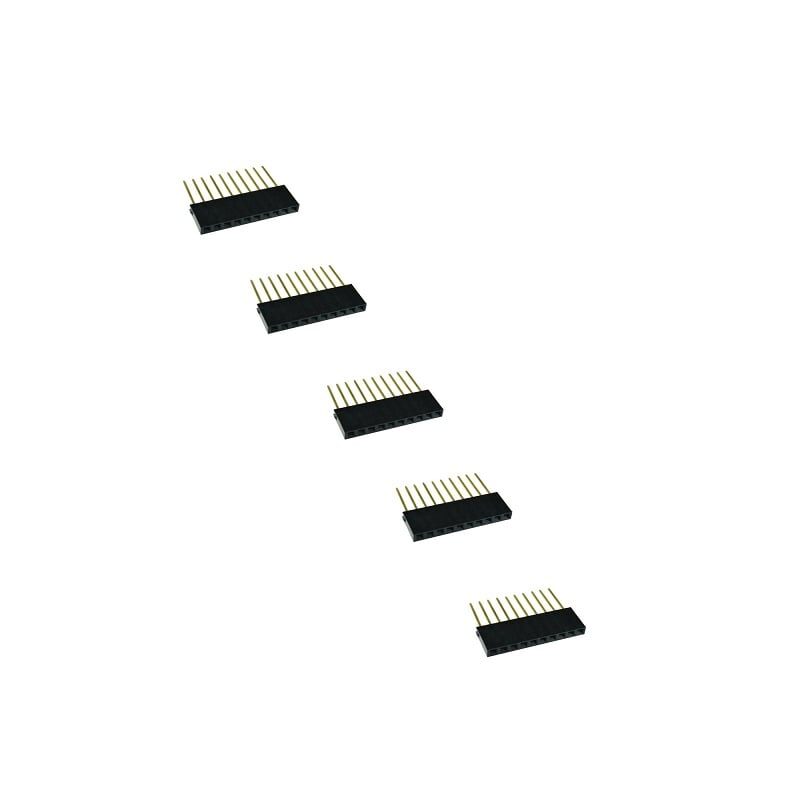

1 x 10 Pin Female 11mm tall stackable Header Connector – (Pack of 5)
10 Pin Female 11mm tall stackable Header Connector – Overview
This 10 Pin Female 11 mm tall stackable header connector features a single-row, straight orientation with 2.54 mm pitch and brass contact points. Designed for Arduino shields and breadboard prototyping, it allows you to stack multiple boards neatly while maintaining reliable electrical connections. Each pack contains five identical connectors for versatile use across projects.
Key Features of 10 Pin Female 11mm tall stackable Header Connector –
- 10 female sockets with 2.54 mm pitch in a single straight row
- 8.5 mm tall plastic housing and 11 mm long brass male pins for stable stacking
- Stackable design supports stacking of Arduino shields and extension boards
- Breadboard compatible for quick circuit prototyping without adapters
- High-quality brass contact points ensure consistent conductivity
- Genuine product, fast shipping from Zbotic, pack of 5 connectors
Applications and Use Cases
- Stacking Arduino UNO or Mega shields for sensor, display, and motor driver expansions
- Connecting modules and breakout boards on a solderless breadboard
- Creating removable headers on custom PCBs for easy maintenance
- Extending Raspberry Pi GPIO pins with a neat plug-and-play interface
- Building multi-layer prototyping rigs in robotics and automation projects
How to Use 10 Pin Female 11mm tall stackable Header Connector –
Insert the 11 mm male pins through your PCB’s 2.54 mm holes or into a solderless breadboard, then solder or press-fit as required. Align the female side onto your Arduino or previous shield, slide it firmly into place, and secure additional shields on top. Verify alignment and continuity before powering up the assembly.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this header connector compatible with standard Arduino boards?
Yes, the 2.54 mm pitch and stackable format match the standard Arduino shield layout, making it ideal for UNO, Mega and compatible boards.
Can I use these connectors on a solderless breadboard?
You can press the 11 mm male pins into a solderless breadboard for temporary prototyping; for permanent connections, solder the pins onto a PCB.
How many connectors are included in one pack?
Each order includes a pack of 5 individual 10-pin female stackable header connectors, ready for multiple projects or spare parts.
Technical Specifications
| Size | 11mm |
|---|---|
| Pin Count | 10-pin |
| Interface / Protocol | BLE |
| Package Quantity | 5 pcs |
| SKU | AI2805 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 10 Pin Female 11mm tall stackable Header Connector – (Pack of 5) is a versatile ffc, fpc, berg connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
