Looking for 2.4g 4ch Compatible Receiver? 2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output is available at Zbotic with fast shipping across India.
Product Description
- 2.4G 4CH RC Receiver Compatible with D8 D16 With PWM Output for T16 X9D Transmitter
Specifications:
- Working frequency: 2400Mhz-2483. 5Mhz
- Working mode: Frequency-Hopping Spread Spectrum
- Working voltage: 4.0V-15V
- Working current: <25mA (+8.0V)
- Output channel: 4CH PWM
- Size: 27.7 x 12.7 x 10mm
How To Bind:
- Power the receiver, the led flashes slowly, press the bind button for about 1 second, the led will flashes quickly which indicates the receiver is in binding mode
- Power on the remote control
- Futaba double-leaf remote control (board control) choose S-FHSS system, (gun control) choose S-FHSS or S-FHSS NORM system
- Frsky remote control select D8/D16 system, set to enter bind mode
- Jumper remote control select Frsky/FrskyX system, set to enter bind mode
- Receiver status
- Futaba double-leaf mode: The indicator light changes from flashing quickly to steady light, and the code is successfully matched
- Frsky /jumper mode: The indicator light changes from fast flashing to slow flashing, the remote control exits Bind mode, the indicator light is always on, and the code matching is successful.
Signal output:
- CH1-AIL (Aileron) CH2-ELE (Elevation) CH3-THR (Throttle) CH4-RUD (Direction)
Package Includes :
- 1 x 2.4G 4CH RC Receiver Compatible with D8 D16 With PWM Output for T16 X9D Transmitter
About 2.4g 4ch Compatible Receiver
2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI1266
- Category: Drone Transmitter and Receiver
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about 2.4g 4ch Compatible Receiver and other products.
Applications
2.4g 4ch Compatible Receiver can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your 2.4g 4ch Compatible Receiver today and start building.
2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output Overview

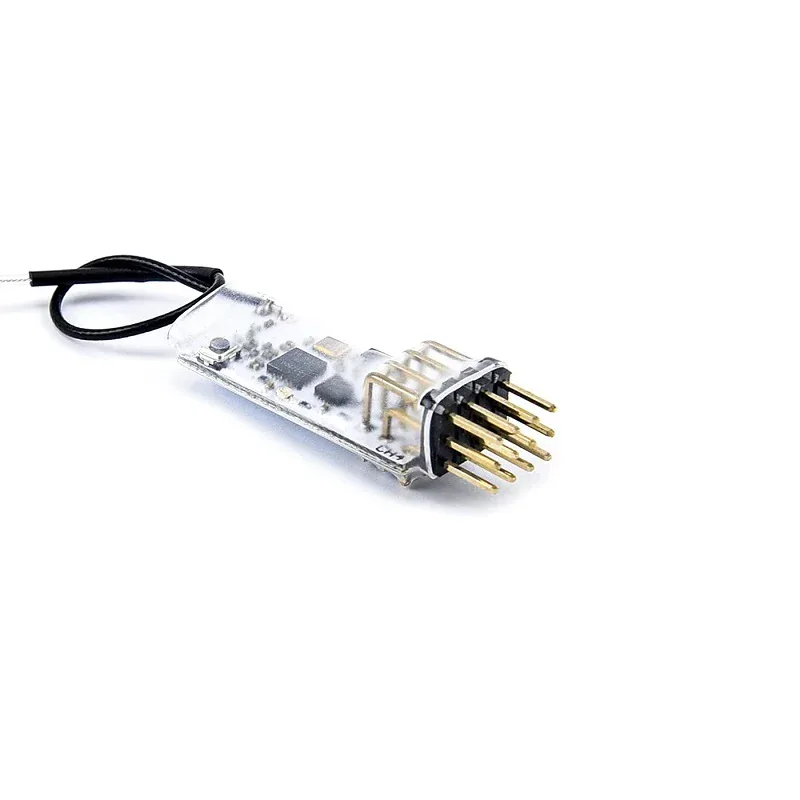

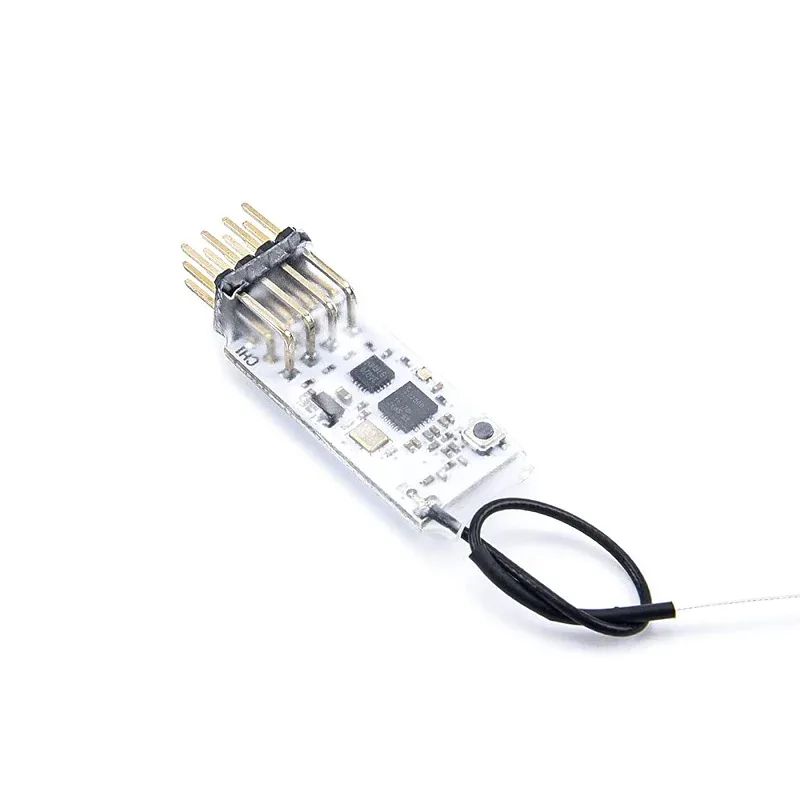

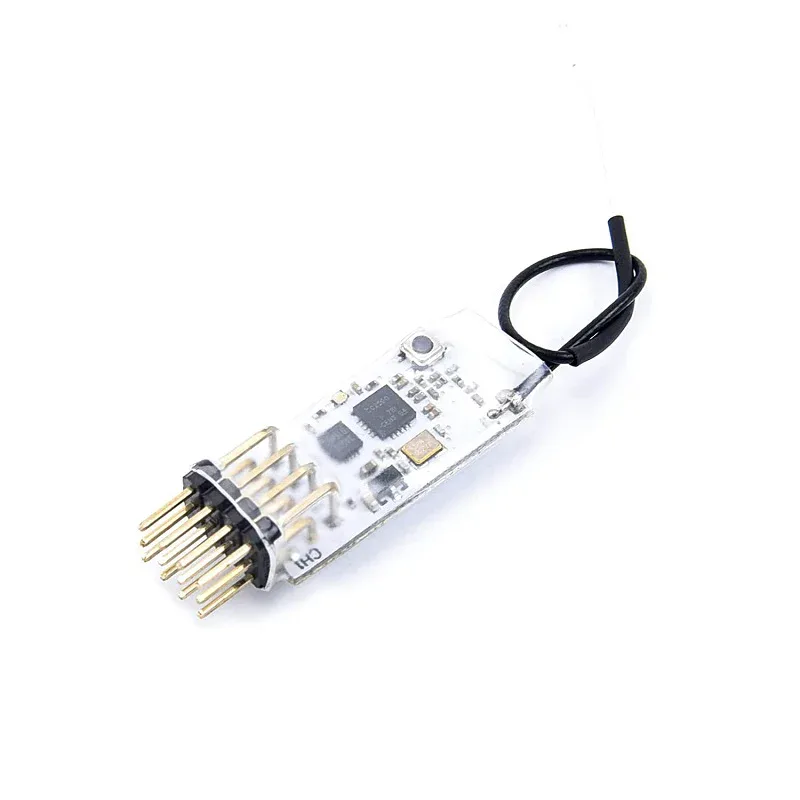

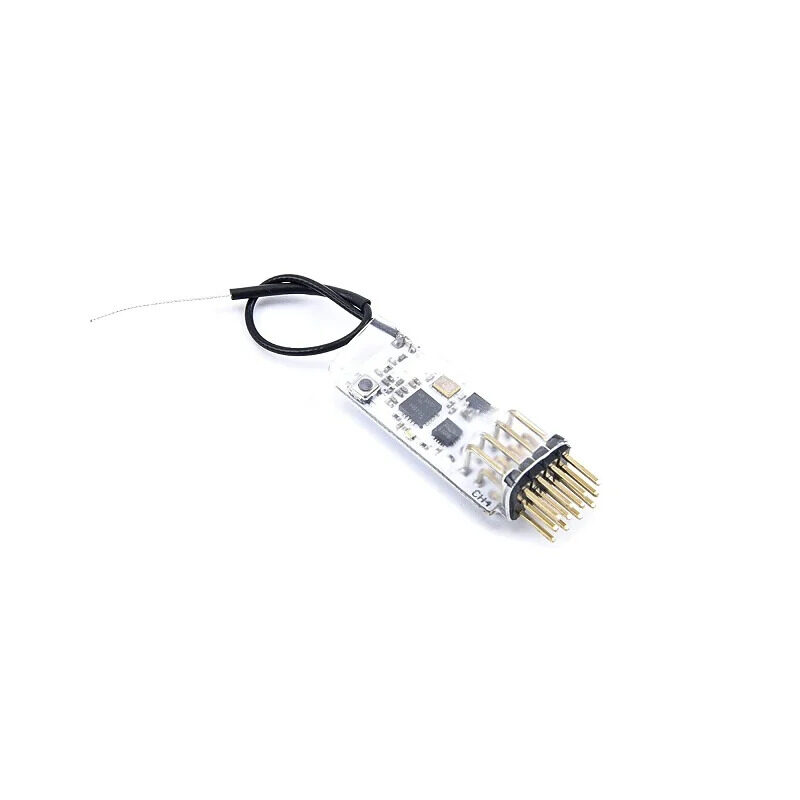

This 2.4G 4CH Receiver is a compact PWM output module designed for remote control models using the FrSky D8 protocol. With a lightweight 2.2 g design and frequency-hopping spread spectrum technology, it delivers reliable control over four channels at ranges beyond 500 m.
Key Features of 2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output
- 4 PWM outputs with 1024 resolution for precise servo and ESC control
- Ultra-lightweight at just 2.2 g and compact size (27.7 × 12.7 × 10 mm)
- Wide operating voltage: 4.0 V to 15 V for direct battery or BEC connection
- Low current draw: <25 mA at 8 V for energy-efficient performance
- Long antenna (100 mm) and FHSS mode for stable link over 500 m+
- Compatible with FrSky X9D (D8 Mode), XJT, DJT, DFT and DHT transmitters
- Fast shipping across India from Zbotic’s warehouse
Applications and Use Cases
- Micro and mini multirotor drones requiring lightweight receivers
- Fixed-wing aircraft using FrSky D8 transmitters for four-channel control
- RC cars and trucks needing compact PWM modules under the chassis
- Helicopters and collective pitch models with four-servo setups
- Hobby robotics projects where a small, low-current receiver is essential
How to Use 2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output
Mount the receiver in your model with the antenna fully extended. Connect your battery or BEC (4 V–15 V) to the power pins, then plug servos or ESCs into channels 1–4. To bind, power on the receiver (LED flashes slowly), press the bind button for 1 second until rapid flashing, then power on your FrSky D8-mode transmitter. Wait for the LED to go solid, indicating a successful bind.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which transmitters can I use with this receiver?
This receiver works in D8 mode with FrSky X9D, XJT, DJT, DFT and DHT transmitters. Make sure your radio is set to the D8 protocol before binding.
What power supply voltage do I need?
Supply between 4.0 V and 15 V to the receiver’s VCC pin. It draws under 25 mA at 8 V, so you can power it directly from a LiPo’s BEC or regulated supply.
How do I bind the receiver to my transmitter?
Power on the receiver (LED slow flash), press the bind button until the LED flashes quickly, then power on your transmitter in bind mode. When the LED turns solid, binding is complete.
Drone Antenna Guide: LHCP vs RHCP, Omni vs Patch
Table of Contents Understanding Drone Antenna Guide Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
HDZero VTX: Low-Latency Digital FPV for Racing
Table of Contents Understanding HDZero VTX Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →
FPV Simulator Training: Velocidrone and Liftoff Guide
Table of Contents Understanding FPV Simulator Training Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →Technical Specifications
| Channels | 4-channel |
|---|---|
| Interface / Protocol | BLE, 4G |
| SKU | AI1266 |
| Weight | 0.003 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 2.4G 4CH Receiver Compatible with D8 Receiver w/ PWM Output is a versatile drone transmitter and receiver used across a wide range of applications including FPV drone control, RC aircraft, ground vehicles, and long-range drone operations.
Common use cases:
- Setting up a new FPV quad with digital link
- Replacing a receiver after a crash
- Building a long-range fixed-wing aircraft
This product is ideal for FPV pilots, RC hobbyists, and drone builders.
Technical Tip: ELRS (ExpressLRS) offers excellent range and low latency at 2.4GHz. Ensure your transmitter and receiver use the same protocol.
