Product Description

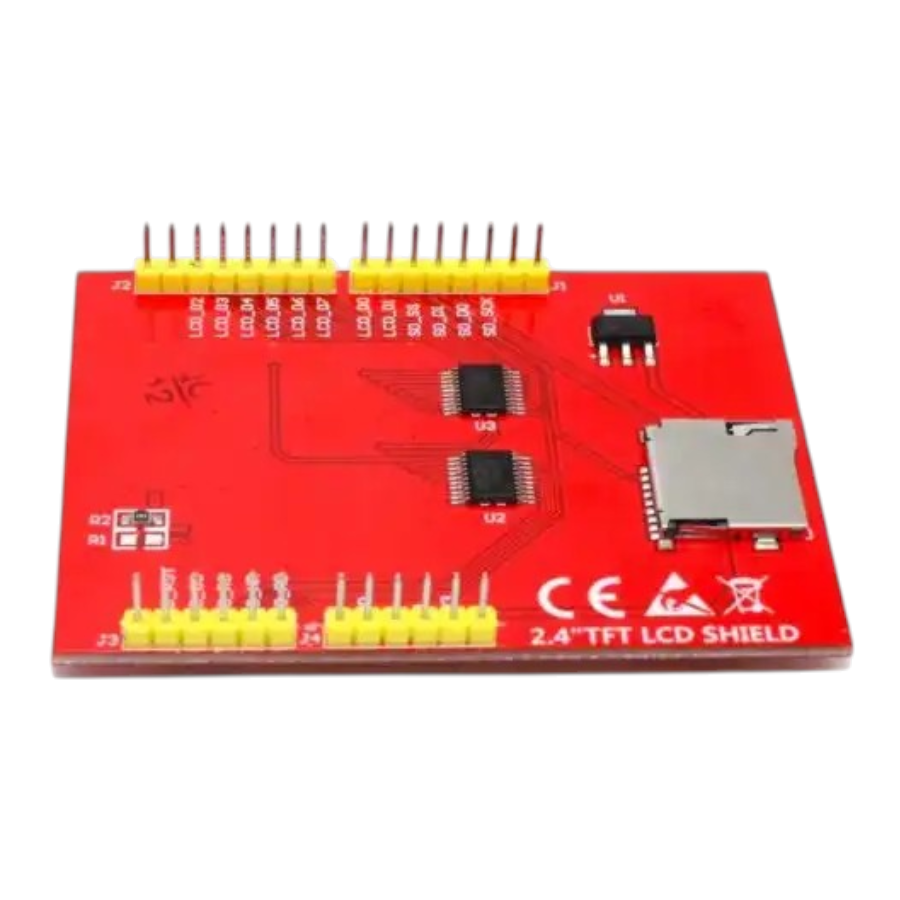

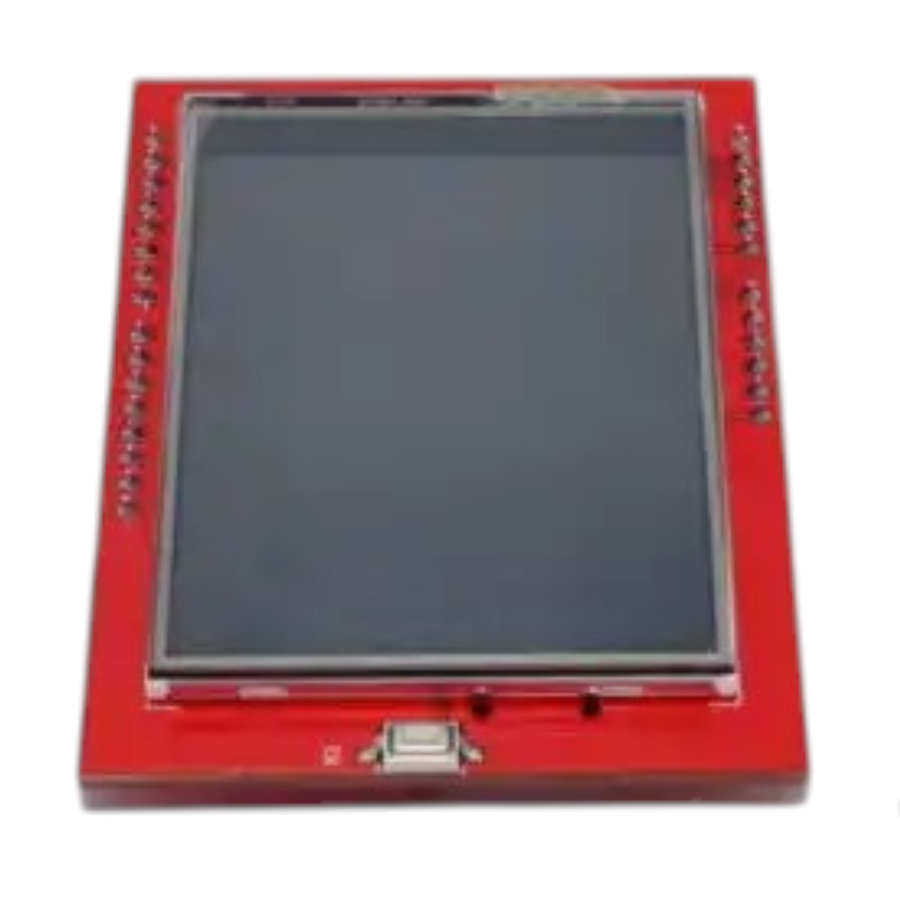

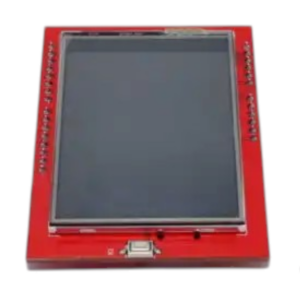

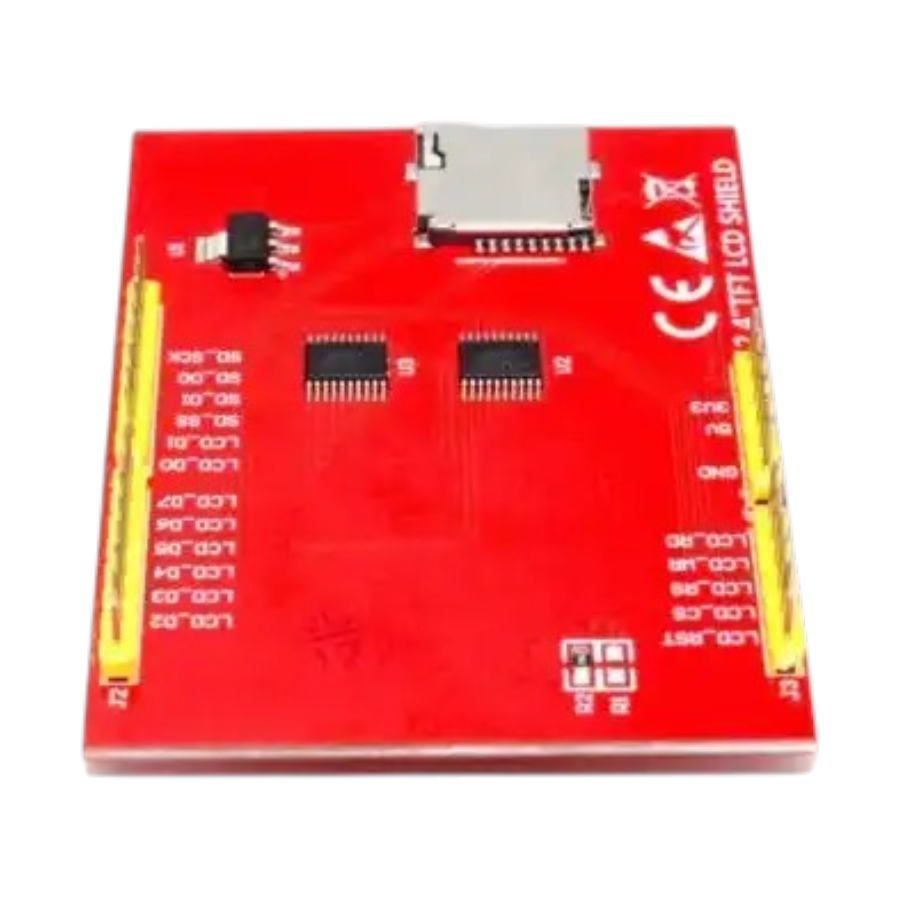

- The 2.4″ Touch Screen TFT Display Shield is a significant enhancement for Arduino projects, offering a large, vibrant touchscreen interface along with a microSD card slot. This TFT display is substantial (2.4″ diagonal), bright, and colorful, boasting a resolution of 240×320 pixels for precise pixel manipulation. Its resolution far exceeds that of a standard black and white 128×64 display.
Features
- 2.4″ diagonal Touch LCD TFT display
- 240×320 resolution, 18-bit (262,000) color
- 8-bit digital interface, plus 4 control lines
- 5V compatible! Use with 3.3V or 5V logic
- Onboard 3.3V 300mA LDO regulator
- Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3, and analog 4 and 5. Pin 12 is available if not using the microSD
- Works with any Arduino Uno and mega compatible boards
Specifications:
| Working temperature | -30°C ~ 70°C |
|---|---|
| Compatible boards | Arduino UNO and Mega |
| Length(mm) | 72 |
| Width(mm) | 52.5 |
| Height(mm) | 13 |
Package Includes

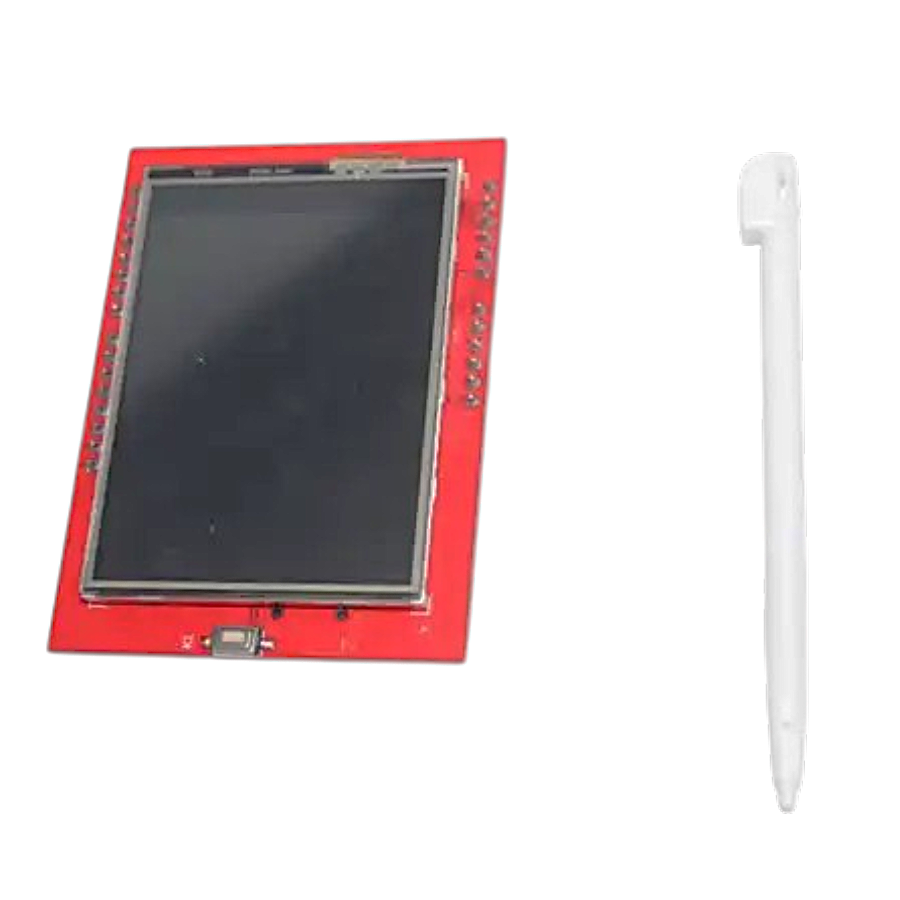

- 1 x 2.4″ Inch Touch Screen TFT Display Shield for Arduino UNO Mega
- 1 x Stylus Pen
Arduino Multiplexer CD4051: Expand Analog Inputs
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
Arduino CNC Shield: Run 3-Axis CNC with GRBL Firmware
The combination of an Arduino CNC shield and GRBL firmware has democratised desktop CNC machining. For under ₹2,000...
Read More →
ESP32 Power Consumption: Measuring and Reducing Current Draw
Esp32 Power Consumption Reduce — this detailed tutorial covers everything from hardware selection to complete working code, designed...
Read More →Technical Specifications
| SKU | AI0282 |
|---|---|
| Weight | 0.05 kg |
| Availability | In Stock |
Applications & Use Cases
The 2.4″ Inch Touch Screen TFT Display Shield for Arduino UNO MEGA is a versatile display for arduino used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
