Looking for 1s To 8s? 1S to 8S Battery Level Indicator Module Li-ion Battery is available at Zbotic with fast shipping across India.

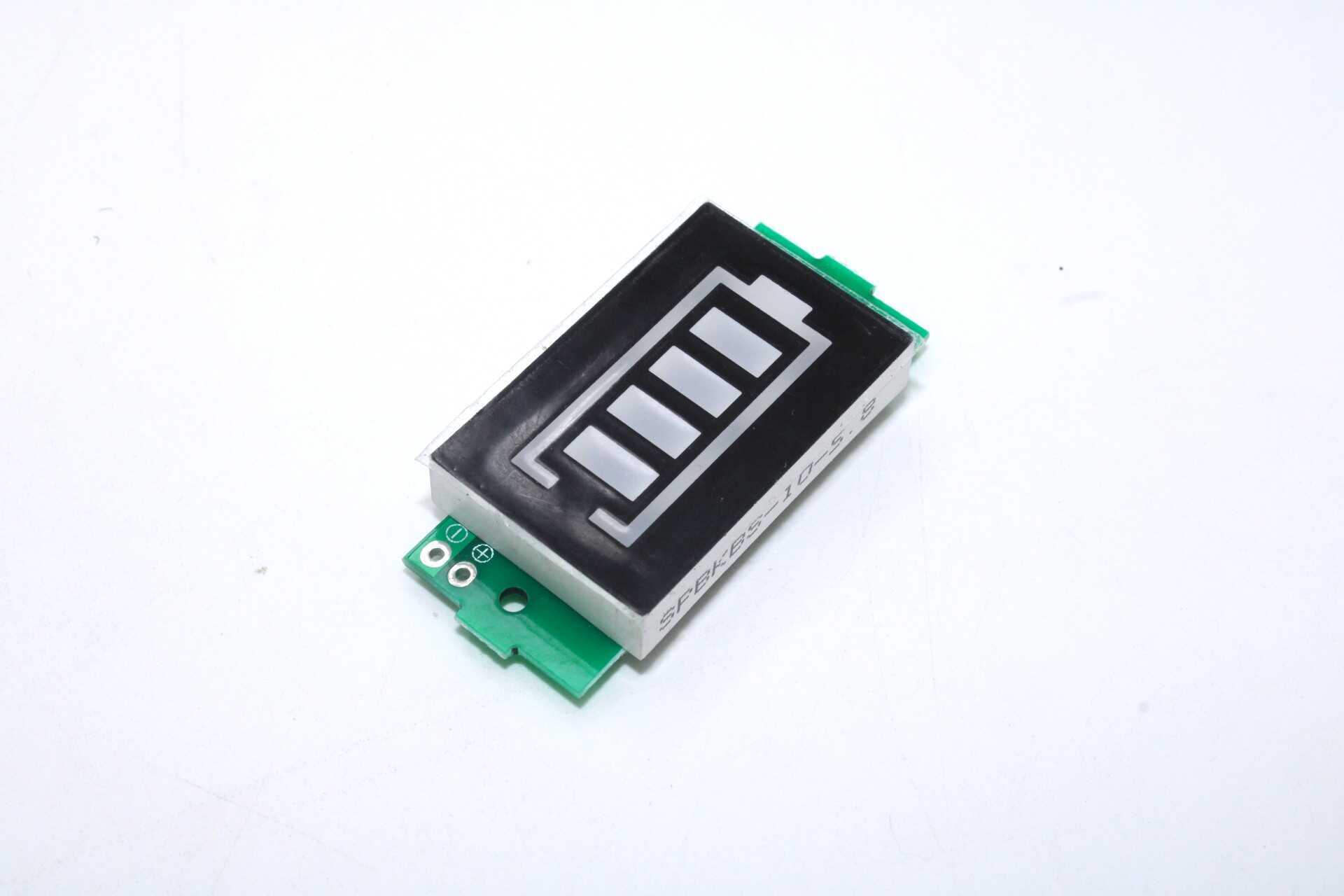

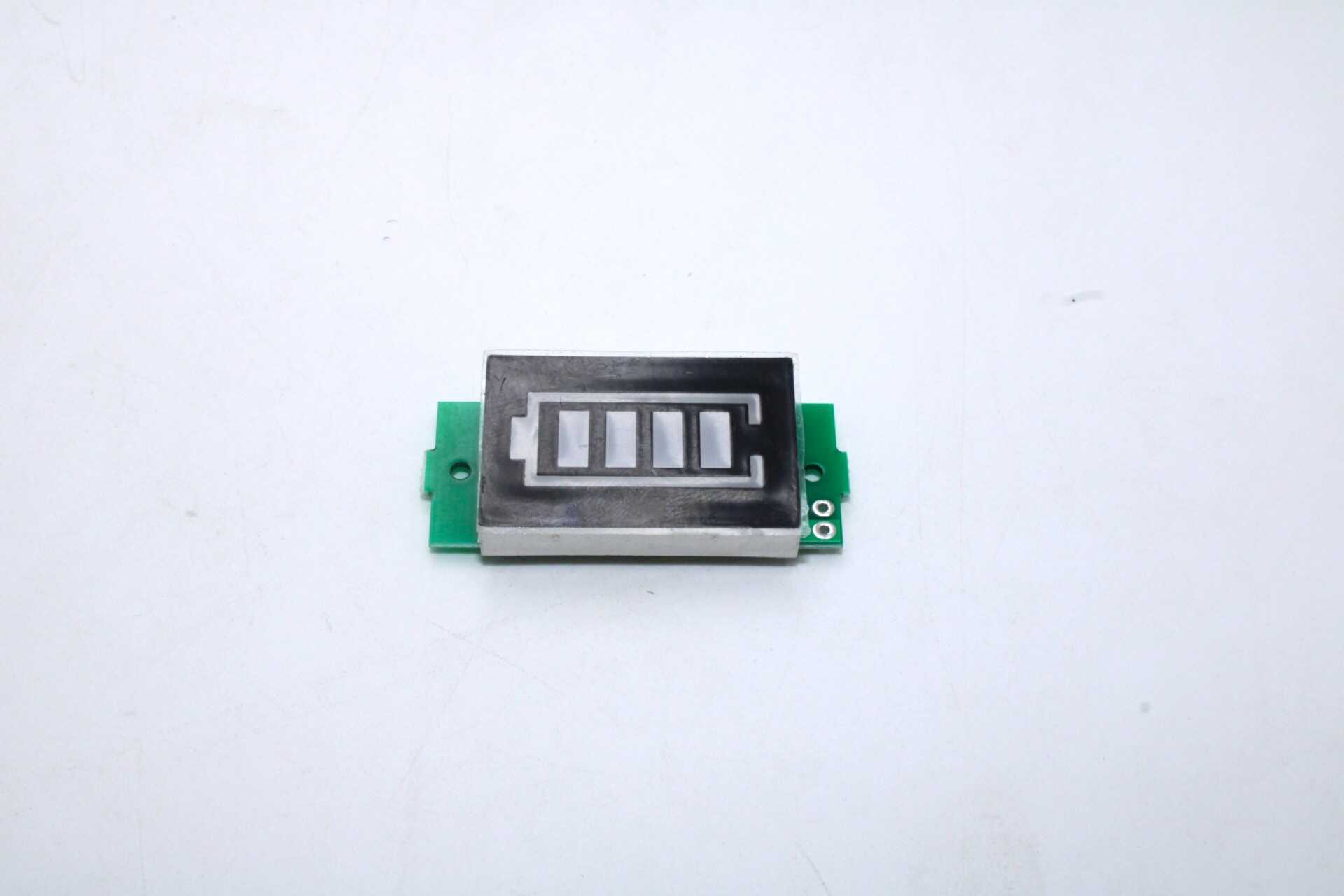

The 1S-8S Battery Capacity Indicator Module is an efficient and user-friendly tool designed to visually display the charge status (capacity) of 18650 lithium-ion batteries and other lithium-based cells, each with a maximum voltage of 4.2V per cell. This module is ideal for a variety of applications, including DIY power supplies, battery chargers, RC devices, and electric vehicles. It provides a clear, real-time voltage status for battery packs with 1 to 8 cells, making it easy to monitor and manage battery performance. With the 1S-8S Battery Capacity Indicator, simply connect the module to the positive and negative terminals of your battery or battery pack. The intuitive bar display instantly shows the current charge level, using a set of green bars for visual clarity. The display outline is highlighted in red, ensuring the status is easily noticeable even in varying lighting conditions. This module can be configured to support battery packs ranging from 1S to 8S, thanks to a convenient jumper pad setting, making it versatile for different battery configurations. The 4-segment display is compact and designed for easy integration into any system, allowing quick visual inspection of battery health. Whether you’re building a custom power supply, working on an RC project, or managing an electric vehicle battery pack, the 1S-8S Battery Capacity Indicator offers an effective and simple solution for tracking and maintaining your battery’s charge status. Its efficient design and clear, easily readable display provide peace of mind and optimal battery management.
Specifications:
| Feature | Specification |
|---|---|
| Voltage Range | 3.0V – 4.2V |
| Compatible Cells | 1S – 8S Li-ion |
| Display Type | LCD/LED |
| Voltage Display | Cell & overall voltage |
| Accuracy | ±0.01V |
| Current Consumption | 5-15mA |
| Operating Temperature | -20°C to +50°C |
| Dimensions | ~30mm x 60mm |
| Operating Voltage | 5V |
| Alarm Function | Low voltage warning |
| Connection Type | JST/pin headers |
| Reverse Polarity Protection | Yes |
| Overvoltage Protection | Yes |
| Voltage Monitoring | Real-time monitoring |
Features:
- Wide Compatibility: Supports 1S to 8S lithium-ion battery packs.
- Instant Visualization: Displays charge status with clear, green bar indicators.
- Easy-to-read Display: 4-segment bar display with a red outline for visibility.
- User Configurable: Jumper pad settings for easy configuration based on battery pack size.
- Compact Design: Ideal for integration into DIY projects, battery chargers, RC systems, and electric vehicles.
- Real-Time Monitoring: Continuously shows the charge level of the battery pack.
- Versatile Use: Perfect for use in various battery-powered applications like electric cars, drones, and power tools.
Package Included:
1 x 1S-8S Battery Capacity Indicator 1S to 8S Battery Level Indicator Module – Li-ion Battery Level Indicator
1S to 8S Battery Level Indicator Module Li-ion Battery Overview
The 1S to 8S Battery Level Indicator Module Li-ion Battery is a compact LED bar graph display that shows the charge status of lithium-based cells in series from one to eight units. It helps hobbyists and technicians quickly assess battery voltage levels during charging, storage, and use.
Key Features of 1S to 8S Battery Level Indicator Module Li-ion Battery
- Supports 1S–8S lithium-ion and LiPo battery configurations
- Minimal power draw for continuous monitoring
- Multi-segment LED bar graph indicates each cell group’s voltage
- Durable design suitable for a wide range of operating conditions
- Compact PCB footprint for seamless integration in DIY projects
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- DIY power supply builds requiring battery level feedback
- RC model and drone battery monitoring before flight
- Integration in battery chargers for visual charge progress
- Portable power bank and LED lighting systems
- Laboratory and workshop battery testing setups
- E-bike or small electric vehicle pack management
How to Use 1S to 8S Battery Level Indicator Module Li-ion Battery
Connect the module’s positive (red) lead to the battery pack’s positive terminal and the negative (black) lead to ground. The indicator auto-detects the number of cells and illuminates the corresponding LED segments to reflect pack voltage in real time. Secure the PCB in your setup and monitor the bar graph to track remaining capacity.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
1. What battery types and configurations does this module support?
The module works with single-cell and multi-cell lithium-based batteries (Li-ion or LiPo) wired in series from 1S up to 8S configurations.
2. How do I connect the indicator to my battery pack?
Simply wire the red lead to the pack’s positive terminal and the black lead to the negative terminal. The indicator will automatically detect the total cell count and display each segment accordingly.
3. Can I use this indicator in outdoor or workshop environments?
Yes. Its robust design tolerates typical indoor and outdoor operating conditions, making it suitable for field use, workshops, and hobby applications without additional protection.
