This is the 6V variant of the 1S 12A 3.6V BMS Battery Protection Board for Li-ion Cell in Battery Protection Board. Available at ₹49.32 (₹41.80 + GST) with free shipping across India.
Product Description:
1S 12A Li-ion 1S 12A 3.6V BMS comes with over-charge, over-discharge, over-current, and short circuit protection.MOS transistor can control the battery charge and discharge, Built-in three-stage over-current detection circuit, for 3.6 V Li-ion batteries. This is a highly accurate voltage detection circuit and provides low standby current consumption.
This is a small size, suitable for many requirements of high integration, low cost of the occasion, to meet a wide range of performance requirements to ensure that the battery pack is absolutely safe and reliable.

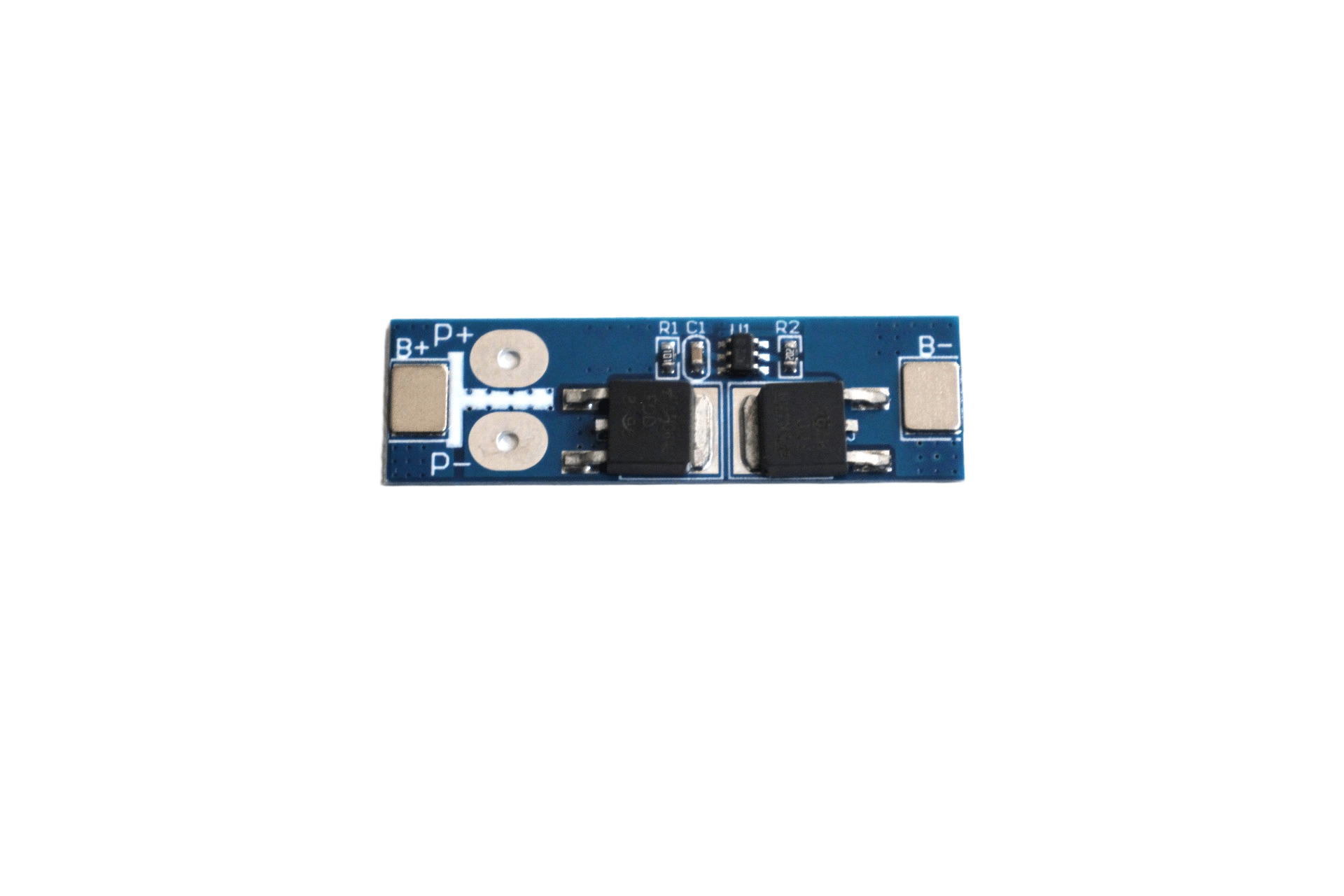

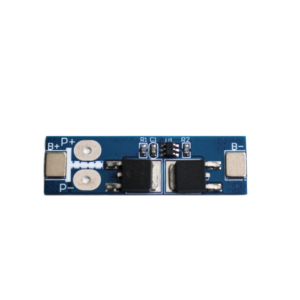

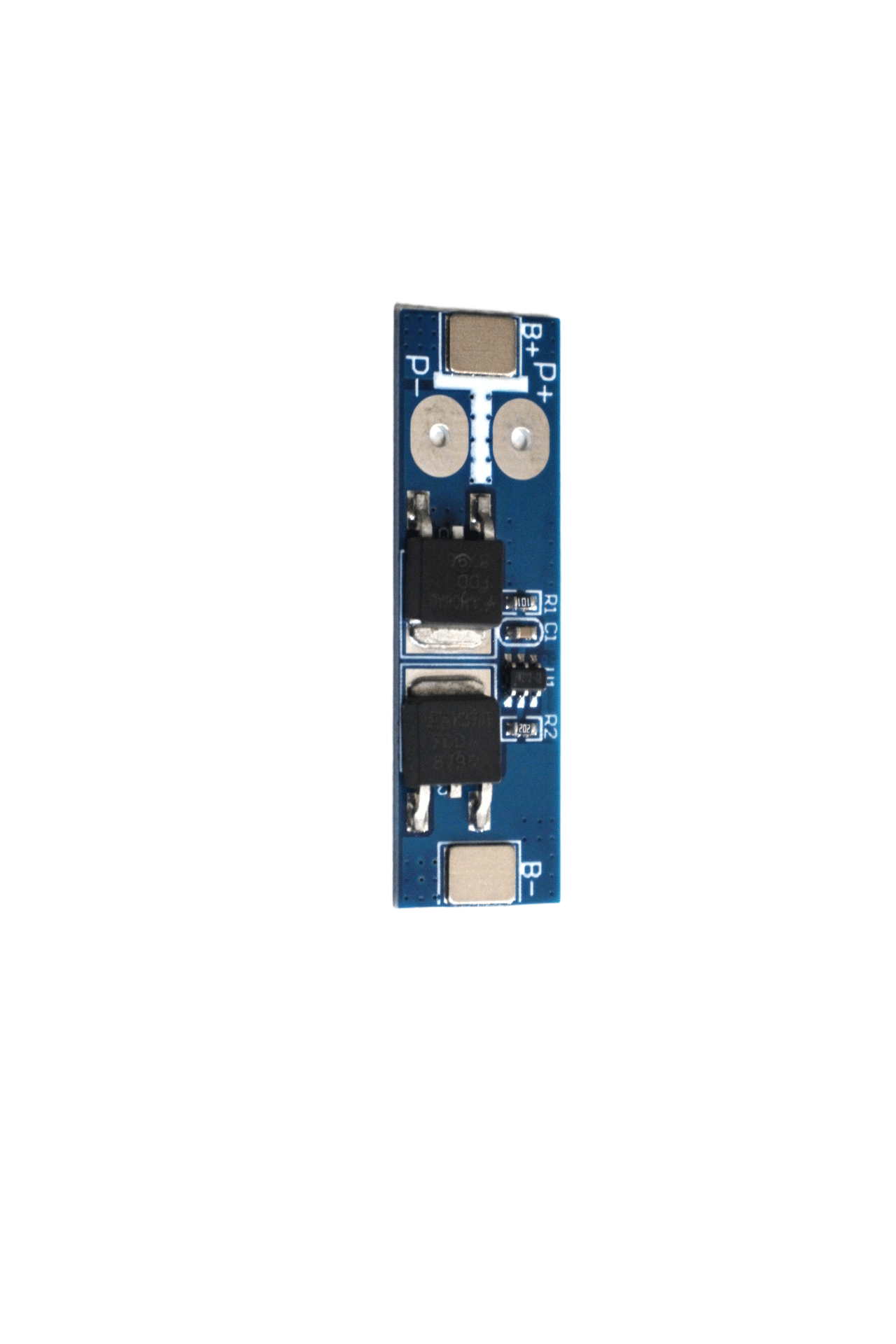

Wiring instructions:
- B is connected to the positive electrode of the battery
B- Connect the negative pole of the battery.
P is the positive input of the battery pack output
P- is the battery pack output and input negative
Precautions:
- Please pay attention to the conditions of input and output voltage and load current, so that the power consumption in the protection board does not exceed the allowable power consumption of the electrical parameters.
- The load current cannot be operated for a long time between the upper limit continuous working current and the overcurrent protection current.
- When the battery is connected, there is a possibility that it will not discharge. In this case, the charger can be restored to normal operation.
- Although the protection board has a built-in anti-static protection circuit, please do not touch the board by hand when the protection board is working, so as to avoid static damage to the protection board.
Features:
- Overcharge protection
- Over-discharge protection
- Short circuit protection
- Over-current protection
Package Includes:
1 x 1S 12A 3.6V BMS Battery Protection Board for Li-ion Cell
Galvanic Isolation: Why and How to Isolate Power Rails in Your Circuits
Galvanic Isolation: Why and How to Isolate Power Rails in Your Circuits Every experienced electronics designer knows that...
Read More →
LiPo Battery Connector Types: XT60 vs T-Plug vs JST Compared
Choosing the wrong connector for your LiPo battery can mean anything from a loose connection that wastes energy...
Read More →
Battery Capacity Testing: Build a Discharge Tester
Table of ContentsWhy Test Battery Capacity How Discharge Testing Works Components Needed Building the Discharge Tester Circuit Arduino...
Read More →Technical Specifications
| Operating Voltage | 3.6V |
|---|---|
| Current Rating | 12A |
| Cell Configuration | 1S |
| SKU | AI2160 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 1S 12A 3.6V BMS Battery Protection Board for Li-ion Cell is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
