16mm metal push button waterproof LED light self-lock self-reset button 1NO1NC Orange Color

This is the Orange variant of the 16mm metal push button waterproof LED light self-lock self-reset button 1NO1NC Orange Color in Metal Push Button Switch, Electronic Switches. Available at ₹217.12 (₹184.00 + GST) with free shipping across India.

Looking for Metal Push Button? 16mm metal push button waterproof LED light self-lock self-reset button 1NO1NC Orange Color is available at Zbotic with fast shipping across India.

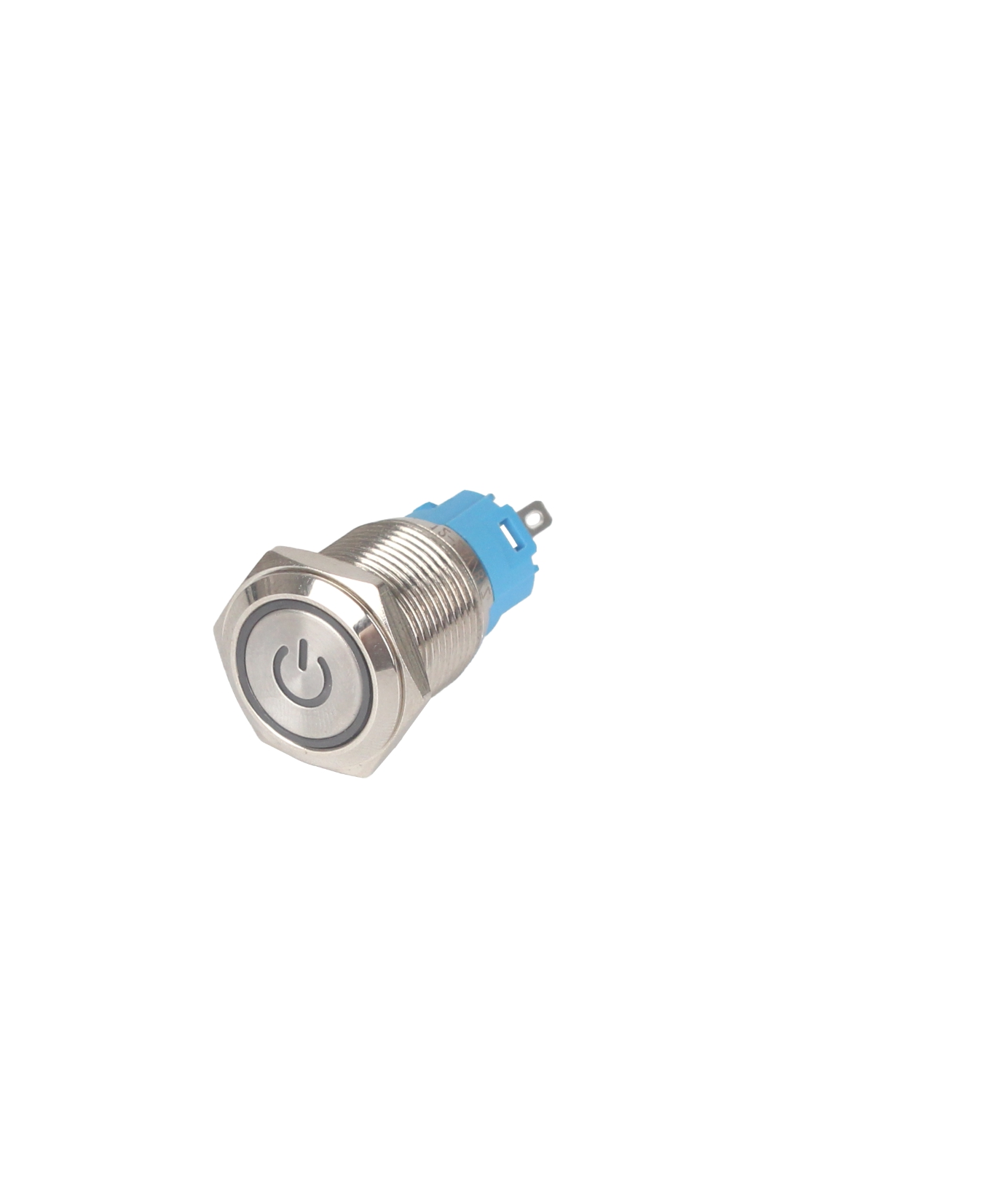

The 16mm Self-lock Non-Momentary Metal Pushbutton Switch is an excellent choice for anyone needing a durable, high-quality push-button. This compact, panel-mount switch features a tough metal construction with an illuminated orange LED ring around the push area, giving your dashboard or control panel a premium look. It has a Single Pole Double Throw (SPDT) configuration with 12mm threading and a 1mm pitch. Available in various LED light colors, it can be customized to suit your application.

This switch operates with a Non-Momentary Self-Lock action, meaning it remains in its ON/OFF state until pressed again. Its threaded head and nut allow for secure mounting, and the flat hexagonal ring structure outside provides a clean, professional installation. The glowing LED ring adds an attractive visual element, enhancing the design of your panels and dashboards.

Built with a stainless steel body and an IP67 protection rating, this switch offers excellent environmental resistance and long-lasting performance. Perfect for basic On/Off functions, it features an overall length of 26mm (including leads) and small solder lugs for easy connection. The switch is rated for up to 3A and 12V DC, while the LED operates at 5V, making it a reliable choice for various applications.

• NOTE : Two variants are available in with wire connector and without wire connector  you will receive random.

Features:

1. Stainless steel material for long-term use
2. High-end appearance and good to touch
3. Inbuilt Colorful Ring illumination LED
4. Available in Various LED Color
5. Independent LED terminals
6. Bright daylight LEDs
7. Single pole push to make and Push to break Function
8. Front and rear panel seal to IP67
9. Integral supply resistors
10. TVS protection
11. Good electrical conductivity
12. Non-Momentary type push-button switch
13. Rubber ring and hexagon nut to fix, Waterproof and Dustproof

Package Includes:

1 x 16mm metal push button waterproof LED light self-lock self-reset button 1NO1NC Orange Color

Datasheet

16mm metal push button waterproof LED light self-lock Overview

The 16mm metal push button waterproof LED light self-lock switch features a stainless steel housing with an orange LED illumination ring, designed for panel-mount installations requiring reliable on/off control. Its self-lock/self-reset mechanism and SPDT (1NO1NC) configuration make it ideal for dashboards, industrial consoles, and outdoor equipment.

Key Features of 16mm metal push button waterproof LED light self-lock

• Durable stainless steel construction for long-term use
• Built-in orange LED ring with bright daylight illumination
• Self-locking action—press once to latch ON, press again to release
• SPDT contacts (1NO/1NC) for single pole push-to-make and push-to-break operation
• IP67-rated front and rear sealing for waterproof and dustproof performance
• 12 mm threading with 1 mm pitch, includes rubber sealing ring and hexagon nut for secure mounting
• TVS protection against voltage spikes
• Genuine product with fast shipping from Zbotic

Applications and Use Cases

• Industrial control panels and machinery start/stop functions
• Automotive dashboards and accessory activation switches
• Marine electronics and boat instrument panels
• Outdoor kiosks, ticketing machines, and weather-resistant enclosures
• Home automation control boards and smart lighting systems
• Emergency stop or reset switches in manufacturing equipment

How to Use 16mm metal push button waterproof LED light self-lock

Drill a 16 mm cut-out in your panel and slide the switch body through, placing the rubber ring on the front face and securing it with the hexagon nut at the rear. Wire the SPDT terminals—connect your load to the NO or NC blade as required—and wire the LED ring pins to your DC supply via a suitable resistor. Once mounted and wired, press the button to toggle its latched state; the LED ring will illuminate when power is applied.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

How does the self-lock mechanism operate?

The switch latches ON when you press it once and stays in that state until you press it again, toggling between the NO and NC contacts on each press.

What wiring configuration does this button use?

This push button features SPDT contacts with one normally open (NO) and one normally closed (NC) terminal. The two additional LED pins must be wired to your DC supply through an appropriate resistor for ring illumination.

Is this switch suitable for outdoor and wet environments?

Yes. The IP67 front and rear panel seals, combined with stainless steel construction and TVS protection, ensure the switch remains waterproof and dustproof in harsh conditions.
