This is the 12V variant of the 12V RGB 5050 SMD LED Strip - 5Meter in SMD LED. Available at ₹129.80 (₹110.00 + GST) with free shipping across India.

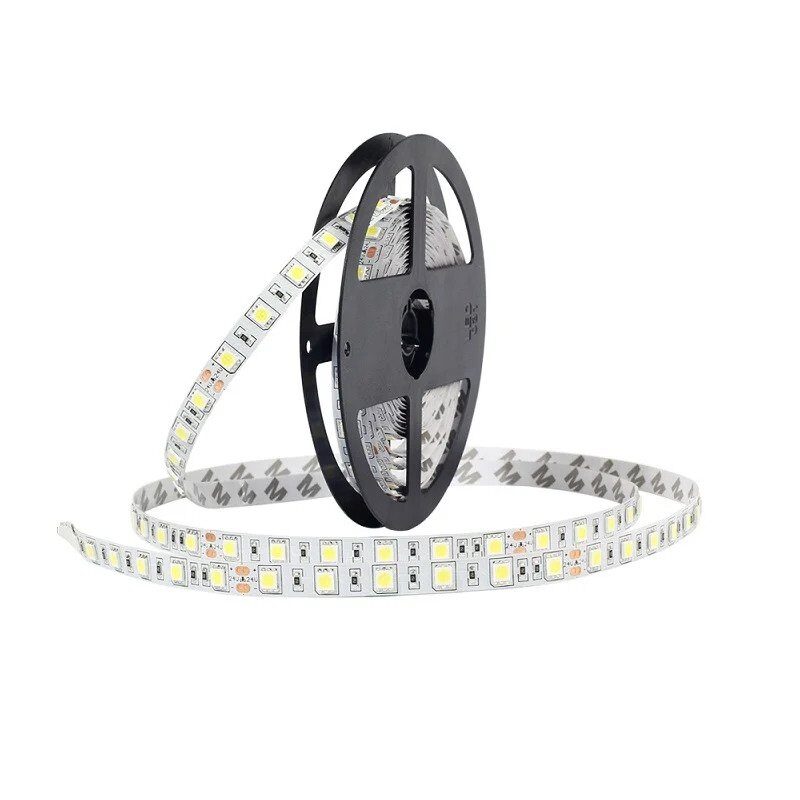

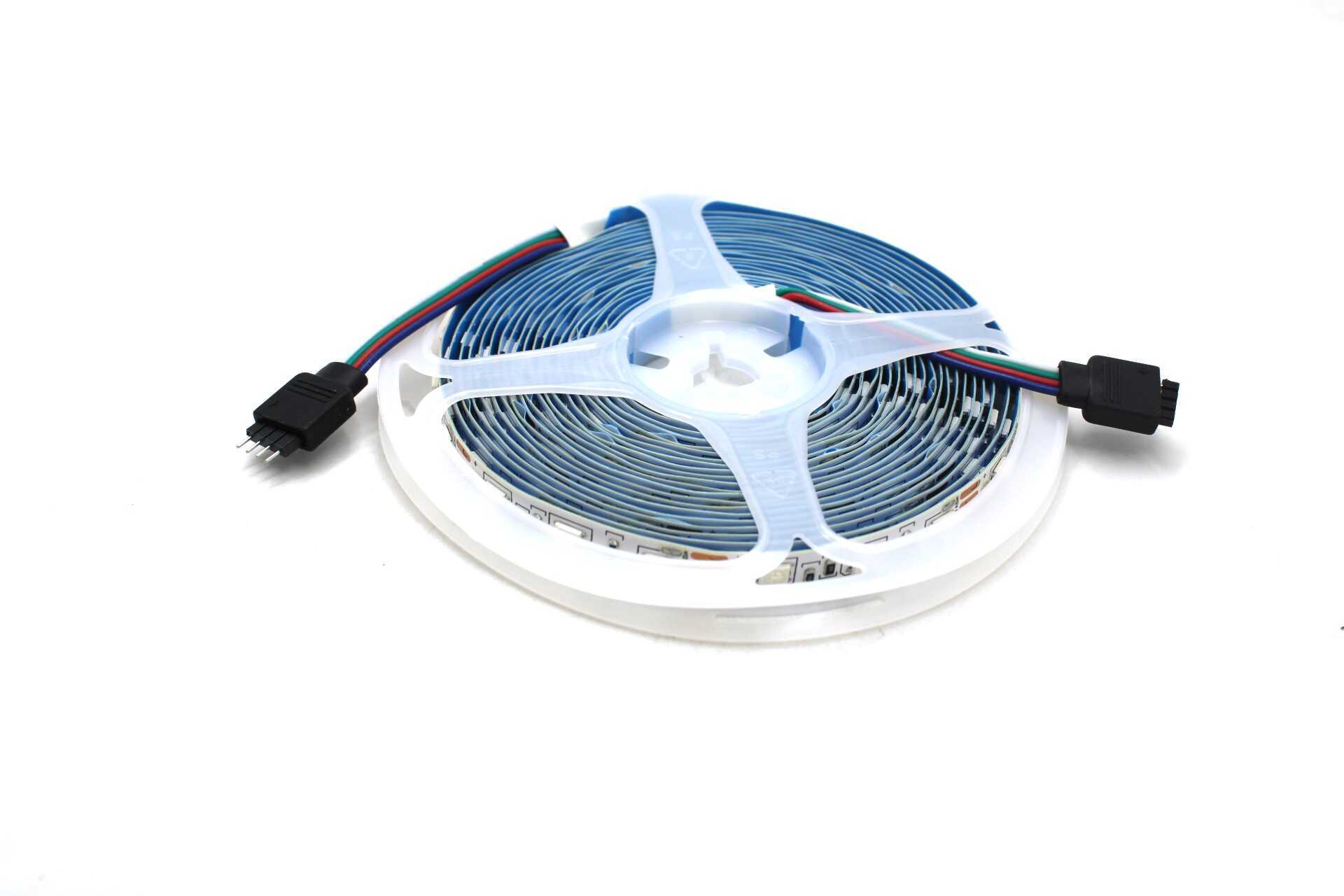

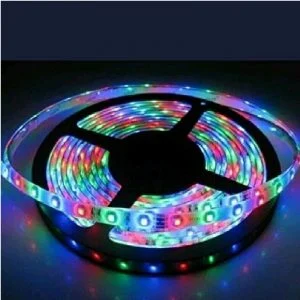

12V RGB 5050 SMD LED Strip
This 12V RGB 5050 SMD LED Strip measures 5 meter in length and features 300 bright RGB LEDs. Each LED module contains three colors: red, green, and blue. The strip is designed to be flexible, easily bending around curves and corners. It consumes 22.5 watts of power and requires a 12VDC power supply and a controller, which are not included. An adapter with at least a 2-amp output is necessary to power the entire strip. Insufficient power supply may result in mismatched colors due to some LEDs not receiving adequate power.
Unlike standard white LED strips, this model boasts triple the number of LEDs, with each of the 300 modules containing three LEDs—one for each color. When set to white at full brightness, it consumes nearly three times the power of a regular white strip, drawing approximately 2.8 amps at 12VDC. Connecting three strips end-to-end would require around 8.4 amps.
Please note that these LED strips are not individually addressable. Each color operates on a separate 12VDC circuit, totaling three circuits (RGB). These strips can be powered with a standard 12V DC supply for basic applications that do not require complex flashing patterns or color mixing.
Note:
(LEDs Driver or Adapter, and 4 pin sockets are not included in the package, you have to buy it separately.)
Specifications:
| LED Glow Color | RGB (Red-Green-Blue) |
|---|---|
| Net weight (g): | 13 |
| Max. Operating Current (mA) | 2000 (for 1 Meter Length) |
| Operating Voltage (VDC): | 12 |
| Power required per Meter (Watt) | 14.4 |
| Protection Standard | IP20 |
| Strip Length (meter) | 5 |
| Strip Size (mm) | 10 |
| Total Luminous Flux | 30-40LM/Meter |
| View angle | 120 ° ~ 140 ° |
| Operating Temperature (°C) | – 25 to 65 |
Features
- With the controller can make various colors and change Blinking patterns,
- Such as horse race, raindrop, color scan, trail, jump, etc.
- Flexible can be bent to any shape.
- LED quantity and length can be made customizable
- High brightness and long life (over 40,000hrs)
- Low voltage, safe for use.
Package Includes
- 1 x 12V RGB 5050 SMD LED Strip- 5Meter
12V RGB 5050 SMD LED Strip – 5Meter Overview
The 12V RGB 5050 SMD LED Strip is a 5-meter long flexible lighting solution featuring 300 high-brightness RGB LEDs. Designed for vibrant multi-color illumination, it’s ideal for accent lighting, decorative installations, and creating dynamic ambiances in indoor spaces.
Key Features of 12V RGB 5050 SMD LED Strip – 5Meter
- 300 5050 SMD RGB LEDs (60 LEDs per meter) for smooth color mixing and bright output
- 5-meter length and 10 mm width for easy installation in coves, under cabinets, and along edges
- Operating voltage: 12 V DC with 22.5 W total power consumption
- IP20 protection rating – suited for indoor, dry environments
- Flexible PCB allows bending around corners and curves without damage
- Fast shipping from Zbotic – get your LED strip delivered quickly across India
Applications and Use Cases
- Under-cabinet kitchen lighting with customizable color scenes
- Backlighting TV units or display shelves for immersive effects
- Decorative cove lighting in living rooms, bedrooms, or retail spaces
- DIY project lighting for desks, gaming setups, or computer cases
- Event and party mood lighting with color-changing capabilities
How to Use 12V RGB 5050 SMD LED Strip – 5Meter
Peel off the adhesive backing and mount the strip onto a clean, dry surface. Cut only at designated copper pads (every 3 LEDs) if a shorter length is needed. Connect the positive and negative leads to a 12 V DC power supply and RGB controller (sold separately) capable of at least 2 A output. Use the controller to select colors and adjust brightness as desired.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Do I need a separate controller for this RGB strip?
Yes. This LED strip requires a compatible 12 V RGB controller to switch colors, adjust brightness, and select lighting modes. Choose a controller rated for at least 2 A output.
Can I cut the strip to fit a specific length?
Absolutely. Cut only at the marked copper pads located every 3 LEDs to ensure proper electrical connections. Always seal cut ends with silicone end caps if needed.
Is this LED strip suitable for outdoor use?
No. With an IP20 rating, this strip is designed strictly for indoor, dry applications and should be kept away from moisture and water exposure.
