This is the 12V variant of the 12V 5010 Cooling Fan for 3D Printer in 3D Printer Extruder Parts and Fans. Available at ₹70.80 (₹60.00 + GST) with free shipping across India.

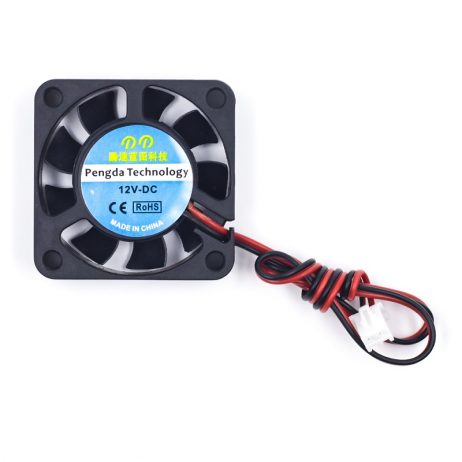

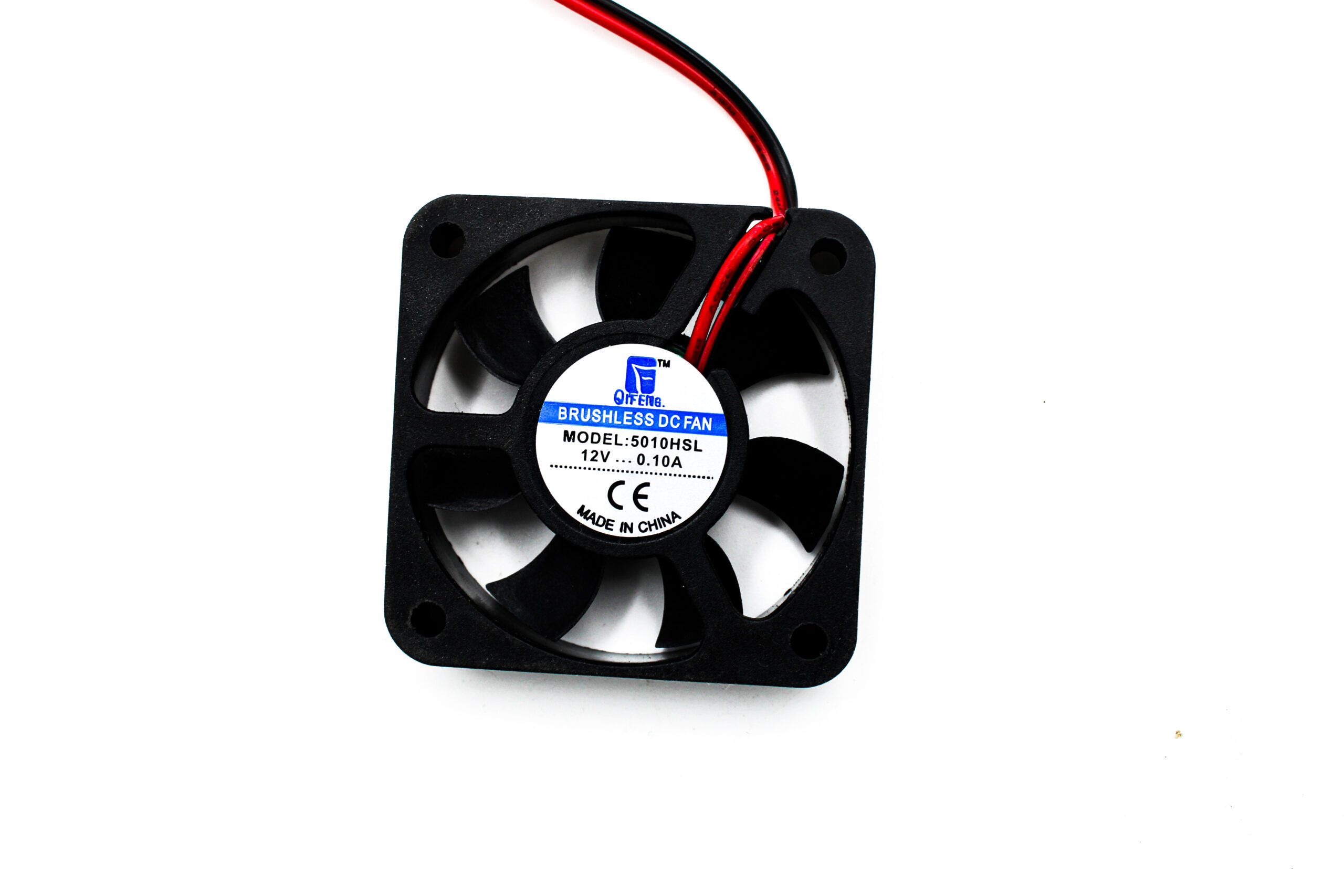

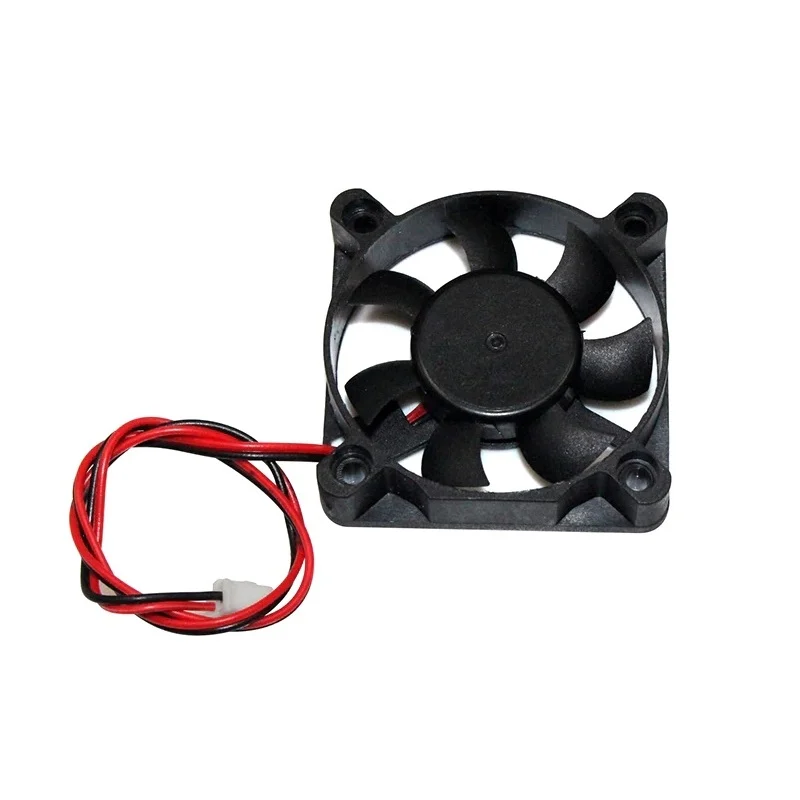

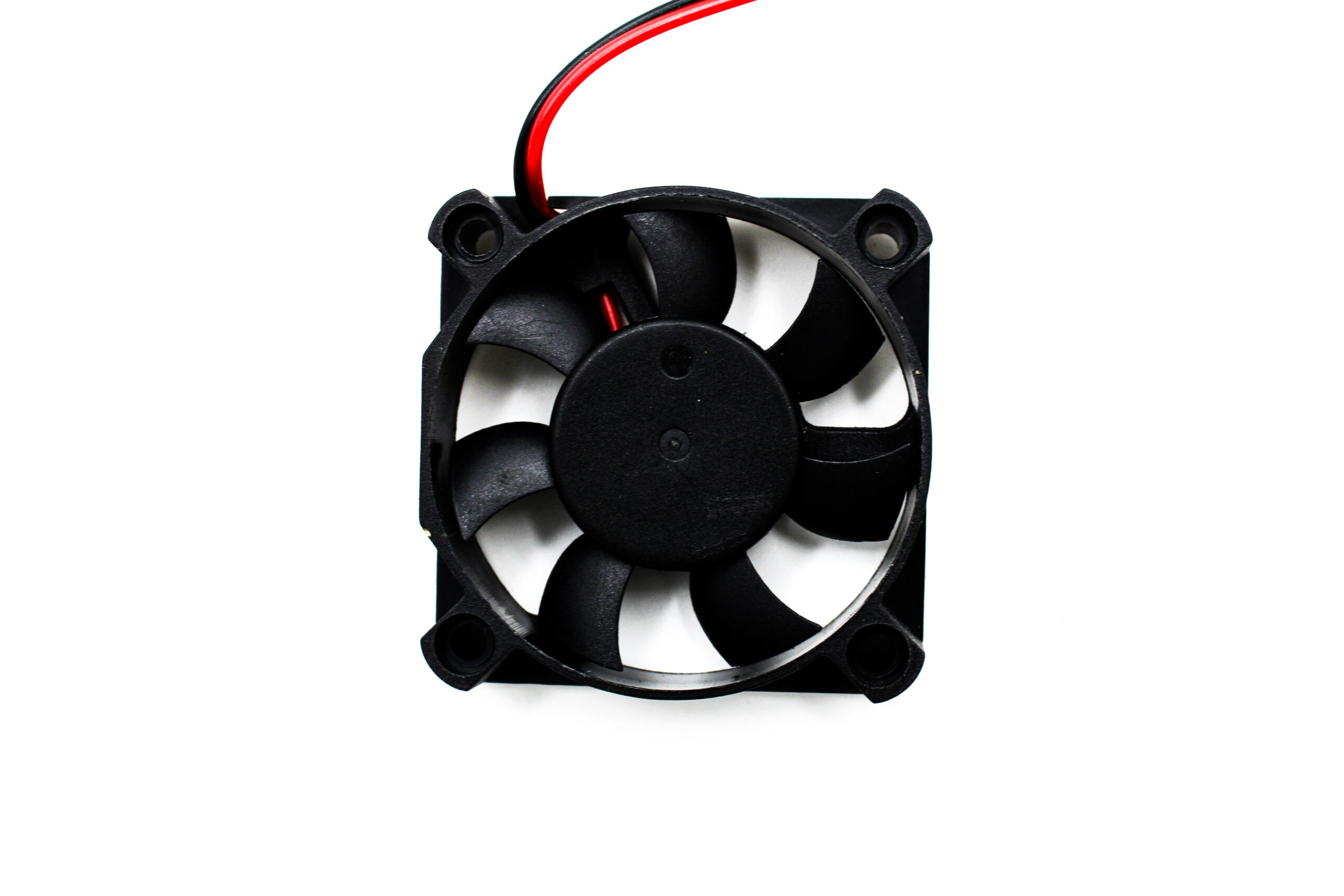

The 3D Printer 12V 5010 Cooling Fan is a small yet powerful exhaust fan that helps regulate the temperature of the extruder. It connects to the printer controller with a two-pin connector and runs automatically according to the printer system. It is designed to be mounted on the extruder for smooth and uninterrupted printing.
Features:
- Perfectly fit on the extruder
- Noiseless Performance
- Very low Current consumption
- Easy to install and connect.
- Long Connecting Wire
Specification:
| Operating Voltage | 12V DC |
|---|---|
| Operating Current | 0.15 Amp±10% |
| Rated speed | 7000rpm±10% |
| Air flow | 2.2CFM±10% |
| Cable Length | 30 cm |
| Noise | 23dBA±10% |

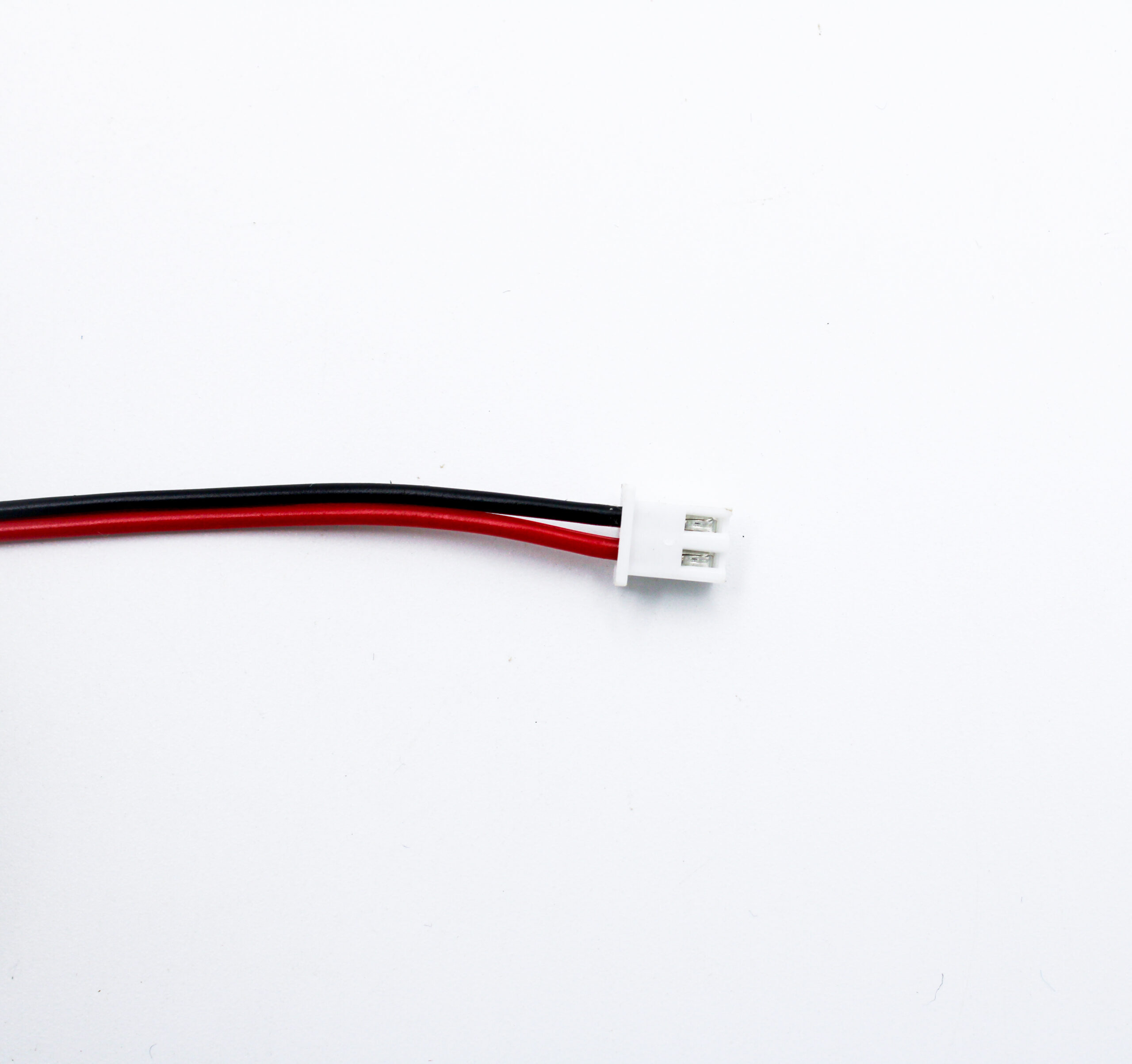

| Connector | PH2.0-2P |
| Dimensions in mm (LxWxH) | 50 x 10 x 50 |
| Net weight | 15g (Approx) |
| Service life | 3,5000 hours |
| Color: | Black |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 5 × 5 × 2 cm |
Package Includes:
1 x 12V 5010 Cooling Fan
