Looking for 100k Ntc Thermistor Copper? 100k NTC Thermistor With Copper Tip for MK8 Extruder is available at Zbotic with fast shipping across India.

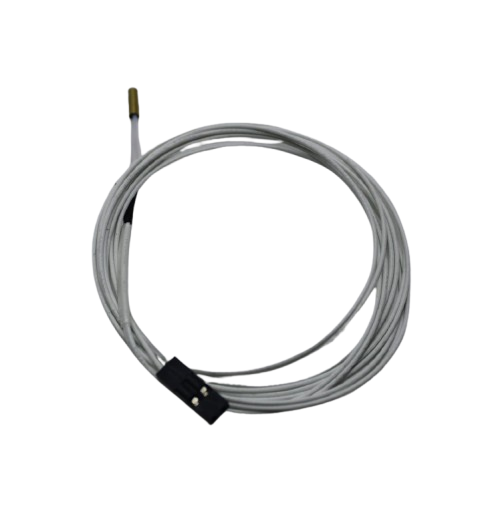

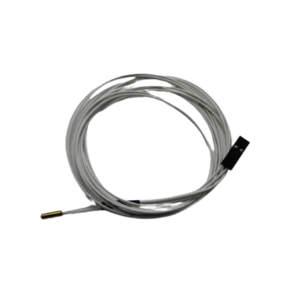

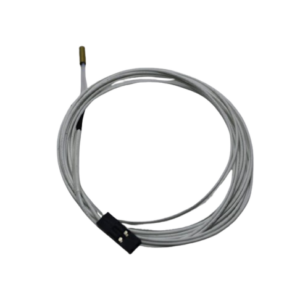

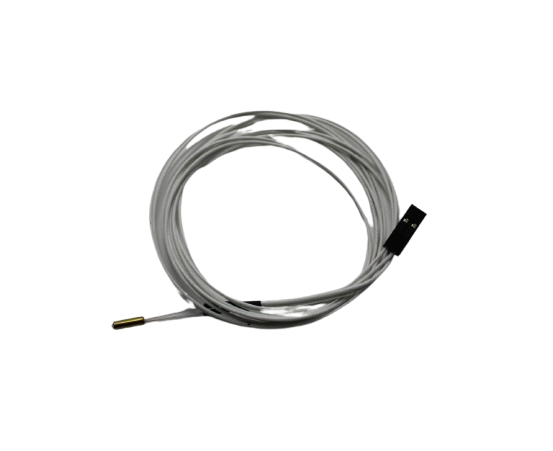

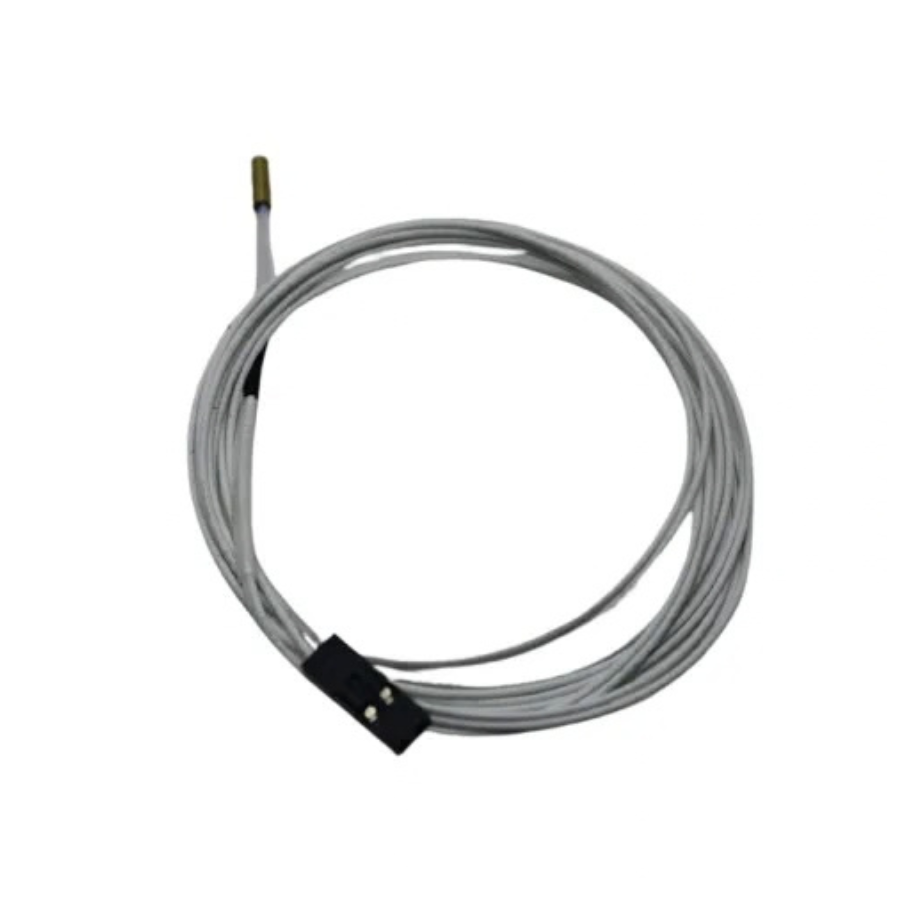

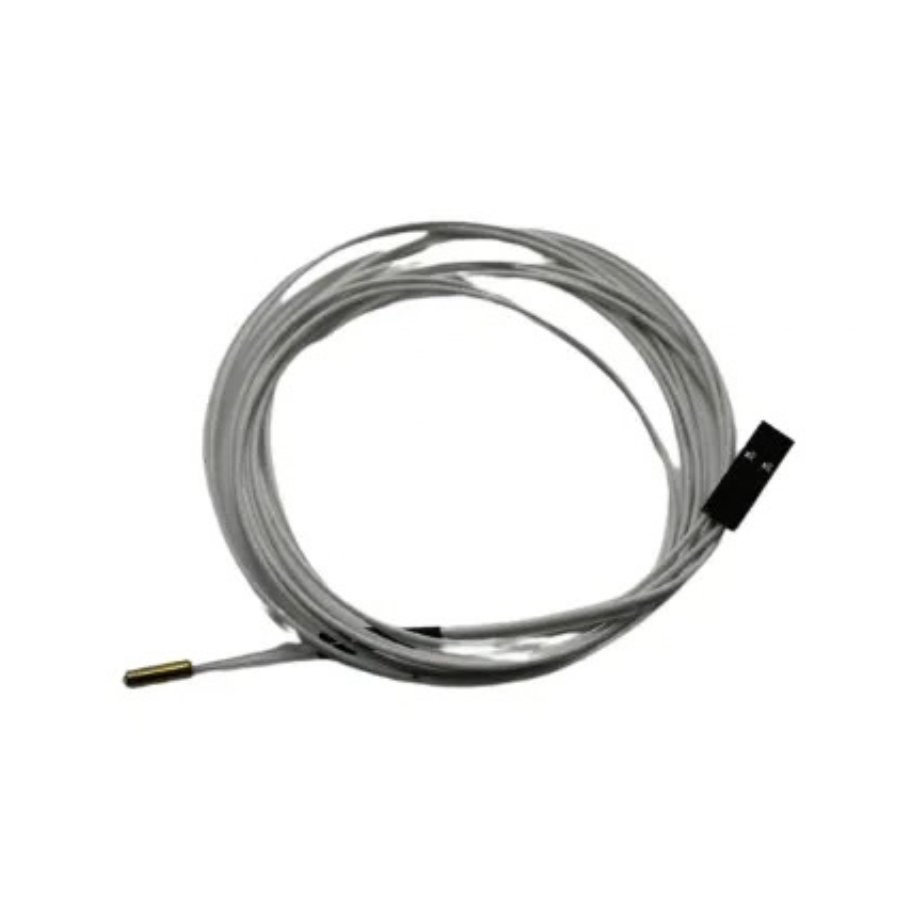

This is Thermistor 100k NTC with 1 Meter Cable Temperature Sensor for 3D Printer Reprap. The thermistor is a thermally sensitive resistor known for exhibiting a large change in resistance with only a small change in temperature.
The thermistor comes with copper tip, make the temperature control more accurately, it will have a better thermal transfer and solve the problem for thermistor fixed unstable and the problem of easy damage
In 3D printers, the temperature and fine-tuning of printers are very important, as print quality can be greatly reduced if the temperature is not set correctly. The thermistor, a temperature sensor capable of withstanding temperatures above 200 degrees Celsius, is used to fine-tune the nozzle’s temperature and heat the device. In most RepRaps, a thermistor senses the temperature of the Hot End. A second thermistor senses the temperature of the Heated Bed.
Features:
- 100k Ohm NTC Thermistor.
- NTC Thin Film Thermistor Cable.
- Nominal value: R25 (25 ℃) : (common) 1.5K, 2K, 5K, 10K, 20K, 30K, 47K, 50K, 100K, 200K, 500K, etc.
- Resistance precision: ± 1%, ± 2%, ± 3%.
- B value R25/50 (common) 3435k, 3600k, 3950k, 3990k, 4100k, 4200k, etc.
- B value accuracy: ± 1%.
- Recommend the use of parameters: R25℃ = 100 k B25/50 = 3950 k ± 1%)
Package Includes:
1 x 100k NTC Thermistor With Copper Tip for MK8 Extruder
100k NTC Thermistor With Copper Tip for MK8 Extruder Overview
The 100k NTC Thermistor With Copper Tip for MK8 Extruder is a precision temperature sensor designed specifically for MK8 hotends in 3D printers. Its copper-sheathed probe and high-sensitivity NTC element ensure rapid thermal response and accurate temperature readings, helping you maintain consistent print quality.
Key Features of 100k NTC Thermistor With Copper Tip for MK8 Extruder
- 100 kΩ NTC thermistor with copper tip for improved thermal transfer
- Wide operating range from −40 °C to 270 °C
- Dissipation power factor ≥ 5 mW/°C (static in air) for stable readings
- Max power rating of 45 mW and hot time constant ≤ 7 s in air
- 1 m thin-film cable for easy routing inside printer frame
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Replacement sensor for worn-out or damaged MK8 extruder thermistors
- Precise temperature monitoring on DIY Reprap and Prusa-style printers
- Fine-tuning hotend calibration for specialty filaments (PLA, ABS, PETG)
- Educational 3D printer kits requiring reliable temperature control
- Upgrading hobbyist printers to improve thermal stability and print consistency
How to Use 100k NTC Thermistor With Copper Tip for MK8 Extruder
Insert the copper-tipped thermistor into the dedicated bore of the MK8 hotend block and secure it with the set screw or heat-resistant PTFE sleeve. Route the 1 m cable to your printer’s controller board and plug it into the thermistor port. Update your firmware to the 100 kΩ NTC profile, then run a PID autotune or temperature calibration to ensure accurate readings.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What temperature range does this thermistor support?
It accurately measures temperatures from −40 °C up to 270 °C, suitable for most 3D printing filaments and hotend applications.
How do I install this thermistor on my MK8 extruder?
Slide the copper tip into the hotend’s thermistor slot, tighten the set screw or holder, then connect the cable to the thermistor port on your printer’s mainboard.
Is the cable length sufficient for larger printer setups?
Yes, the 1 m thin-film cable provides ample length for routing inside a variety of printer frames without needing extensions.
