This is the Green variant of the 12mm 12V Ring Light Self Reset Momentary Metal Switch-Green Light in Metal Push Button Switch. Available at ₹95.58 (₹81.00 + GST) with free shipping across India.

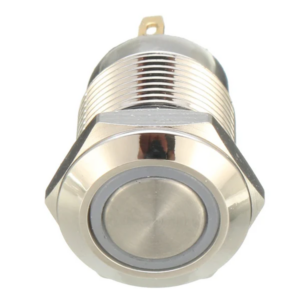

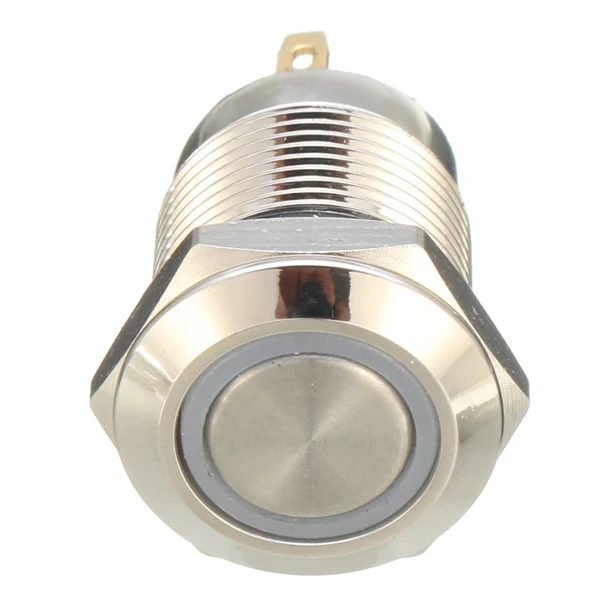

12mm 12V Ring Light Self Reset Momentary Metal Switch-Green Light

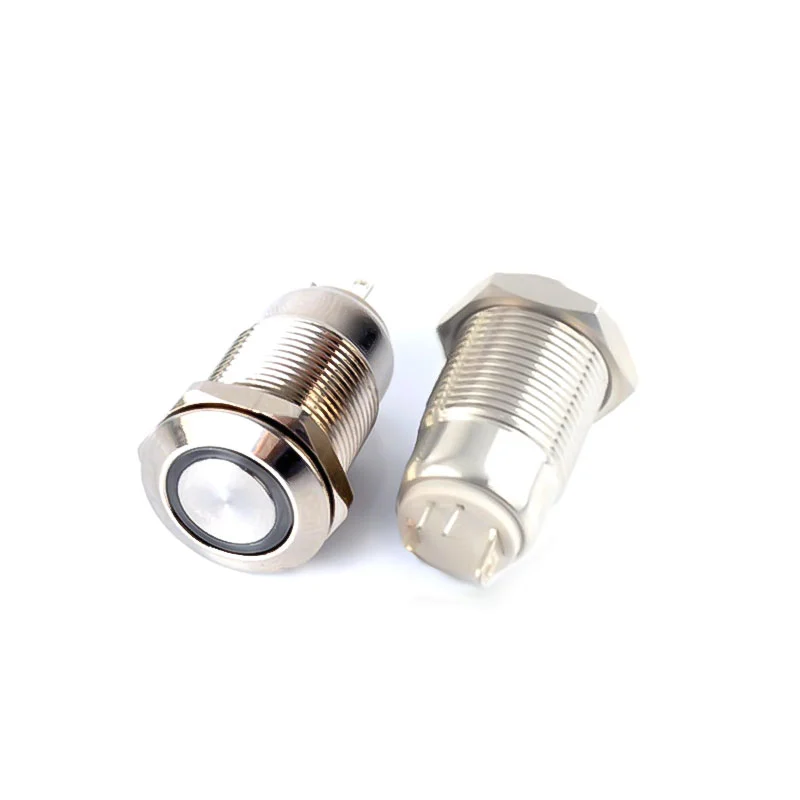

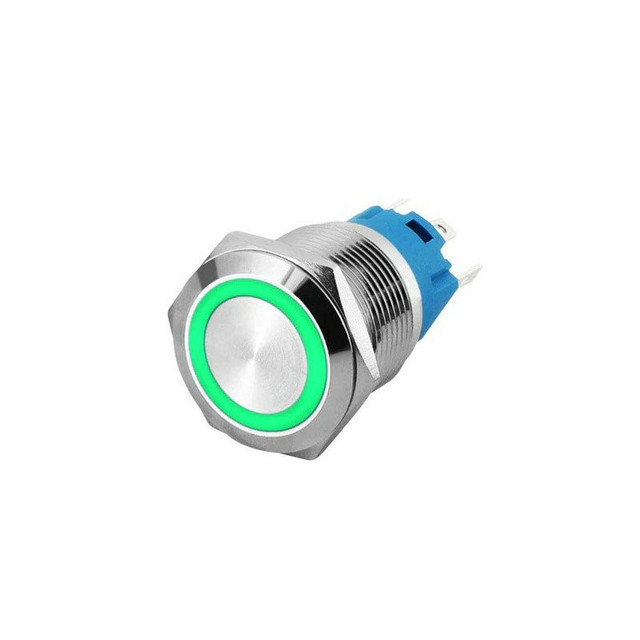

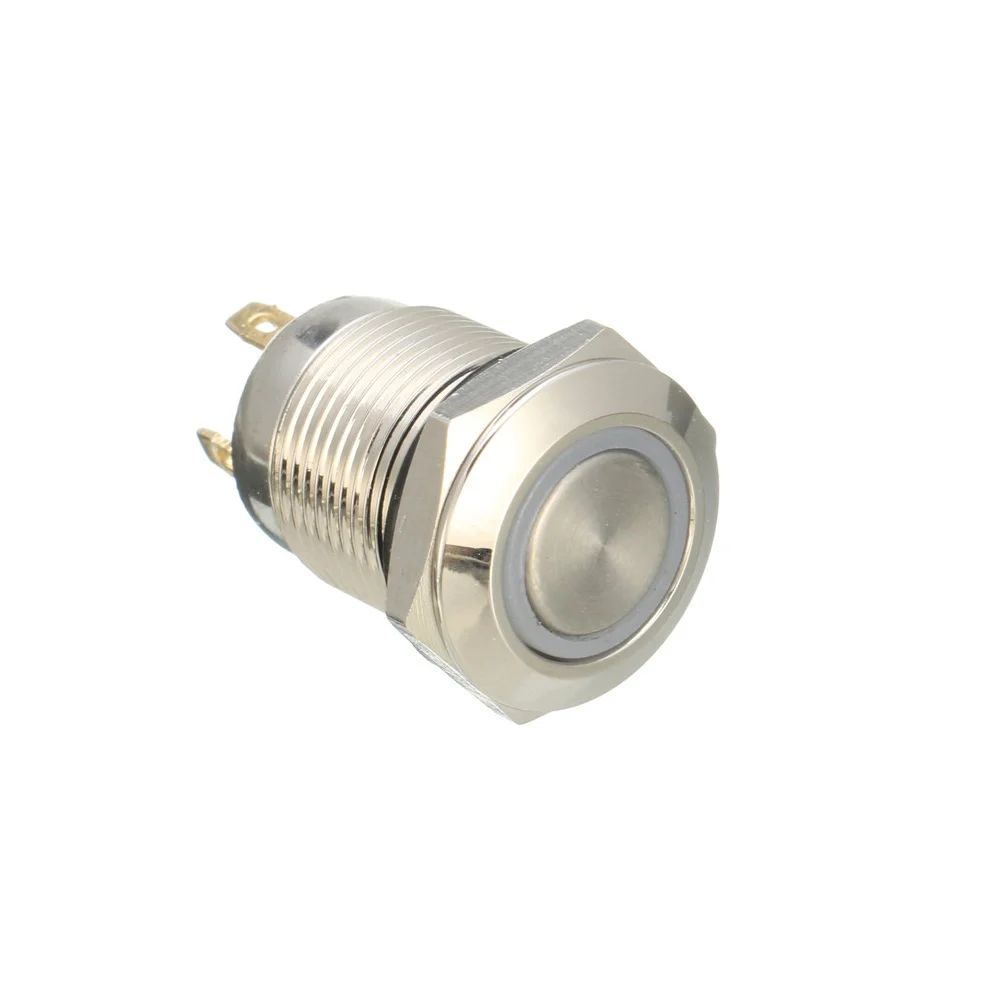

If you need a heavy-duty push-button with an elegant design, you might want to consider this Self Reset Momentary Metal Push Button Switch. It has a metal body with a green LED ring that illuminates when the switch is on. It is an SPDT switch with 12mm threading and 1mm pitch, and it can be easily mounted on your dashboard or control panel with a hexagonal nut. The switch has a Self-Reset action, which means it stays in the same position and state until you press it again. The switch can handle up to 3A and 12VDC, while the LED works with 5V. You can also choose from different LED colors to suit your preference. This switch is durable, waterproof (IP67 rating), and ideal for basic on/Off functions.
Features:
- Stainless steel material for long-term use
- High-end appearance and good to touch

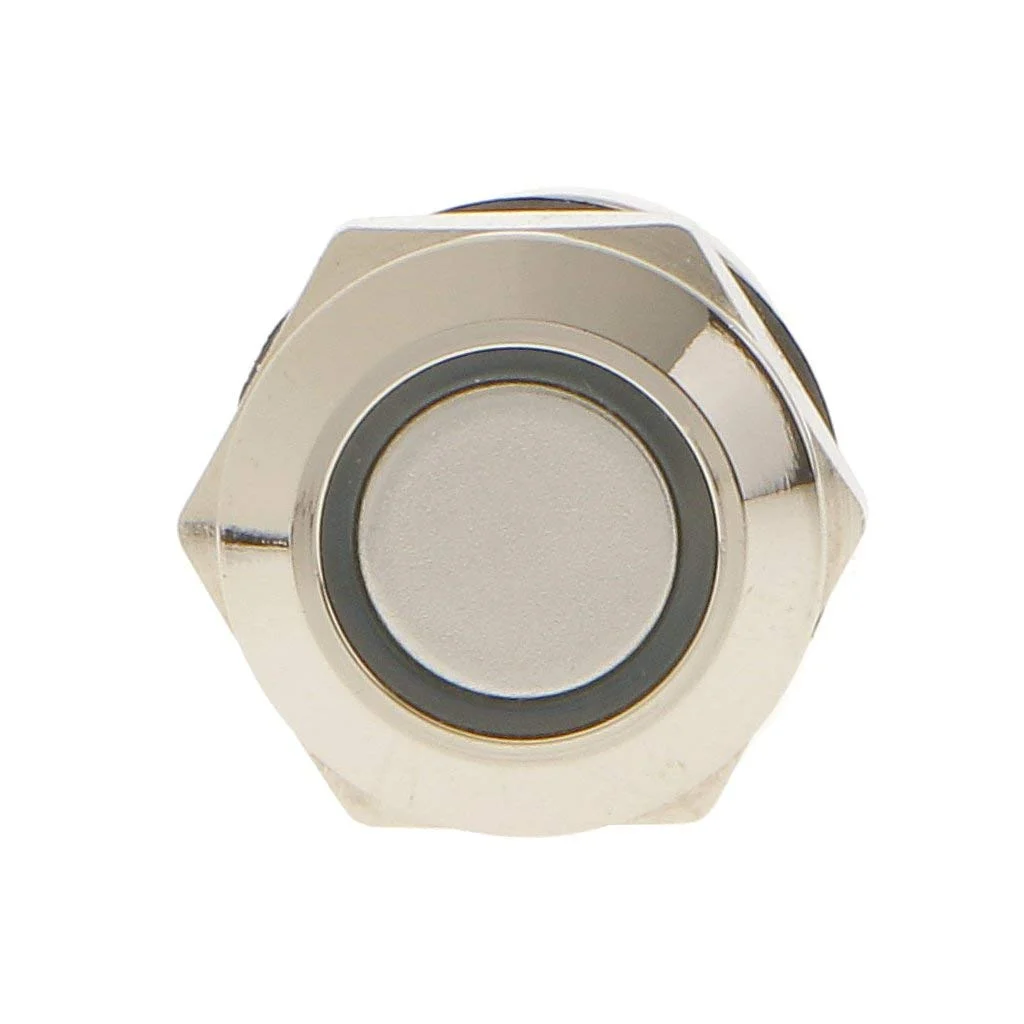

- Inbuilt Colorful Ring illumination LED

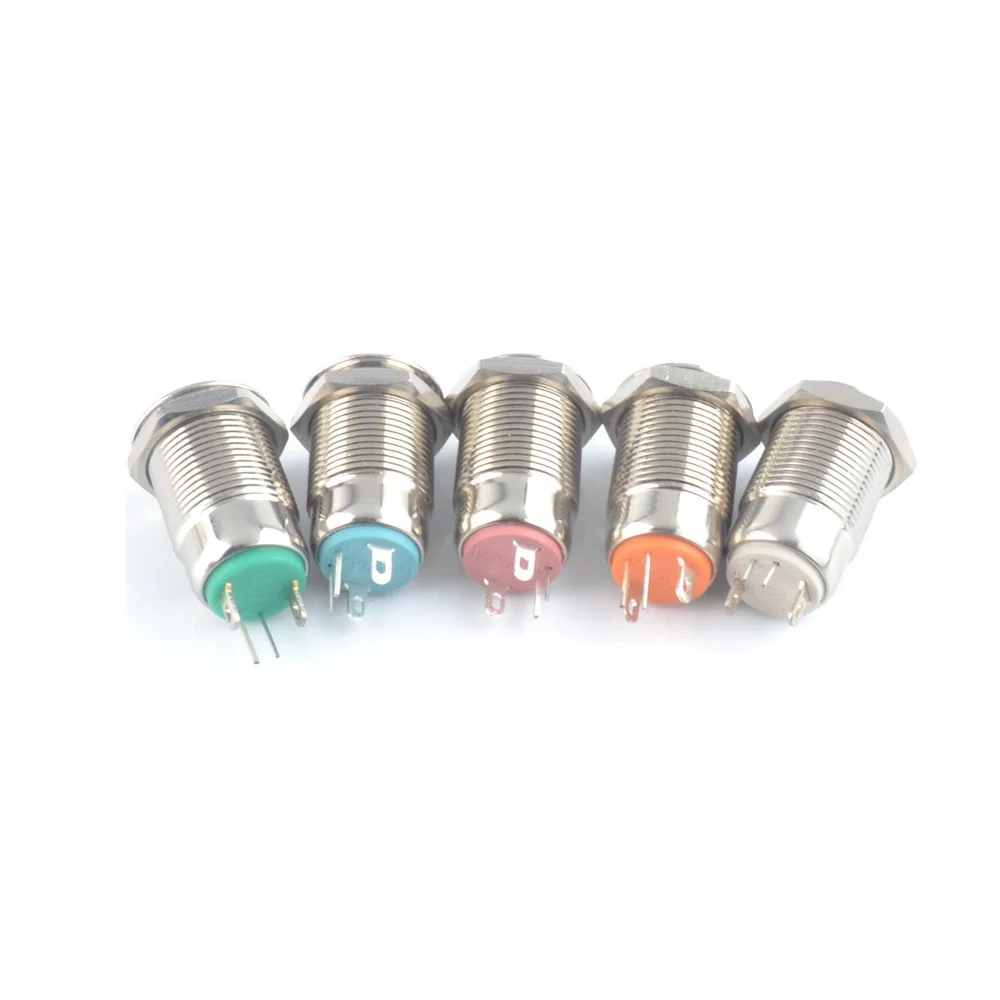

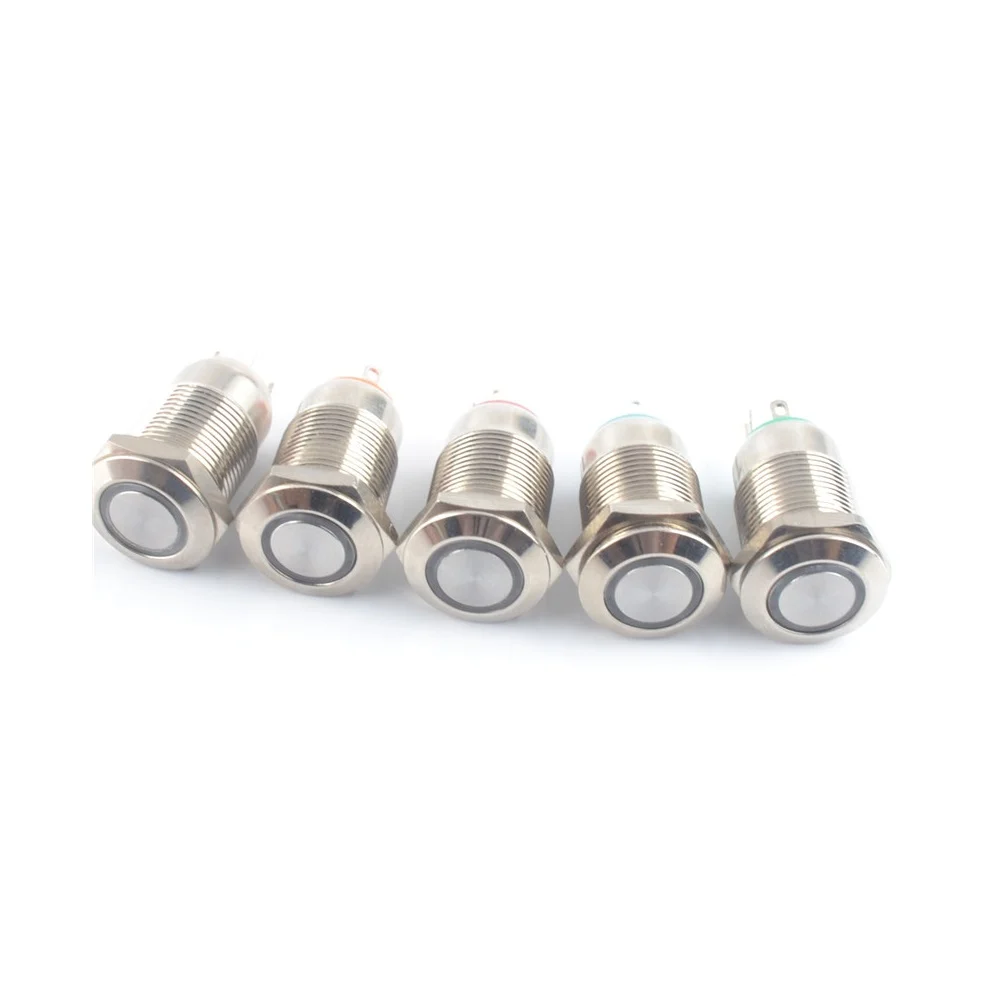

- Available in Various LED Color
- Independent LED terminals
- Bright daylight LEDs
- Single pole push to make and push to break Function
- Front and rear panel seal to IP67
- Integral supply resistors
- TVS protection
- Good electrical conductivity
- Momentary type push-button switch

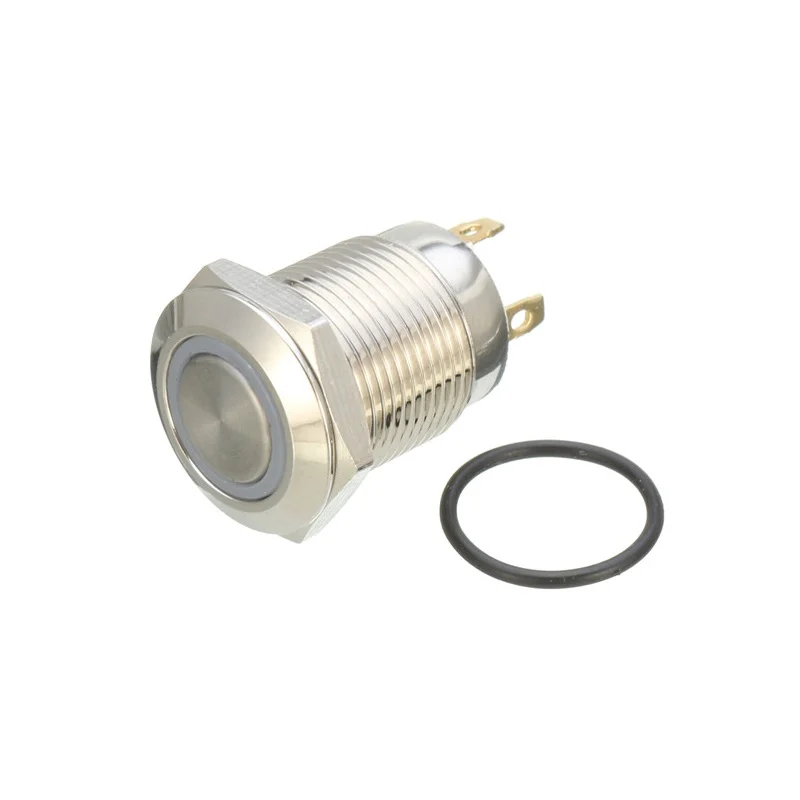

- Rubber ring and hexagon nut to fix, Waterproof and Dustproof

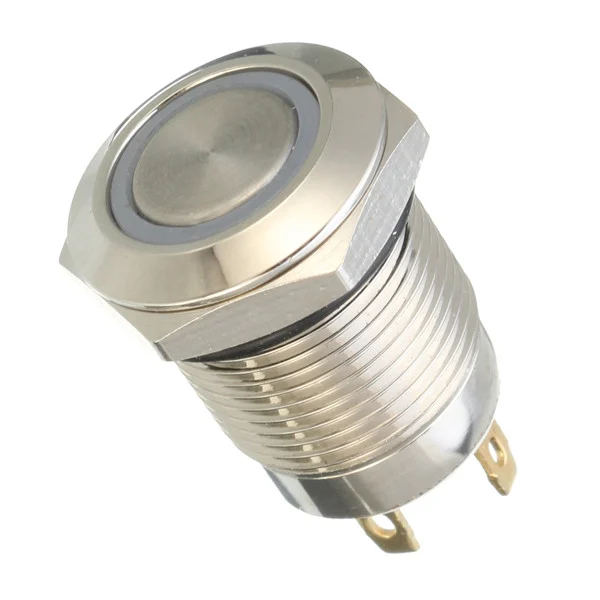

12mm 12V Ring Light Self Reset Momentary Metal Push-button
Specification:
| Operating Voltage (VDC) | 12 |
|---|---|
| Max. Operating Current (mA) | 2A MAX |
| Light Color | Green |
| On/Off Function | Push to ON and Push to OFF |
| Switch Type | Momentary/Latching |
| Mounting Hole Diameter (mm) | 12 mm |
| Contact Type | Solder Type |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤50 MΩ |
| Insulation Resistance (MΩ) | ≥1000 |
| Operating Temperature Range (°C): | -20 to 55 |
| Operation Force | About 3-5N |
| Operation Stroke | 2-5mm |
| Body Material | Stainless Steel and Plastic |
| Mech. & Electrical Lifecycle | ≈ 50000 |
| Protection Standard | IP66 |

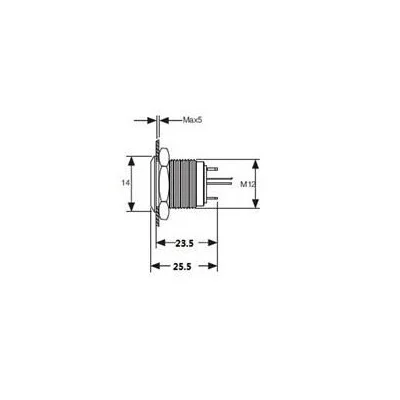

| Dimensions in mm (LxWxH) | 26 x 14 (Length x Head Dia) |
| Weight (g): | 6 |
| Shipping Weight | 0.012 kg |
| Shipping Dimensions | 8 × 5 × 3 cm |
Package Includes:
1 x 12mm 12V Ring Light Self Reset Metal Switch-Green Light
Technical Specifications
| Operating Voltage | 12V |
|---|---|
| Size | 12mm |
| Color | Green |
| SKU | AI2020 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 12mm 12V Ring Light Self Reset Momentary Metal Switch-Green Light is a versatile metal push button switch used across a wide range of applications including industrial control panels, automotive dashboards, outdoor enclosures, marine electronics, and professional equipment.
Common use cases:
- Adding a waterproof power switch to an outdoor enclosure
- Building a professional-looking control panel
- Replacing a corroded switch in marine equipment
This product is ideal for industrial designers and professional equipment builders.
Technical Tip: IP65/IP67-rated metal switches are waterproof. LED ring illumination helps visibility in dark environments. Check panel cutout diameter before ordering.
