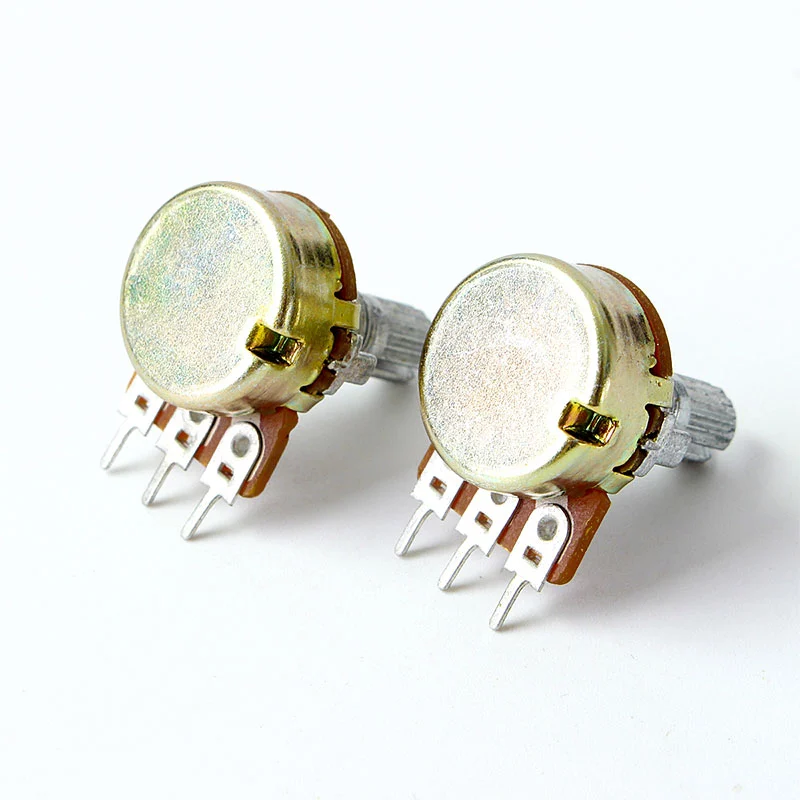

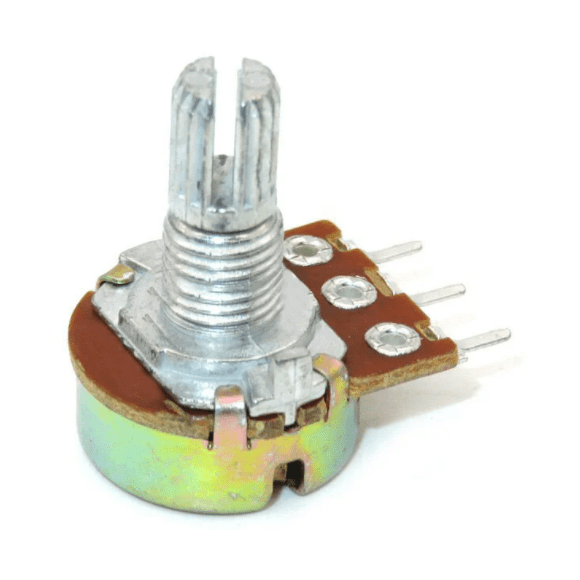

10K Ohm 3Pin 15mm Shaft Potentiometer
A potentiometer is a variable resistor used to adjust resistance in an electronic circuit, allowing you to control parameters like voltage and current. This particular potentiometer has a 10K ohm resistance, a 15mm shaft length, and three pins for easy connection to your circuit.
SPECIFICATION-
Resistance (Ω) | 10k |
---|---|
Tolerance (%) | 20 |
Temperature Co-efficient | ±100ppm/℃ |
Operating Temperature Range (°C): | -40 to 80 |
Mounting Type | Through Hole |
Length (mm): | 20 |
Width (mm) | 17 (Body Diameter) |
Height (mm) | 24 |
Weight (gm) | 6 (each) |
Shipping Weight | 0.02 kg |
Shipping Dimensions | 4 × 4 × 2 cm |
Package Includes

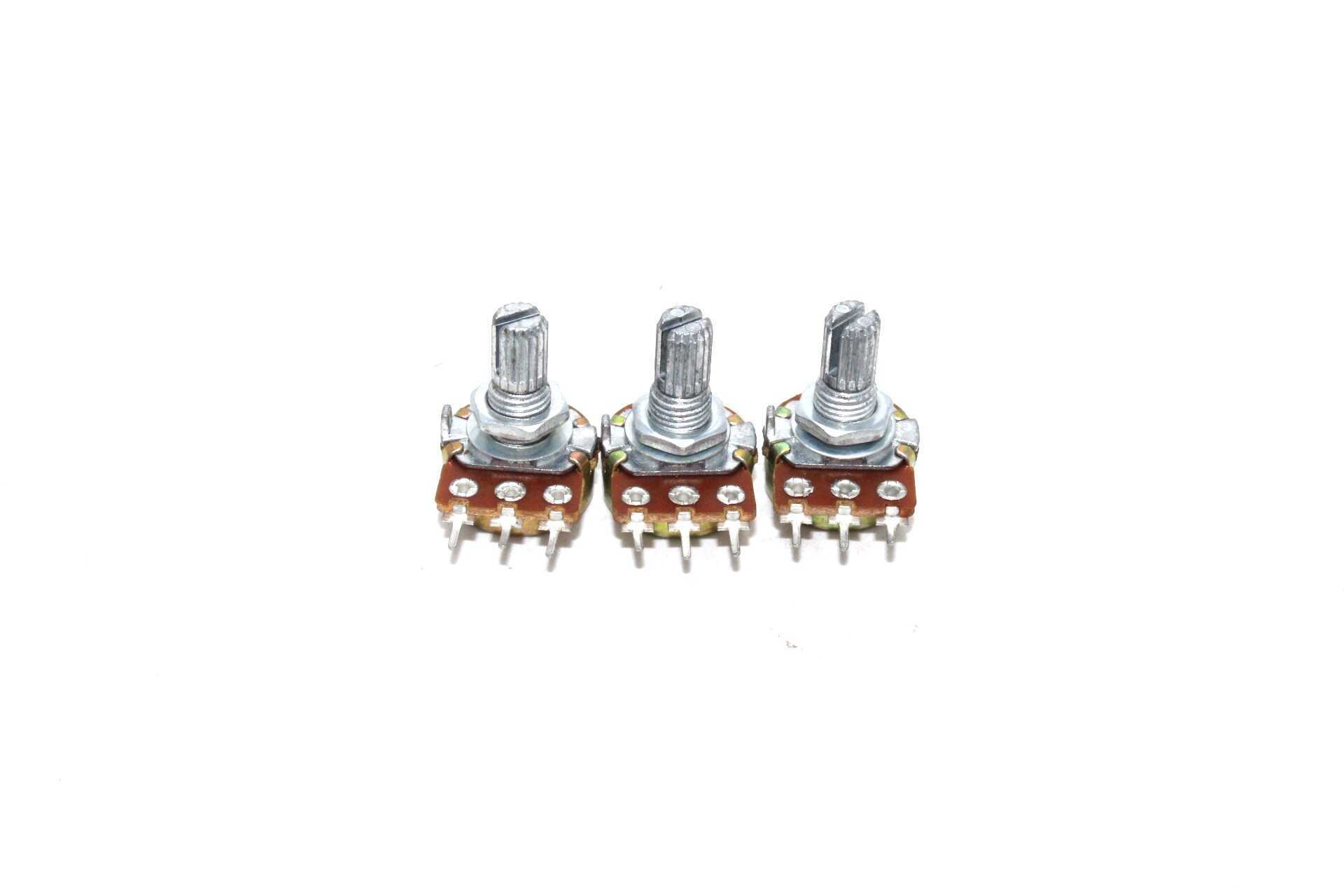

- 3 x 10K Ohm 3Pin 15mm Shaft Potentiometer.
