This is the Red variant of the 0.56 inch Red 3 Digit 7 Segment LED Display CC 12pin (Pack of 2) in Seven Segment Display. Available at ₹41.42 (₹35.10 + GST) with free shipping across India.

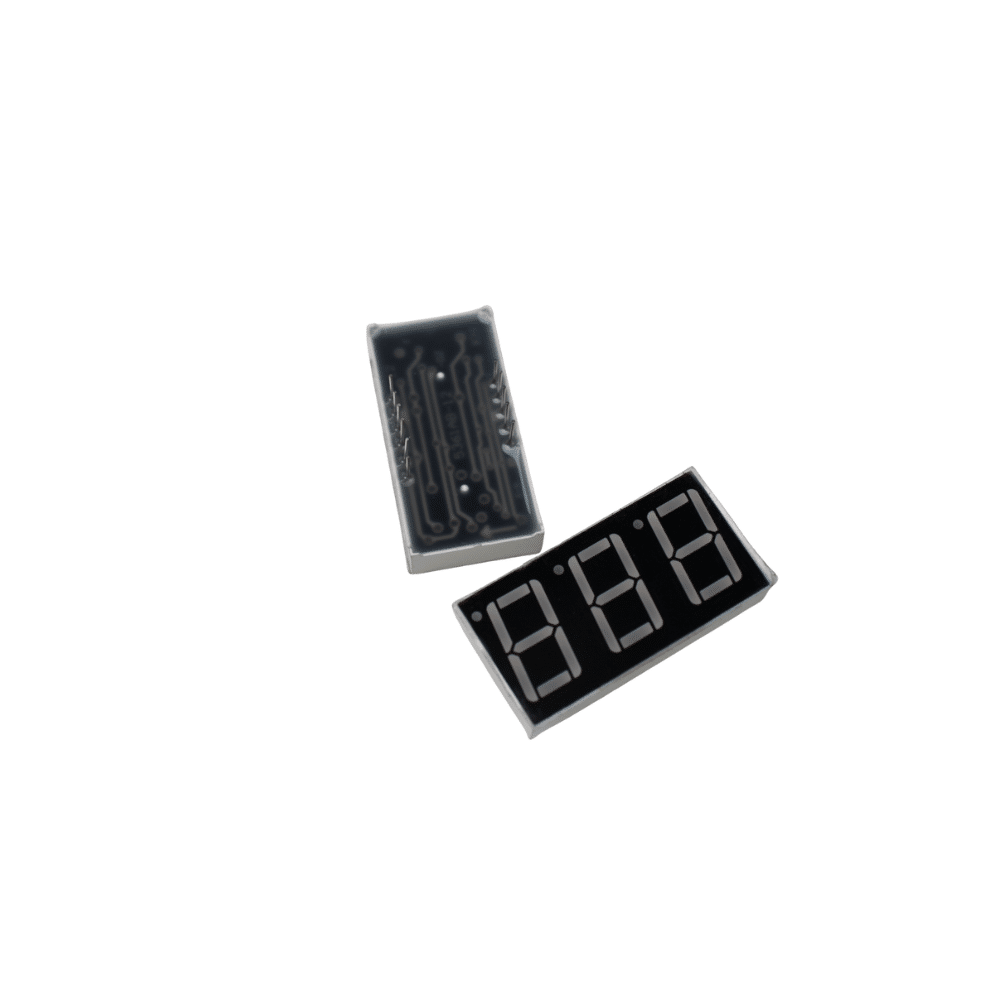

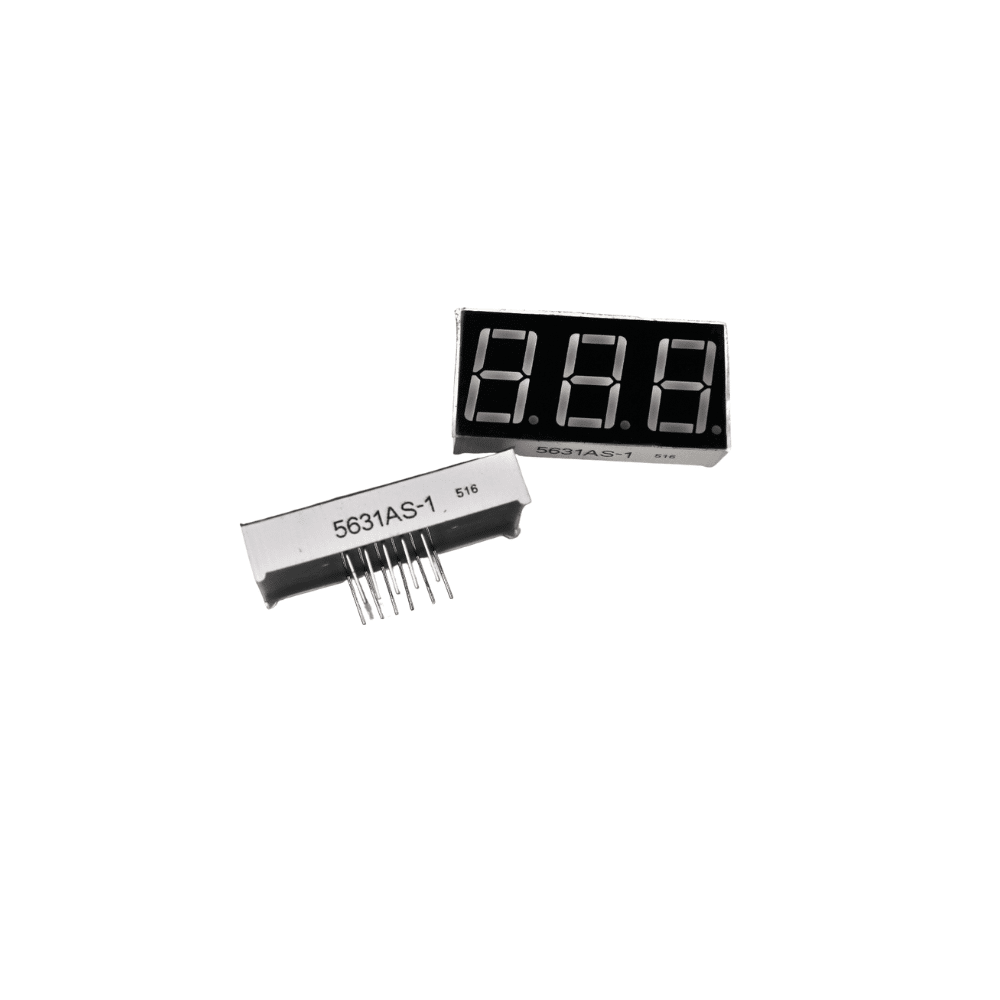

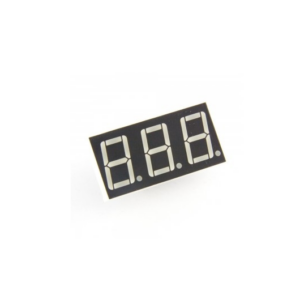

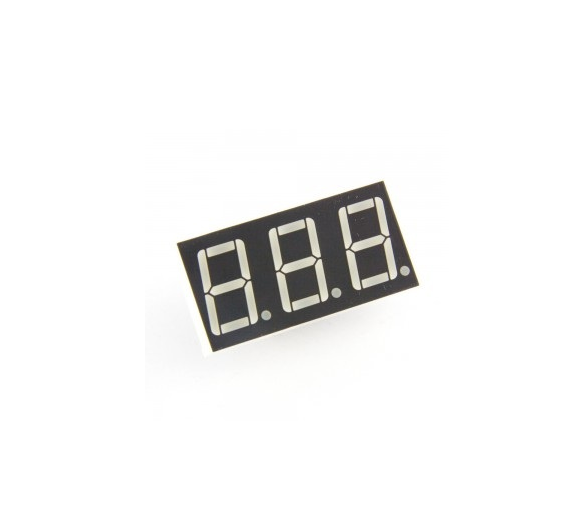

0.56 inch Red 3 Digit 7 Segment LED Display CC 12pin
Many everyday consumer devices, like microwave ovens, washing machines, and air conditioners, use seven-segment displays to show numerical data, such as time or settings. These displays, typically made from LEDs, offer a cost-effective solution for presenting information. Known for their accuracy, clarity, and reliable performance, seven-segment displays are highly valued for their simplicity and effectiveness in conveying important data.
Explore a wide range of Segment and Dot LED Displays, tailored to meet your specific needs in the LED Displays category.
Features:
- Bright Red LED chip, which is made from AlGaAs on GaAs substrate
- Blackface and RED LED segments

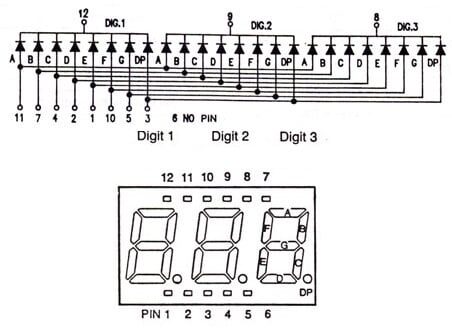

- Type: Common cathode
- No. of Pins: 12
- Low Current Consumption
- High Brightness
- Easy to Use with PCB Mounting as well as on Breadboard
Specification:
| Display Type | Seven segments |
|---|---|
| Configuration | Common Cathode |
| No. of Pins | 12 |
| LED colour | RED |
| No. of Digits | 3 Digits |
| Digit Height | 14mm |
| Operating current | 10mA |
| Wavelength | 640nm |

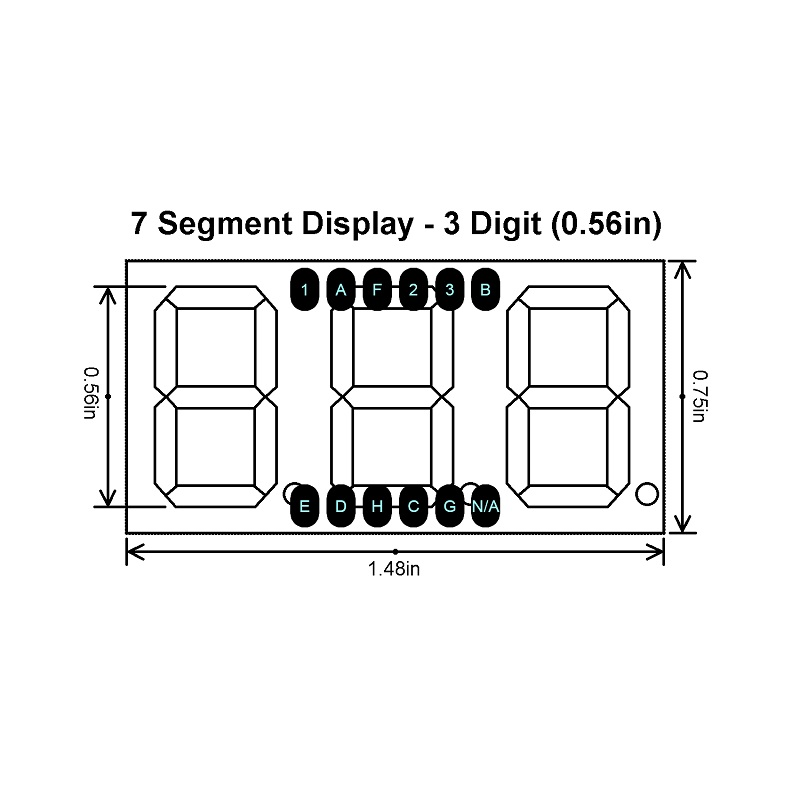

| Length (mm): | 38 |
| Width (mm) | 19 |
| Height (mm) | 8.31 |
| Weight (gm) | 5 for each Display |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 5 × 5 × 2 cm |
Package Includes:

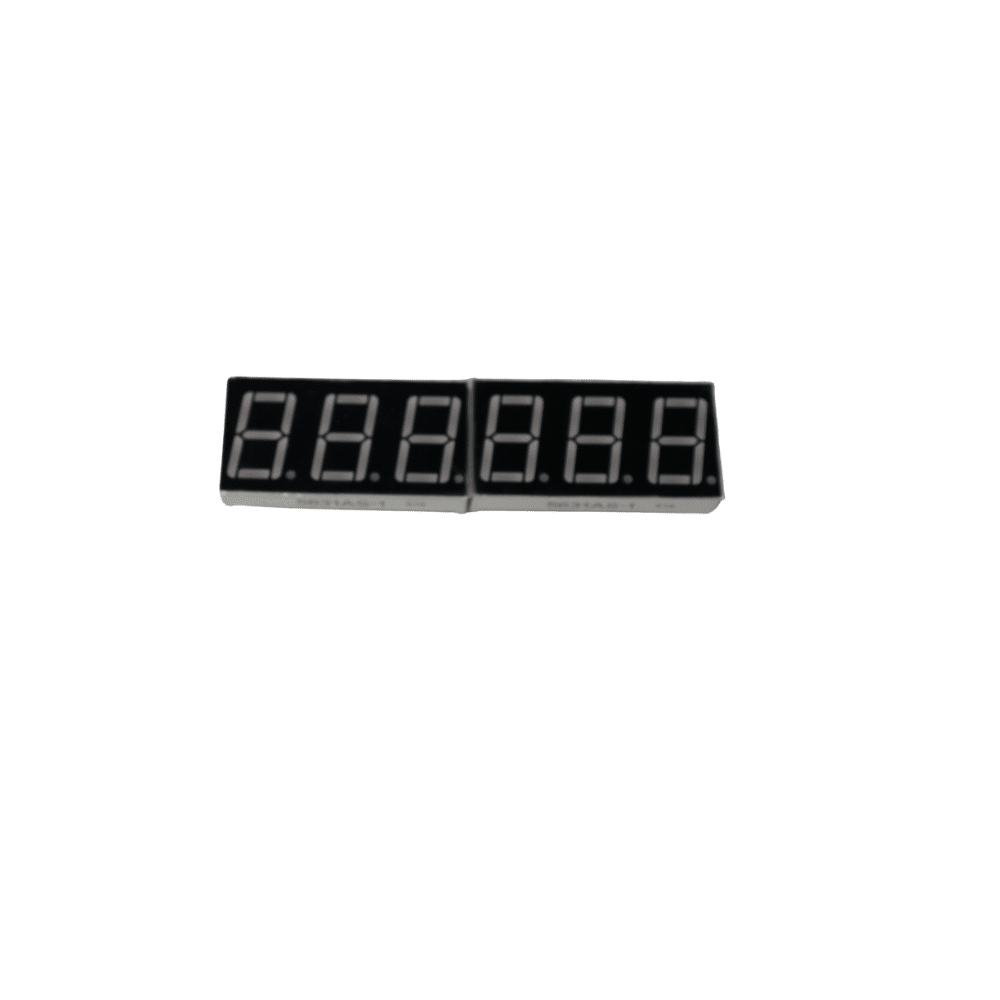

2 x 0.56 Inch Red 3-Digit 7 Segment LED Display CC-2Pcs.
Technical Specifications
| Display Size | 0.56" |
|---|---|
| Pin Count | 12-pin |
| Package Quantity | 2 pcs |
| Color | Red |
| SKU | AI3471 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The 0.56 inch Red 3 Digit 7 Segment LED Display CC 12pin (Pack of 2) is a versatile seven segment display used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
