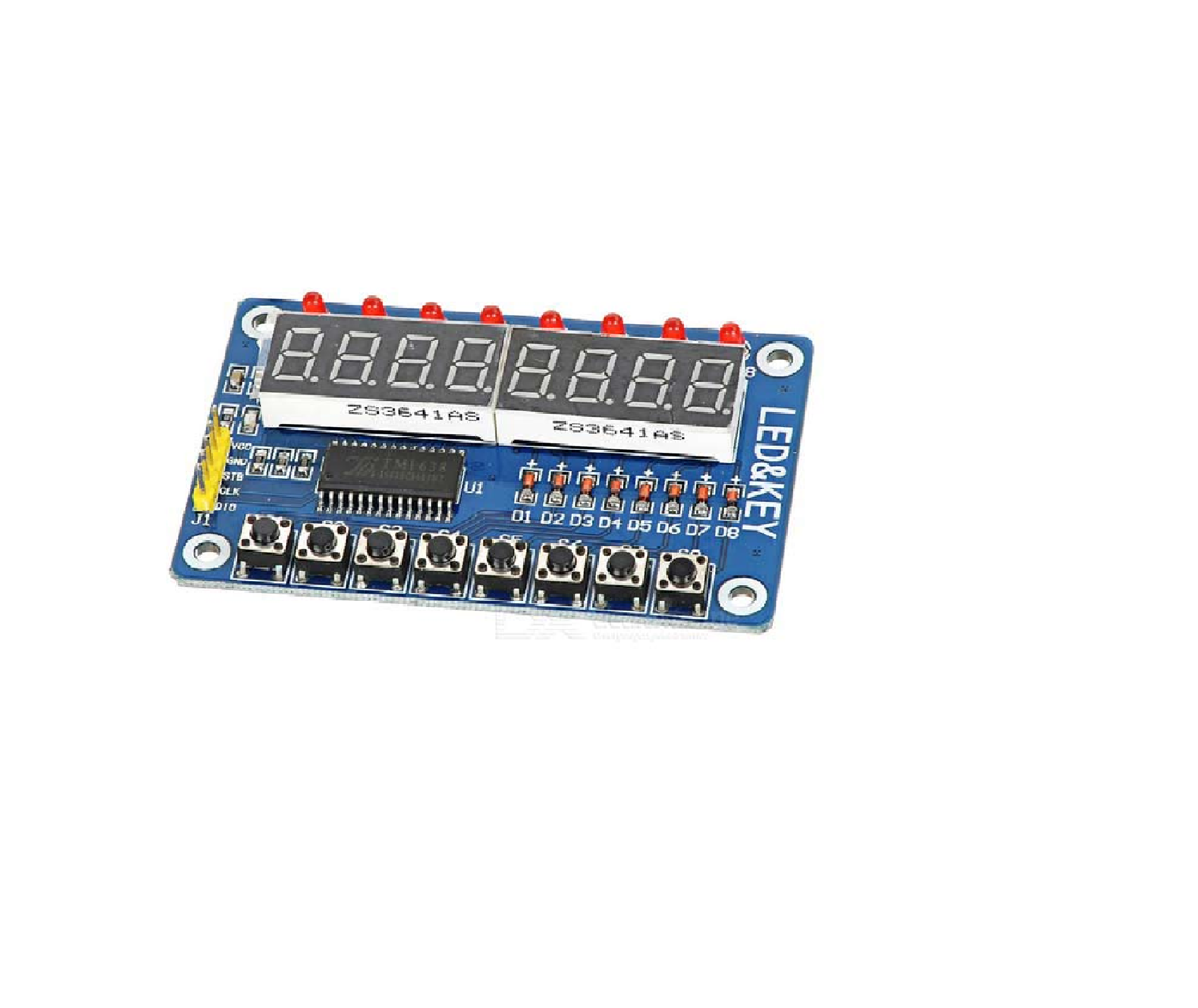

The TM1638 Button Digital LED Display Module is based on the TM1638 chip, integrating three common MCU peripheral circuits. Its key feature is that it only requires three microcontroller I/O ports for operation, eliminating the need for scanning displays and buttons, which typically requires additional microcontroller intervention. Instead, you simply read the relevant registers to send display data or test buttons, conserving valuable MCU resources.
In typical setups, external microcontrollers would need to allocate more I/O ports for 8 LEDs, 8 digital displays, and 8 buttons. However, this module simplifies the process, achieving all of that with just three I/O ports. It delivers excellent results for sensitive key detection and display functionality. For wiring, connect VCC and GND to a 5V power supply, and link STB, CLK, and DIO to the microcontroller’s I/O ports. The module includes 8 buttons, 8 LEDs, and 8 common cathode digital displays, making it compatible with microcontrollers like the STC series for direct connection.
Features:
- Use TM1638 digital tube drive chip to drive a common cathode LED digital tube.
- Can be extended to 3 * 8 buttons, led digital tube and can be controlled separately.
- Support 8 brightness control, led digital tube and use the same brightness.
- Support cascading up to 6 of the same module.
- Wiring: VCC GND connected the 5V power supply, STB CLK DIO connected microcontroller IO port.
- 8 LED, 8-bit digital tube and 8 buttons, common cathode LED digital tube, such as STC microcontroller can be directly connected.
Specification
| Model Type | LED Display Module |
|---|---|
| Rated Voltage (VDC): | 12 |
| Operating Voltage (VDC) | DC 7.0V-13.6V |
| Input Current (A) | 0.24A |
| Rated Speed (RPM): | 9500RPM |
| Operating Temperature (°C) | -10°C ~ 70°C |

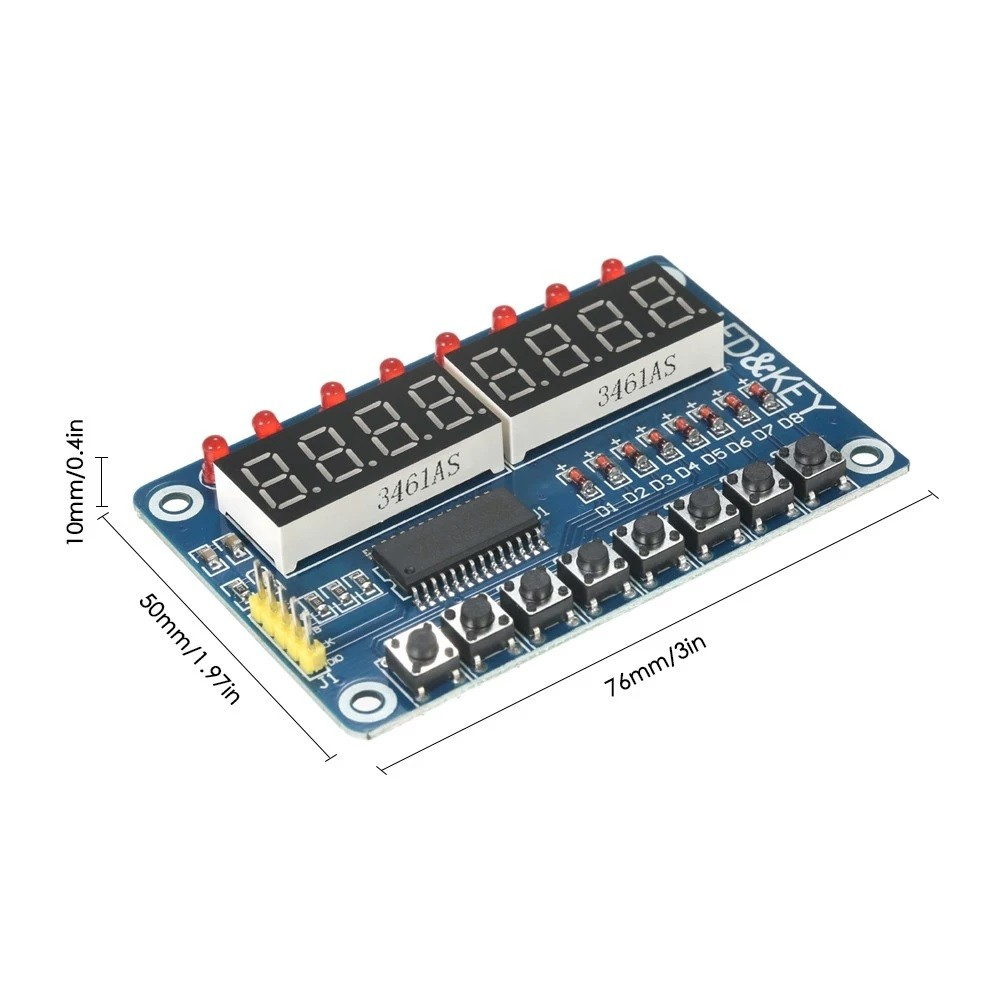

| Dimension (LxWxH)mm | 76 x 50 x 10mm |
| Weight (g): | 27 |
Package Includes:
1 x TM1638 Button Digital LED Display Module
Technical Specifications
| Model | TM1638 |
|---|---|
| SKU | AI6330 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The TM1638 Button Digital LED Display Module is a versatile seven segment display used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
