This is the 24V variant of the 1 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive in Relay Modules. Available at Original price was: ₹107.38.₹87.32Current price is: ₹87.32. (₹74.00 + GST) with free shipping across India.

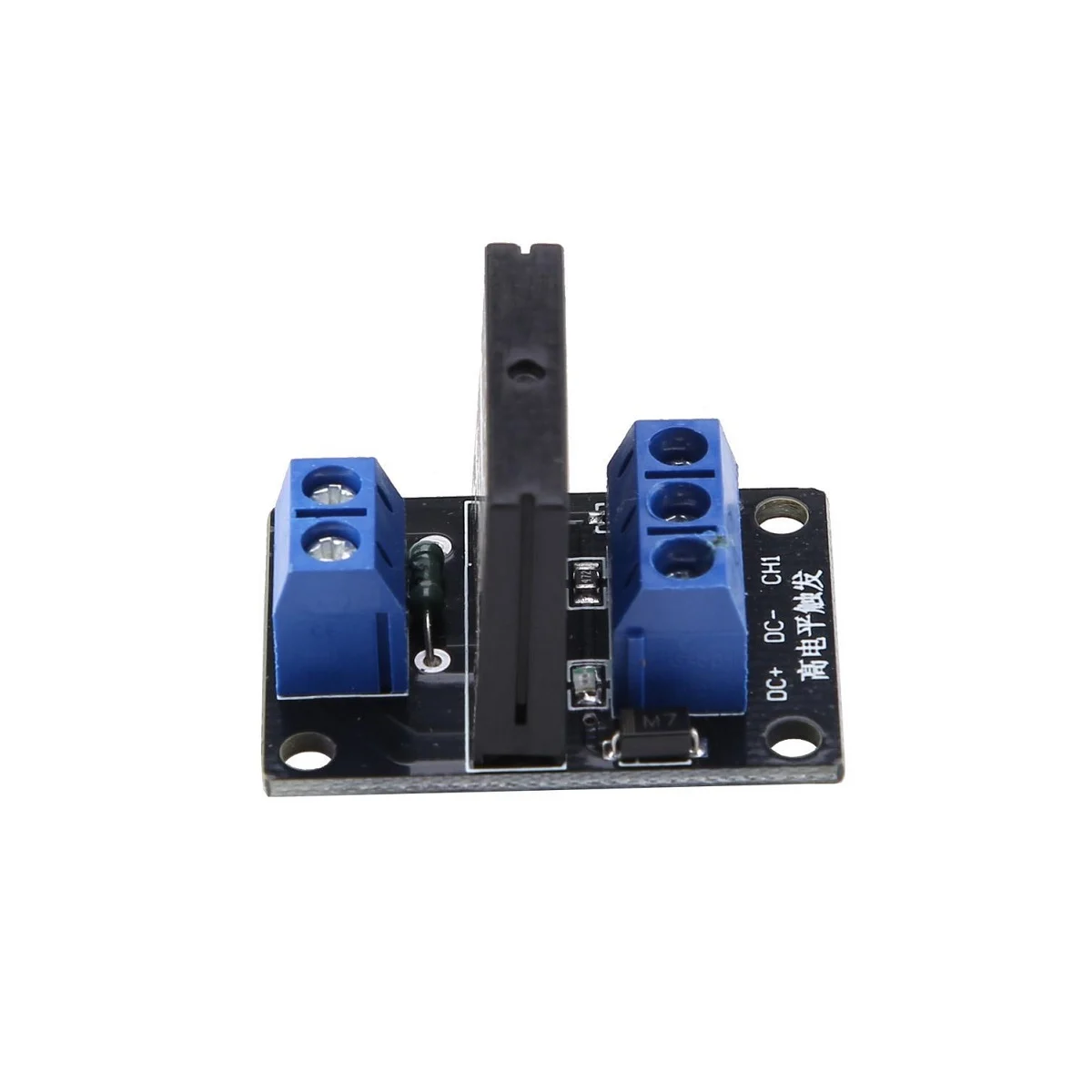

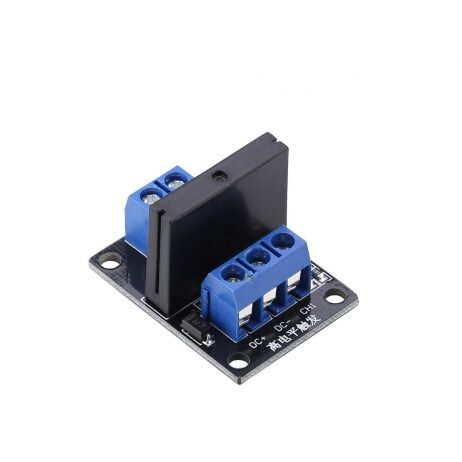

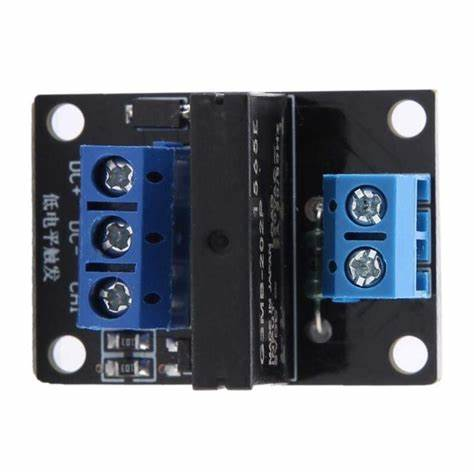

1 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive
Upgrade your control system with the 1-Channel 24V Solid State Relay Module, designed to provide efficient and reliable switching for high-voltage AC loads. Solid-state relays (SSRs) offer numerous advantages over mechanical relays, including noise-free operation, extended lifespan, and faster switching capabilities.
Features:
- Solid State Relay Technology: Utilizes solid-state relay (SSR) technology, featuring an IC that acts like a mechanical relay but with no moving parts, ensuring reliable and durable performance.
- Single-Channel Configuration: Control one independent load with ease, providing simplicity and precision in your control setup.
- Wide Input Voltage Range: Supports input voltage of 24V DC, allowing compatibility with various control circuitry.
- High Load Capacity: Supports a load of up to 2A at 240V AC, making it suitable for a wide range of applications, including lighting, holiday displays, and more.
- LED Indicator: Equipped with an LED indicator for easy status monitoring and troubleshooting.
- Assembled and Tested: The module comes pre-assembled and has undergone electrical testing to ensure reliable performance out of the box.
- Microcontroller Compatibility: Can be controlled directly by a microcontroller, facilitating seamless integration into your control system.
Input Parts:

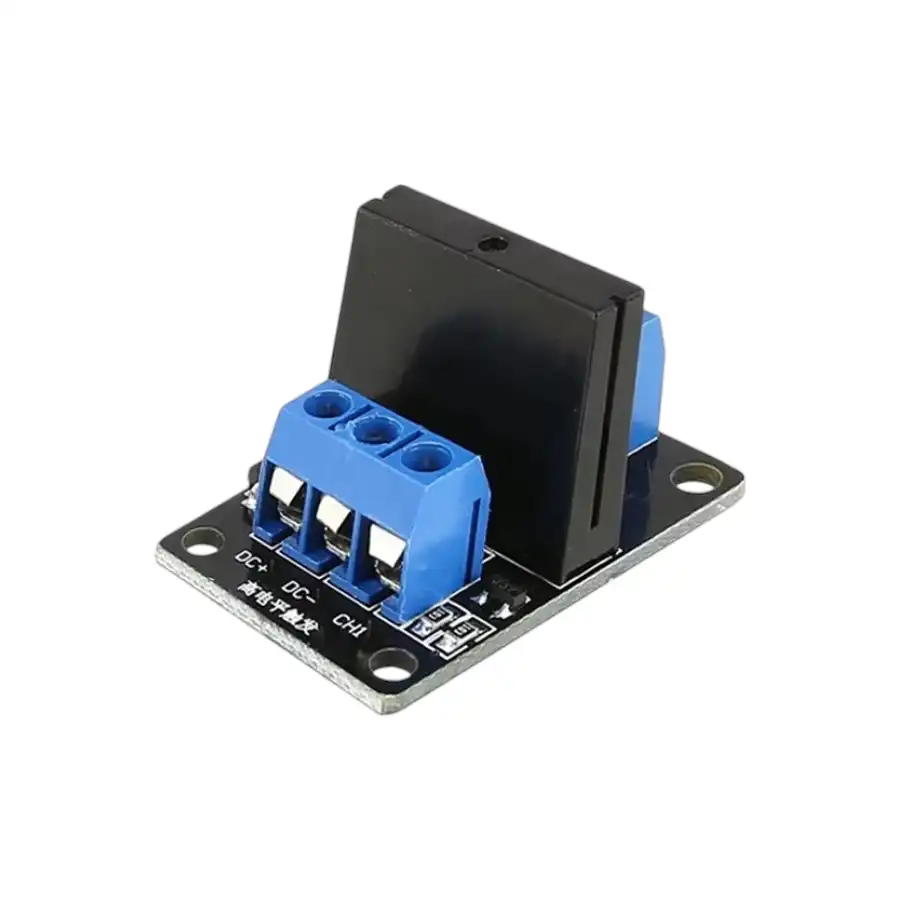

- DC+ and DC-: Terminals for power connection, with DC+ connected to the supply power according to the relay voltage and DC- connected to ground.
- CH1: Relay module signal trigger point, effective at the high level, enabling precise control over the load.
Enhance your control capabilities with the 1-Channel 24V Solid State Relay Module, offering efficient switching and versatile applications for your control needs. Whether you’re controlling lighting systems, holiday displays, or other equipment, this module provides a reliable solution for your projects.
Specifications:

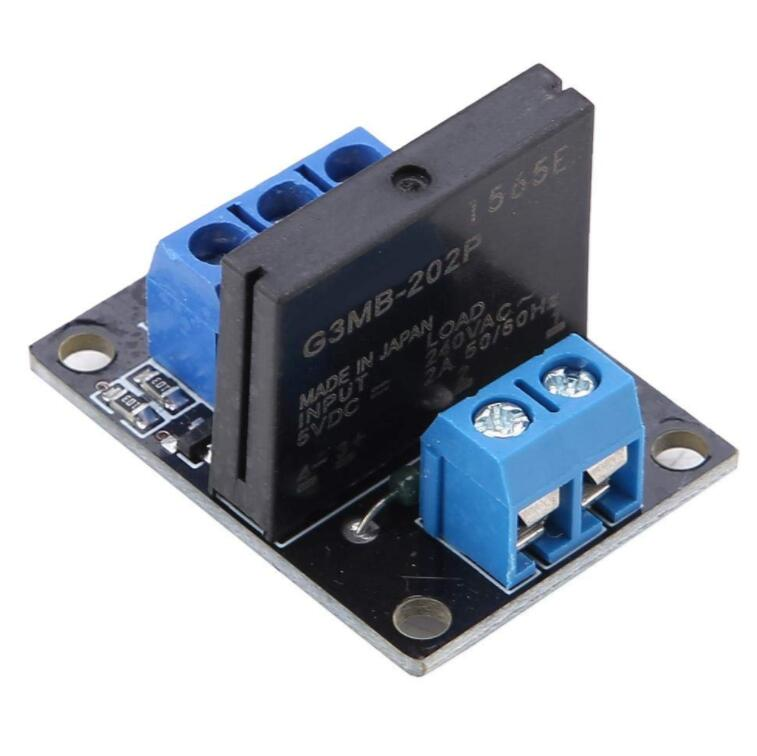

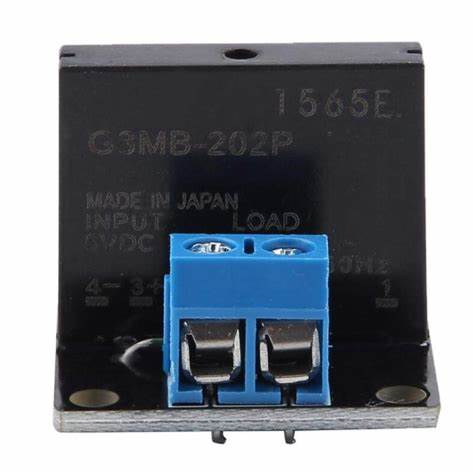

| Part Number | G3MB-202P |
|---|---|
| Power supply | 24VDC/160mA |
| Switching Voltage (VAC) | 240@2A |
| Isolation | Phototriac |
| Zero Cross | Yes |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 6 × 4 × 1 cm |
Package Includes:
1 x 1 Channel 24V Relay Module Solid State High-Level SSR DC Control 250V 2A with Resistive Fuse
IoT Waste Management: Smart Bin Level Monitoring
Table of Contents Smart Waste Management Overview Ultrasonic Level Sensing Hardware Design and Assembly Wireless Communication Setup Cloud...
Read More →
Wemos D32 vs DOIT Devkit: Best ESP32 Value Boards India
Choosing between the Wemos D32 vs DOIT Devkit ESP32 India is one of the most common dilemmas faced...
Read More →
NodeMCU V3 vs V2: Differences and Which One to Buy in India
Walk into any Indian electronics market or browse any local online store, and you will find NodeMCU boards...
Read More →Technical Specifications
| Voltage Range | 24V - 250V |
|---|---|
| Current Rating | 2A |
| Channels | 1-channel |
| SKU | AI3156 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 1 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
