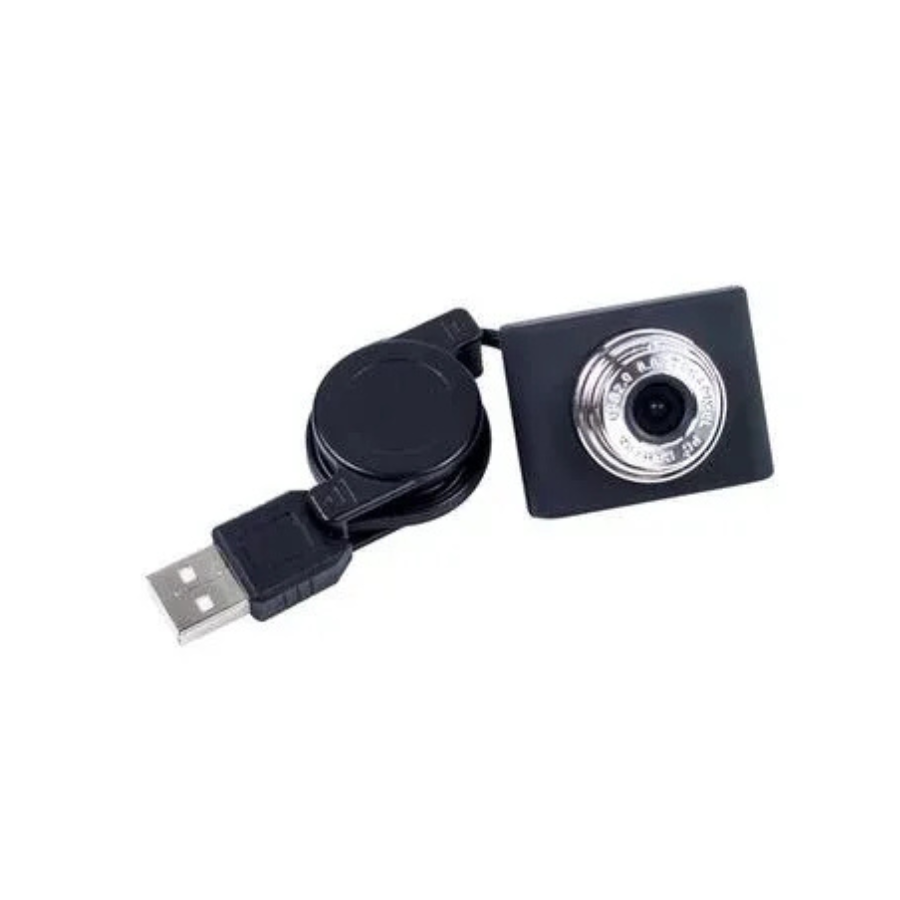

USB Camera with Collapsible Cable for Raspberry Pi
1/4 Cmos 640X480 USB Camera with Collapsible Cable for Raspberry Pi is a compact size and easy-to-carry one. With a retractable USB cable, it provides great convenience for use. What’s more, it supports 300k pixels and has a USB 2.0 port for convenient use, is really a plug-and-play device. Though small, its max resolution reaches 640 x 480. Thus, this camera is quite suitable for RPi smart cars, robots, etc.
Note: Compatible with all versions of Raspberry Pi.
Features:
- Supports 300k pixels, a maximum resolution of 640×480, and VGA/ YUY2 packed formats.
- Dimension: 40mm × 15mm × 30mm; designed for Raspberry Pi and PC
- With a retractable USB cable, convenient to store
- Applies USB 2.0 High-speed Sensor, plug-and-play, no driver installation.
- High definition and true color images.
- CE, Rohs compliant, windows and vista approval.
Specification:
Sensor | 1/4 CMOS |
---|---|
Resolution | 640HX480V |
Max pixels | 12M |
Picture Format | VGA |
Data Format | YUY2 |
Interface | USB2.0 |
Frames/S | 30fps (VGA), 15fps (XVGA) |
Min Lux | 6Lux |
S/N | 48dB |
Grey rank | >8 |
Grey coefficient | 0.47 |
Lens | 5G lens F2.0/f3.60 |
Focus Range | 30mm to infinity |
View angle | 62 |
Monitor Control | Contrast, saturation, acutance |
White Balance and Exposer | White Balance: Manual/Auto White balance range: 2600K~5000K Exposure: Manual/Auto |
Operating Current | <120 mA |
Operating Temperature | Storage Temperature: -20 to +60° Working Temperature: 0° to +40° |
Package includes:
1 x 1/4 Cmos 640X480 USB Camera with Collapsible Cable for Raspberry Pi
