Smoke Detection using MQ-2 Gas Sensor

Introduction:

This is a robust Gas sensor suitable for sensing LPGSmokeAlcoholPropaneHydrogenMethane and Carbon Monoxide concentrations in the air. If you are planning on creating an indoor air quality monitoring system; breath checker or early fire detection system, MQ2 Gas Sensor Module is a great choice.

In this project, you will learn the sensor Analog output voltage and when the smoke reaches a certain level, it will make sound a buzzer and a red LED will turn on.

When the output voltage is below that level, a green LED will be on.

How does it Work?

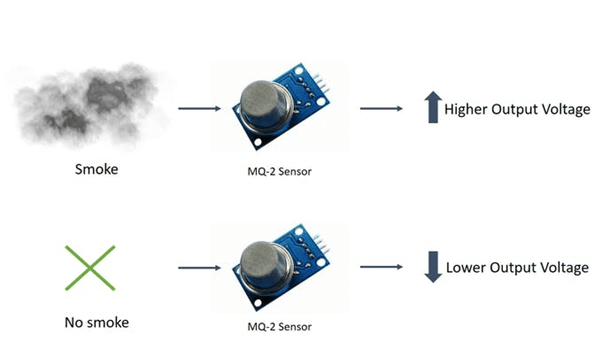

The voltage that the sensor outputs changes accordingly to the smoke/gas level that exists in the atmosphere. The sensor outputs a voltage that is proportional to the concentration of smoke/gas.

In other words, the relationship between voltage and gas concentration is the following:

  • The greater the gas concentration, the greater the output voltage
  • The lower the gas concentration, the lower the output voltage

Component Required:

Arduino Uno
Uno Cable
MQ-2 Smoke Detection Sensor
Breadboard
Male-Female Jumper Wire
1 x 5mm LED Red
1 x 5mm LED Green
Buzzer
3 x Resistor 221ohm
9v Battery
Battery Snapper Connector

Circuit Diagram:

Connections:

Connect sensor A0 pin to Arduino A5 pin
Connect sensor GND pin to GND
Connect sensor Vcc pin to Vcc
Connect buzzer +ve to Arduino pin 10
Connect buzzer -Ve to GND through 221ohm resistor
Connect +ve pin of Red led to Arduino pin 12
Connect -ve pin of red led to GND through 221ohm resistor
Connect +ve pin of Green led to Arduino pin 11
Connect -ve pin of Green led to GND through 221ohm resistor

Code for Smoke Detection using MQ-2 Gas Sensor

int redLed = 12;
int greenLed = 11;
int buzzer = 10;
int smokeA0 = A5;
// Your threshold value
int sensorThres = 165;

void setup() {
pinMode(redLed, OUTPUT);
pinMode(greenLed, OUTPUT);
pinMode(buzzer, OUTPUT);
pinMode(smokeA0, INPUT);
Serial.begin(9600);
}

void loop() {
int analogSensor = analogRead(smokeA0);

Serial.print(“Pin A0: “);
Serial.println(analogSensor);
// Checks if it has reached the threshold value
if (analogSensor > sensorThres)
{
digitalWrite(redLed, HIGH);
digitalWrite(greenLed, LOW);
tone(buzzer, 1000, 200);
}
else
{
digitalWrite(redLed, LOW);
digitalWrite(greenLed, HIGH);
noTone(buzzer);
}
delay(100);
}
