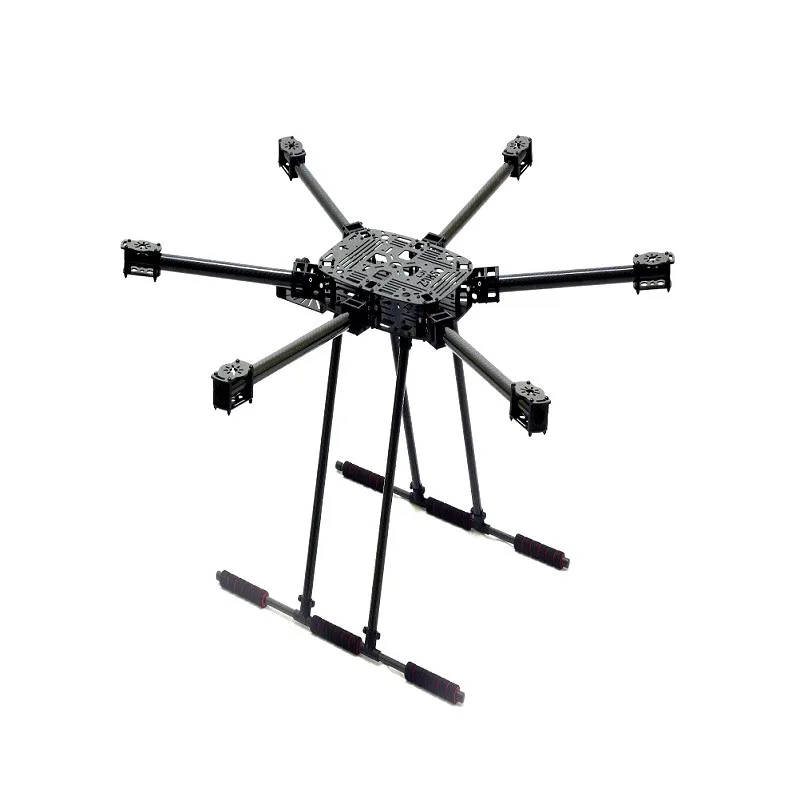

ZD850 Hexa-Rotor Frame for Drone

Looking for Zd850 Frame? ZD850 Hexa-Rotor Frame for Drone is available at Zbotic with fast shipping across India.

ZD850 Hexa-Rotor Frame for Drone

This ZD850mm Full Carbon Fiber 850mm Hexa-Rotor Frame Combo is ideal for Heavy Duty Drone Applications because of its capability of withstanding the punishing requirements of heavy-duty drone applications!!! Let us explain why… The thing that separates this Z850 Full Carbon Fiber Frame from the rest of the Multirotor Frames is the use of 100% pure carbon for manufacturing this Hexacopter Frame. This Hexacopter Frame is made up of 100% 3K TWILL carbon fiber.

The arms of the frame are made from a 20mm carbon fiber tube which eliminates arm breakage at the motor mounts on a hard landing. This is Hexacopter Frame that employs 6 arms to get into the air. There are several advantages of a hexacopter frame over a quadcopter one, justifying the extra price tag.

For 6 arms, of course, there are more motors with a hexacopter meaning more power, meaning bigger batteries. This increase in batteries leads to an increase in flight time, which is also nice. Due to these extra motors, a hexacopter is also more stable than your quadcopter equivalent. Another great advantage of using hexacopters is if for any reason your quadcopter loses a motor, it goes down but with a hexacopter, on the other hand, in the majority of cases you will be able to land safely with one or maybe even two motors down; an extra inbuilt guarantee on your beloved copter.

The frame has a wheelbase of 850mm and weighs around 1210gm. The Z850mm Full Carbon Fiber 850mm Hexa-Rotor Frame Combo is specially designed for heavy-duty drone applications and has lots of space for mounting all the required components. This frame is ideal for mounting cameras and other accessories.

Features:

1. This pure carbon fiber is ideal to withstand your drone standards.
2. Ultra-Lightweight and Durable.
3. Made by 100% 3K Twill super strong and lightweight carbon fiber.
4. The frame has excellent strength.
5. The arm has multiple motor mounting holes.
6. Foldable arms
7. Plastic tripod connection

Specification:

Package Includes:

1 x ZD850mm Full Carbon Fiber 850mm Hexa-Rotor Frame

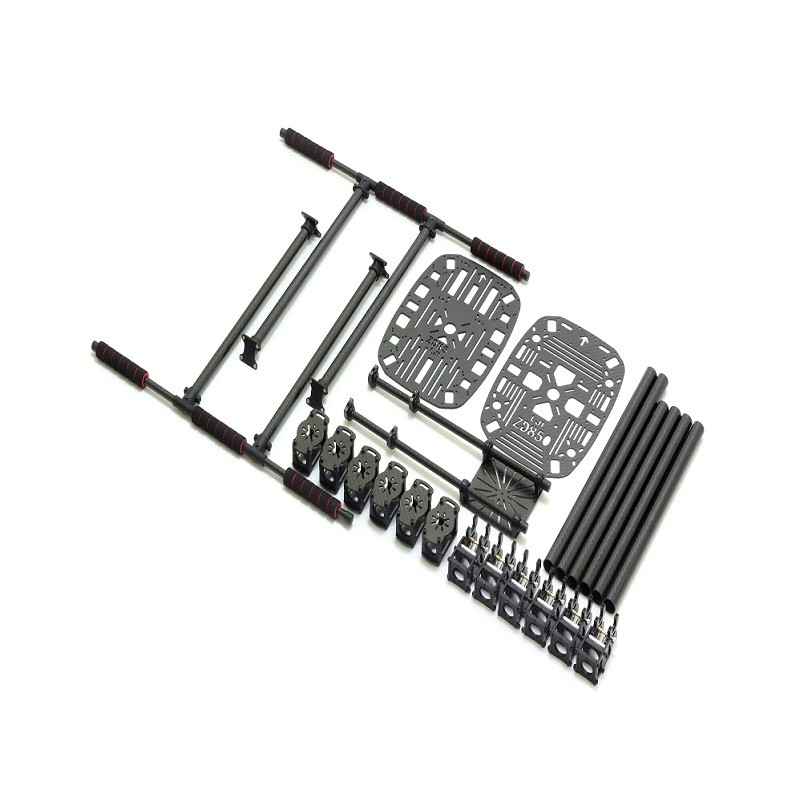

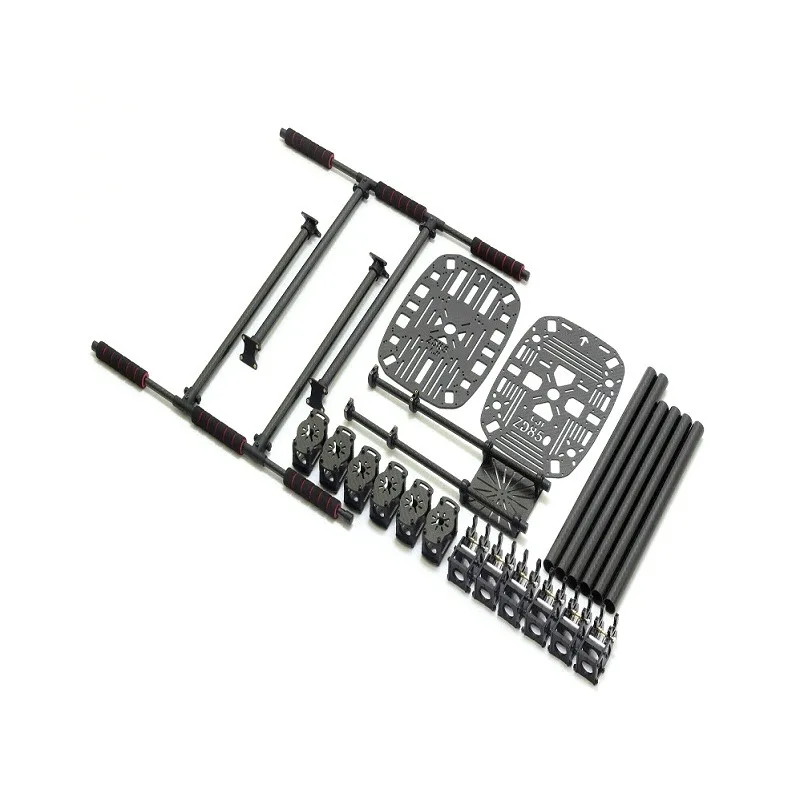

This Combo Includes:

6 x Pure Carbon Fiber Tubes

4 x Landing Gear

6 x Motor mounts

6 x Folding Mechanism

1 x Camera Stand

2 x Mounting Plates

1 x Fitting Accessories

ZD850 Hexa-Rotor Frame for Drone Overview

The ZD850 Hexa-Rotor Frame for Drone is a full carbon fiber 850 mm hexacopter chassis designed for heavy-duty aerial platforms. Built from 100% 3K Twill super-strong carbon fiber, this frame provides the rigidity and durability required for professional applications.

Key Features of ZD850 Hexa-Rotor Frame for Drone

• 100% pure 3K Twill carbon fiber construction for high strength-to-weight ratio
• Ultra-lightweight design reduces overall drone mass for longer flight times
• 20 mm carbon fiber tube arms with multiple motor mounting holes for versatile motor placement
• Robust arm structure minimizes breakage on hard landings or during transport
• 850 mm wheelbase supports heavy payloads and advanced avionics setups
• Genuine product with fast shipping from Zbotic across India

Applications and Use Cases

• Aerial photography and cinematography requiring stable, vibration-resistant platforms
• Industrial inspections of pipelines, towers and high structures with professional sensors
• Agricultural surveying, crop monitoring and precision spraying with mounted payloads
• Search and rescue missions carrying thermal cameras or communication gear
• Topographic mapping and 3D reconstruction using LiDAR or multispectral cameras
• Research and development platforms for custom drone electronics and firmware testing

How to Use ZD850 Hexa-Rotor Frame for Drone

Begin by securing the top and bottom carbon fiber plates together with the provided hardware. Slide each 20 mm carbon fiber arm into its bracket and align the motor mounting holes to your chosen motor dimensions. Fasten motors using appropriate bolts, then install your power distribution board and flight controller between the plates. Adjust arm spacing to ensure balanced weight distribution before mounting batteries and payloads. Perform a thorough pre-flight check for bolt tightness and frame integrity.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What motors are compatible with the ZD850 frame?

The ZD850’s multiple motor mounting holes accommodate most 28 mm to 36 mm brushless outrunner motors. Verify bolt pattern (16×16 mm or 19×19 mm) against your chosen motor before installation.

How much payload can this frame support?

Thanks to its 3K Twill carbon fiber construction and 850 mm wheelbase, the ZD850 frame can handle payloads up to 4–5 kg when paired with suitable motors and propellers.

Can I use this frame for FPV racing?

While durable, the ZD850 is optimized for heavy-lift and professional applications. Its larger size and weight make it less suited for high-speed FPV racing but ideal for aerial cinematography and inspection tasks.
