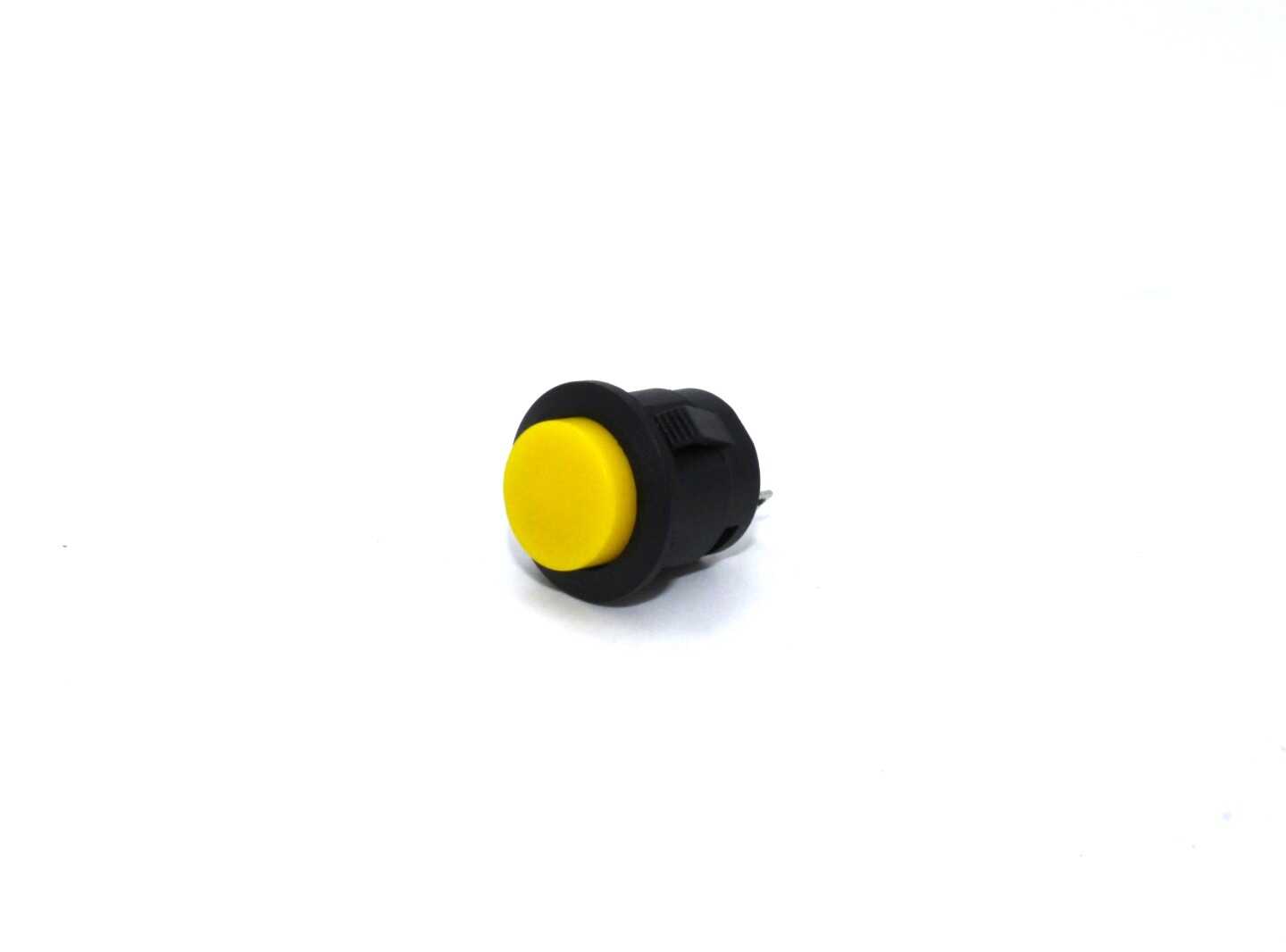

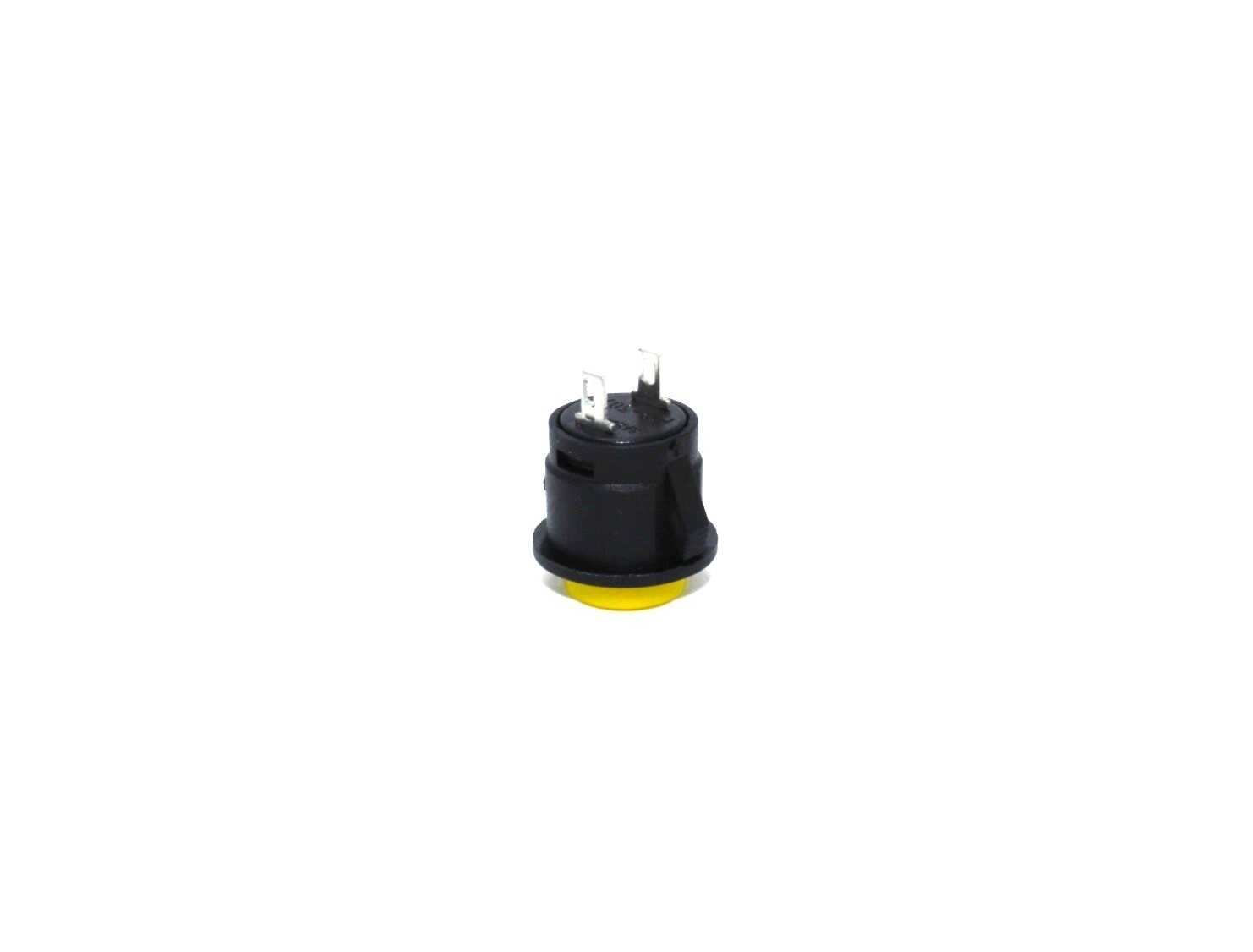

This is the Yellow variant of the Yellow R13-507 16MM 2PIN Push Button Switch in Plastic Push Button Switch, Electronic Switches. Available at ₹14.04 (₹11.90 + GST) with free shipping across India.
Looking for R13 Switch 16mm? Yellow R13-507 16MM 2PIN Push Button Switch is available at Zbotic with fast shipping across India.
A switch is a type of switch that only allows electric current to flow when it is pressed. It is commonly used in controller panels, push-button telephones, kitchen appliances, magnetic locks, and many other mechanical and electronic devices in homes and industries.
A push button is a simple example of a momentary switch. It is a metal or thermoplastic switch that provides easy access to the user. Electric circuits are designed to allow electricity to flow continuously through wires and components. However, some circuits are more useful when they can be turned on and off as needed.
A push-button switch is widely used as an operating device in various electric circuits, devices, and machines in homes and industries. The switch can control circuits by turning on and off loads such as contactors, motors, relays, etc. It is a push-on release-off type of switch.
Note: Image may vary from actual product in terms of design, color and brand printed
Features:
- Easy to use
- Best for your DIY projects
- Self-locking/Latching Self-reset
- Good electrical conductivity
- This is push-button switch.
Specification:
| Function | Momentary |
|---|---|
| Model No. | R13-507 |
| Operating Voltage(V) | 250V 1.5A, 125V 3A |
| Material | Plastic |
| Color: | Yellow |
| Terminals | 2 Pin |
| Temperature | -25°C to 85°C |
| Dimensional Accuracy (mm) | 16MM |
Packages Includes:
1 x Yellow R13-507 16MM 2PIN Push Button Switch
Yellow R13-507 16MM 2PIN Push Button Switch Overview
The Yellow R13-507 16MM 2PIN Push Button Switch is a compact momentary switch designed for panel mounting and low-current control. Its bright yellow actuator and two-pin configuration make it ideal for triggering circuits only while pressed, offering reliable self-reset functionality.
Key Features of Yellow R13-507 16MM 2PIN Push Button Switch
- 16 mm front-panel mounting diameter for standardized cutouts
- Two metal terminals for secure electrical connections
- Momentary “push-to-make” action with self-resetting mechanism
- Lightweight plastic housing with good electrical conductivity
- Bright yellow cap for clear visual indication
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Control panels for small machinery and industrial equipment
- Push-button telephones and communication devices
- Home appliances such as coffee makers and mixers
- Magnetic lock activation in security systems
- DIY electronics and hobbyist circuit projects
- Arcade machines and gaming controller interfaces
How to Use Yellow R13-507 16MM 2PIN Push Button Switch
Mount the switch by inserting it into a 16 mm panel cutout and securing with its locking nut. Connect your circuit wires to the two terminals by soldering or using insulated crimp connectors. When pressed, the switch completes the circuit; releasing it will automatically open the circuit thanks to its self-reset design.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the Yellow R13-507 switch momentary or latching?
This switch is a momentary (self-reset) type, meaning it only remains closed while you press the button and opens instantly when released.
What panel hole size is required for mounting?
The switch is designed for a 16 mm diameter panel cutout. It includes a locking nut to secure it firmly in place.
How do I connect wires to this switch?
Simply solder your wire ends onto the two metal pins or use insulated crimp connectors. Ensure solid contact and strain relief to maintain reliable operation.
Technical Specifications
| Model | R13-507 |
|---|---|
| Size | 16mm |
| Pin Count | 2-pin |
| Color | Yellow |
| SKU | AI6494 |
| Weight | 0.00715 kg |
| Availability | In Stock |
Applications & Use Cases
The Yellow R13-507 16MM 2PIN Push Button Switch is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
