This is the Gold variant of the XT150 Gold Plated Male Connector-1Pcs in Battery Connector. Available at ₹46.02 (₹39.00 + GST) with free shipping across India.
Looking for Xt150 Connector? XT150 Gold Plated Male Connector-1Pcs is available at Zbotic with fast shipping across India.
XT-150 are High-Quality big Sprung Gold Connectors by Amass that have a large contact area, making them great for high power applications up to 130A!

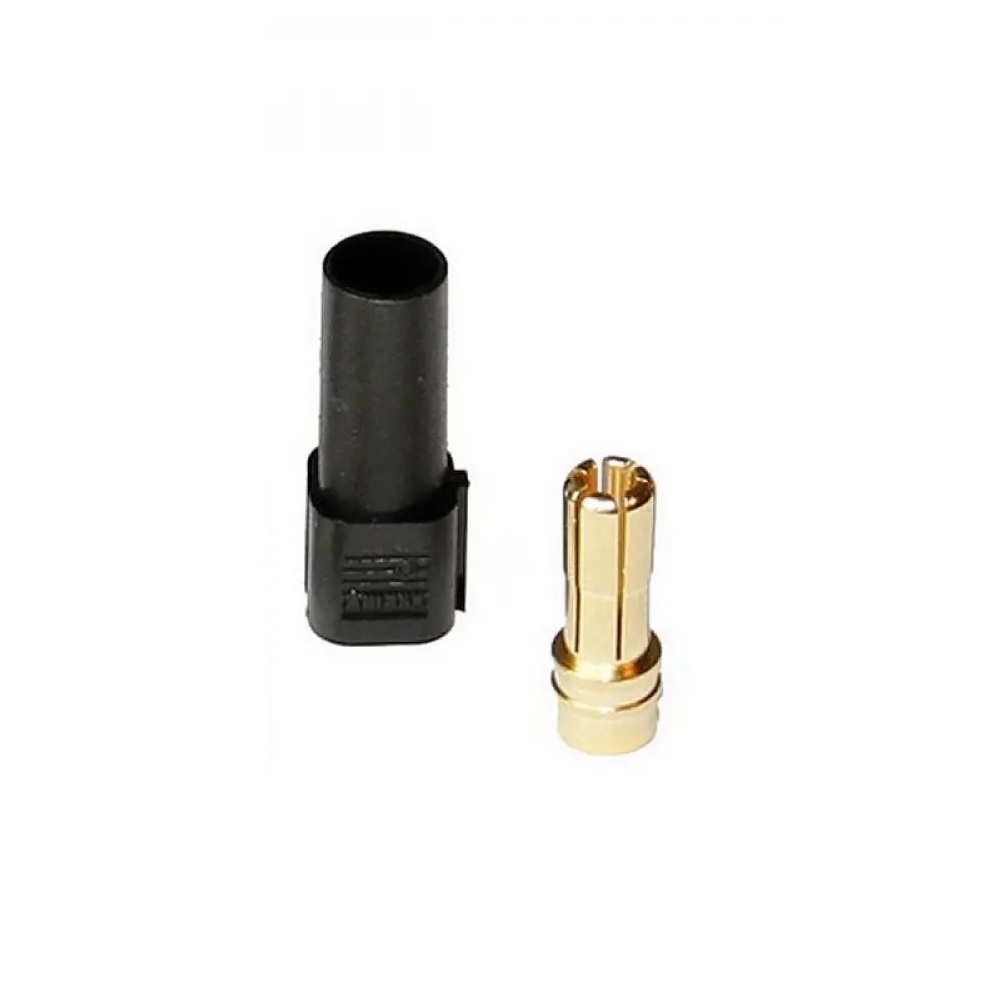

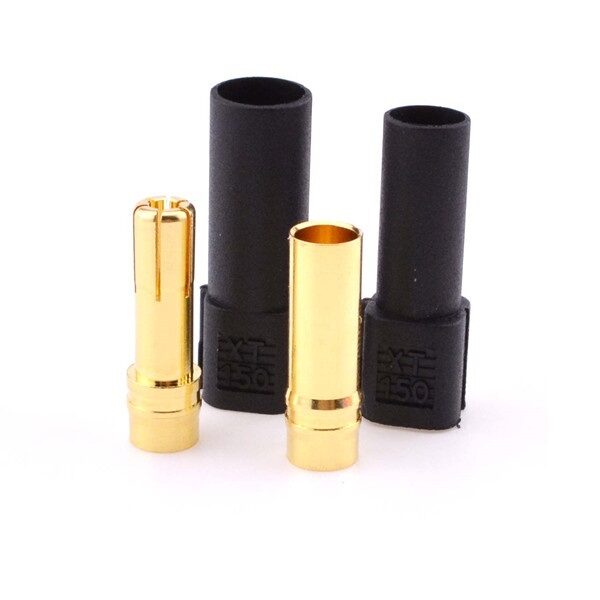

The male connector uses a collet style spliced contact area to provide more surface to surface contact than standard gold connectors which use a thin mushroomed sheet as a spring. The connectors come in a pack of 1 (1 set of 2, 2 in total) and can be linked together with the dovetail join on the outside of each Nylon housing. Easy to solder and use, they are perfect for large batteries, ESC or motors!
Note: These connectors are the battery side connector. If u want to use to connect battery then be sure about polarity, don’t go through color.
IMPORTANT: “These are not cheap copied XT150 plugs. These original Nylon XT150 plugs, manufactured by AMASS, can handle over 130A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT150 plugs.”
Specifications and Features :
- Connector type: XT150
- Metal Material: Brass
- Plating: Gold
- Gender: Male
- Cover Material: Plastic
- Colour: Black
- Designed for currents up to 130 Amps Max.
- Ideal for those large-scale electric projects where low loss connectors are essential

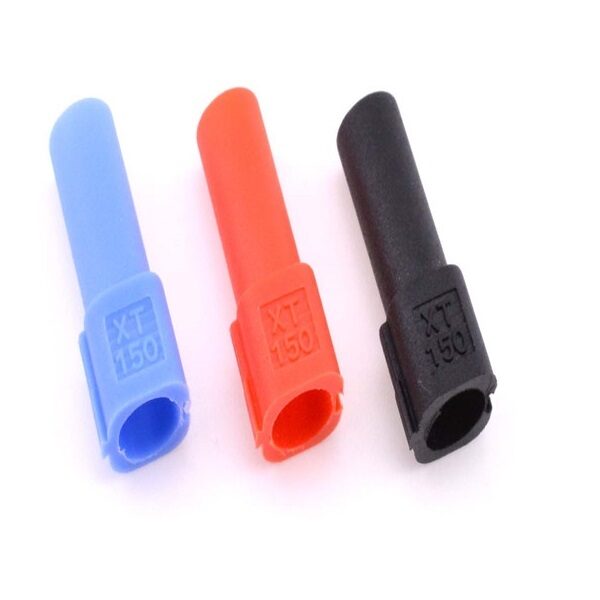

- The plastic case is detachable, so you can array the wires in the sequence you prefer, or keep them separated from each other
- 6mm gold bullet connector, compatible with 8AWG silicon wire
- Used for: ESC, LIPO Battery, Motor, etc.
Package Includes:
1 x XT150 Male Gold Connector x 1 PC (Black).
About Xt150 Connector
XT150 Gold Plated Male Connector-1Pcs is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI1729
- Category: Battery Connector
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Xt150 Connector and other products.
Applications
Xt150 Connector can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Xt150 Connector today and start building.
XT150 Gold Plated Male Connector-1Pcs Overview
The XT150 Gold Plated Male Connector-1Pcs is a high-current 6 mm diameter power plug rated up to 130 A, featuring a sprung gold-plated collet contact in a durable black nylon housing. Specifically designed as the battery side connector, it delivers reliable, low-resistance connections for LiPo batteries, ESCs, and brushless motors in demanding RC, drone, and robotics applications.
Key Features of XT150 Gold Plated Male Connector-1Pcs
- 130 A maximum continuous current capacity for high-power setups
- 6 mm gold-plated collet-style contact ensures large surface-to-surface contact
- Black nylon housing resists impact and heat
- Dovetail join design allows multiple connectors to clip together
- Easy-to-solder contact barrel speeds up assembly
- Fast shipping from Zbotic ensures you get your connector quickly
Applications and Use Cases
- Power output from LiPo battery packs in RC cars, boats, and aircraft
- Battery input to electronic speed controllers (ESCs) in drones and robots
- High-current feed to brushless motors in electric model vehicles
- Custom battery harnesses for DIY robotics and automation projects
- Swappable battery connections in FPV drone racing setups
How to Use XT150 Gold Plated Male Connector-1Pcs
Strip approximately 6–8 mm of insulation from your power cable, tin the exposed conductor, and solder it into the collet barrel. Slide the gold-plated contact fully into the nylon housing until it clicks. Ensure correct polarity by matching this male connector with the corresponding XT150 female half. Use the dovetail tabs to group multiple connectors as needed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is the XT150 male connector compatible with standard XT150 females?
Yes, this male half mates precisely with all standard XT150 female connectors, providing a secure, low-resistance power connection.
What wire gauge should I use with this connector?
For currents up to 130 A, we recommend using 10 AWG or thicker silicone-insulated wire to handle the load safely and minimise voltage drop.
Can I link multiple XT150 connectors together?
Absolutely. The black nylon housing features dovetail joints on the sides, allowing you to clip several connectors together for multi-cell battery or parallel ESC setups.
Charging Profile Stages: CC CV Float for Lead Acid Battery Explained
Charging Profile Stages: CC CV Float for Lead Acid Battery Explained Whether you are building a solar charge...
Read More →
18650 Battery Holder Design: Parallel vs Series Pack Build
18650 Battery Holder Design: Parallel vs Series Pack Build The 18650 cylindrical lithium-ion cell is the workhorse of...
Read More →
12V Lead Acid Battery Charging Circuit: Basics for Beginners
If you are just starting out with electronics and want to understand how a 12V lead acid battery...
Read More →Technical Specifications
| Model | XT150 |
|---|---|
| Package Quantity | 1 pcs |
| Color | Gold |
| SKU | AI1729 |
| Weight | 0.005 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XT150 Gold Plated Male Connector-1Pcs is a versatile battery connector used across a wide range of applications including drone battery connections, RC vehicle wiring, power distribution boards, battery pack assembly, and DIY power cables.
Common use cases:
- Replacing worn connectors on a LiPo battery
- Building custom battery harnesses
- Soldering connectors for a new drone build
This product is ideal for drone builders, RC hobbyists, and electronics technicians.
Technical Tip: XT60 handles up to 60A continuous; XT30 up to 30A. Always solder male connectors to the battery side and female to the ESC/charger side.
