This is the 5V variant of the WS2812B 5V Addressable RGB IP67 Waterproof LED Strip – 5m in RGB LED Strips and Drivers. Available at ₹2,703.38 (₹2,291.00 + GST) with free shipping across India.
Looking for Ws2812b Led 5v? WS2812B 5V Addressable RGB IP67 Waterproof LED Strip – 5m is available at Zbotic with fast shipping across India.
Product Description

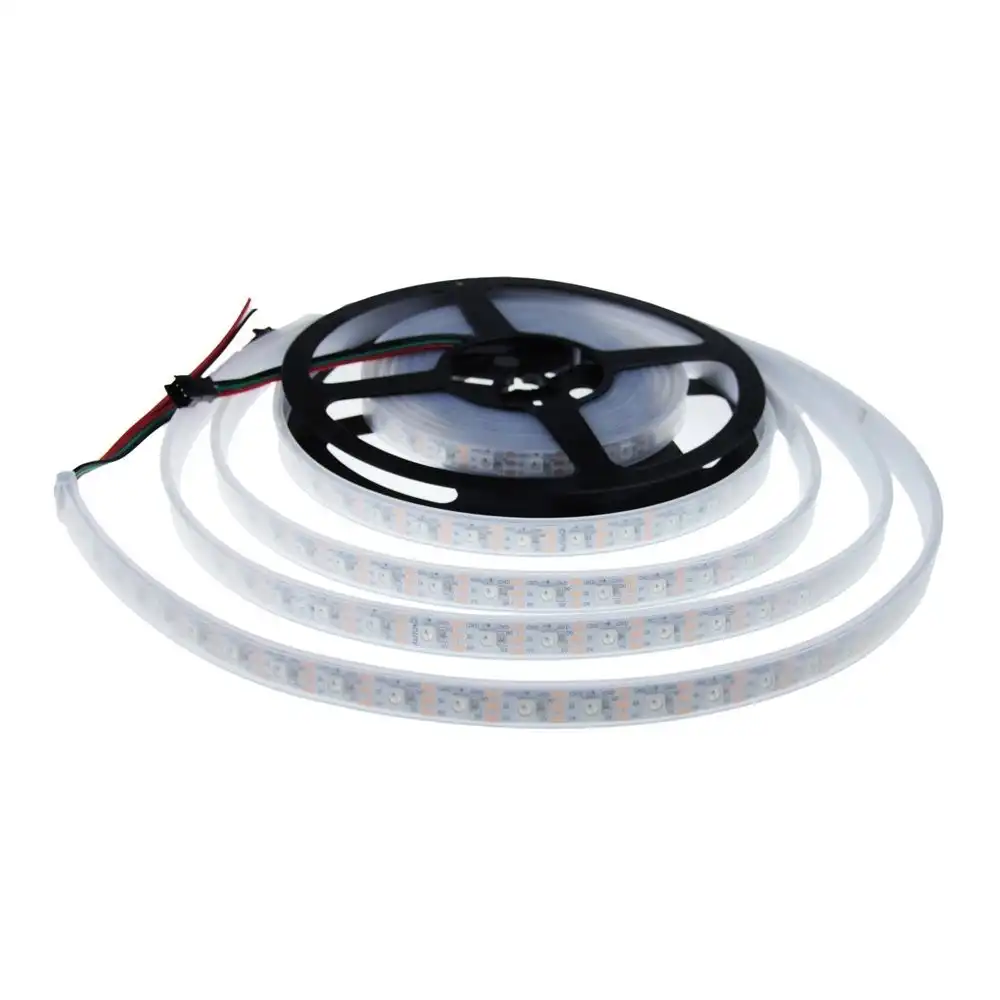

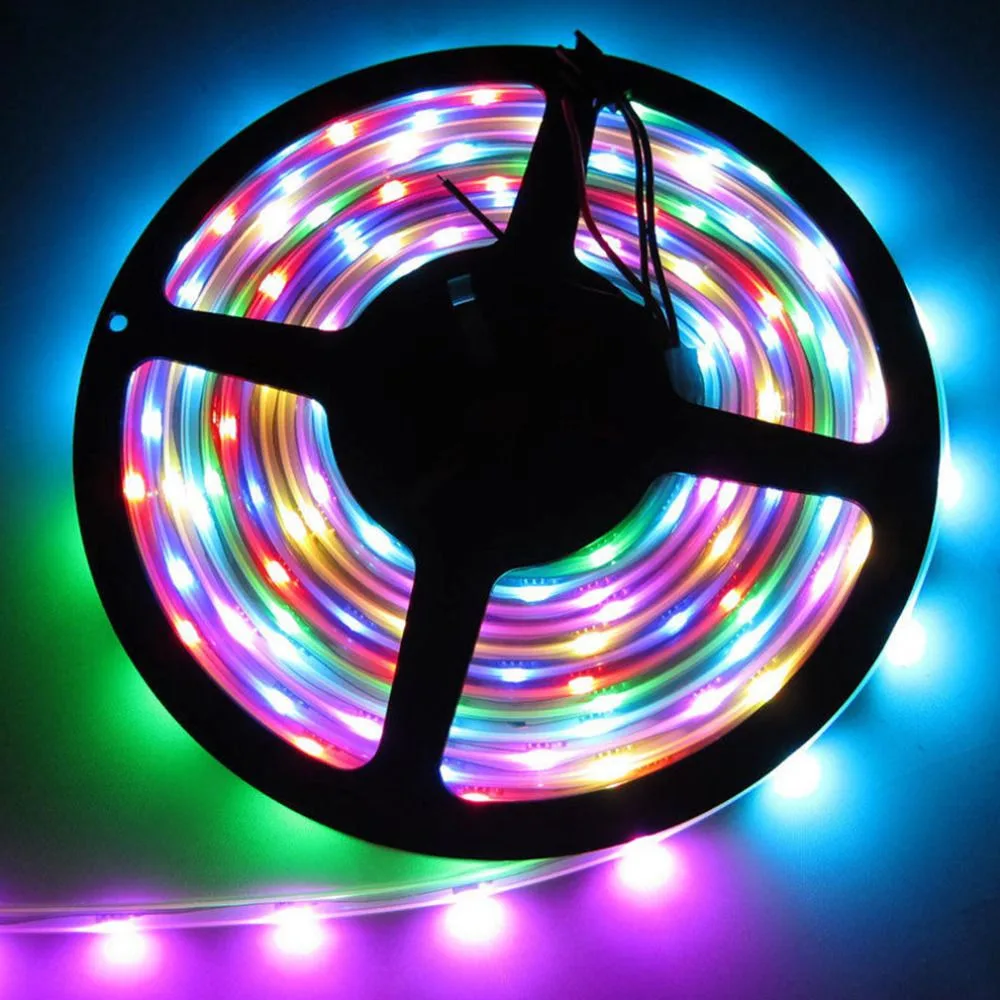

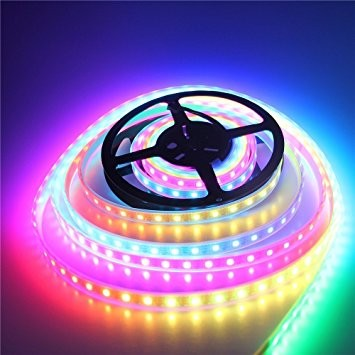

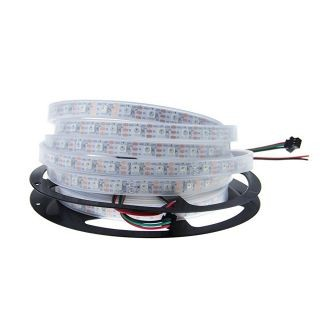

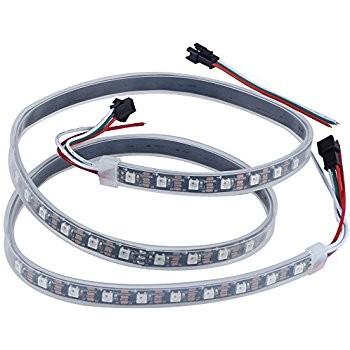

The WS2812B 5V Addressable RGB Waterproof LED Strip 5m is extremely flexible, easy to use and each LED of the strip can be controlled separately by using Arduino Board or basically by using a microcontroller.
Each LED has been equipped with an integrated driver that allows you to control the color and brightness of each LED independently.
This IP67 protection grade (i.e Fully Waterproof) WS2812B SMD LED Strip has 60 LEDs/Meter, with an overall length of 5 meters. This can be operated on a 5V supply. Also, it is flexible. A RGB LED strip is an easy way to add complex lighting effects to a project.
The combined LED/driver IC on these strips is the extremely compact WS2812B (essentially an improved WS2811 LED driver integrated directly into a 5050 RGB LED), which enables higher LED densities.
WS2812B uses a specialized one-wire control interface and requires strict timing.
Features :
- 60 LEDs/m.
- Protection Grade: IP67
- 24-bit color control (8-bit PWM per channel).
- 16.8 million colors per pixel.
- One-wire digital control interface.
- Each RGB LED draws approximately 50 mA at 5 V with red, green, and blue at full brightness.
Package Includes :
1 x WS2812B 5V Addressable RGB Waterproof LED Strip – 5m
About Ws2812b Led 5v
WS2812B 5V Addressable RGB IP67 Waterproof LED Strip – 5m is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI2573
- Category: RGB LED Strips and Drivers
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Ws2812b Led 5v and other products.
Applications
Ws2812b Led 5v can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Ws2812b Led 5v today and start building.
WS2812B 5V Addressable RGB IP67 Waterproof LED Strip – 5m Overview
The WS2812B 5V Addressable RGB IP67 Waterproof LED Strip – 5m is a fully waterproof, individually controllable RGB light strip with 60 LEDs per meter. Each LED features an integrated driver for 24-bit color control, making it ideal for dynamic lighting effects in indoor or outdoor projects.
Key Features of WS2812B 5V Addressable RGB IP67 Waterproof LED Strip – 5m
- 5 meters total length with 60 WS2812B LEDs per meter
- 24-bit color depth (8-bit PWM per channel) with 16.8 million colors per LED
- IP67-rated silicone jacket for full waterproof protection
- One-wire digital control interface for individual LED addressing
- Runs on a 5 V supply; each LED draws ~50 mA at full RGB brightness
- Flexible PCB backing for easy installation around curves and corners
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Outdoor architectural accent lighting (façades, eaves, pergolas)
- Signage, shop windows and display case illumination
- Stage, event and party décor with custom animation sequences
- Backlighting for televisions, monitors or gaming rigs
- Holiday and festive lighting (Diwali, Christmas, weddings)
- Aquarium and terrarium mood lighting (ensure proper sealing at connections)
How to Use WS2812B 5V Addressable RGB IP67 Waterproof LED Strip – 5m
To set up, mount the strip securely, then supply regulated 5 V and common ground. Connect the data input to your microcontroller’s digital pin (for example, Arduino D6), optionally through a 330 Ω resistor. Use a compatible library such as FastLED or Adafruit NeoPixel to send color data. For longer runs, inject 5 V power every 2–3 meters to maintain uniform brightness. Seal any cut ends with silicone or heat-shrink tubing to preserve the IP67 rating.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I cut the LED strip to a shorter length?
Yes. The strip can be cut every 3 LEDs at the marked copper pads. After cutting, re-seal each end with waterproof silicone or heat-shrink tubing to maintain the IP67 protection.
What is the maximum current draw for the full 5 m strip?
At full white (all channels at maximum), each LED draws ~50 mA. For 300 LEDs (60 LEDs/m × 5 m), the maximum current is around 15 A. Use a power supply with sufficient current capacity and inject power at multiple points.
How do I connect this strip to an Arduino?
Connect the 5 V and ground lines from a regulated supply to the strip and Arduino GND. Wire the strip’s data-in to a digital output pin (e.g., D6) through a 330 Ω resistor. Install and configure a library like FastLED or Adafruit NeoPixel to drive the LEDs.
Peltier Cooler: TEC Module Thermoelectric Cooling Projects
Table of Contents What Is a Peltier Cooler? How Thermoelectric Cooling Works TEC Module Specifications Explained Powering and...
Read More →
Build a Smart Weather Station Using Waveshare E-Paper Display & ESP32
Build a Smart Weather Station Using Waveshare E-Paper Display & ESP32 Introduction: Want to build a low-power IoT...
Read More →
Solderless vs Soldered Connections: Long-Term Reliability Compared
Solderless vs Soldered Connections: Long-Term Reliability Compared If you've spent any time in electronics, you've faced the question...
Read More →Technical Specifications
| Model | WS2812B |
|---|---|
| Operating Voltage | 5V |
| Interface / Protocol | BLE |
| SKU | AI2573 |
| Weight | 0.2548 kg |
| Availability | Out of Stock |
Applications & Use Cases
The WS2812B 5V Addressable RGB IP67 Waterproof LED Strip – 5m is a versatile rgb led strips and drivers used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
