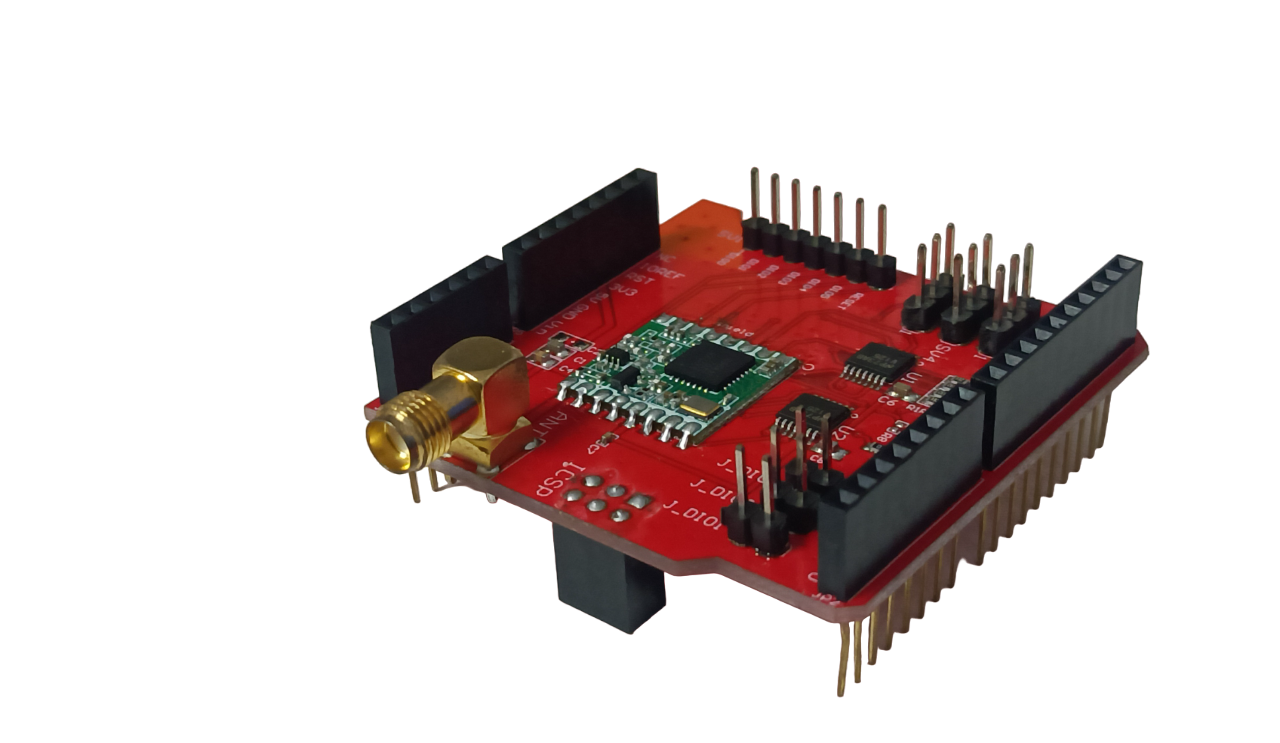

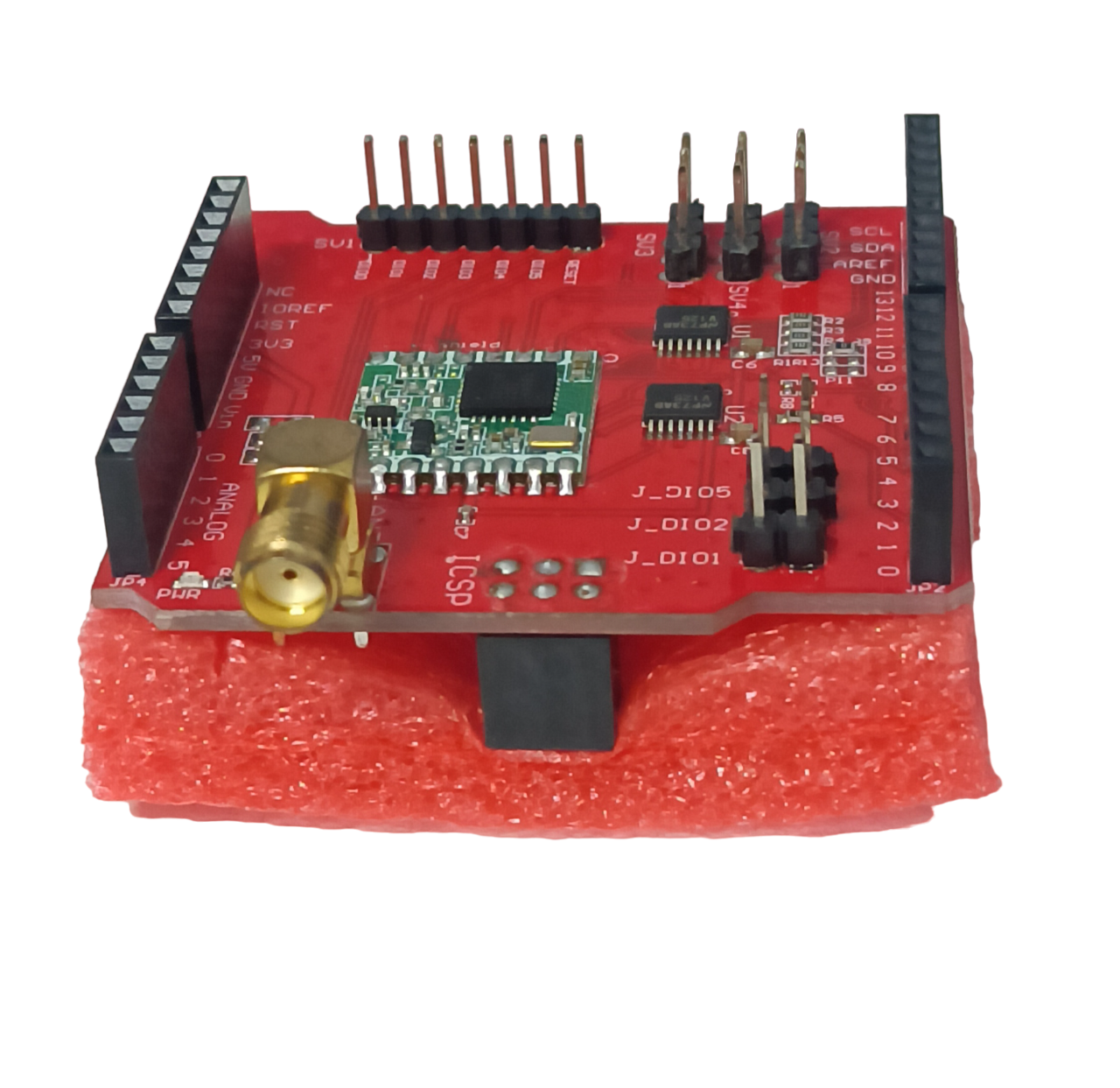

Wireless Transmitter 433Mhz Lora Shield for Leonardo UNO
The LoRa Shield, designed in the Arduino shield form factor and based on an open-source library, is a powerful long-range transceiver that excels in wireless communication. It enables users to transmit data over vast distances at low data rates, making it ideal for applications requiring extensive coverage. The shield offers ultra-long-range spread spectrum communication, excellent interference immunity, and low power consumption.
Powered by the RFM95W/RFM98W modules, the LoRa Shield is perfect for professional wireless sensor network applications, including irrigation systems, smart metering, smart cities, smartphone detection, and building automation. By leveraging Hope RF’s patented LoRa™ modulation technique, the shield achieves remarkable sensitivity of over -148 dBm using cost-effective components. Its integrated +20 dBm power amplifier ensures an industry-leading link budget, providing superior range and reliability for demanding applications.
LoRa™ modulation offers significant advantages in terms of range, interference immunity, and energy efficiency compared to traditional communication techniques. It improves blocking and selectivity, addressing the trade-offs between these factors. Additionally, the shield supports high-performance (G)FSK modes for systems such as WMBus and IEEE802.15.4g, delivering exceptional phase noise, selectivity, receiver linearity, and IIP3. This results in notably lower current consumption than competing devices, enhancing overall efficiency and extending battery life across a variety of applications.
Features:
- Excellent blocking immunity.
- Low RX current of 10.3 mA, 200 nA register retention.
- Fully integrated synthesizer with a resolution of 61 Hz.
- FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
- Built-in bit synchronizer for clock recovery.
- Preamble detection.
- Automatic RF Sense and CAD with ultra-fast AFC.
- Packet engine up to 256 bytes with CRC.
- Built-in temperature sensor and low battery indicator.
PACKAGE INCLUDES

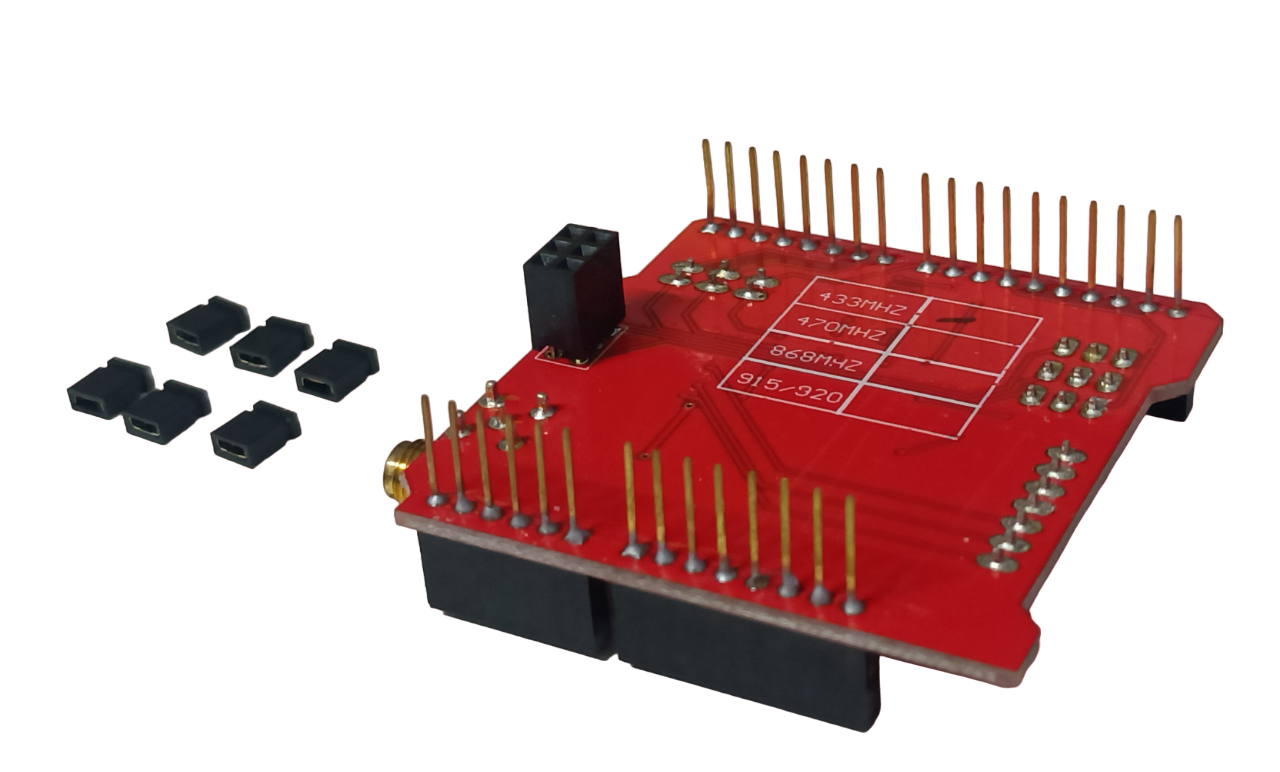

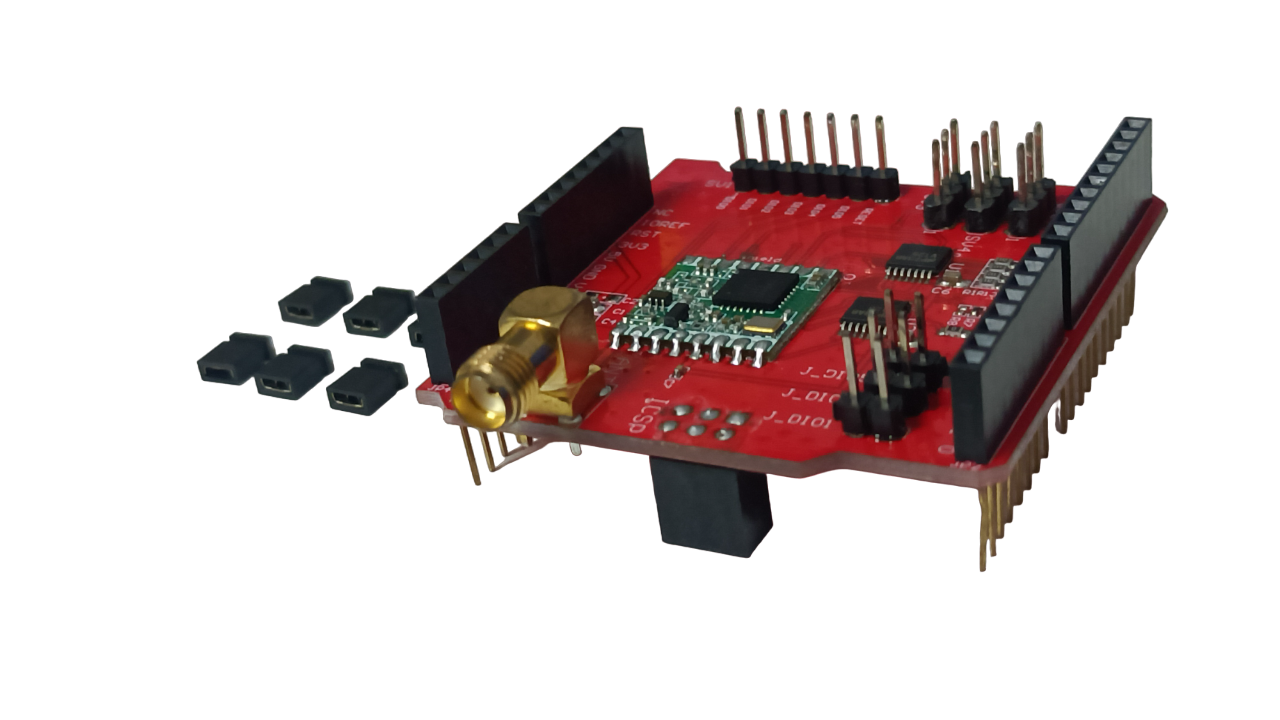

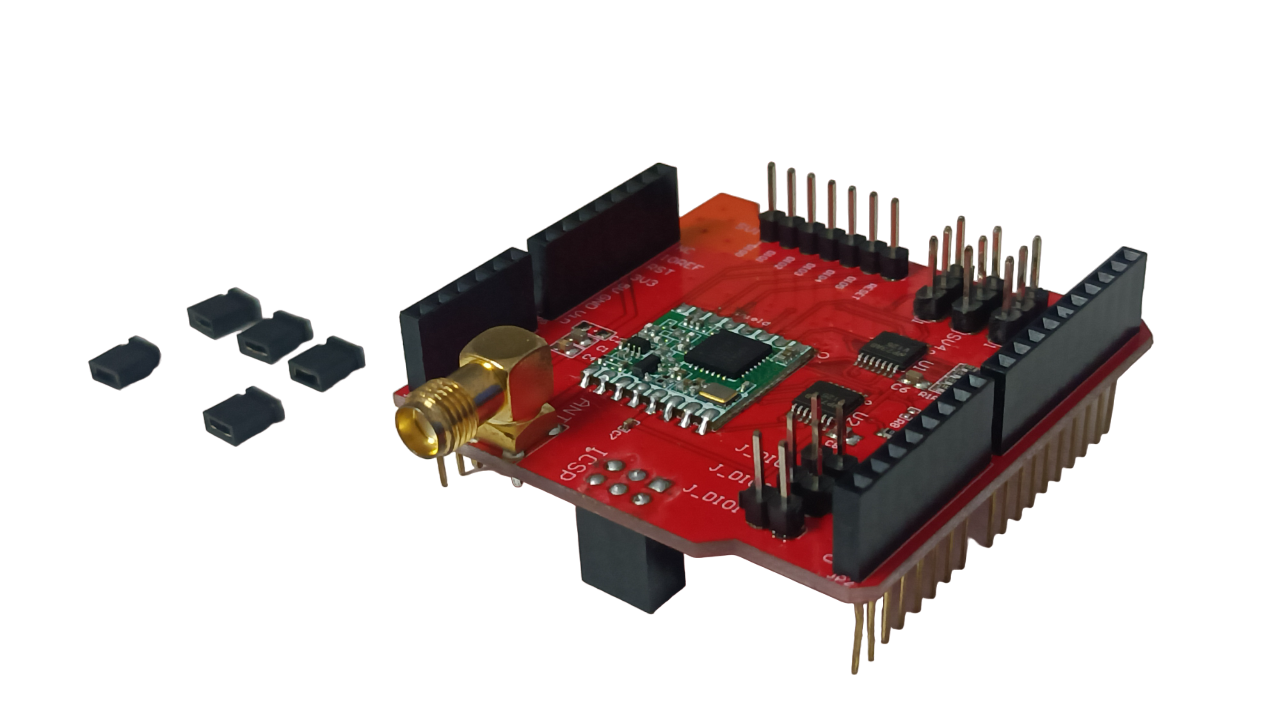

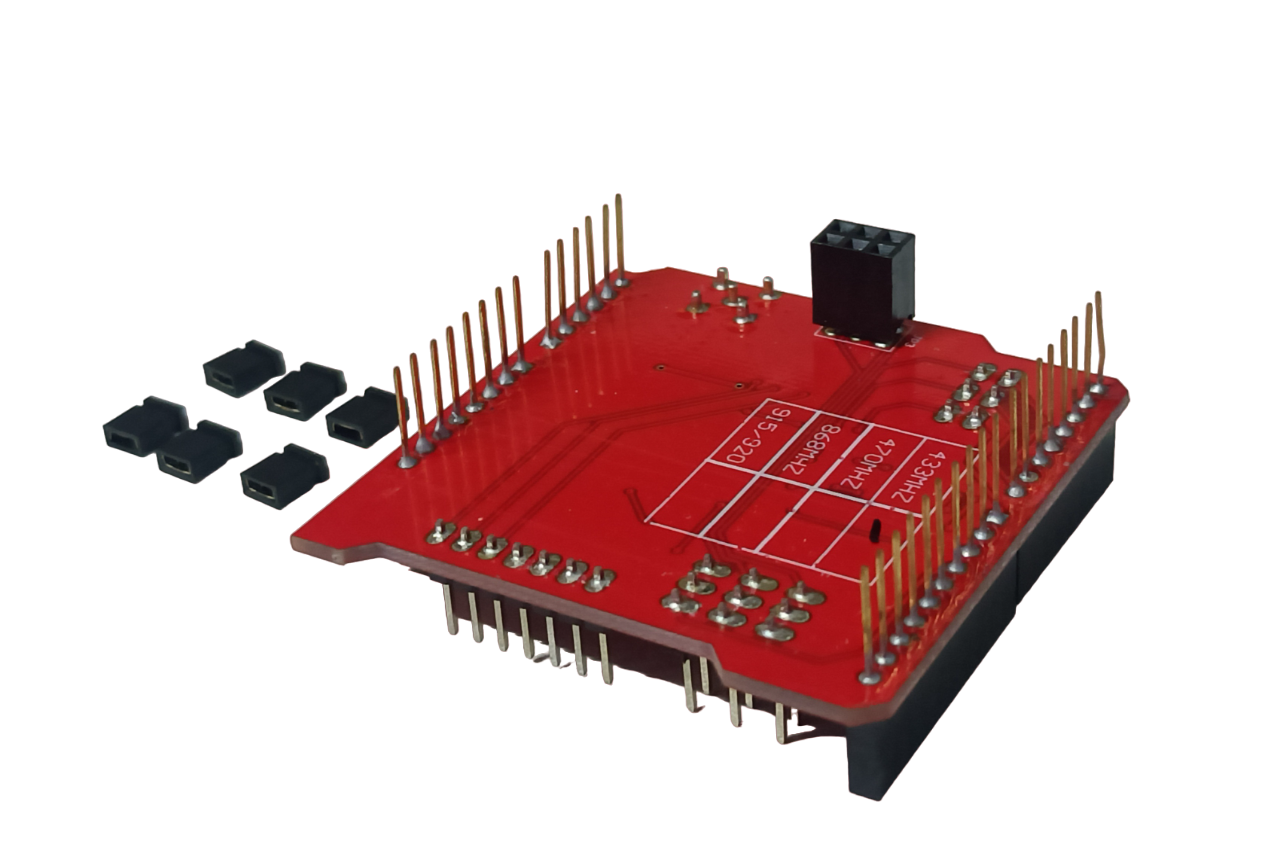

1 X Wireless Transmitter 433Mhz Lora Shield for Leonardo, UNO, Mega2560, Duemilanove, Due
Wireless Transmitter 433Mhz Lora Shield for Leonardo UNO Overview

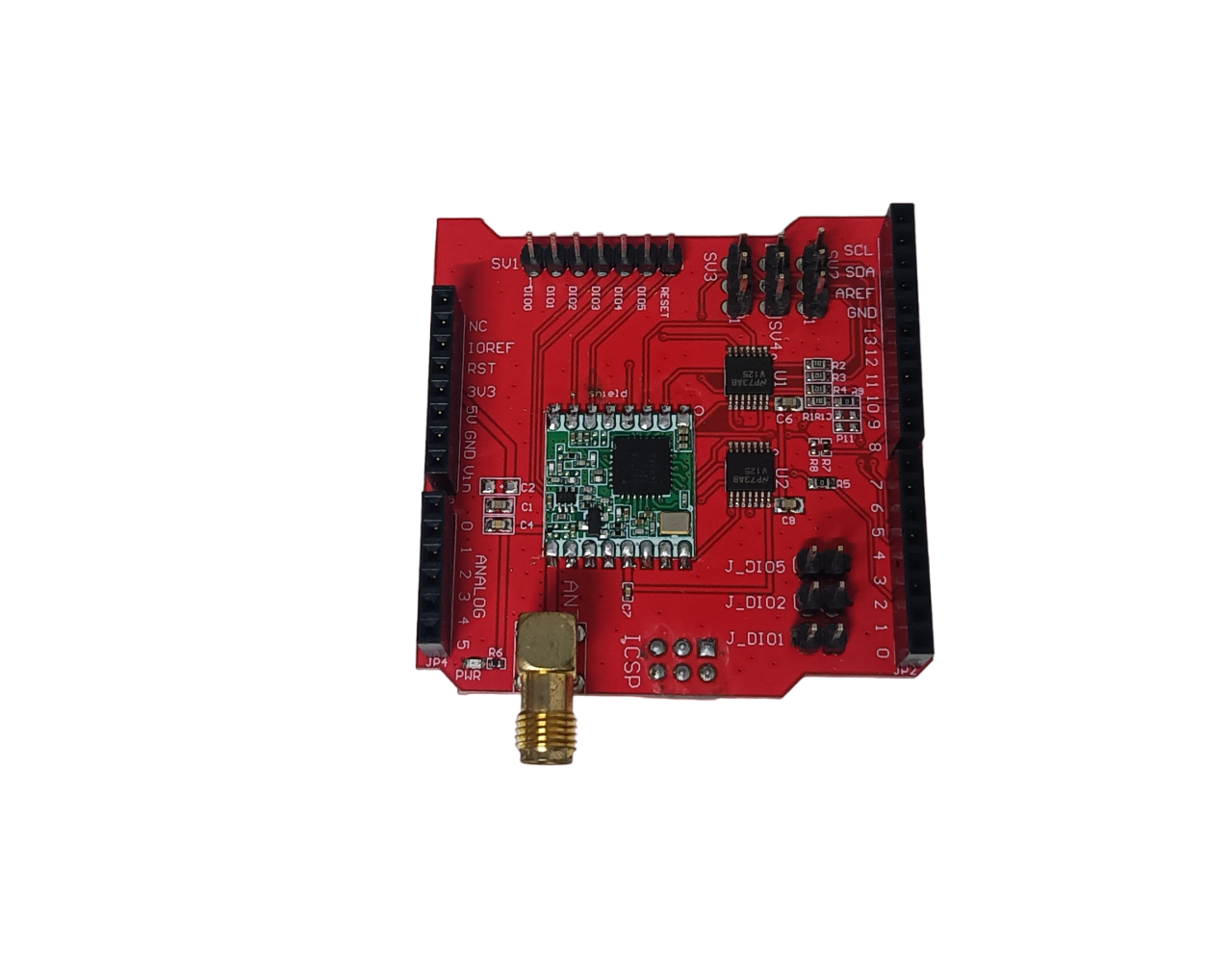

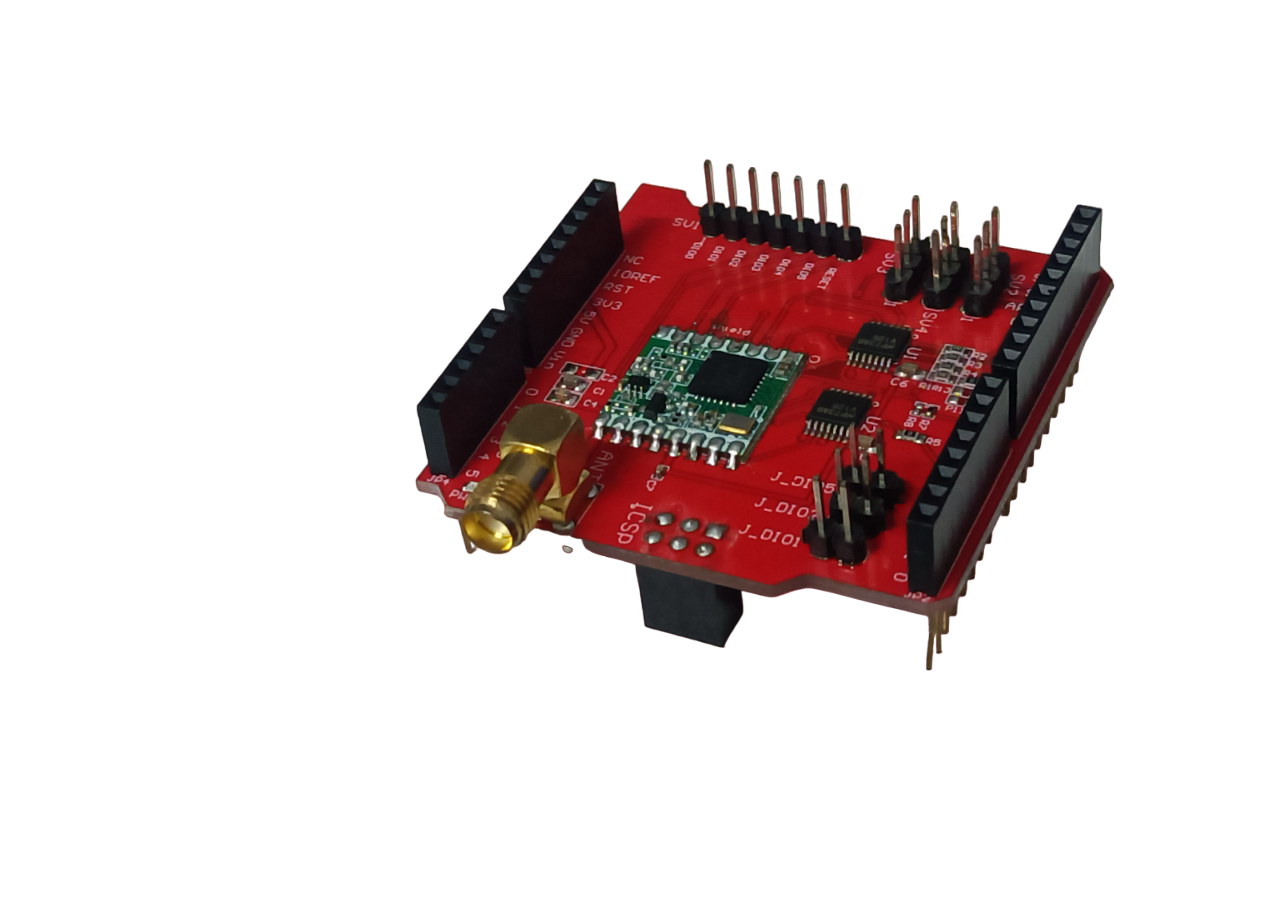

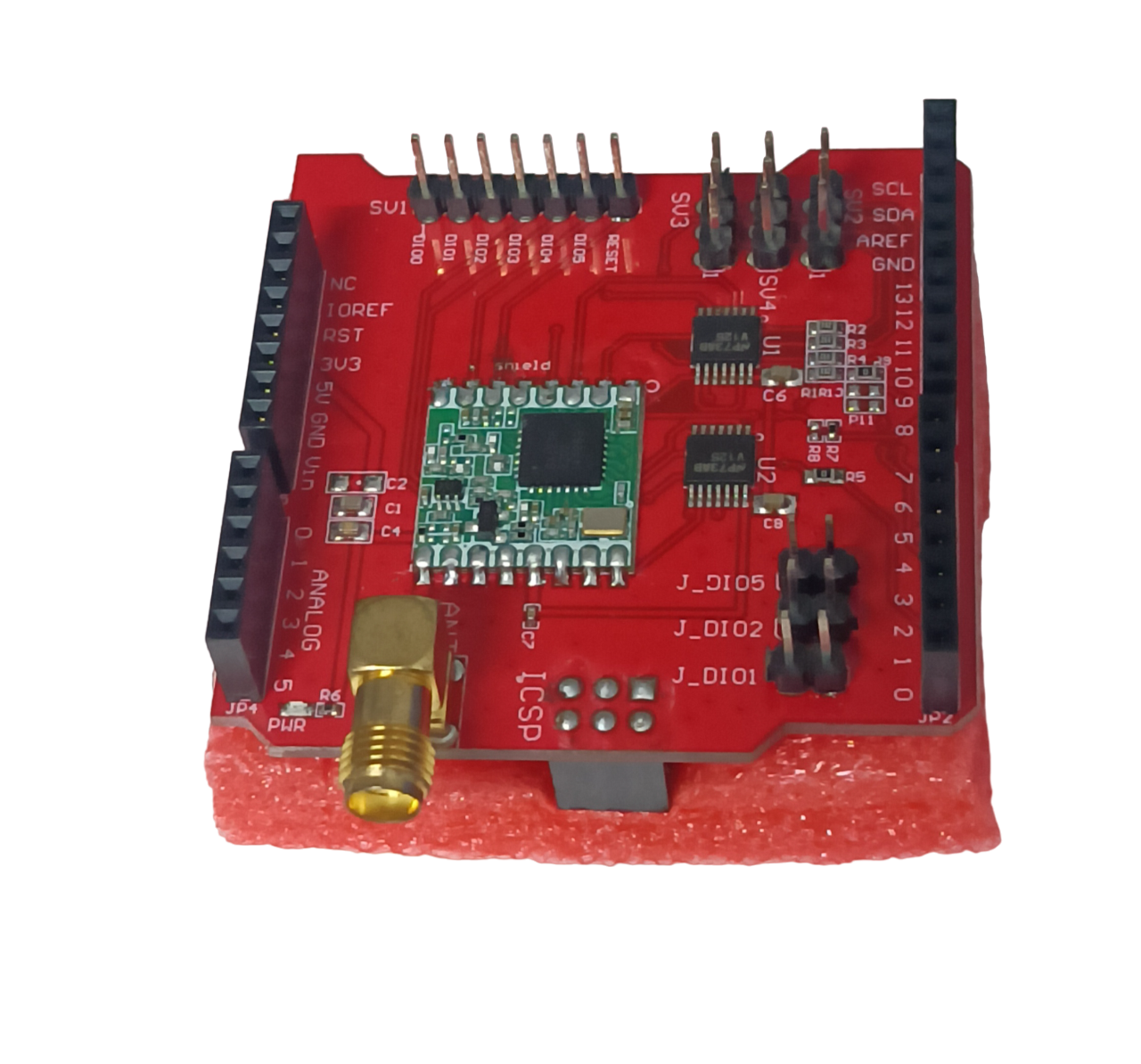

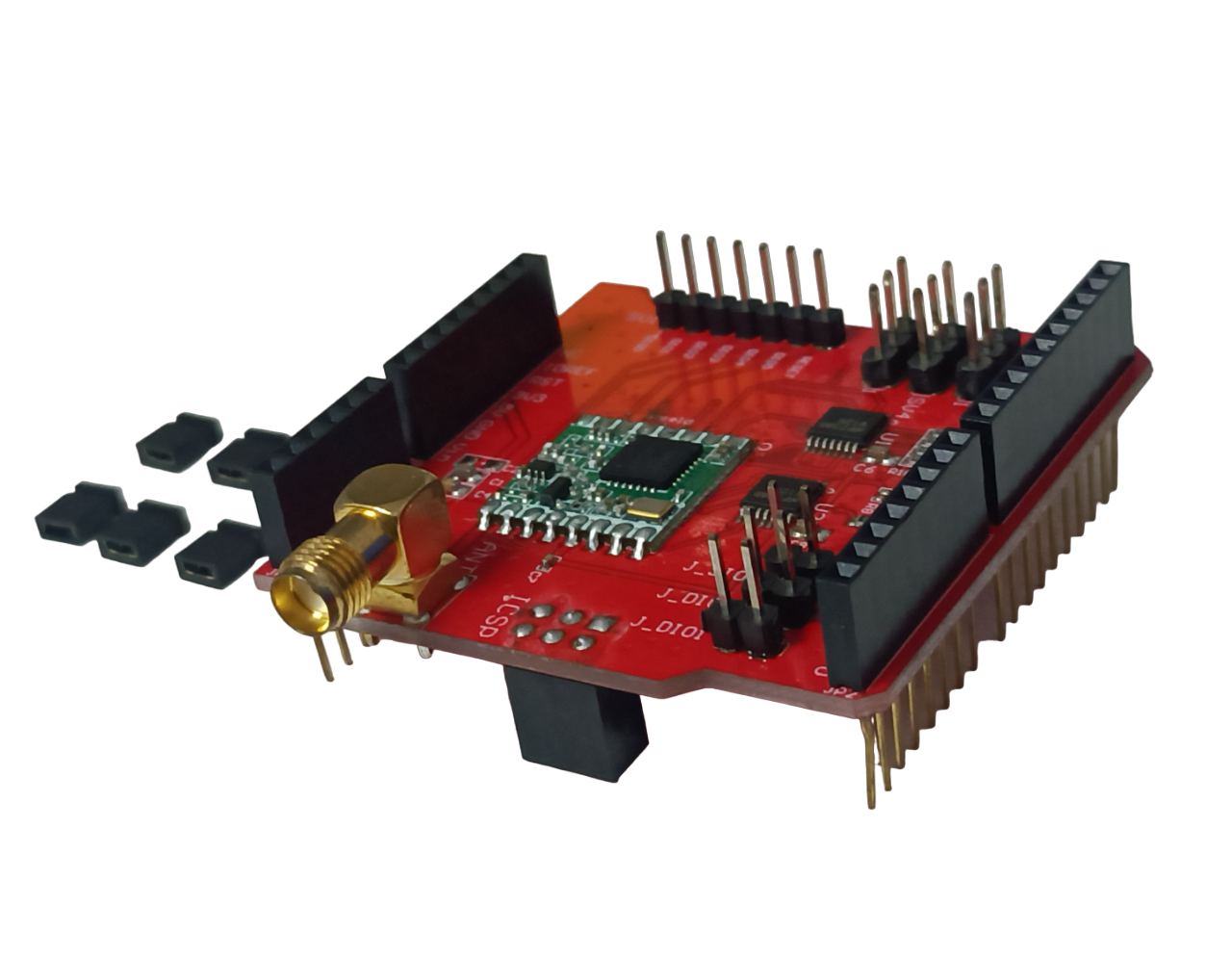

The Wireless Transmitter 433Mhz LoRa Shield for Leonardo UNO is an Arduino-compatible expansion board that enables long-range wireless communication at 433 MHz. Designed around the RFM95W/RFM98W LoRa module, it delivers low-power, spread-spectrum transmission for projects requiring reliable data links over kilometers.
Key Features of Wireless Transmitter 433Mhz Lora Shield for Leonardo UNO
- 433 MHz frequency pre-configured at the factory for plug-and-play operation
- Compatible with both 3.3 V and 5 V I/O pins on Arduino Leonardo, Uno, Mega2560, and Due
- Ultra-long-range spread-spectrum communication with excellent interference immunity
- Low power consumption ideal for battery-operated sensor networks
- External antenna connector via SMA jack for optimized signal gain
- Fast shipping across India when you order from Zbotic
Applications and Use Cases
- Remote environmental monitoring stations sending temperature, humidity, or air-quality data
- Agricultural irrigation control nodes relaying soil moisture readings to a central hub
- Industrial telemetry systems tracking machinery performance in large facilities
- Home and building automation networks spanning multiple floors or outbuildings
- Asset tracking beacons for livestock, vehicles, or equipment on expansive properties
- DIY weather stations transmitting barometric pressure and wind speed over distance
How to Use Wireless Transmitter 433Mhz Lora Shield for Leonardo UNO
To get started, mount the LoRa shield on top of the Leonardo or Uno by aligning the header pins, then attach a 433 MHz antenna to the SMA connector. Install the open-source LoRa library in the Arduino IDE, select the correct board type and COM port, and upload a sample transmit sketch. Once configured, the shield will send and receive data packets at low data rates over long distances.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which Arduino boards can I use with this LoRa shield?
This shield is tested compatible with Arduino Leonardo, Uno, Mega2560, and Due. It supports both 3.3 V and 5 V logic levels, so no level shifter is required on these boards.
Do I need to purchase an antenna separately?
Yes, the shield includes an SMA jack but does not include the antenna. You can connect any 433 MHz whip or rubber-duck antenna with an SMA plug for full range performance.
What is the typical communication range?
Using the factory-configured 433 MHz LoRa settings and a proper antenna, you can achieve line-of-sight ranges of 2–5 km. Actual range may vary with terrain, obstacles, and antenna quality.
