Features:
- 800×480 hardware resolution, configurable by software (up to 1920×1080).
- Capacitive touch control.
- Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers.
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retro pie/WIN10 IOT, driver free.
- When working as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free.
- Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
- Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.
- 3.5mm audio jack, speaker connector, supports HDMI audio output.
- Also supports VGA input.
Package Includes(Waveshare5 inch LCD Module Resistive Touchscreen adapting to HDMI interface 800*480 Resolution for PI3):
- 1 x 5inch HDMI LCD (H)
- 1 x HDMI cable
- 1 x HDMI to Micro HDMI Adapter
- 1 x USB type A plug to micro B plug cable
- 1 x RPi screws pack (4pcs)
- 1 x Quick start sheet
Waveshare5 inch LCD Module Resistive Touchscreen adapting Overview

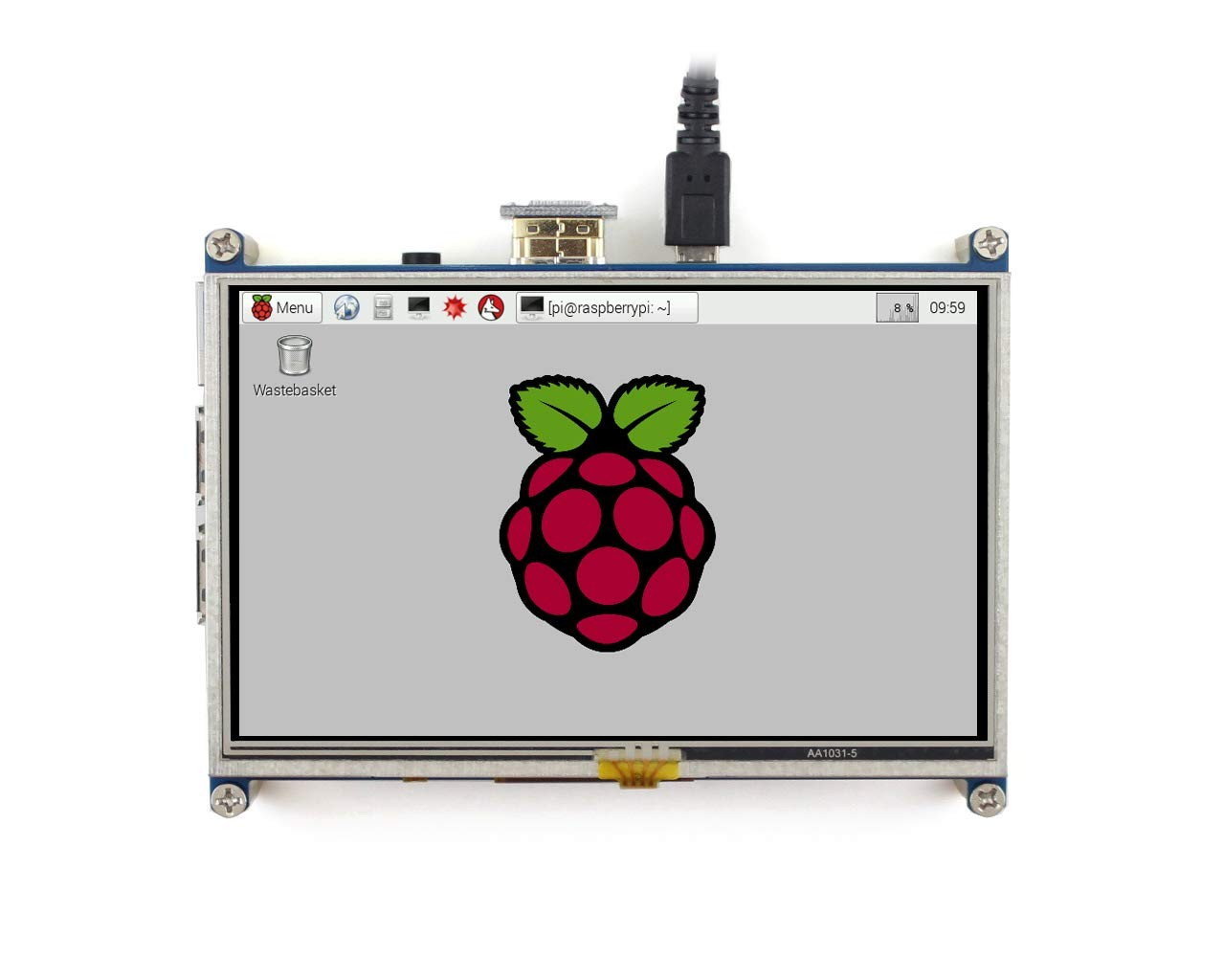

The Waveshare 5-inch LCD Module is a compact HDMI display with an 800×480 pixel resolution and built-in touchscreen functionality. Designed for Raspberry Pi 3 and Windows PCs, it doubles as a standalone monitor with multi-touch support, making it ideal for embedded projects, portable interfaces, and small form-factor desktop use.
Key Features of Waveshare5 inch LCD Module Resistive Touchscreen adapting
- 800×480 pixel resolution on a 5″ TFT panel for clear text and graphics
- HDMI interface for video input—plug directly into Raspberry Pi 3 or PC
- Touch input via USB port with up to 5 simultaneous touch points
- Wide 170° viewing angle ensures consistent colors from almost any position
- Compatible with Raspbian, Ubuntu, Kali, RetroPie, WIN10 IoT and Windows 7/8/10 (multi-touch on Win 8/10, single-touch on some Win 7)
- Fast shipping from Zbotic—get genuine Waveshare panels delivered quickly
Applications and Use Cases
- Portable Raspberry Pi touchscreen console for home automation dashboards
- Compact second monitor for Windows laptops and mini PCs
- Retro gaming station using RetroPie or similar emulators
- Industrial HMI prototypes and control panels in kiosk projects
- Embedded Linux development requiring a small touch interface
How to Use Waveshare5 inch LCD Module Resistive Touchscreen adapting
Simply connect the HDMI cable from your Raspberry Pi 3 or PC to the module’s HDMI port, then plug the USB touch cable into any available USB port. On Windows systems, drivers install automatically; on Raspberry Pi OS you may need to set the display resolution in /boot/config.txt to 800×480. Mount the module on your enclosure or stand and begin interacting via touch out of the box.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use this display at full resolution with Raspberry Pi 3?
Yes. After connecting via HDMI, edit /boot/config.txt to include a custom HDMI mode (e.g., hdmi_cvt=800 480 60 6) so the Pi outputs exactly 800×480 without overscan.
Does the touchscreen work on Windows 7?
On Windows 7 systems, the panel supports single-point touch only. For multi-touch functionality (up to 5 points), use Windows 8.1 or Windows 10 with the native HID touch drivers.
Is any driver installation required on Windows 10?
No additional drivers are needed on Windows 8.1 or 10—just connect the HDMI and USB cables and the OS automatically recognizes both display and touch functions.
Arduino Nano vs Arduino Nano Every: What Changed in 2026?
The Arduino Nano is one of the most enduring microcontroller boards ever made. Launched in 2008, its compact...
Read More →
Arduino LoRa SX1278: Long Range Sensor Data Transmission
LoRa (Long Range) wireless technology has transformed the way makers and engineers build IoT sensor networks across large...
Read More →
Arduino Portenta H7: Industrial IoT and Machine Learning
The Arduino Portenta H7 guide starts with one clear message: this is not your average Arduino board. Launched...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | HDMI |
| SKU | AI6021 |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare5 inch LCD Module Resistive Touchscreen adapting to HDMI interface 800*480 Resolution for PI3 is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
