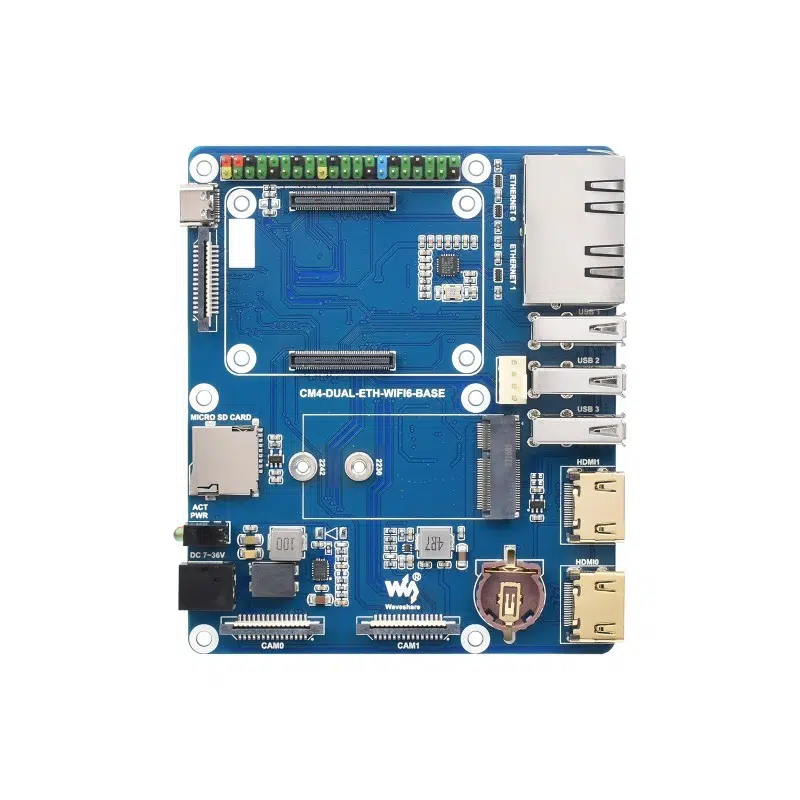

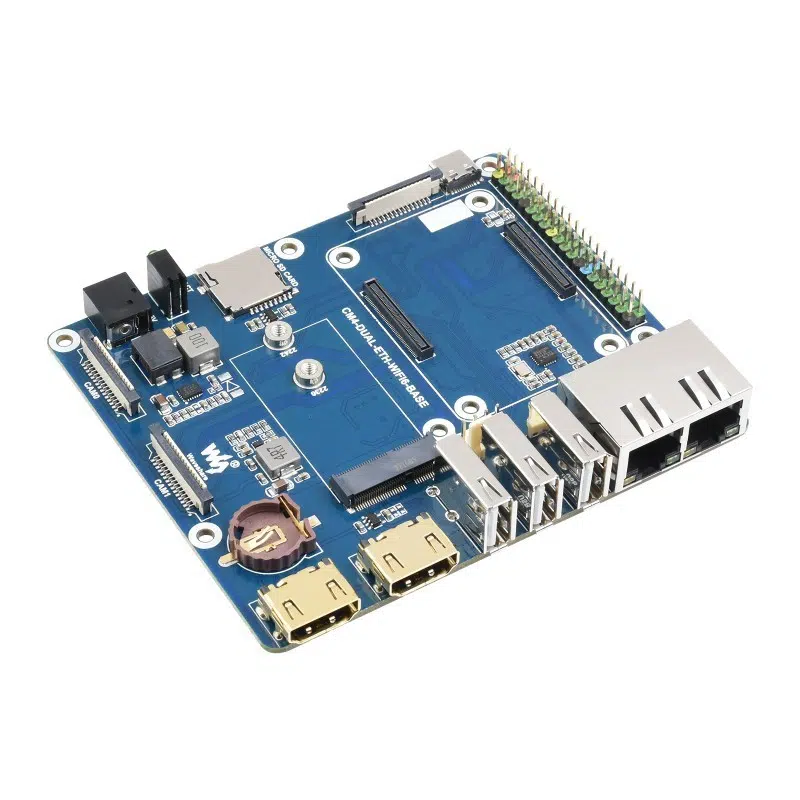

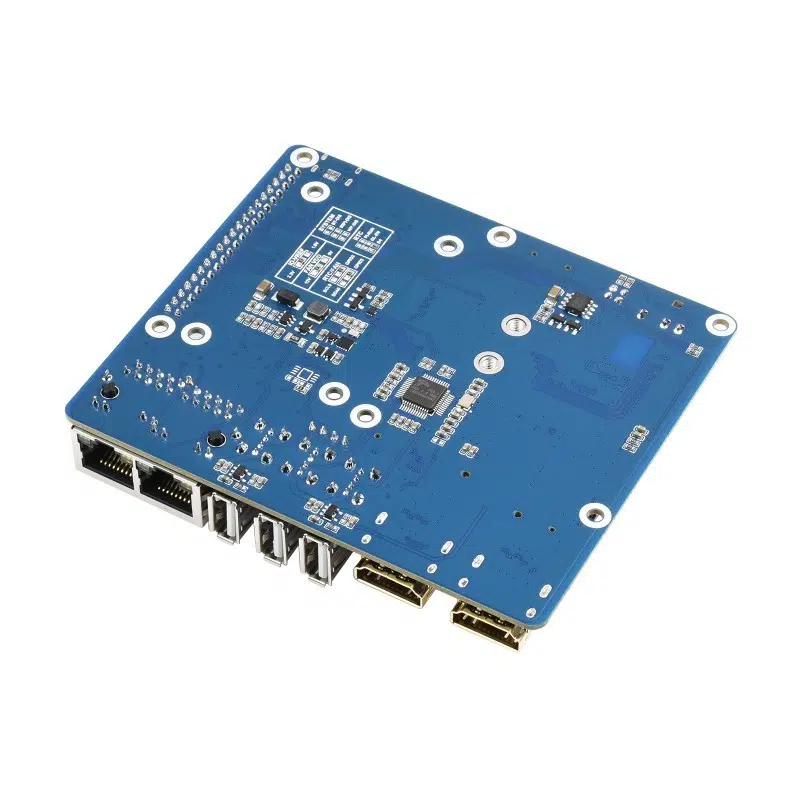

Waveshare WIFI6 Dual ETH Base Board/Mini-Computer Designed for Raspberry Pi Compute Module 4
CM4-DUAL-ETH-WIFI6-BASE, the IO board of the Raspberry Pi Compute Module 4, is a carrier board that can be used with the Raspberry Pi Compute Module 4 and supports 7~12V DC power supply, and the board has three USB ports 2.0, WIFI6, dual Ethernet ports, suitable for soft routing and other scenarios that require multiple Ethernet ports.
Features:
- Supports 7~12V DC power supply
-
Compatible with the following types of WIFI Modules with M.2 A/E KEY Interface
-
Support access to WIFI6 Module, making it easy to build Raspberry Pi CM4 Mini PC with WIFI function
-
Standard CM4 Socket and color-coded Raspberry Pi 40PIN GPIO Header suitable for Compute Module 4 Lite/EMMC Series Module
Specification:
| Item Type: | Other Board |
|---|---|
| Compatibility: | CM4 |
| Board Type: | Baseboard |
| Supported | Socket for CM4 Variants |
| Networking | Gigabit Ethernet RJ45 connector × 1; 100M Ethernet RJ45 connector × 1 |
| USB | USB 2.0 port × 3 |
| PCIE | M.2 E KEY |
| Pin header | 40PIN GPIO header × 1 |
| DSI Display | MIPI DSI display port × 1, 15pin 1.0mm FPC connector |
| CSI Camera | MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector |
| HDMI | HDMI × 2, support 4K 30fps output |
| TF CARD SLOT | TF card socket for Compute Module 4 Lite (without eMMC) variants |
| RTC | Real-time clock with a battery socket and the ability to wake Compute Module 4 |
Package Includes:
-
1 x Waveshare WIFI6 Dual ETH Base Board/Mini-Computer Designed for Raspberry Pi Compute Module 4
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | WIFI6 |
| Interface / Protocol | WiFi |
| SKU | AI7725 |
| Weight | 0.16 kg |
| Availability | In Stock |
