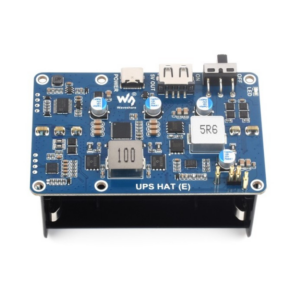

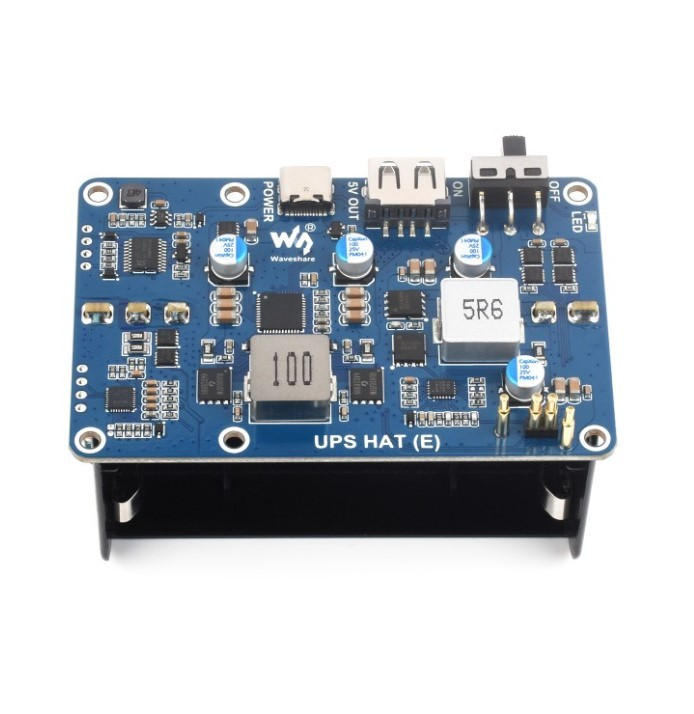

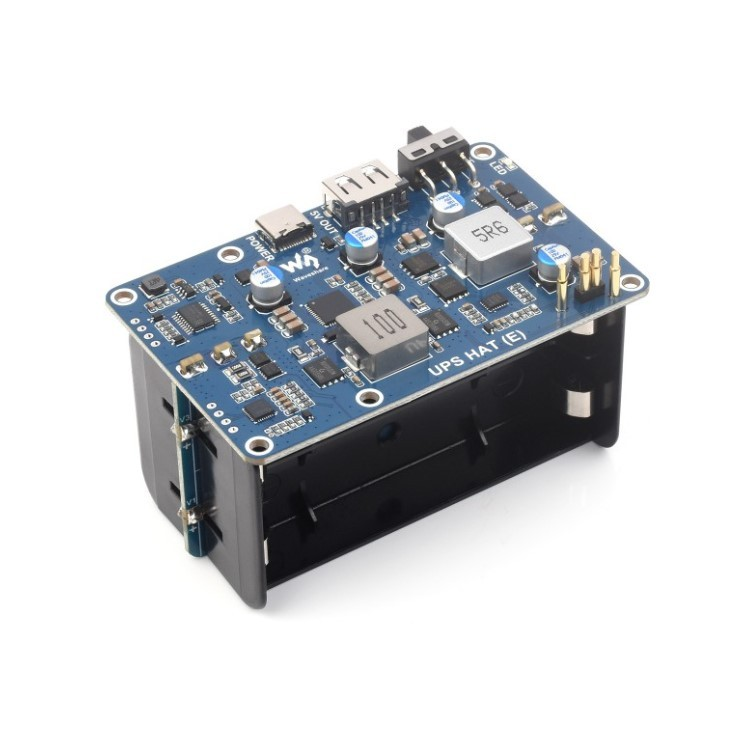

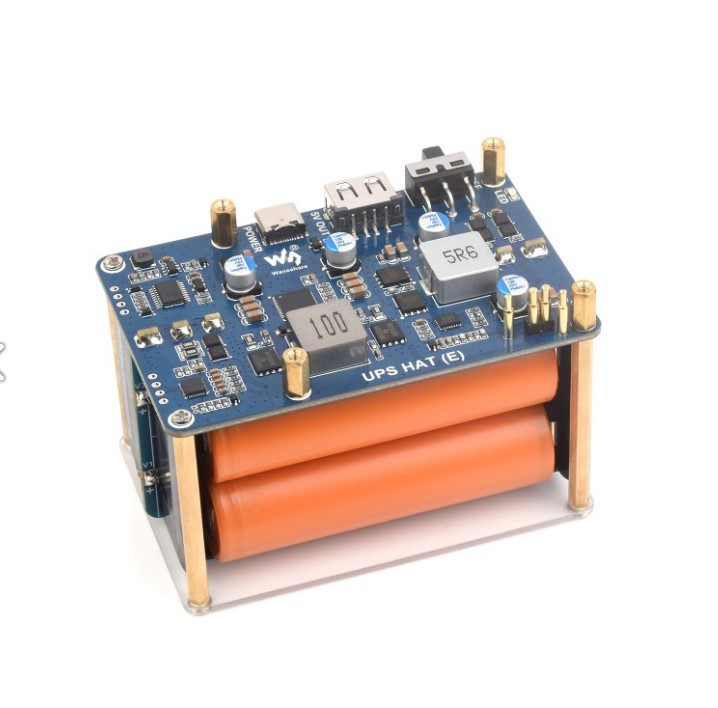

The UPS HAT (E) for Raspberry Pi is an uninterruptible power supply expansion board that supports up to four 21700 Li batteries (not included). UPS HAT (E) for Raspberry Pi features bi-directional fast charging, a high-output of 5V 6A, and allows simultaneous charging and power output, making it ideal for uninterrupted Raspberry Pi operation.
Useful Link:
https://www.waveshare.com/wiki/UPS_HAT_(E)
Features:
- Bi-Directional Fast Charging: Type-C port supports fast charging protocols, up to 40W.
- High Power Output: Provides stable 5V 6A output for reliable performance.
- Battery Monitoring: Onboard fuel gauge IC for real-time monitoring of battery parameters.
- Automatic Switch-over: Seamlessly switches to battery power when external power is lost.
- Pogo Pins Connector: Simplifies connection to Raspberry Pi without using GPIO resources.
- Real-Time Monitoring: I2C bus communication for tracking voltage, current, and capacity.
- LED Indicators: Onboard indicators for battery connection status.
Specification:
| Item Type: | UPS HAT (E) |
|---|---|
| Manufacturer: | WAVESHARE |
| Battery support | 4× 21700 Li batteries (not included) |
| Output Power | 5V, 6A |
| Mounting Hole Size | 3.0 mm |
Packages include:
1 x UPS HAT (E)

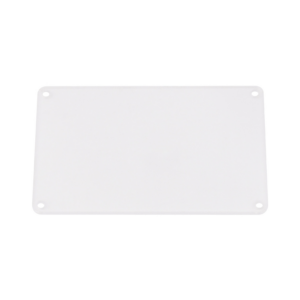

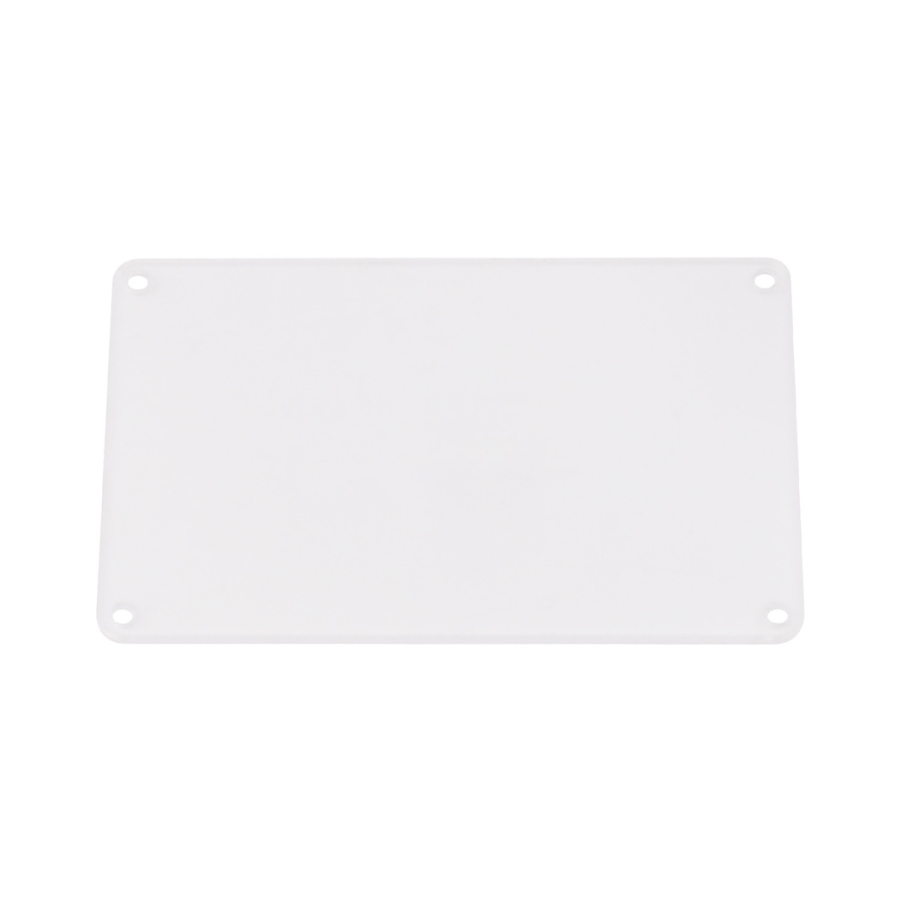

1 x acrylic protection panel

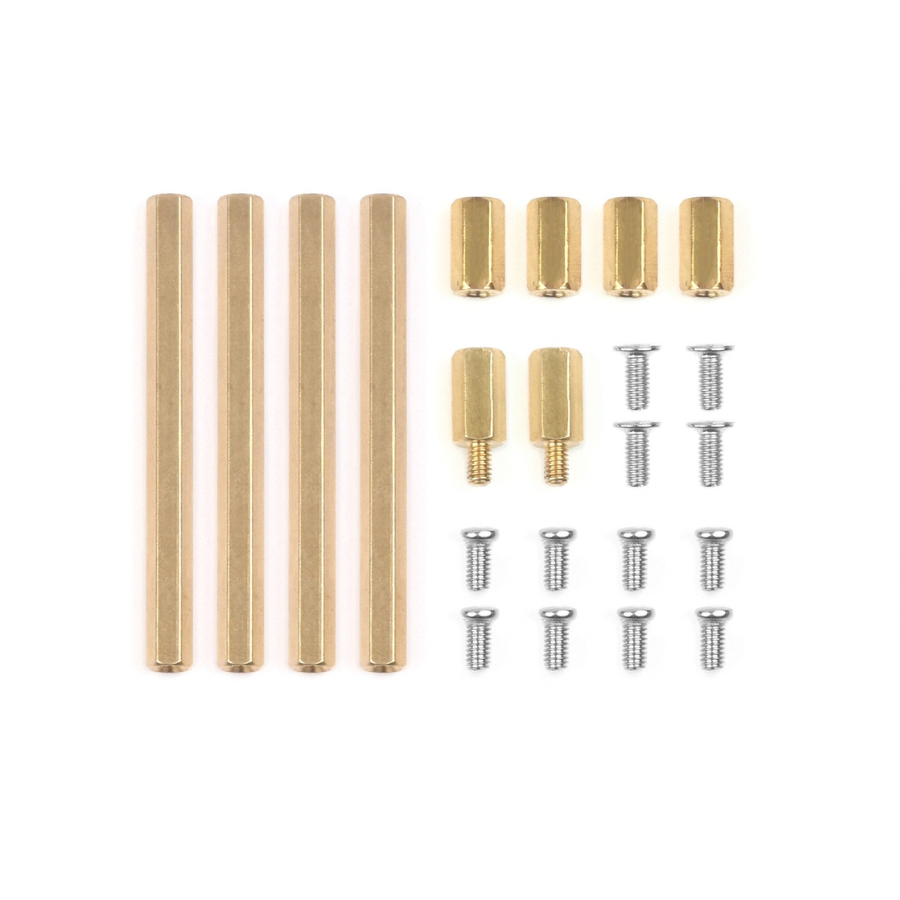

1 x Screws pack
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Operating Voltage | 5V |
| Current Rating | 6A |
| SKU | AI6713 |
| Weight | 0.22 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare UPS HAT (E) for Raspberry Pi, Supports 4× 21700 Li batteries (NOT included), Bi-Directional Fast charging, 5V 6A Output, Pogo Pins Connector, Raspberry Pi UPS is a versatile add on boards (hats) used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
