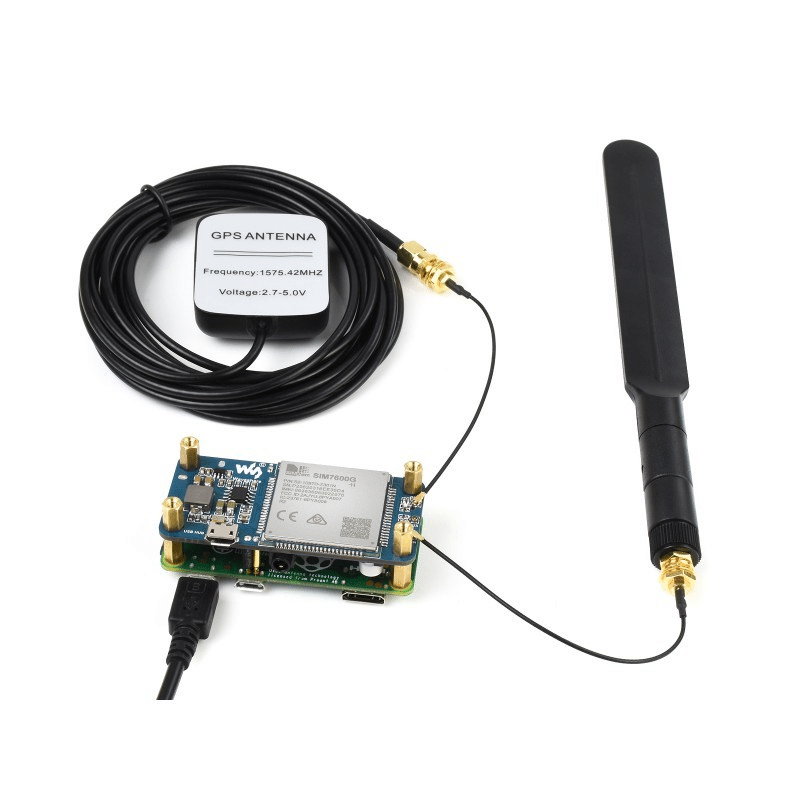

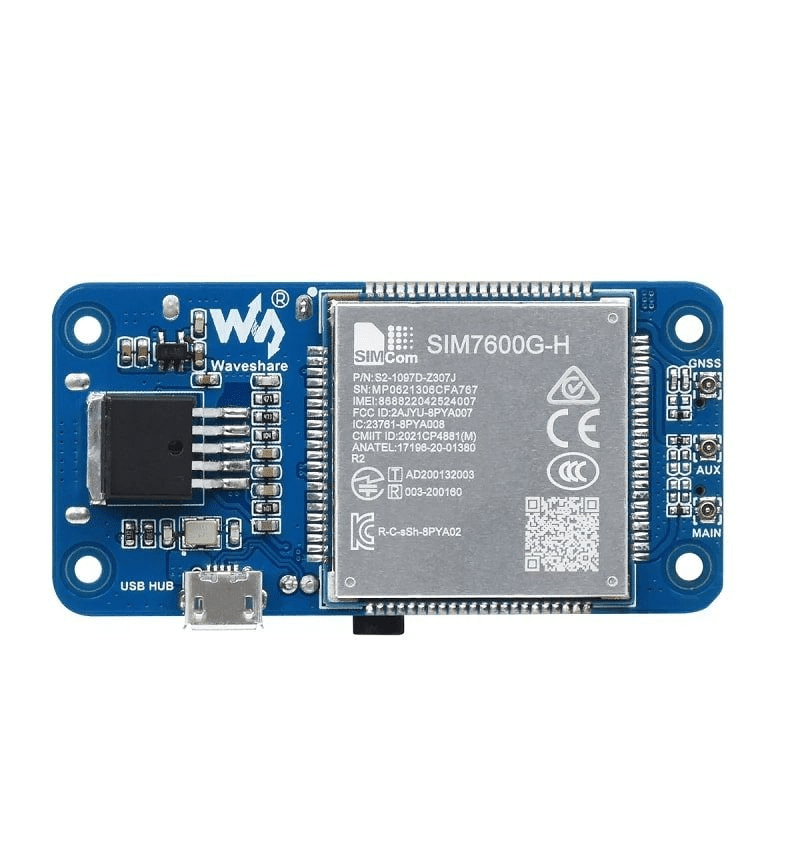

Waveshare SIM7600G-H 4G HAT (B) for Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, global band connected via pogo pin or Micro USB connector. Dedicated pogo pin for Raspberry Pi Zero/Zero W. Micro USB connector for other Raspberry Pi boards or PC. Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support.

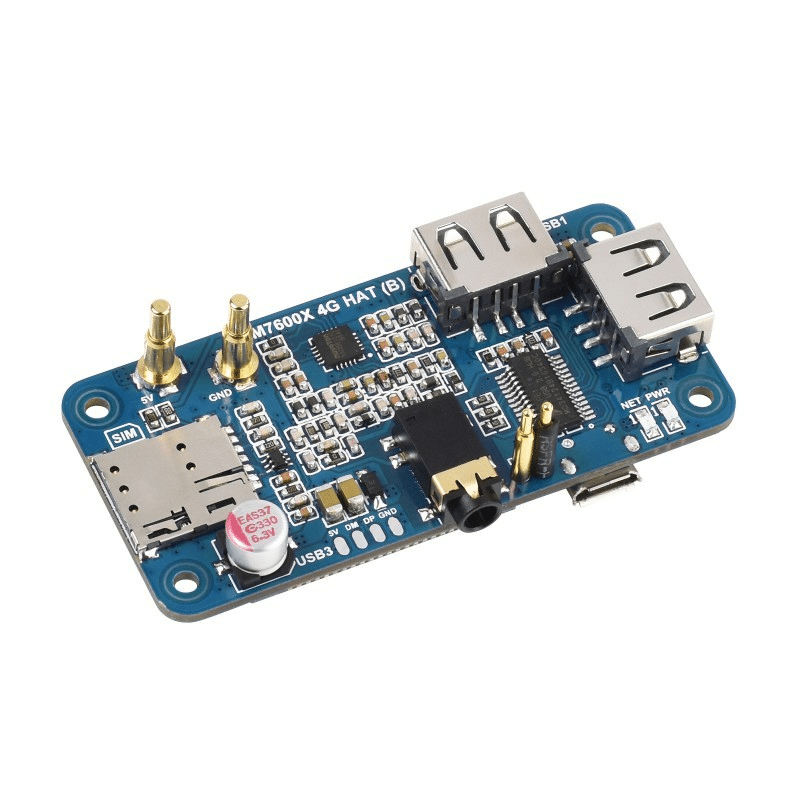

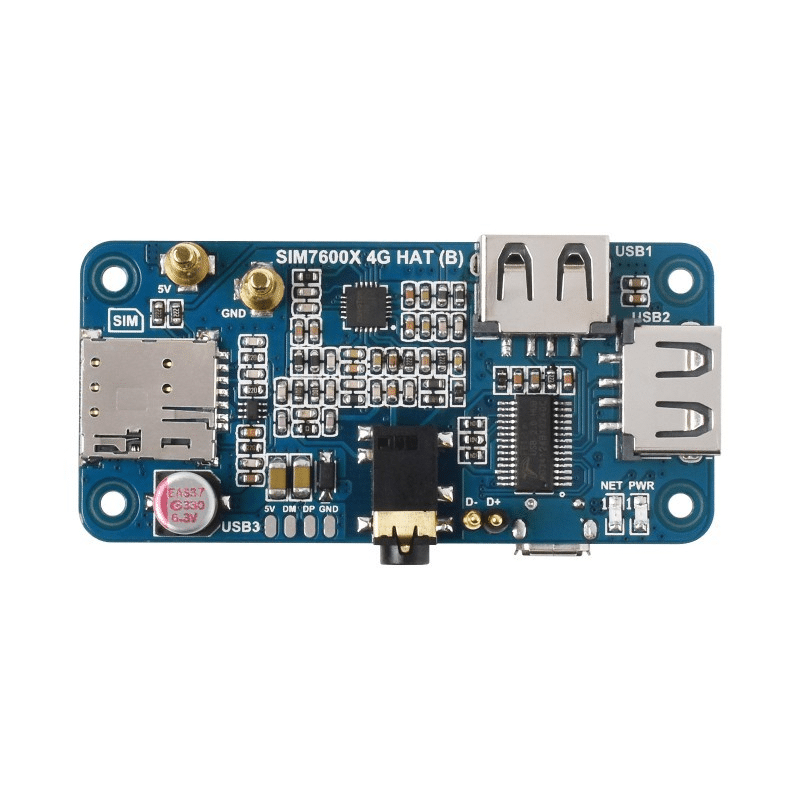

USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access. Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, Bei Dou, Glonass, GALILEO, QZSS, LBS base station positioning. SIM card slot, supports 1.8V/3V SIM card. Onboard audio jack and audio decoder for making telephone calls. 2× LED indicators, easy to monitor the operating status.
Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set). Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT. Comes with development resources and manual (examples for Raspberry Pi).
Features:
- Suitable For Raspberry Pi / PC
- Global Band 4G / 3G / 2G Support
- USB HUB Feature
- Telephone Call & SMS Support
- USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP
- Supports GPS, BeiDou, Glonass, and LBS base station positioning
- SIM card slot, supports 1.8V/3V SIM card
Specifications:
| Item Type | HAT |
|---|---|
| Compatibility | Pi Series |
| HAT Type | LTE HAT |
| Satellite Systems | GPS/Beidou/GLONASS/GALILEO/QZSS |
| Receiver Type | 16-channel C/A Code |
| Sensitivity (dBm) | 159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou) |
| Cold start | 148 dBm |
| SMS Supported types | MT, MO, CB, Text, PDU |
| Audio | Supports echo cancellation, noise reduction |
| Power Supply | 5V |
| Operating Temperature (°C) | 30°C -80°C |
Useful Links:
Package Includes:
- 1 × SIM7600G-H 4G HAT (B)
- 1 × LTE Antenna
- 1 × GPS Antenna
- 1 × USB-A to Micro-B cable
- 1 × Screws pack
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | SIM7600G-H |
| Interface / Protocol | 4G, LTE |
| SKU | AI7535 |
| Weight | 0.19 kg |
| Availability | In Stock |
