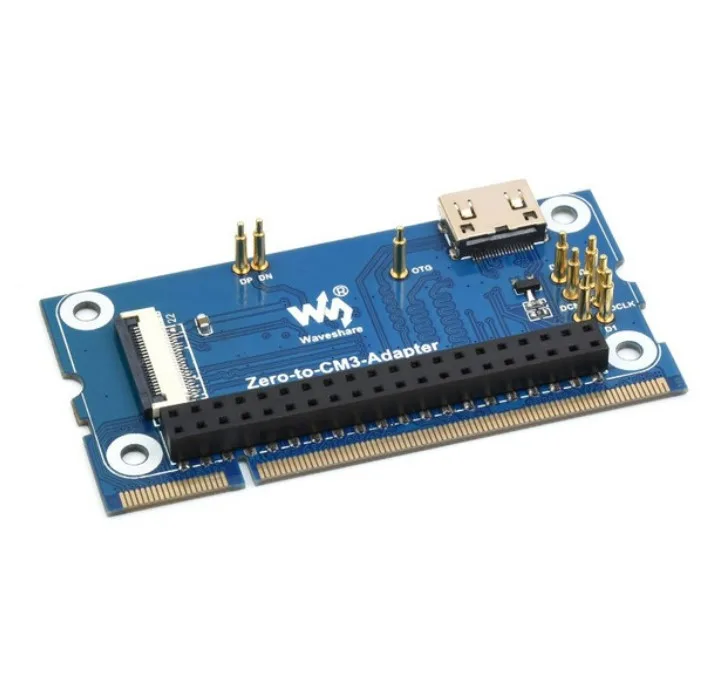

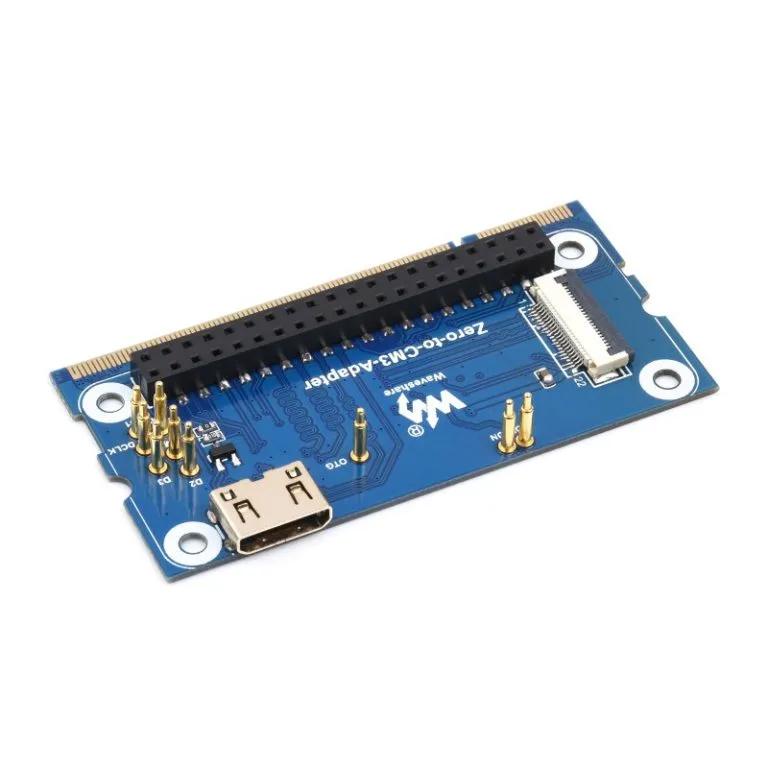

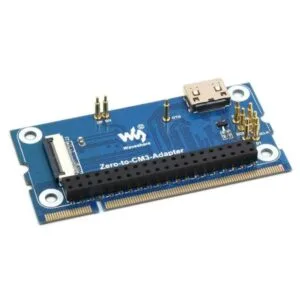

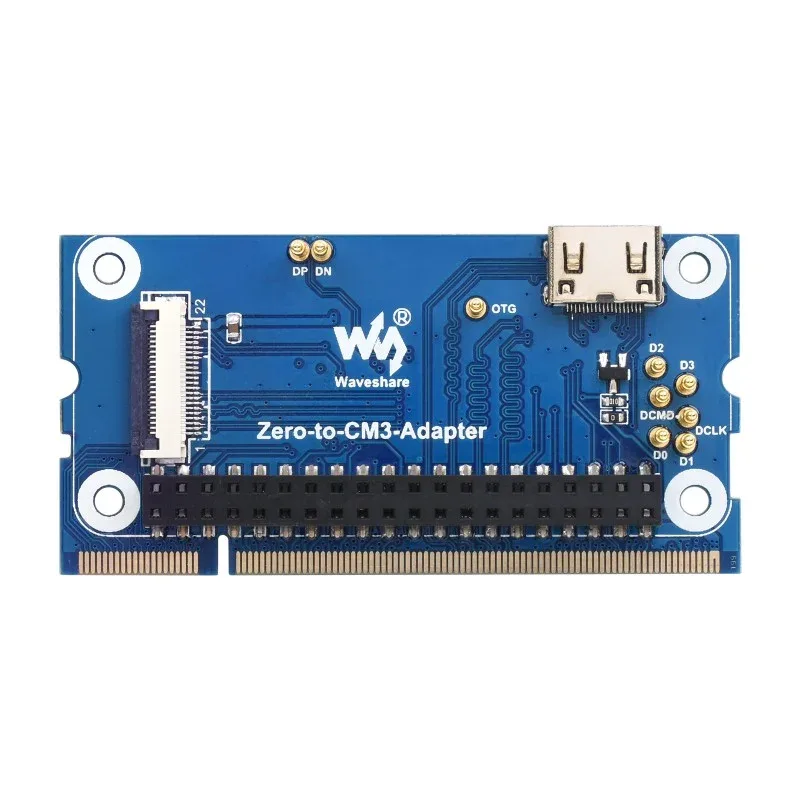

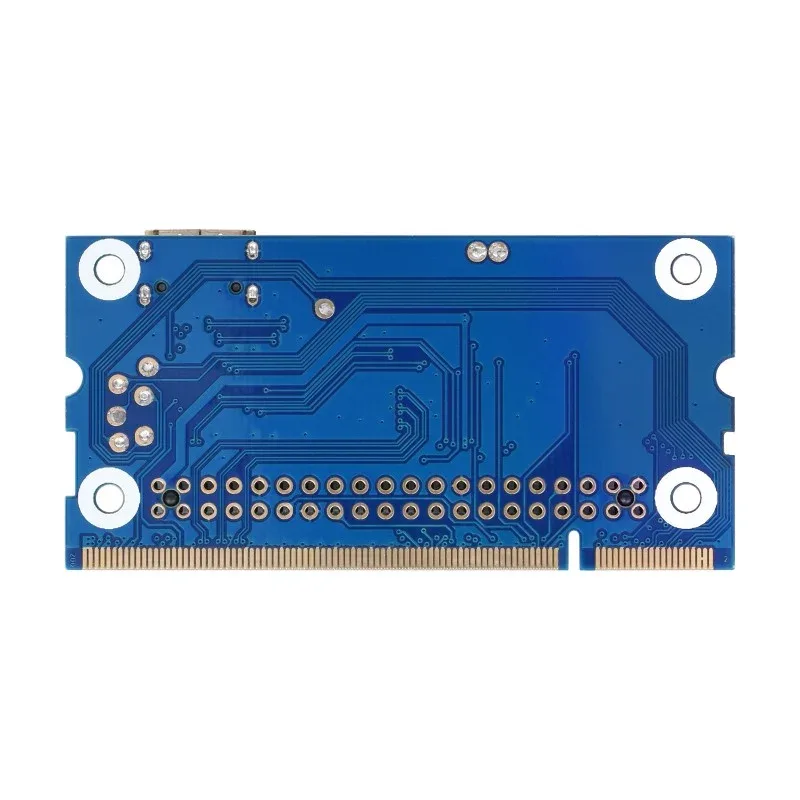

Raspberry Pi Zero 2W To CM3 Adapter, Alternative Solution For Raspberry Pi CM3 / CM3+ .camera interface: for connecting to the CAM of zero 2w. USB pogo pin is used to connect the USB signal line of zero 2w. HDMI interface is used to connect the HDMI of zero 2w. Micro SD card slot adapter: used to lead out the data cable of the SD card in Zero 2 w. GPIO connects to the 40Pin pin of zero 2w and lead to GPIO0~27. Onboard standard CM3 SODIMM, easily connected to the original CM3 ecosystem HATs
Features:

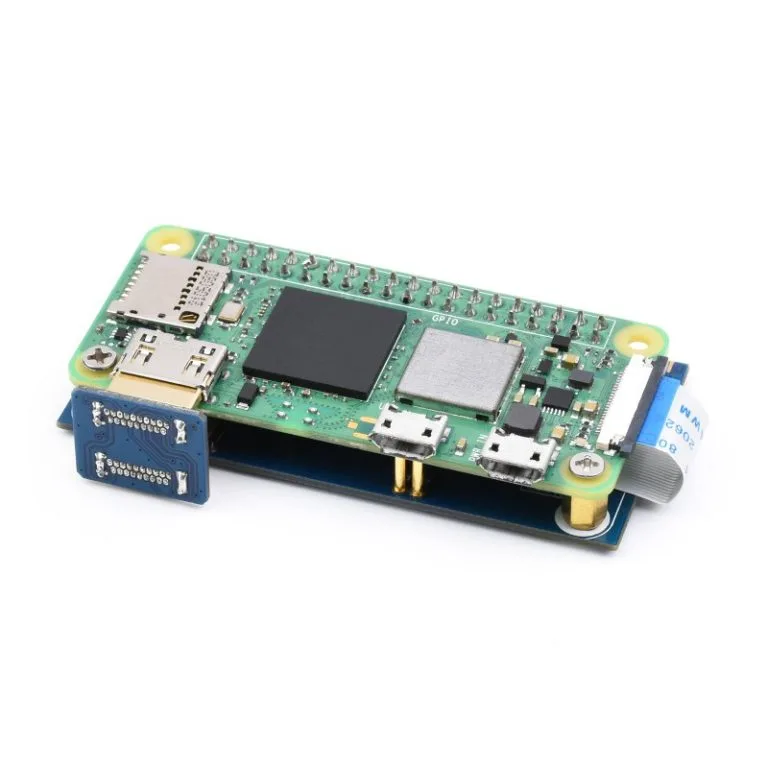

- Using 40 pin GPIO and pogo pin connection, the Zero 2W can be easily attached
- Adapting USB, micro SD and OTG via pogo pins
- Adapting CSI connector via FPC
- Adapting HDMI via MINI HDMI adapter
- Adapting GPIO via female pin header
- Not compatible with the first generation Zero
Pins Descriptions:
- HDMI
- GPIO0~27
- GPIO44, GPIO45
- GPIO32, GPIO33
- GPIO28~31, GPIO34~43
- CSI0
- CSI1
- DSI0
- DSI1
- USB2.0
- SDIO
Package Includes:
1 x Zero-to-CM3-Adapter
1 x MINI HDMI Adapter
1 x FFC cable
1 x Screws pack
