Looking for Rs232 Converter? Waveshare Rail-mount TTL To RS232 Galvanic isolated Converter, Full-Duplex Communication, Lightningproof & Anti-Surge, TTL Serial Converter is available at Zbotic with fast shipping across India.

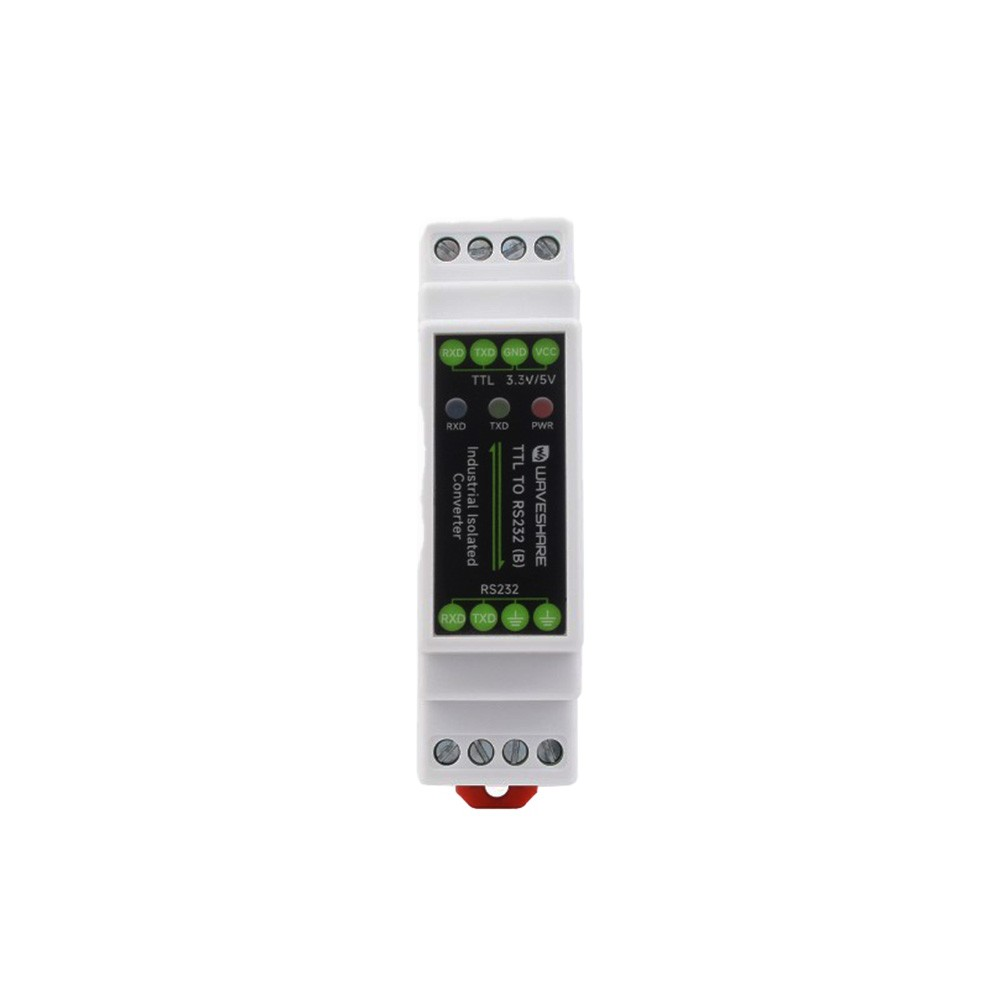

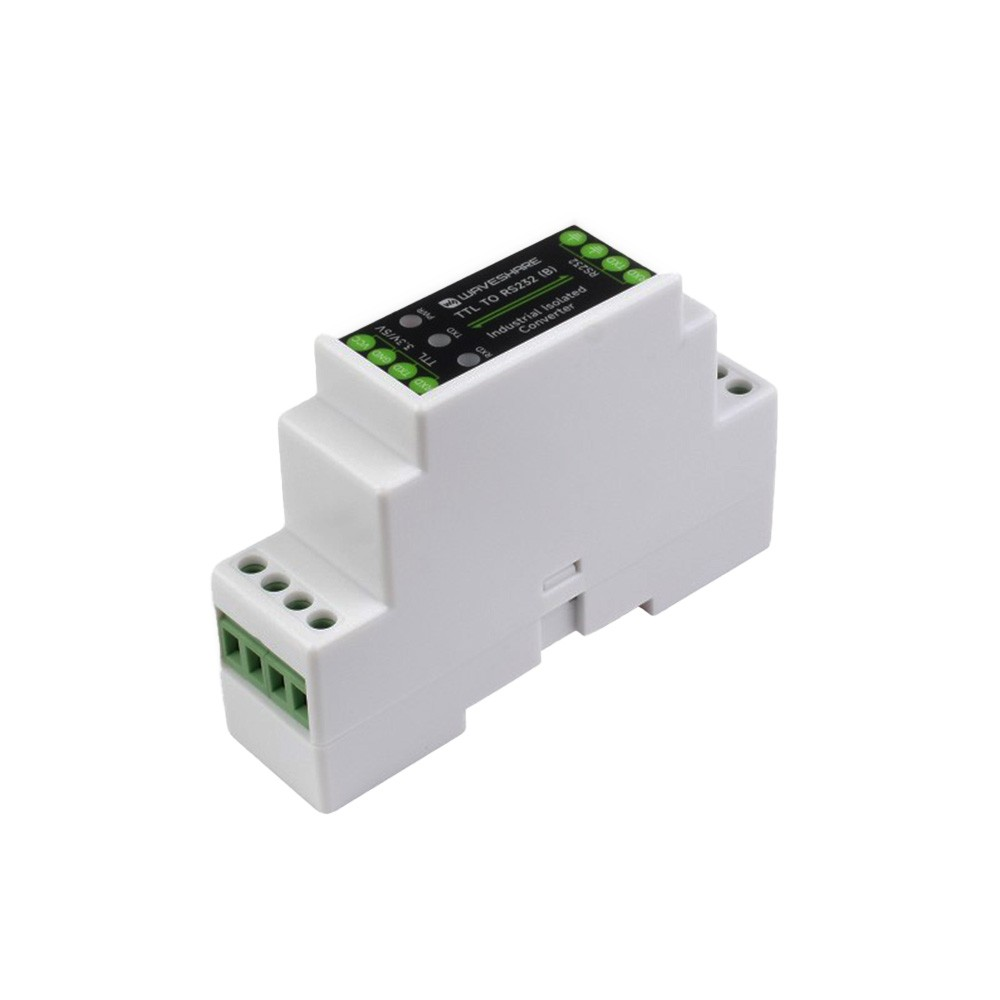

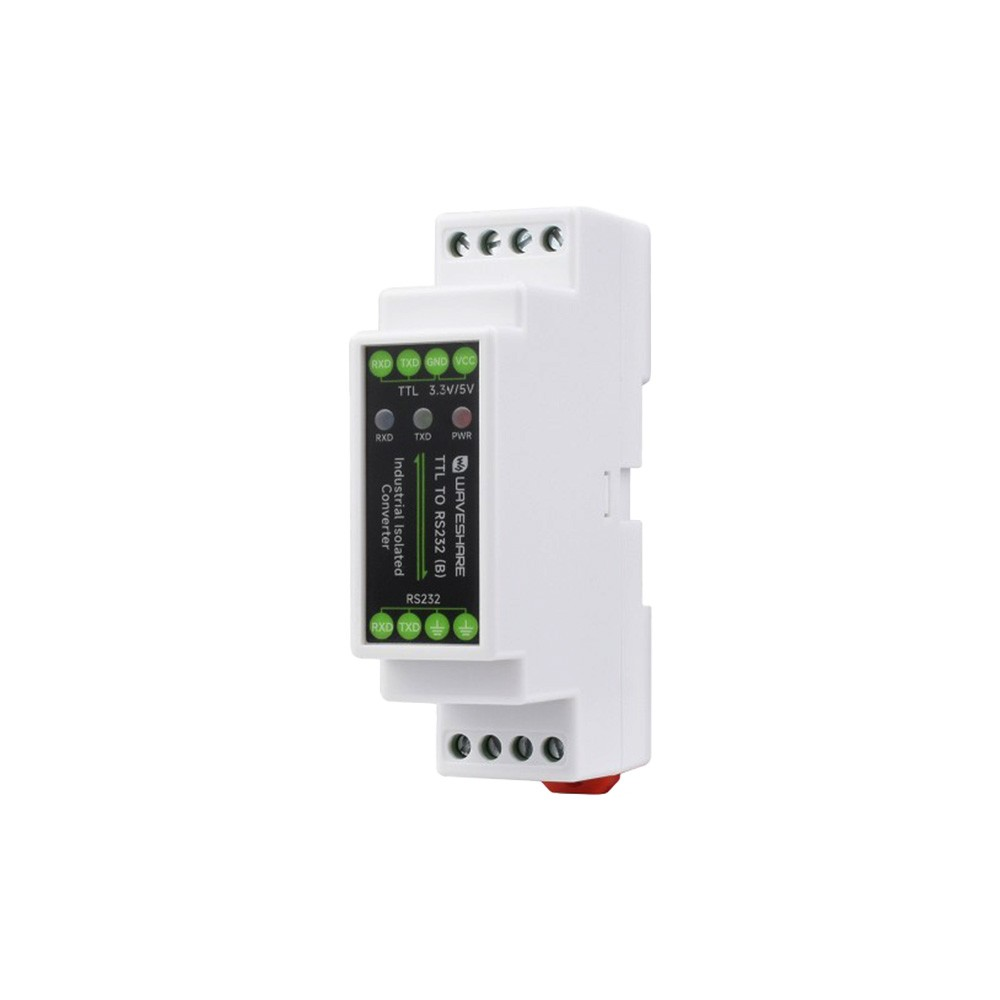

TTL TO RS232 (B) is an industrial-grade rail-mounted electrically isolated TTL-to-RS232 serial converter.Convert the TTL signal into RS232 signal, which can be used for interface conversion and can also be used to extend the communication distance.
Features:
- Compatible with TTL/RS232 standard, converting the TTL signal into RS232 signal, supports full-duplex communication.
- Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface.
- Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal.
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic.
- Onboard protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance.
- Onboard power supply screw terminal, allows 3.3V~5V DC input.

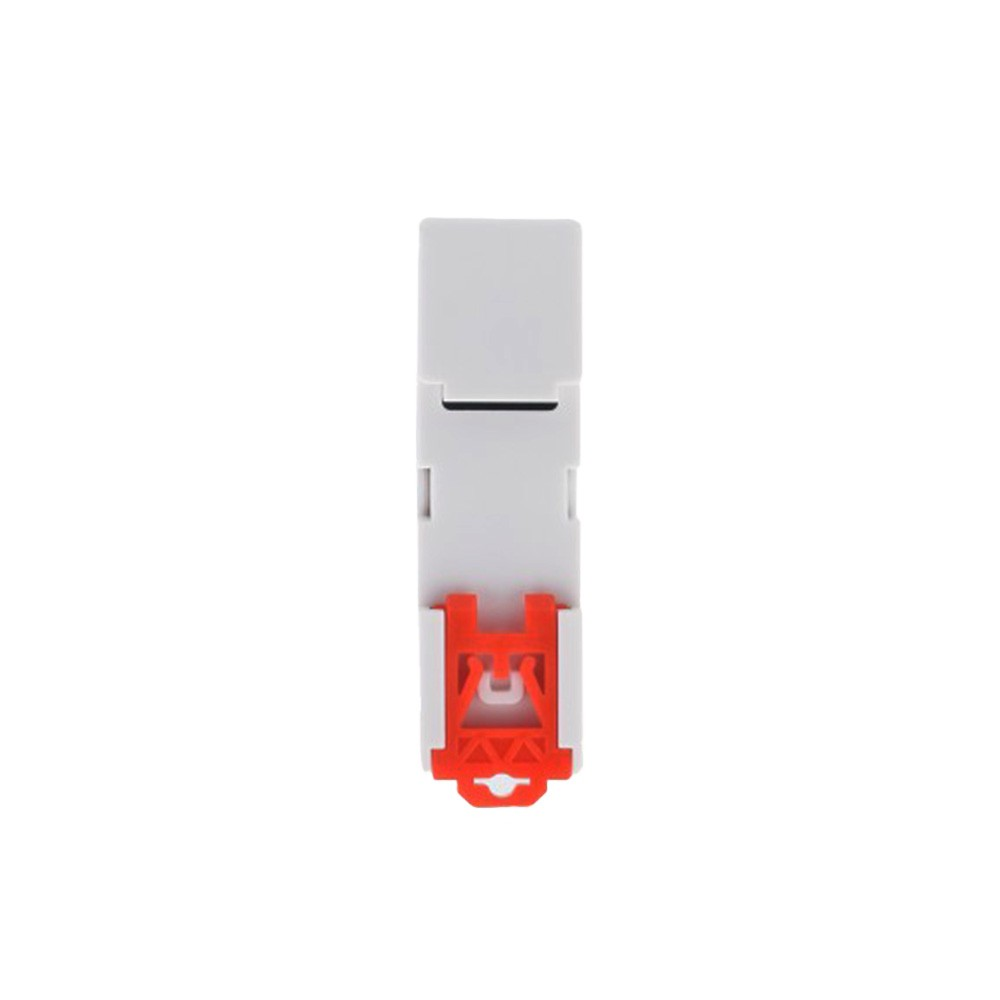

Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective.
Specification:
| Power Supply (V) | 3.3 ~ 5 |
|---|---|
| Device Port | TTL/RS232 standard compatible |
| Data Transmission Method | Point-to-point |
Package Includes:
1 x TTL To RS232 (B)
1 x Screwdriver
Waveshare Rail-mount TTL To RS232 Galvanic isolated Overview
The Waveshare Rail-mount TTL To RS232 Galvanic isolated Converter is an industrial-grade module designed to convert TTL-level serial signals (3.3V–5V) to RS232 voltage levels. Its galvanic isolation, full-duplex capability, and lightningproof design ensure reliable, long-distance communication between microcontrollers, PLCs, and legacy RS232 equipment.
Key Features of Waveshare Rail-mount TTL To RS232 Galvanic isolated
- Galvanic isolation via unibody power supply isolation for robust protection against ground loops
- Full-duplex TTL-to-RS232 signal conversion compatible with 3.3V–5V TTL levels
- Onboard over-voltage and reverse-polarity protection to safeguard the power interface
- Lightningproof and anti-surge design for industrial environments
- DIN rail mounting for space-efficient installation in control cabinets
- Fast shipping across India from Zbotic for quick project deployment
Applications and Use Cases
- Interfacing microcontrollers or Arduino boards with legacy RS232 devices
- Connecting PLC serial ports to modern TTL-level controllers
- Extending communication distance in factory automation networks
- Data acquisition systems requiring galvanic isolation to prevent ground loops
- Industrial control panels where lightning and surge protection are critical
How to Use Waveshare Rail-mount TTL To RS232 Galvanic isolated
Snap the converter onto a standard DIN rail and connect the 3.3V–5V power supply to the designated terminals, ensuring correct polarity. Wire the TTL TX/RX pins from your microcontroller to the module’s TTL side and attach your RS232 cables to the DB9 port or terminal block. Once powered, the module auto-detects and converts signals, allowing full-duplex communication without additional configuration.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power supply voltage does this converter require?
The converter accepts a DC input from 3.3V to 5V and includes built-in over-voltage and reverse-polarity protection to ensure safe operation.
How does the galvanic isolation work?
A unibody isolated power design separates the TTL side from the RS232 side, preventing ground loops and protecting equipment from surges or lightning strikes.
Can this module extend RS232 communication over long distances?
Yes. By converting TTL signals to RS232 levels with surge protection and isolation, you can reliably transmit data over standard RS232 cabling for distances up to 15 meters or more, depending on cable quality and baud rate.
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | RS232, TTL |
| SKU | AI6691 |
| Weight | 0.09 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare Rail-mount TTL To RS232 Galvanic isolated Converter, Full-Duplex Communication, Lightningproof & Anti-Surge, TTL Serial Converter is a versatile usb interface module used across a wide range of applications including serial communication, industrial automation, data logging, PLC interfacing, and IoT gateway.
Common use cases:
- Converting USB to RS485 for industrial equipment
- Building a data logger for factory sensors
- Debugging embedded systems via UART
This product is ideal for embedded system developers and industrial automation engineers.
Technical Tip: Industrial-grade modules with isolation protect against ground loops and voltage spikes in noisy environments.
