Description:

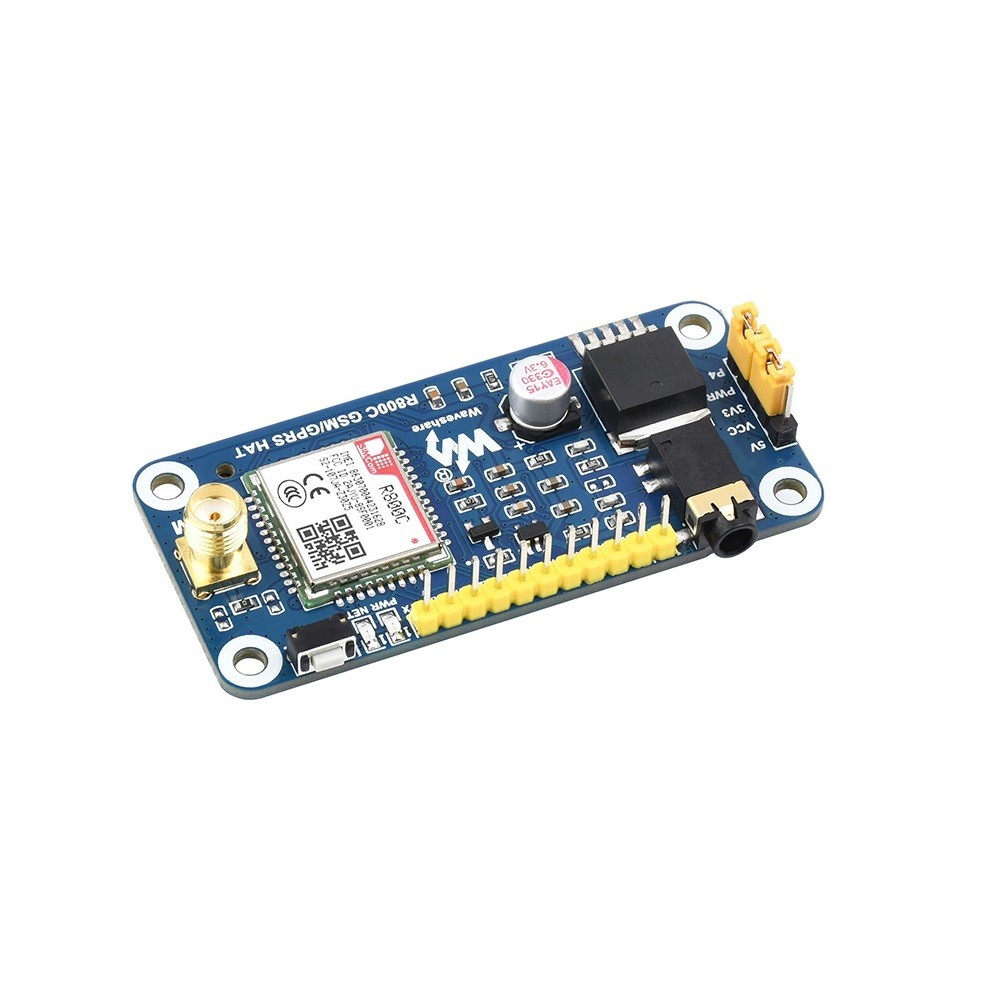

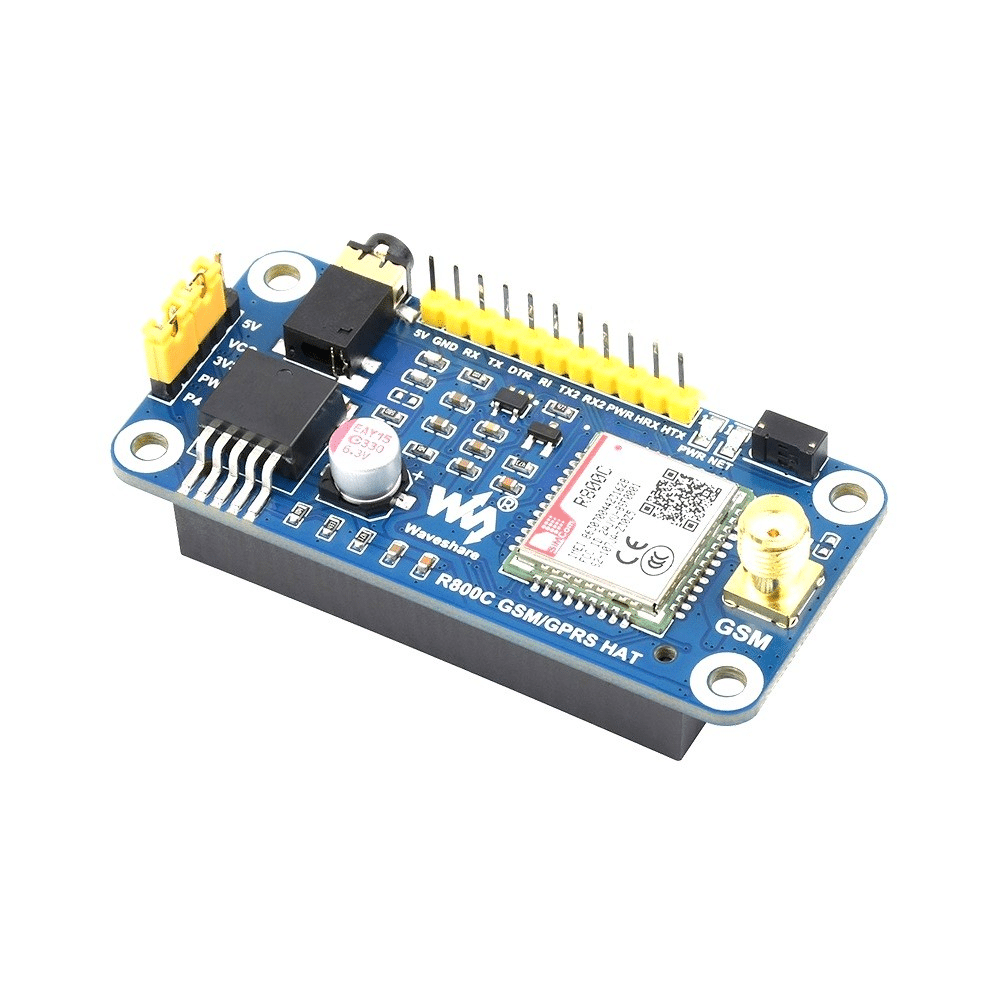

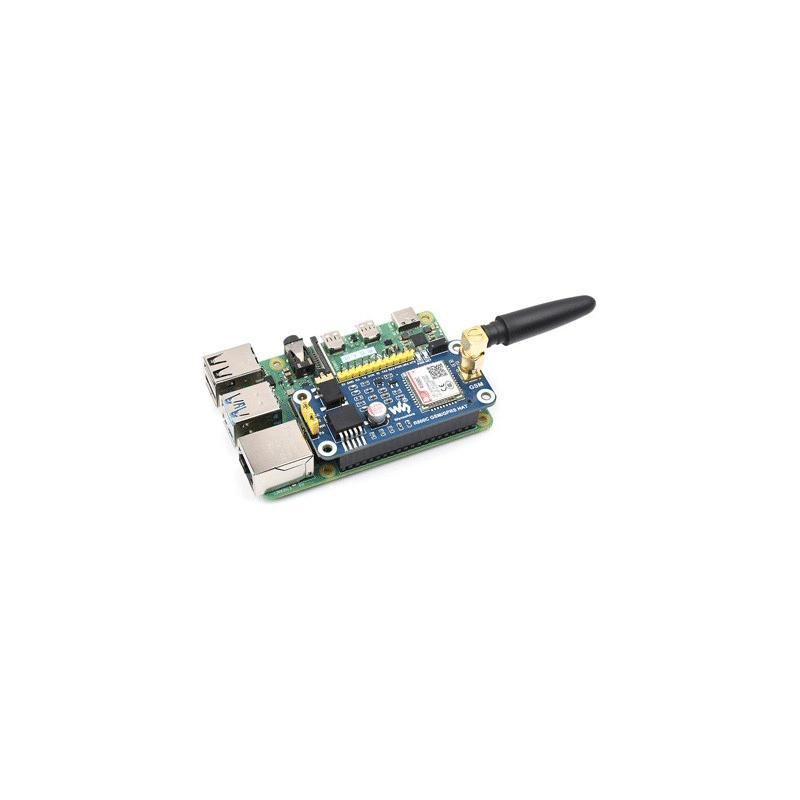

The R800C GSM/GPRS HAT is a handy, low-power Raspberry Pi HAT which features multi-communication functionalities: GSM, GPRS, and phone calls, applicable to countries or regions with 2G network coverage, up to 85.6kbps GPRS speed. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, and so on.
Pin Structure:
Features:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
- Supports SMS, phone call, GPRS, TCP/IP, DTMF, HTTP, FTPl, etc.
- UART interface, for connecting controller boards like Arduino/STM32
- Onboard voltage translator, 3.3V by default, switch to 5V via jumper
- 2x LED indicators, easy to monitor the working status
- SIM card slot, supports 1.8V/3V SIM card
- Baudrate: 2400bps ~ 115200bps (115200bps by default)
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: GSM 11.14 Release 99
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specification:
| Item Type: | HAT |
|---|---|
| Compatibility: | Pi Series |
| HAT Type: | GPRS HAT, GSM HAT |
| Power Supply | 5V |
| Logic level | 5V / 3.3V (default) |
| Operating Temperature (°C): | -40℃ ~ 85℃ |
| Frequency Band | GSM: 850/900/1800/1900 MHz Quad-band auto search Compliant to GSM phase 2/2+ |
| Emitting power | Class 4 (2W @ 900 MHz) Class 1 (1W @ 1800 MHz) |
| GPRS Connectivity | GPRS multi-slot class 12/10 (default) GPRS multi-slot class 1~12 (configurable) |
| GPRS | |
| SMS | MT, MO, CB, Text, PDU SMS storage: SIM card |
| Audio | Voice encode/decode mode: Half Rate, Full Rate, Enhanced Full Rate, Adaptive Multi-Rate Support echo cancellation Support noise reduction |
Package Includes:
1 x Waveshare R800C GSM/GPRS HAT For Raspberry Pi
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | R800C |
| SKU | AI7589 |
| Weight | 0.0 kg |
| Availability | In Stock |
