Description:

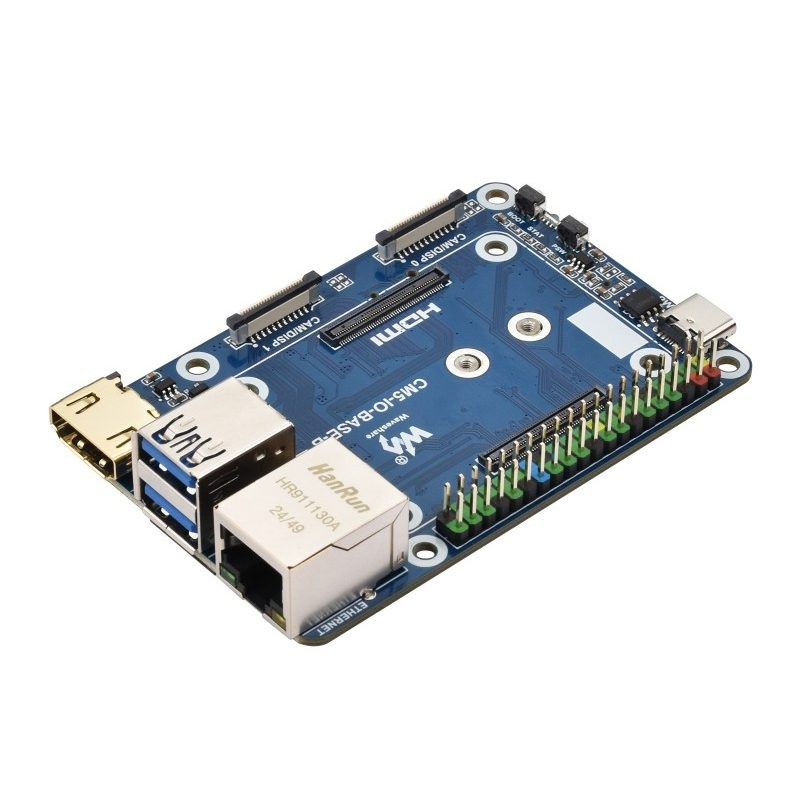

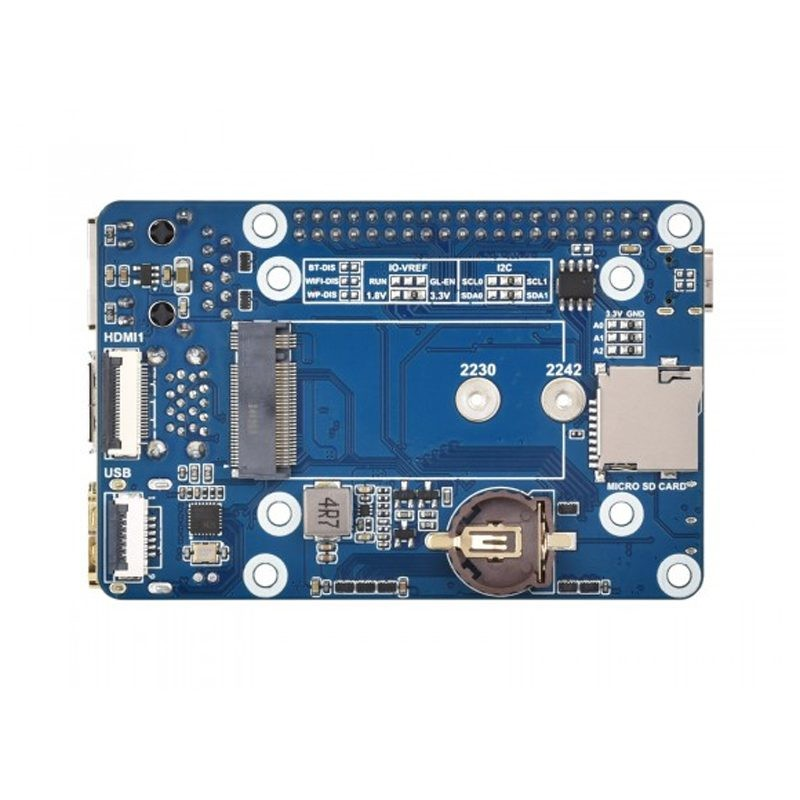

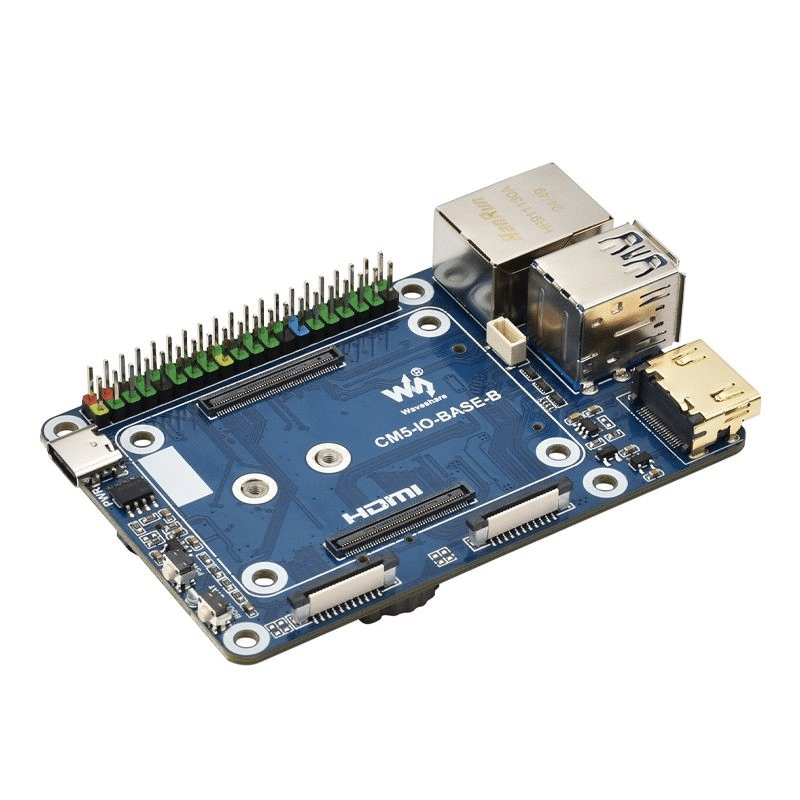

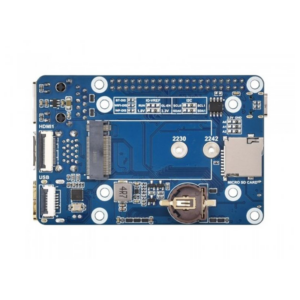

The Waveshare Mini Base Board (B) is a compact, high-performance mini-computer base board purpose-built for the Raspberry Pi. Ideal for embedded applications, this board includes onboard EEPROM and an ATSHA204 encryption chip for secure authentication and configuration. It supports all CM5 variants and offers seamless integration through versatile interfaces like dual HDMI (4K output), USB 3.2 Gen1, M.2 M KEY for NVMe SSDs, and dual MIPI for displays and cameras.
The robust metal case (optional) improves durability and heat dissipation, with a built-in cooling fan, wall- and rail-mount support, and precise labeled cut-outs. Whether you’re developing IoT devices, edge AI systems, or compact workstations, Waveshare Mini Base Board (B) offers a secure, modular foundation for powerful applications.
onboard multiple connectors, more convenient to use

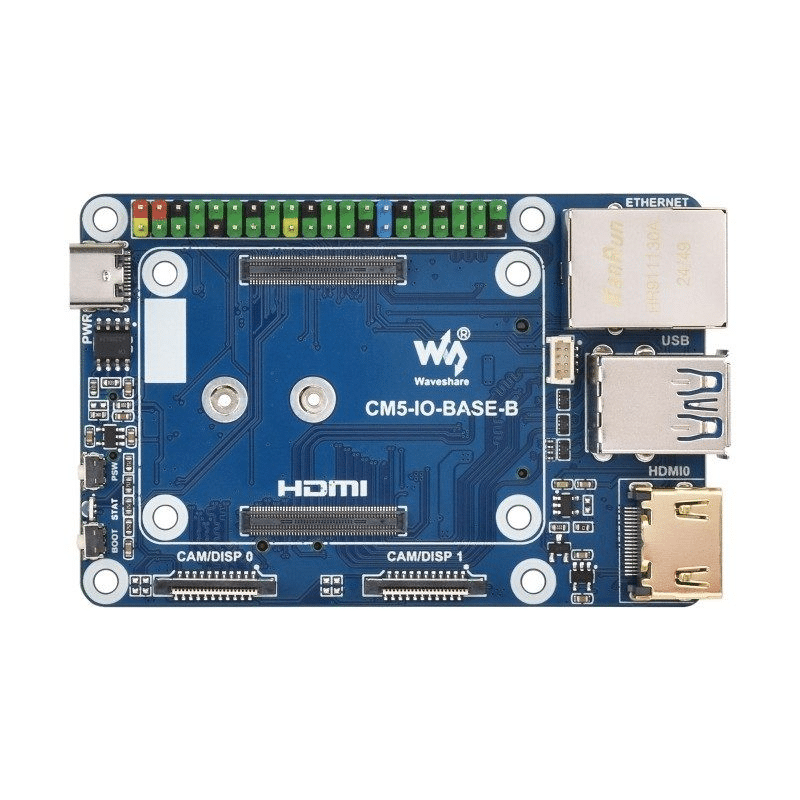

What’s On Board
Specification:
| Item Type: | Carrier Board |
|---|---|
| Clock Frequency (MHz) | 2.4 |
| Processor | ARM Cotex-A76 |
| Processor Type: | Broadcom BCM2712 |
| USB Connector | Type A, USB 2.0 ports |
| Operating Temperature (°C): | -20 to +70 |
| Core: | Quad-core |
Features:
- Designed for all Raspberry Pi CM5 variants (Lite & eMMC).
- Onboard EEPROM for configuration storage.
- ATSHA204 encryption chip for secure authentication.
- Dual HDMI ports – supports 4K output.
- M.2 M KEY slot for NVMe SSD expansion.
- USB 3.2 Gen1 ×2, USB 2.0 ×2 for high-speed peripherals.
- 40PIN GPIO header, standard RPi compatible.
- Built-in fan & mounting support for better cooling and flexible installation.
Package Includes:
1 x Waveshare Mini Base Board (B) designed for Raspberry Pi Compute Module 5 (NOT Included)
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| SKU | AI7585 |
| Weight | 0.07 kg |
| Availability | In Stock |
