Description:

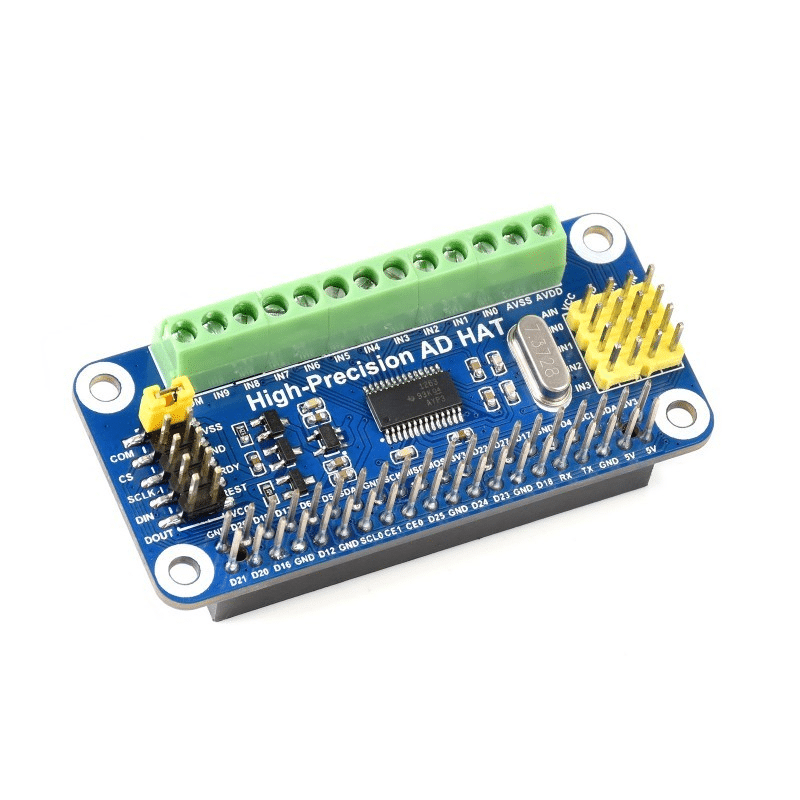

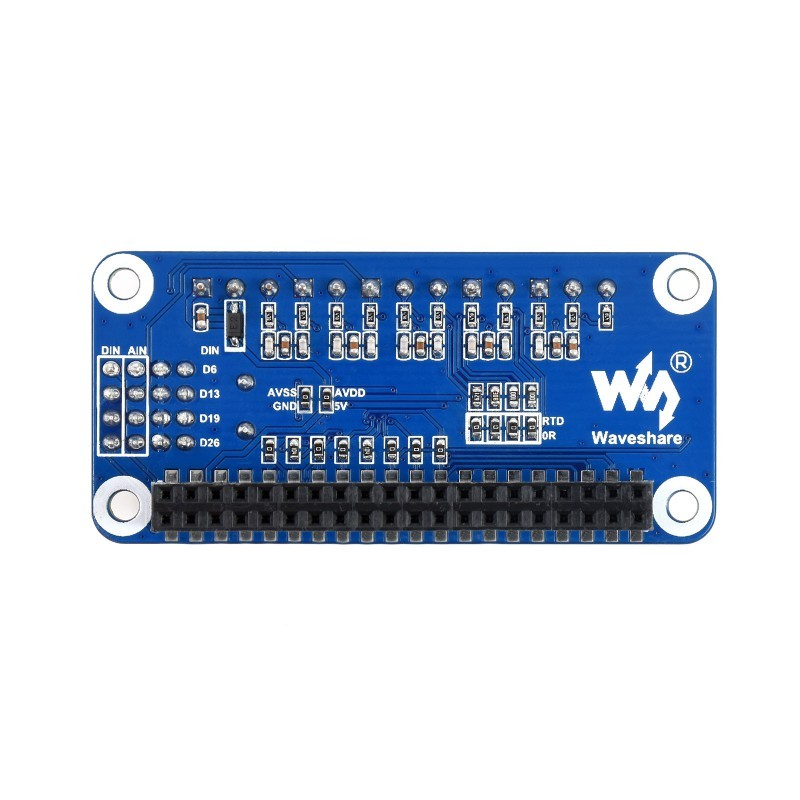

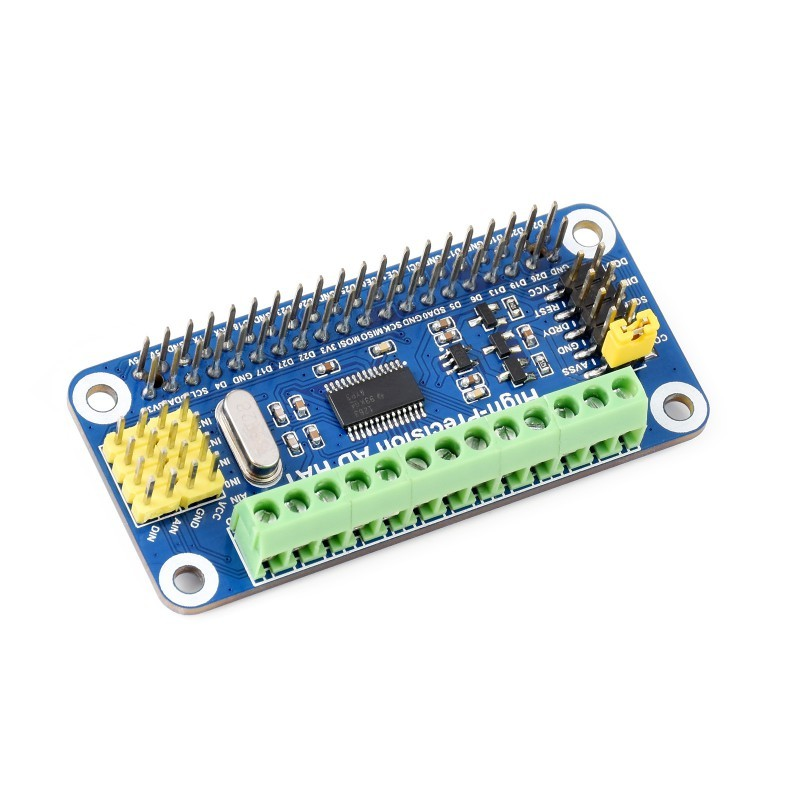

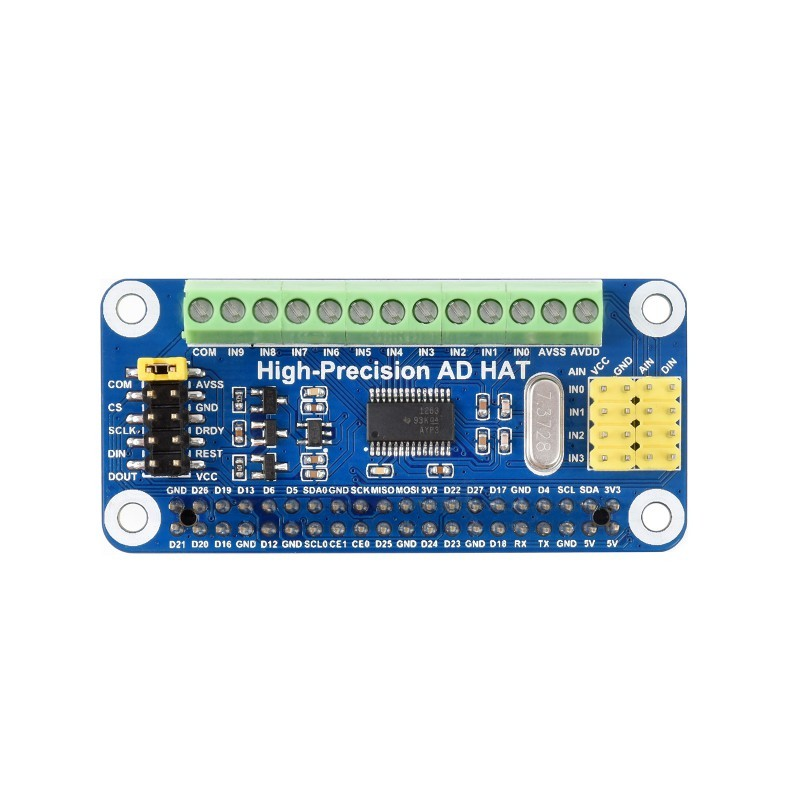

Waveshare High-Precision AD HAT For Raspberry Pi ADS1263 10-Ch 32-Bit ADC. Onboard AD header input, compatible with Waveshare sensor pinout, for connecting sorts of sensor modules .Onboard AD screw terminal input, allows connecting analog signal and analog power supply, general purpose interface .Onboard control header, make it easy to control the module by other hosts in additional to Raspberry Pi .Three-wire RTD (resistor temperature detector) circuit, enabled by soldering 0R resistor.
Features:
- Adopts ADS1263 chip, low noise, low temperature drift
- 10-ch 32-bit high precision ADC (5-ch differential input)
- 38.4kSPS Max sampling rate with embedded 24-bit auxiliary ADC
- IDAC, 2.5V internal reference voltage
- internal ADC test signal
Useful link:
For Software setup, please follow this tutorial.
Specification:
| Item Type: | HAT |
|---|---|
| Compatibility: | Pi Series |
| HAT Type: | AD HAT |
| Sampling Rate (MAX) | 38.4 kSPS |
| PGA Magnification(MAX) | 32 |
| Additional Specs.: | BUS: SPI |
| Structure | Delta-Sigma |
| Input Type | differential, single-end |
| Reference Voltage | internal, external |
| Max. Input Voltage | 2.5V, 5V I |
| Input Voltage Min | -2.5V, 0V |
Package Include:
1 X High-Precision AD HAT
1 X RPi screws pack (2PCS)
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| SKU | AI7617 |
| Weight | 0.03 kg |
| Availability | In Stock |
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine WAVESHARE product sourced from authorized channels
