Description:

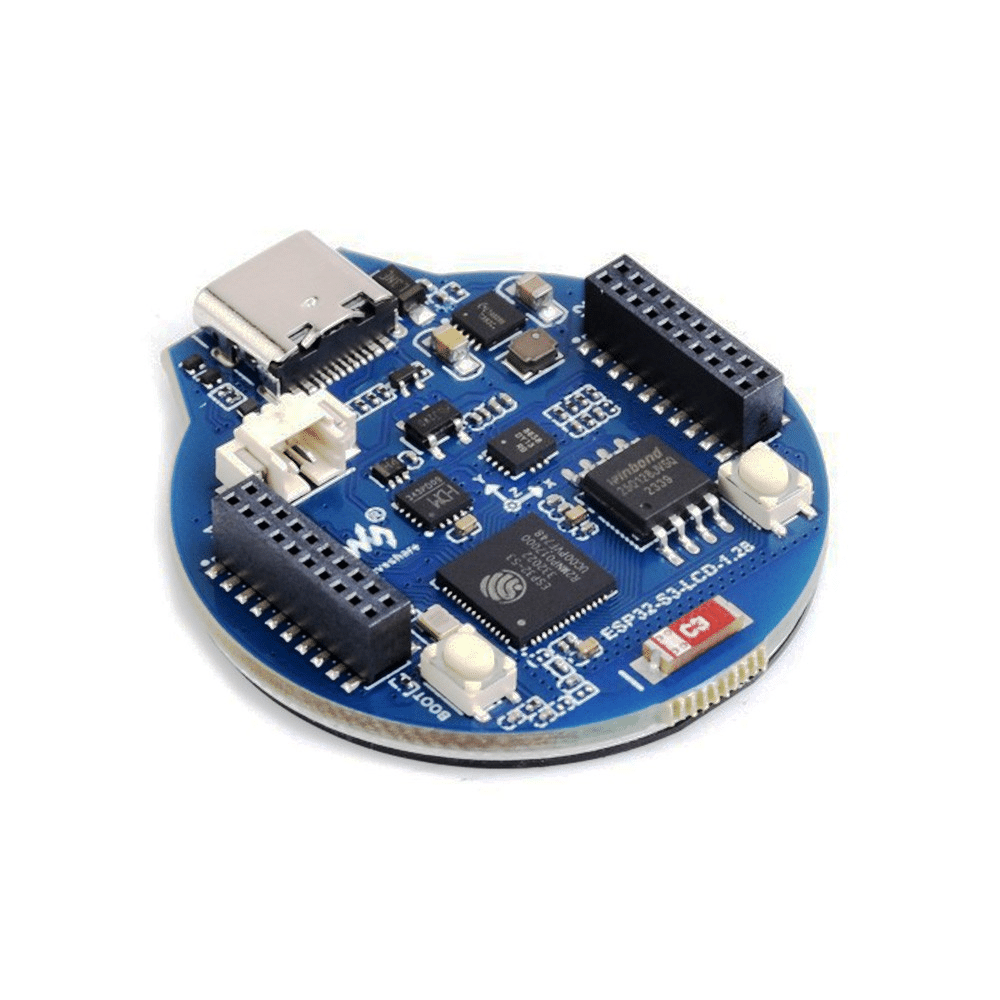

The ESP32-S3-LCD-1.28 (referred to as the development board hereafter) is a low-cost, high-performance microcontroller development board designed by Waveshare. It features a 1.28-inch LCD screen, a lithium battery charging chip, and peripherals such as a six-axis sensor (three-axis accelerometer and three-axis gyroscope). The board utilizes the ESP32-S3R2, an integrated system-on-chip (SoC) with low-power Wi-Fi and BLE5.0 capabilities. Additionally, it comes with an external 16MB Flash and 2MB PSRAM.
The SoC includes hardware encryption accelerators, RNG (Random Number Generator), HMAC (Hash-based Message Authentication Code), and a Digital Signature module, meeting the security requirements of the Internet of Things (IoT). Its various low-power operating modes cater to power consumption needs in IoT, mobile devices, wearable electronics, smart homes, and other application scenarios.
Useful link:
For more information refer to tutorial.
Features:
-
Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency.
-
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (BLE), with onboard antenna.
-
Built-in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory.
-
Type-C connector, keeps it up to date, easier to use.
-

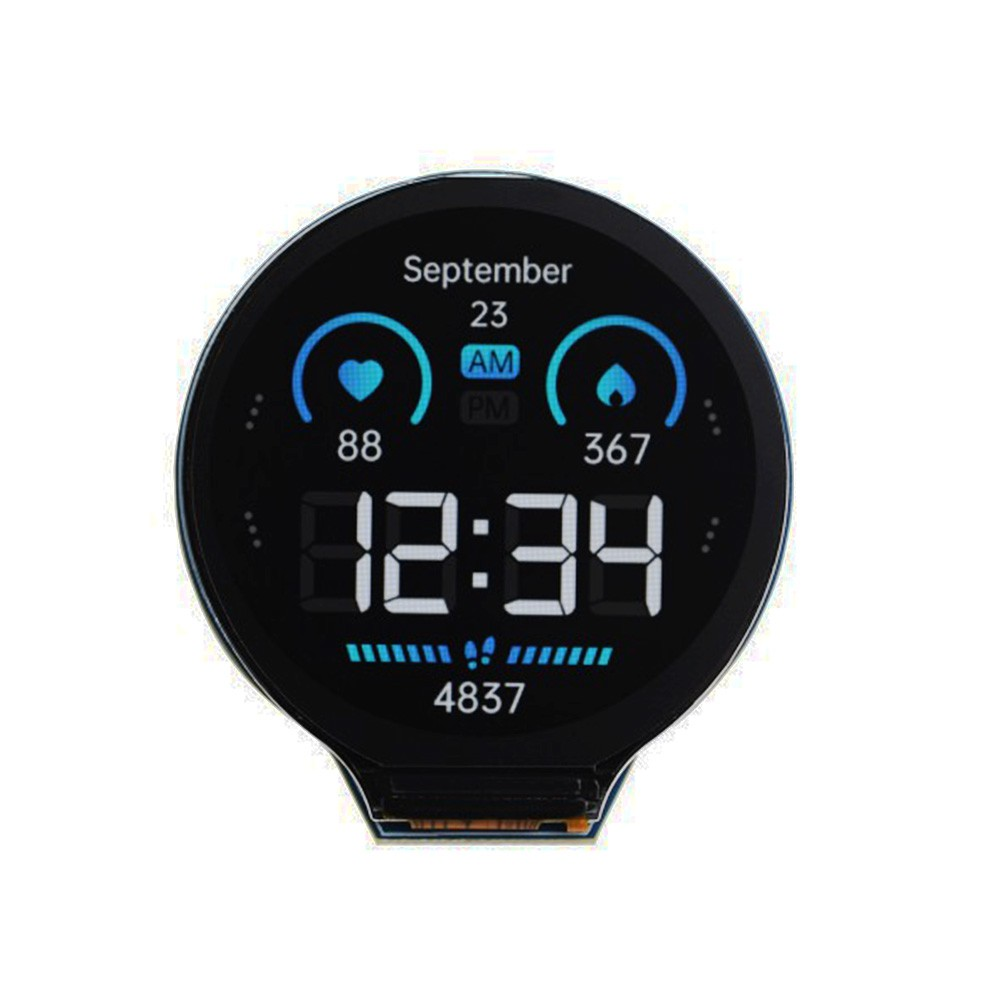

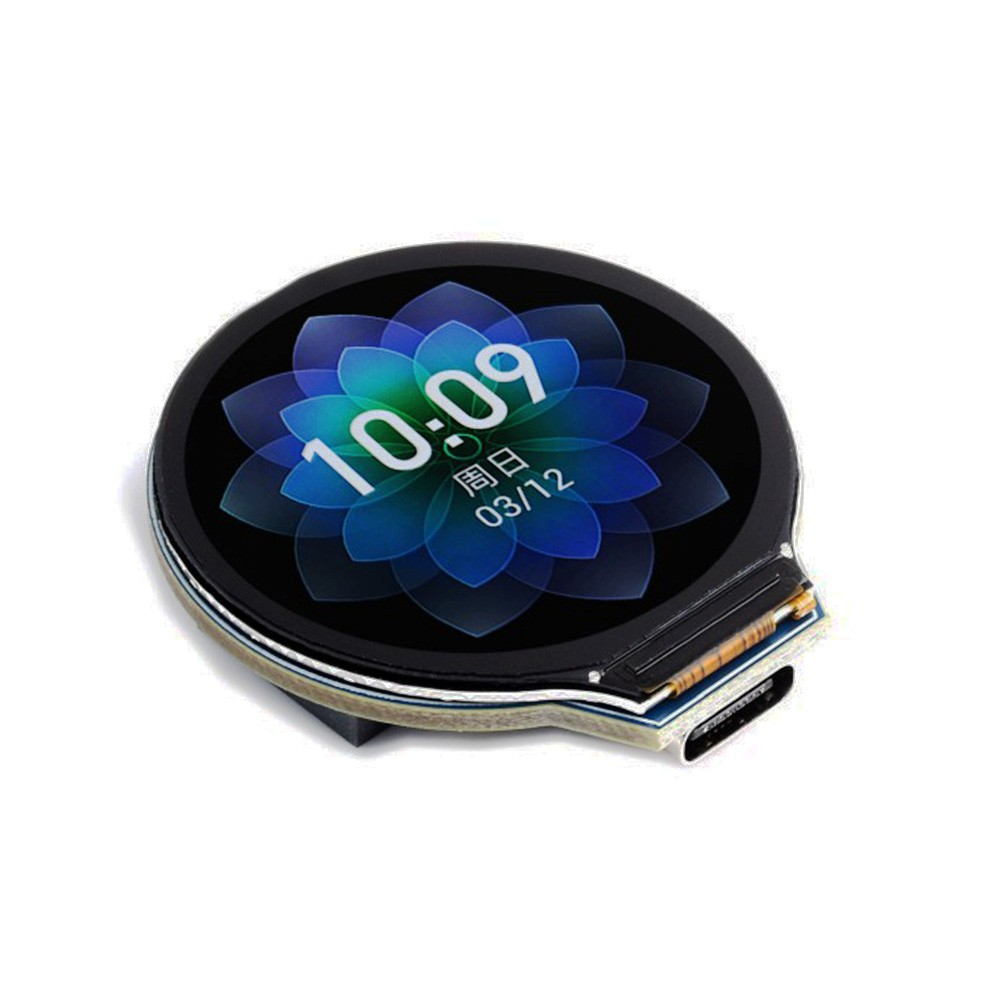

Onboard 1.28-inch LCD display, round IPS panel, 240×240 resolution, 65K color.
-
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures.
-
Onboard 3.7V lithium battery recharge/discharge header and GPIO headers.
-
Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.
-
Integrated with USB serial port full-speed controller, GPIO pins allow flexible configuring pin functions.
Package Includes:
-
1 x Waveshare ESP32-S3 Development Board, 32-bit LX7 Dual-core Processor, Integrates GC9A01 Display Driver Chip, With 1.28inch IPS Round LCD
ESP32 WebSocket: Real-Time Bidirectional Communication
Esp32 Websocket Real Time — this detailed tutorial covers everything from hardware selection to complete working code, designed...
Read More →
ESP32 Garage Door Opener: WiFi Remote Control
Esp32 Garage Door Opener Wifi — this DIY project gives you smartphone control over real-world devices at a...
Read More →
Arduino FAQs: 20 Most Common Beginner Questions Answered
Arduino is one of the most beginner-friendly platforms in electronics, yet newcomers consistently run into the same questions...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Display Size | 1.28" |
| Package Quantity | 7 pcs |
| SKU | AI7648 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare ESP32-S3 Development Board, 32-bit LX7 Dual-core Processor, Integrates GC9A01 Display Driver Chip, With 1.28inch IPS Round LCD is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
