This is the 8inch variant of the Waveshare ESP32-S3 2.8inch Display Development Board, 240×320, IPS, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 Without Touch Display in TFT LCD Displays. Available at ₹2,358.82 (₹1,999.00 + GST) with free shipping across India.
Description:
Waveshare ESP32-S3 2.8inch Display Development Board, 240×320, IPS, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 Without Touch Display

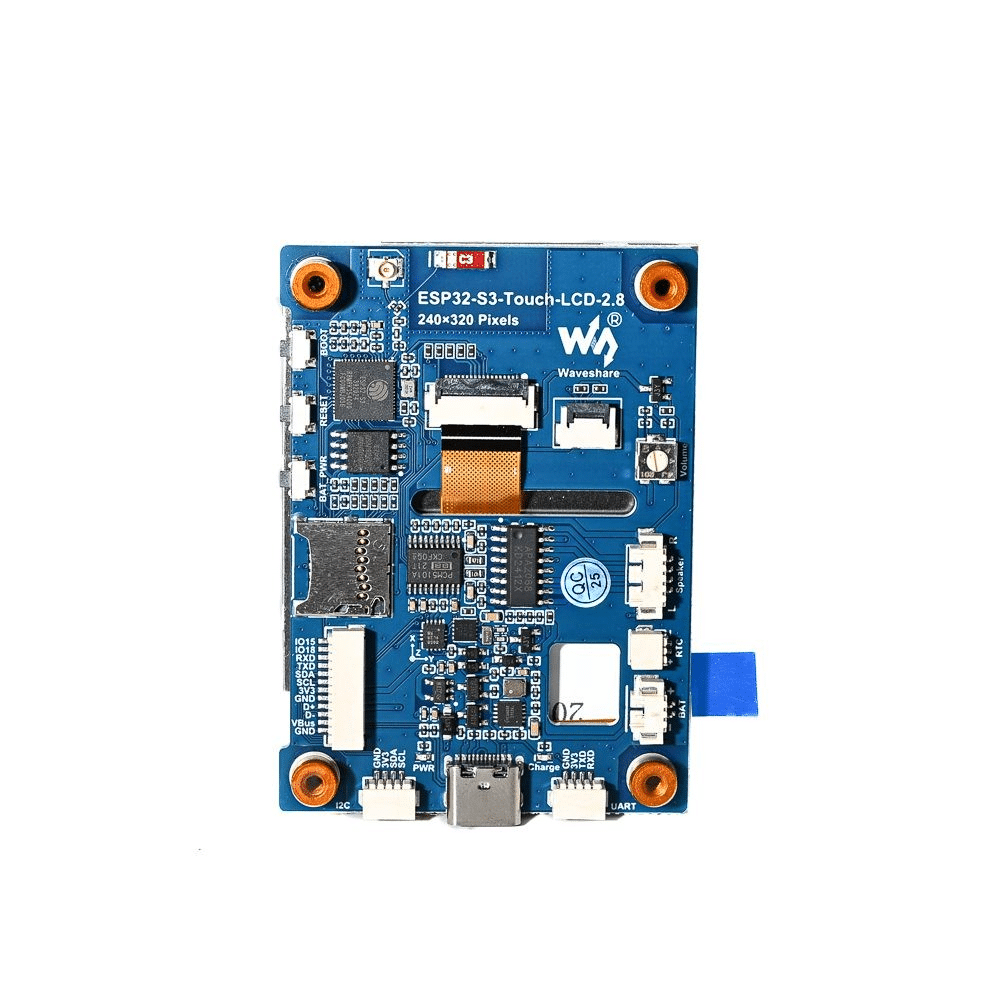

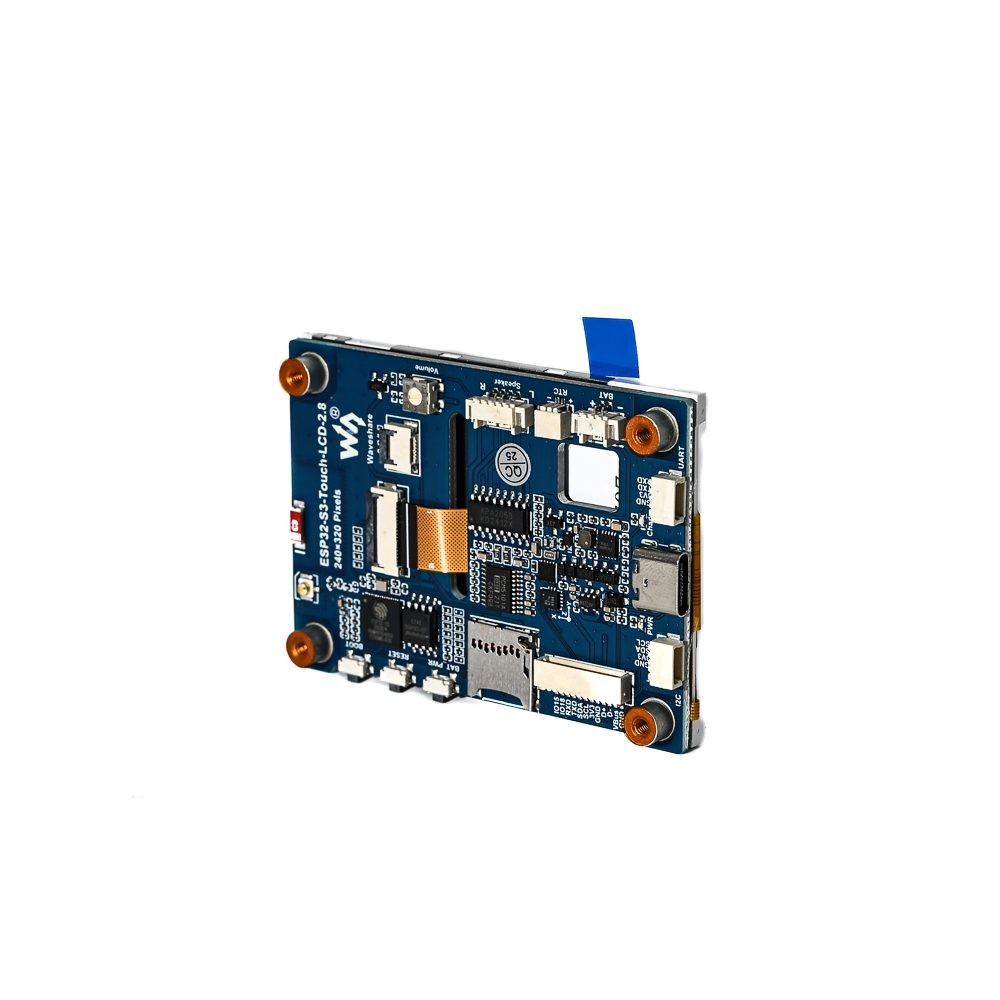

2.8inch Display Development Board product is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 2.8inch LCD screen (optional for touch function) can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.
Features:
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

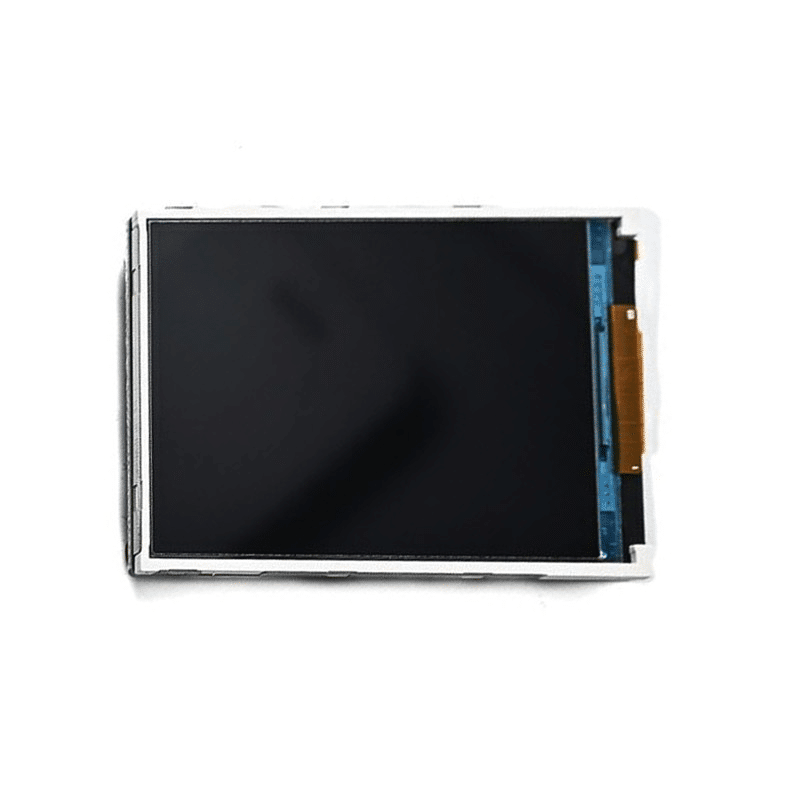

- Onboard 2.8inch LCD display, 240×320 resolution, 262K color
- Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
- Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios.
Specification:
| Model: | Development board |
|---|---|
| Display Size (Inch): | 2.8 |
| Display Resolution: | 240×320 |
| Display Color | 262K colors |
| Interface: | Touch Interface: I2C |

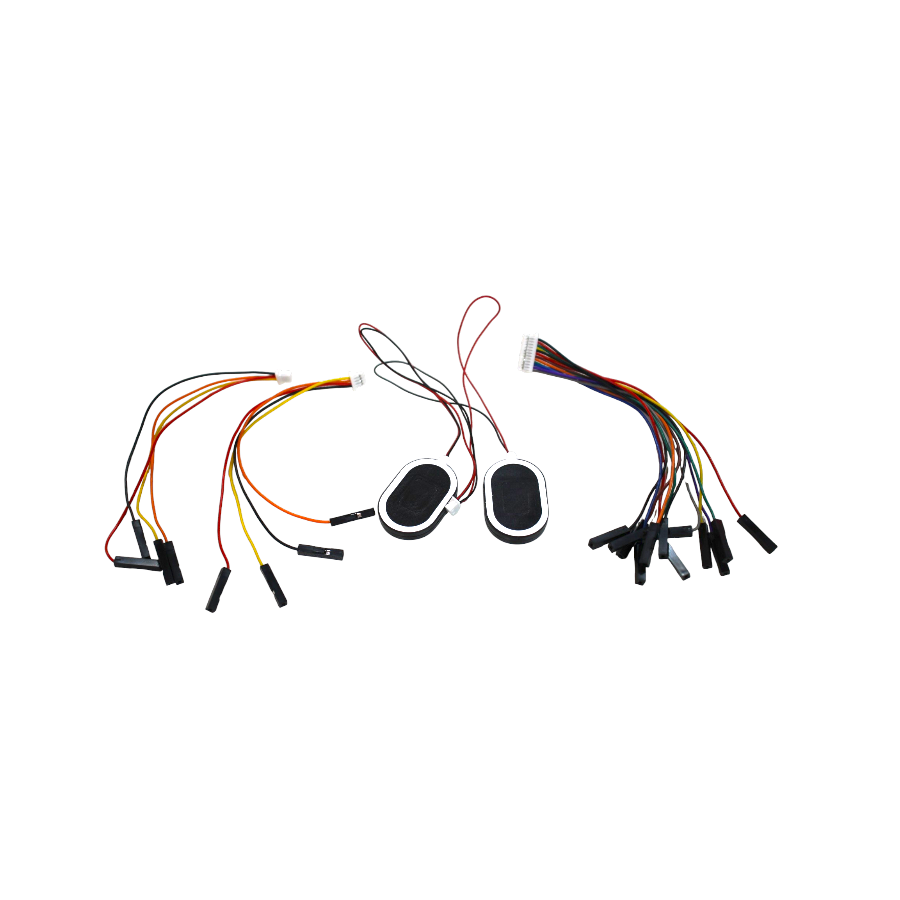

Package Includes:
1 x ESP32-S3-LCD-2.8
1 x SH1.0 12PIN cable ~100mm
2 x SH1.0 4PIN cable ~100mm
1 x 2030 speaker
ESP8266 Deauther: WiFi Security Testing Tool
Esp8266 Deauther Wifi Security — this detailed tutorial covers everything from hardware selection to complete working code, designed...
Read More →
ESP32 Fingerprint Door Lock: R307 Biometric Project
Esp32 Fingerprint Door Lock R307 — this detailed tutorial covers everything from hardware selection to complete working code,...
Read More →
Arduino Mega 2560 Pinout: All 70 Pins Explained
Understanding the Arduino Mega 2560 pinout is essential for anyone building complex electronics projects. With 70 input/output pins,...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | ESP32-S3 |
| Display Size | 2.8" |
| Interface / Protocol | WiFi, Bluetooth |
| Frequency | 240MHz |
| Package Quantity | 7 pcs |
| Color | Blue |
| SKU | AI7584 |
| Weight | 0.072800 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare ESP32-S3 2.8inch Display Development Board, 240×320, IPS, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna, ESP32 Without Touch Display is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
