This is the 47inch variant of the Waveshare ESP32-C6 172×320 1.47inch Touch Display Development Board in IoT Development Boards. Available at ₹2,096.86 (₹1,777.00 + GST) with free shipping across India.
Description:

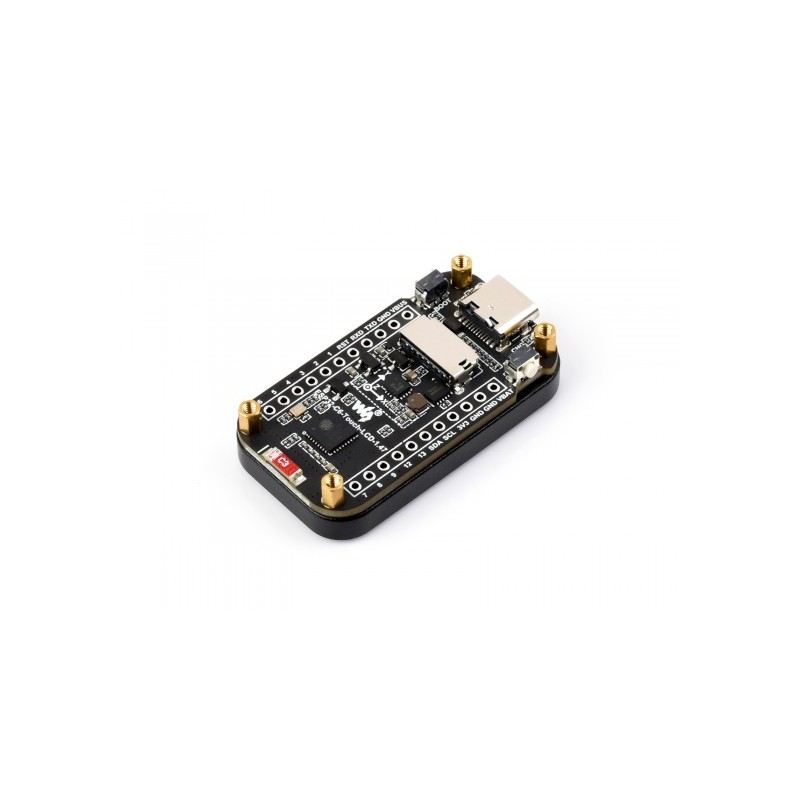

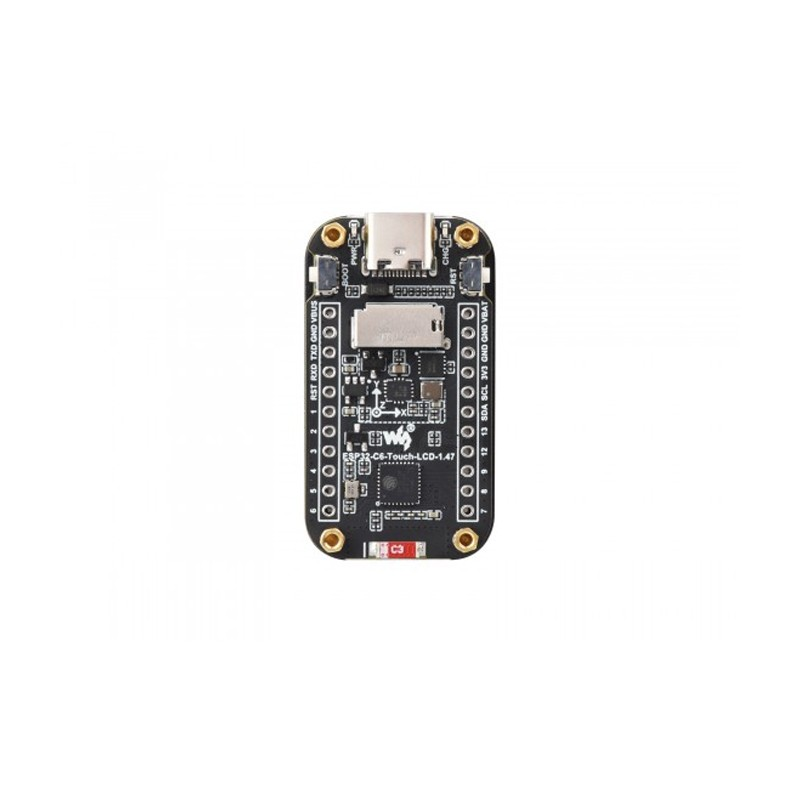

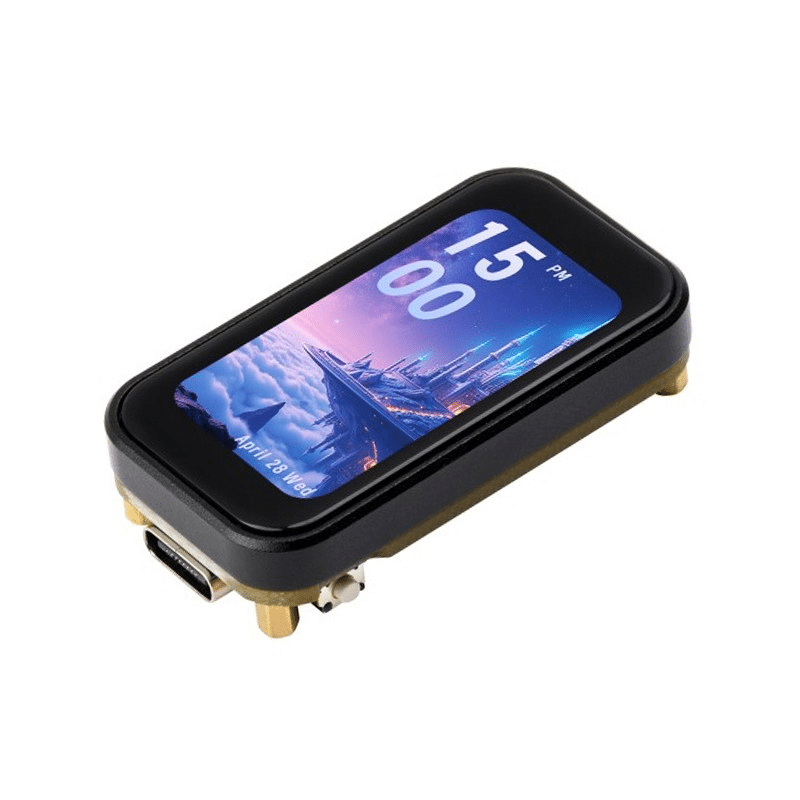

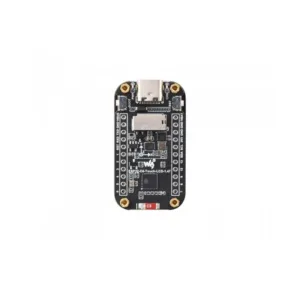

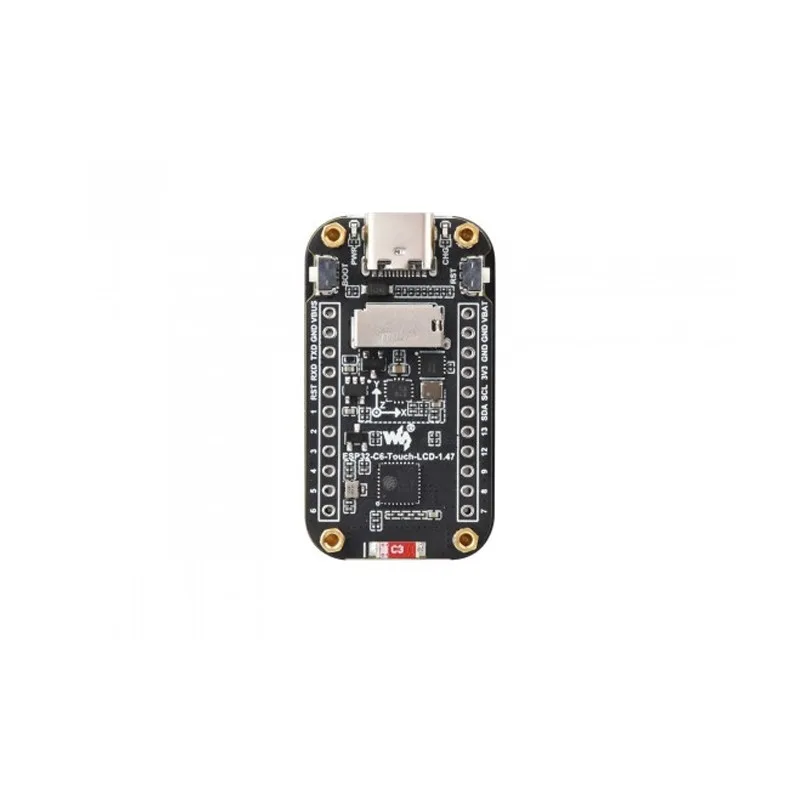

The ESP32-C6 1.47″ Touch Display Development Board by Waveshare is a compact, feature-rich IoT development solution integrating a vibrant 1.47-inch capacitive touchscreen (172×320 resolution, 262K colors). Powered by a high-performance 32-bit RISC-V processor clocked at 160 MHz and equipped with Wi-Fi 6 and BLE 5 support, it’s perfect for smart devices, UI projects, and low-power applications. With onboard 8MB Flash, 6-axis IMU sensor, USB-C interface, and TF card slot, it supports GUI libraries like LVGL and is ideal for fast prototyping in AIoT, HMI, and wearable applications.
Wi-Fi 6 and BLE 5 support
Features:
- 1.47-inch IPS Touchscreen – 172×320 resolution, vibrant 262K colors, smooth LVGL support
- ESP32-C6FH8 Chipset – 160MHz RISC-V core for high performance + low-power co-processor
- Wi-Fi 6 & BLE 5 – Enhanced wireless connectivity with low latency and energy efficiency
- 8MB Flash Memory – Sufficient for complex GUI and embedded apps
- USB Type-C Interface – Supports full-speed USB communication
- Expandable GPIO Pins – Compatible with various sensors & actuators
- Onboard 6-Axis IMU – Motion sensing for smart controls and wearables
- TF Card Slot – Store images, logs, or files externally with microSD
Specification:
| Item Type: | Development Board |
|---|---|
| Flash Memory: | 8MB |
| Processor Type: | RISC-V |
| Clock Frequency (MHz) | 160 |
| Voltage Rating (V): | 3.3–5 |
| CPU | ESP32 C6FH8 |
| Current (mA) | 800 |
| Processor | RISC-V single-core |
| Max. Operating Current (mA) | 800 |
| Operating Temperature (°C): | -40 to 85 |
| USB Connector | USB Type-C |
| ROM Capacity: | 320KB |
| SRAM | 512KB |
Package Includes:
1 x Waveshare ESP32-C6 172×320 1.47inch Touch Display Development Board
2 x pin header
