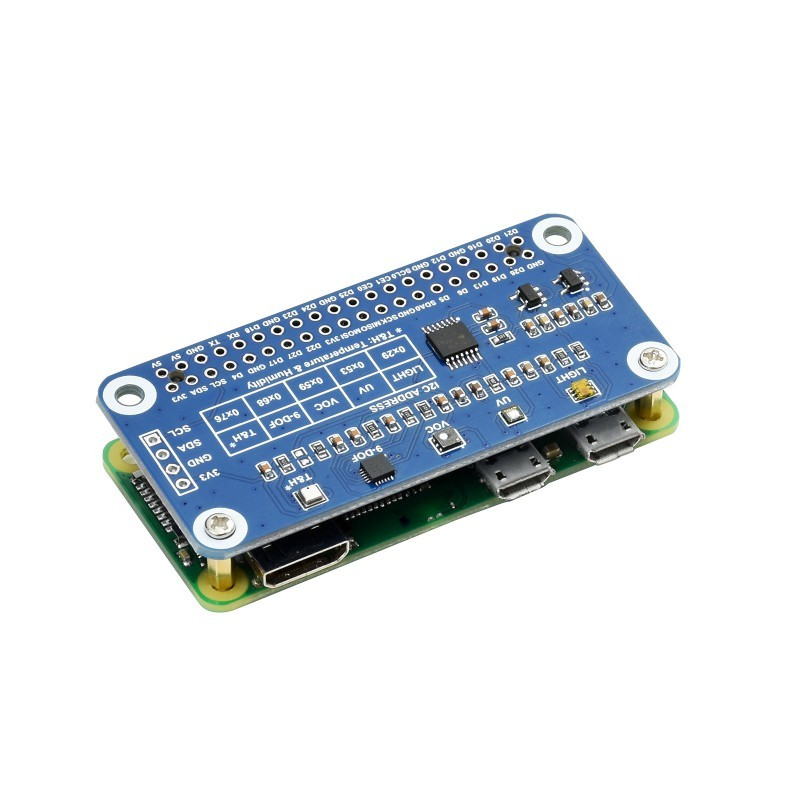

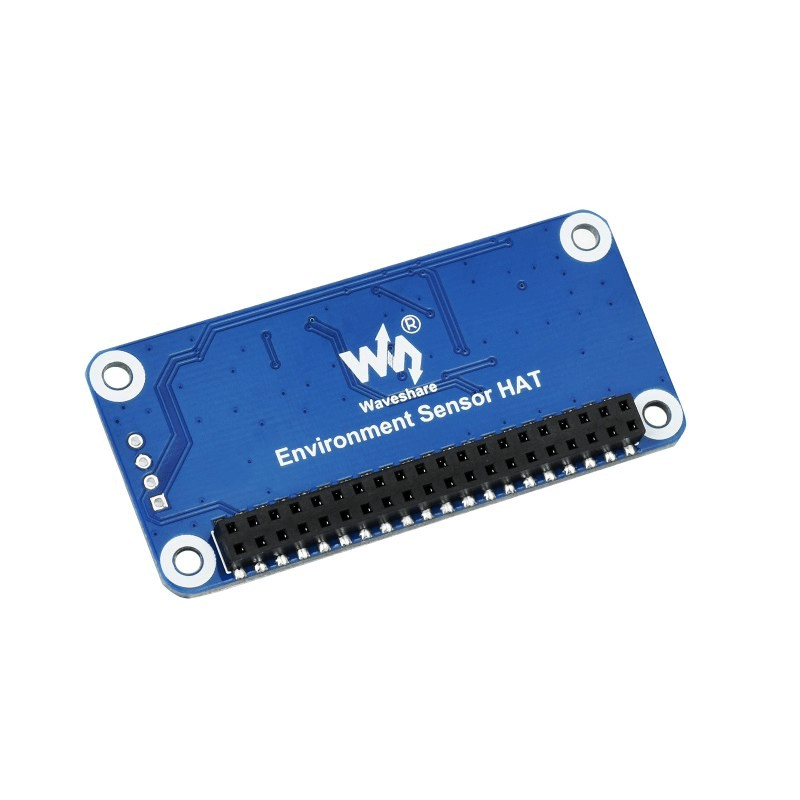

Description:
This environment sensors module gives Raspberry Pi the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation

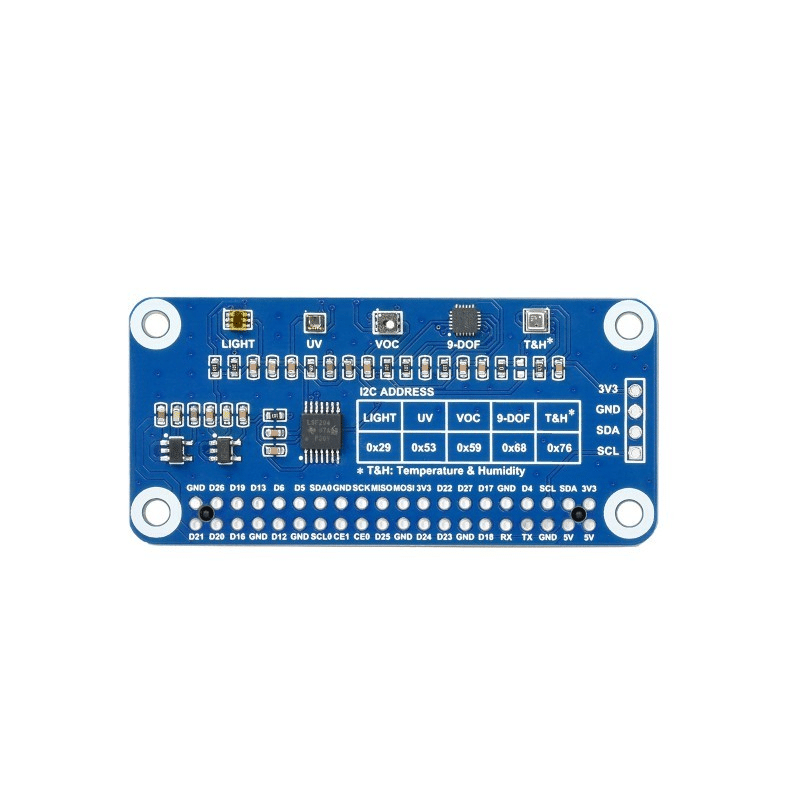

Whats on Board:
- Raspherry Pi 40PIN
- For connecting to Raspberry Pi easily
- TSL25911FN
- Digital ambient light sensor, for measuring IR and visible light
- LTR390-UV-1
- UV sensor
- SGP40
- VOC sensor
- ICM20948
- 3-axis accelerometer, 3-axis gyroscope, 3-axis magnetometer
- BME280
- Measuring temperature, humidity, and air pressure sensor
- Voltage level translator
- 5V to 1.8V
- Regular
- 5V to 3.3V/1.8V
Features:

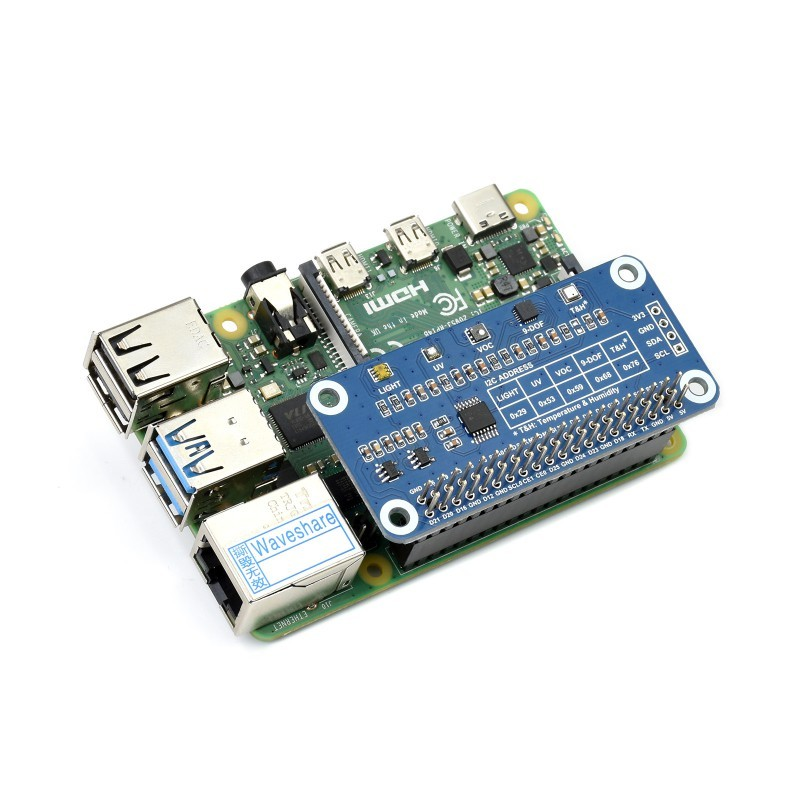

- 40PIN GPIO, Compatible with all the Raspberry Pi Boards.
- Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light
- Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
- Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer
- Onboard LTR390-UV-1 sensor, for measuring UV rays
- Onboard SGP40 sensor, for detecting ambient VOC
- Onboard 1.3inch OLED display, for displaying environment data in real-time
- I2C bus allows reading and displaying data by just using two wires
- Comes with development resources and user manual (python examples)
Useful link:
For Software setup, please follow this tutorial.
Package Includes:
1 x Environment Sensor HAT
1 x 2x20PIN female header
1 x 4PIN header
1 x RPi screws pack (2pcs)
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | I2C |
| SKU | AI7625 |
| Weight | 0.03 kg |
| Availability | In Stock |
