Description:

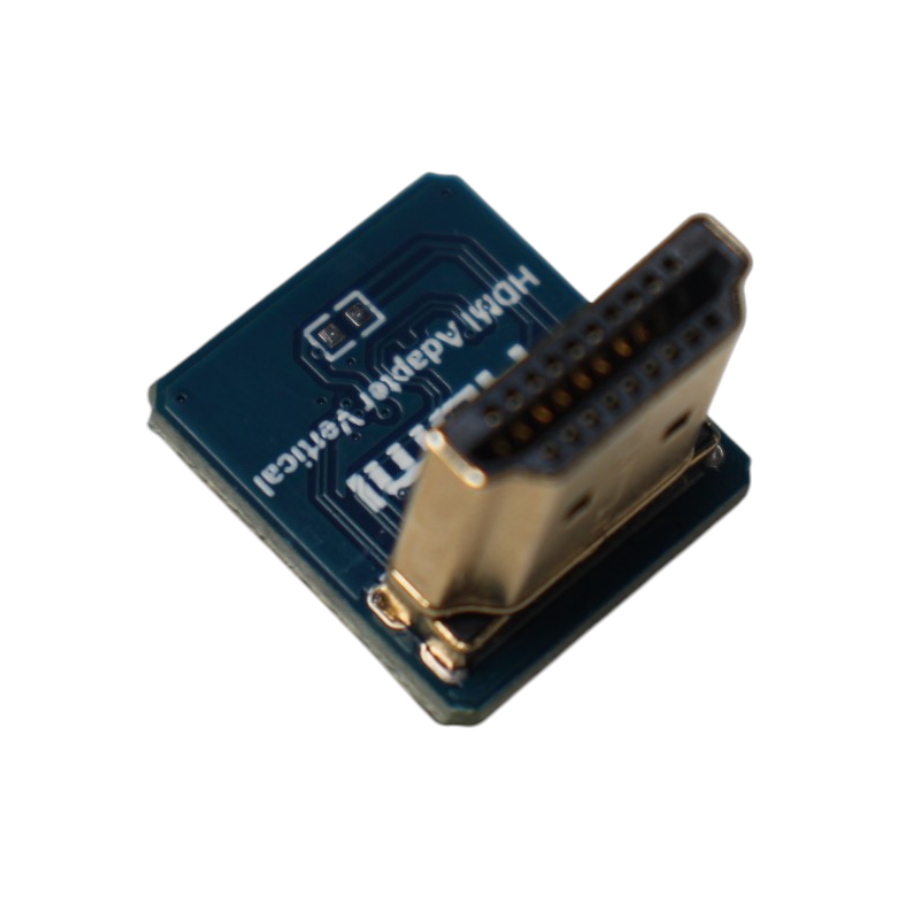

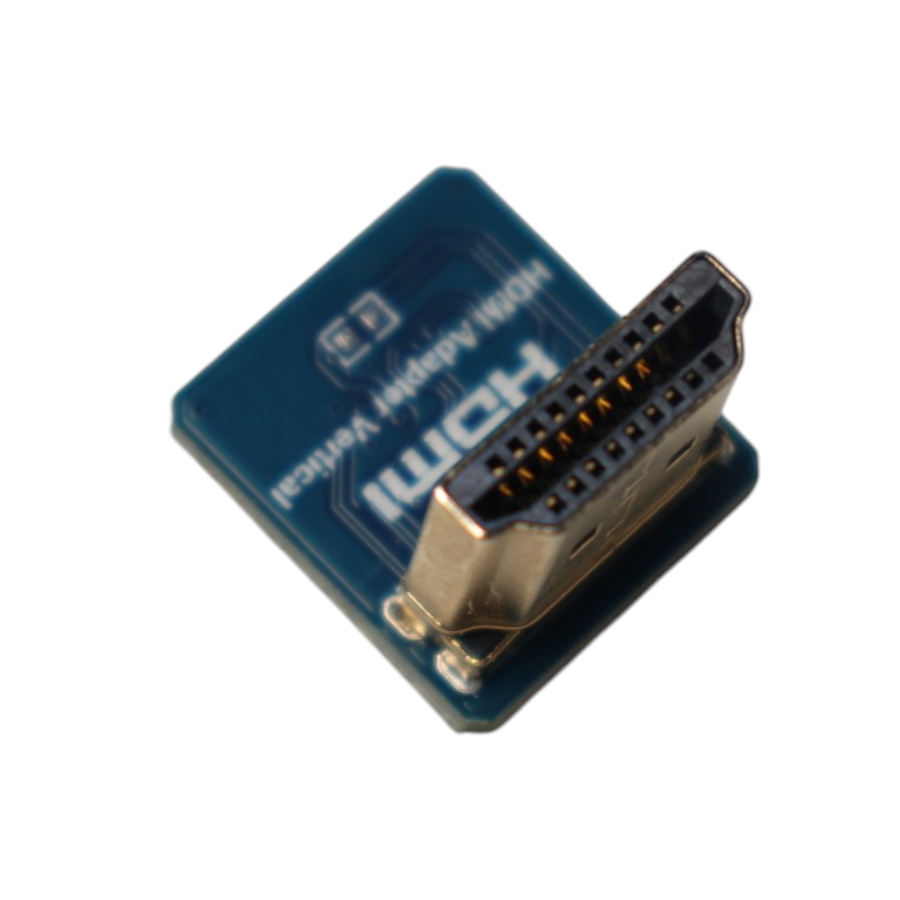

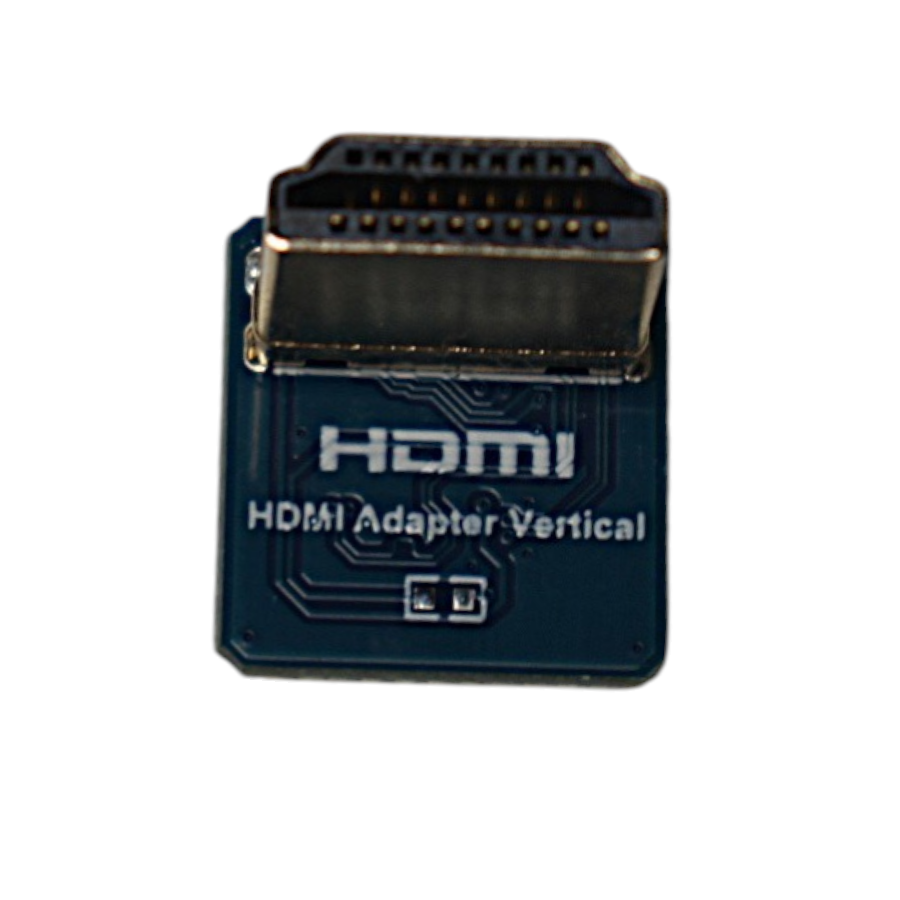

The Waveshare DIY HDMI Cable Right-Angle HDMI Plug Adapter is designed for users who need to create custom HDMI connections in limited spaces. Featuring a 90-degree right-angle HDMI male connector, this adapter allows for flexible cable routing and minimizes strain on HDMI ports, making it perfect for tight installations inside enclosures or embedded systems.

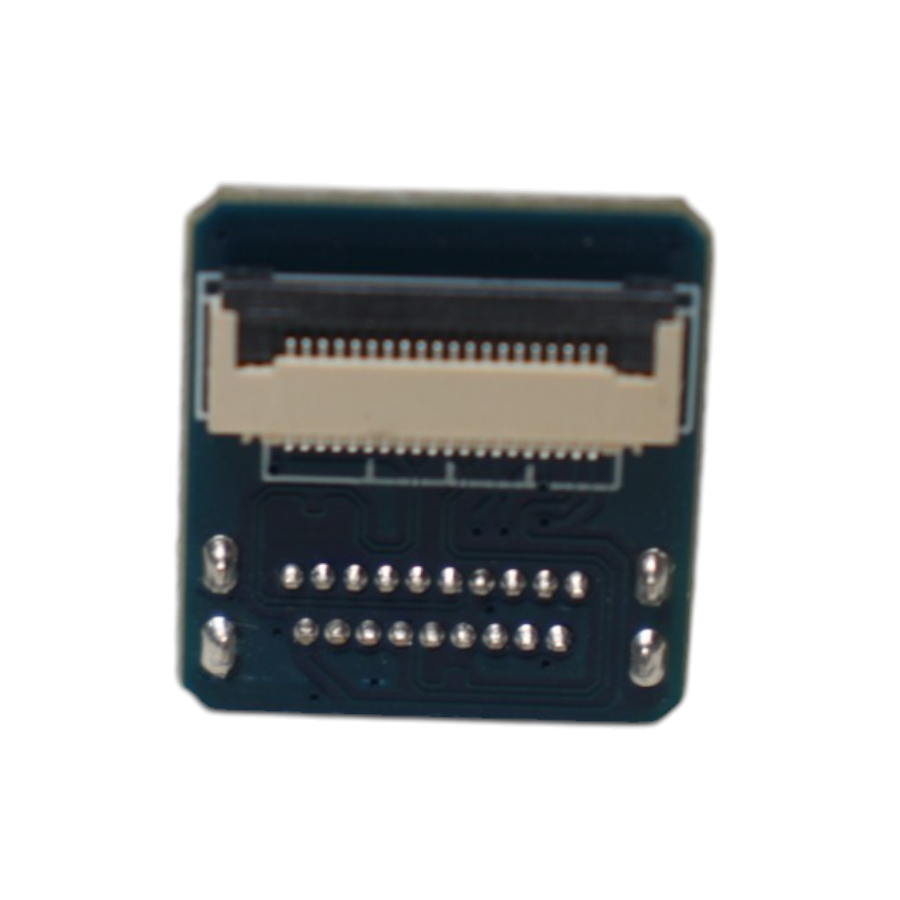

This adapter connects to an FFC (flat flexible cable) or similar wiring harness, allowing you to build HDMI connections of custom lengths and configurations. When paired with another adapter, it can serve as a complete HDMI extension solution. Compact and robust, it’s widely used in Raspberry Pi setups, embedded display systems, monitors, and other electronics where space management is crucial.
Features:
- Right-angle HDMI male plug for space-saving installations
- Compatible with FFC cables or other flexible wiring setups
- Compact and lightweight design (18 × 16.5 × 16.5 mm)
- Supports DIY HDMI cable customization for unique applications
- Ensures stable, high-quality HDMI signal transfer
- Ideal for embedded systems, small enclosures, and display integrations
- Easy to assemble and durable for long-term use
- 15-day warranty against manufacturing defects
Specifications:
| Parameter | Detail |
|---|---|
| Product Name | Waveshare DIY HDMI Cable Right-Angle HDMI Plug Adapter |
| Connector Type | HDMI Male (Right-Angle) |
| Interface | FFC or internal cable connection |
| Orientation | Vertical / Right-Angle |
| Dimensions | Approx. 18 mm × 16.5 mm × 16.5 mm |
| Application | Custom HDMI cable assembly and DIY integration |
| Material | High-quality durable PCB and connector components |
| Weight | Lightweight / Compact |
| Warranty | 15 days (manufacturing defects only) |
| Country of Origin | China |
Package Include:
- 1 X HDMI Adapter Vertical
Raspberry Pi CAN Bus: Vehicle OBD2 Data Reader
Table of Contents Introduction and Use Cases Hardware Requirements Software Installation Configuration and Setup Testing and Validation Advanced...
Read More →
Raspberry Pi RS485: Industrial Sensor Network
Table of Contents Introduction and Use Cases Hardware Requirements Software Installation Configuration and Setup Testing and Validation Advanced...
Read More →
Best Raspberry Pi Cases and Enclosures: Cooling and Style
The case you choose for your Raspberry Pi affects far more than looks. A poorly ventilated case throttles...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | BLE, HDMI |
| SKU | AI2064 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare DIY HDMI Cable Right-angle HDMI Plug Adapter is a versatile raspberry pi accessories used across a wide range of applications including single-board computing, media centers, home servers, retro gaming, and AI and machine learning projects.
Common use cases:
- Adding a camera module for computer vision
- Mounting a HAT for GPIO expansion
- Setting up a Pi-based NAS or media server
This product is ideal for Raspberry Pi users, makers, and embedded Linux developers.
Technical Tip: Ensure compatibility with your specific Pi model (Pi 4, Pi 5, Zero 2W). Check HAT pinout and power requirements before purchasing.
