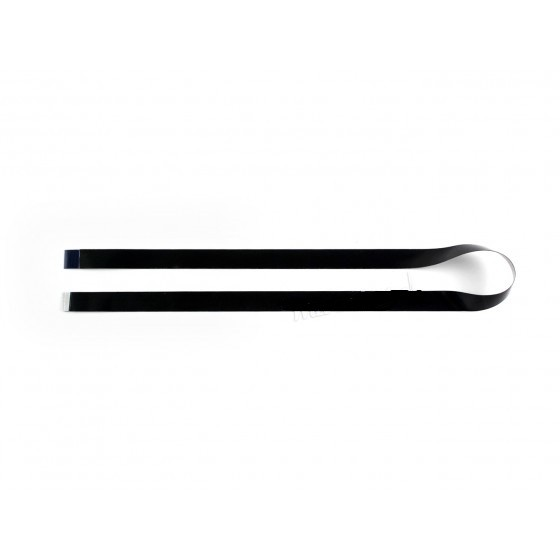

The Waveshare DIY HDMI Cable: 0.5m FFC is a versatile and innovative solution for customizing HDMI connections to suit your specific needs. This cable, measuring half a meter in length, is designed with flexibility and user-friendliness in mind, making it an ideal choice for DIY enthusiasts, electronics hobbyists, and professionals seeking a reliable and customizable HDMI connectivity solution
Features:
- Flexible, easy wring
- EMI-shielded, more stable transmission
- gold/tin-plating, anti-oxidation, capable of dealing with a complex environment
Specification:
| Manufacturer: | WAVESHARE |
|---|---|
| Additional Specs.: | 0.5mm pitch, Exposed contact: 20 pin, opposite side |
| Impedance: | 100 ± 10Ω |
| Dimension (mm): | 500mm x 10.7mm x 0.5mm |
| Model Type: | Interface Cable |
Package Includes:
1 x Waveshare DIY HDMI Cable: 0.5m FFC
Waveshare DIY HDMI Cable: 0.5m FFC Overview
The Waveshare DIY HDMI Cable: 0.5m FFC is a 500 mm flexible flat cable featuring 20 exposed contacts at a 0.5 mm pitch designed for custom HDMI linkages. It allows makers and professionals to route high-speed video signals in tight enclosures or bespoke electronic assemblies.
Key Features of Waveshare DIY HDMI Cable: 0.5m FFC
- 20-pin FFC with 0.5 mm pitch for standard HDMI signal mapping
- Impedance controlled at 100 ± 10 Ω to ensure signal integrity
- Gold/tin-plated contacts for anti-oxidation and reliable mating
- EMI-shielded construction for stable high-frequency transmission
- RoHS-compliant materials, suitable for professional and hobby use
- Genuine Waveshare part, fast shipping from Zbotic within 24 hours
Applications and Use Cases
- Extending HDMI connections on Raspberry Pi or Jetson boards via FPC breakout
- Routing HDMI signals inside compact robotics or automation panels
- Integrating custom LCD or OLED display modules in embedded projects
- Prototyping AV interfaces in enclosures where standard cables won’t fit
- Replacing worn-out flex leads in portable media players or tablets
How to Use Waveshare DIY HDMI Cable: 0.5m FFC
Peel away any protective film on the exposed contacts, align the cable’s marker end with pin 1 on your FPC/FFC HDMI connector, insert fully into the ZIF or clamp-style socket, then lock the latch. Ensure the cable follows gentle curves without sharp bends to maintain impedance and signal quality.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this FFC compatible with a standard HDMI port?
This cable is designed for HDMI FPC/FFC breakout boards and connectors that support 20-pin, 0.5 mm pitch flex cables. It cannot plug directly into full-size HDMI sockets without an appropriate adapter or breakout module.
How can I maintain stable signal transmission?
Make sure the cable is fully inserted, the latch is locked, and there are no sharp bends or kinks. The built-in EMI shielding and controlled impedance will then ensure reliable video output up to HDMI standard bandwidths.
Can I trim the cable to a shorter length?
Trimming is not recommended, as altering the length or exposing contacts can disrupt impedance balance and compromise signal integrity. Use the full 500 mm length or select a different FFC length from our range.
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Interface / Protocol | BLE, HDMI |
| SKU | AI6641 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare DIY HDMI Cable: 0.5m FFC is a versatile interface connector used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine WAVESHARE product sourced from authorized channels
