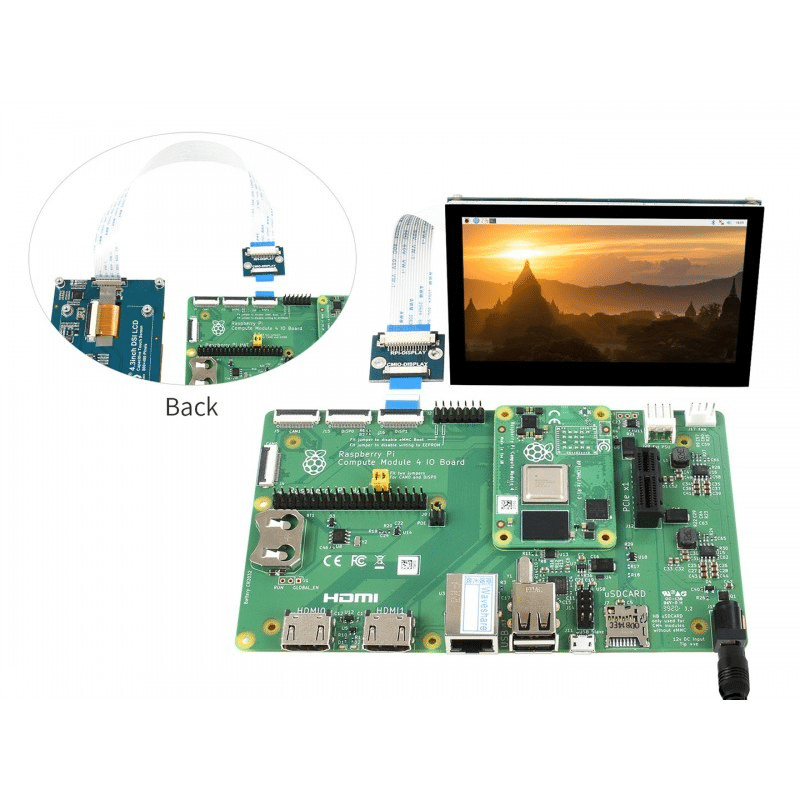

The Compute Module DSI Display Adapter is a hardware device designed to connect a Raspberry Pi Compute Module to a DSI (Display Serial Interface) display. It enables the Compute Module to be used in applications such as digital signage, industrial control, and multimedia systems.
The DSI interface is a high-speed serial interface widely used for display connections in embedded systems like the Raspberry Pi. This adapter acts as a bridge between the Compute Module’s interface and the display’s DSI interface, ensuring proper communication between both devices.

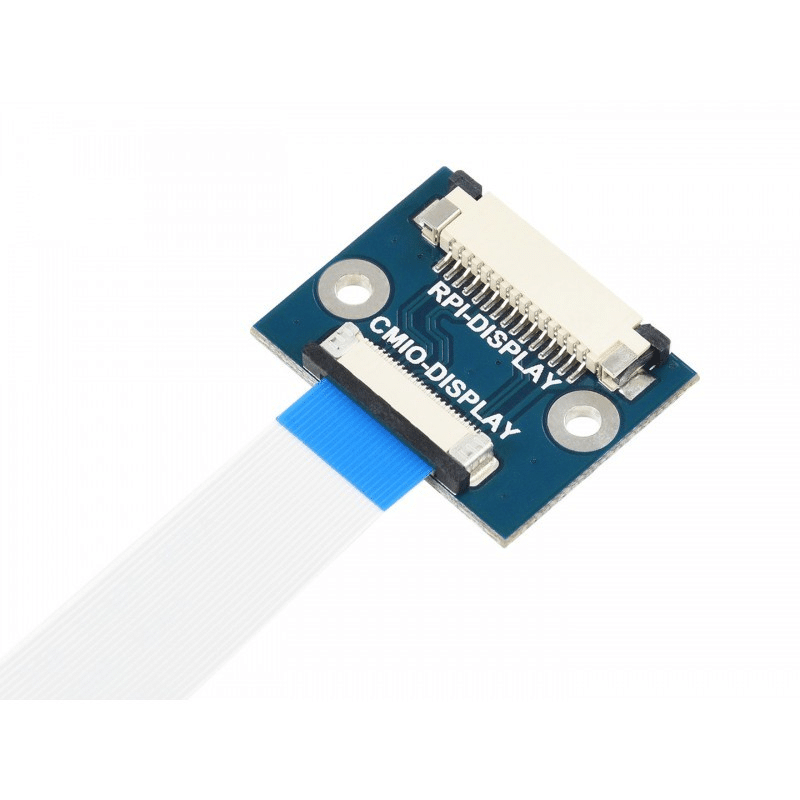

This adapter is typically a compact circuit board featuring a DSI connector on one end and a connector compatible with the Compute Module on the other. Depending on application needs, it may also include features like power management, backlight control, or touchscreen support.
Overall, it is a practical tool for developers and engineers working on projects that require a DSI display connection with a Raspberry Pi Compute Module.
Features:
- 22PIN to 15PIN, allowing the Compute Module to use 15PIN DSI displays
- Suitable for Compute Module IO Board
- Compatible with Compute Module IO Board Plus
Specifications:
| Manufacturer | WAVESHARE |
|---|---|
| Style | Modern |
| Net Weight | 13g |
| Model | Interface Adapter |
| Adapter Type | 22PIN to 15PIN |
Package Includes:
-

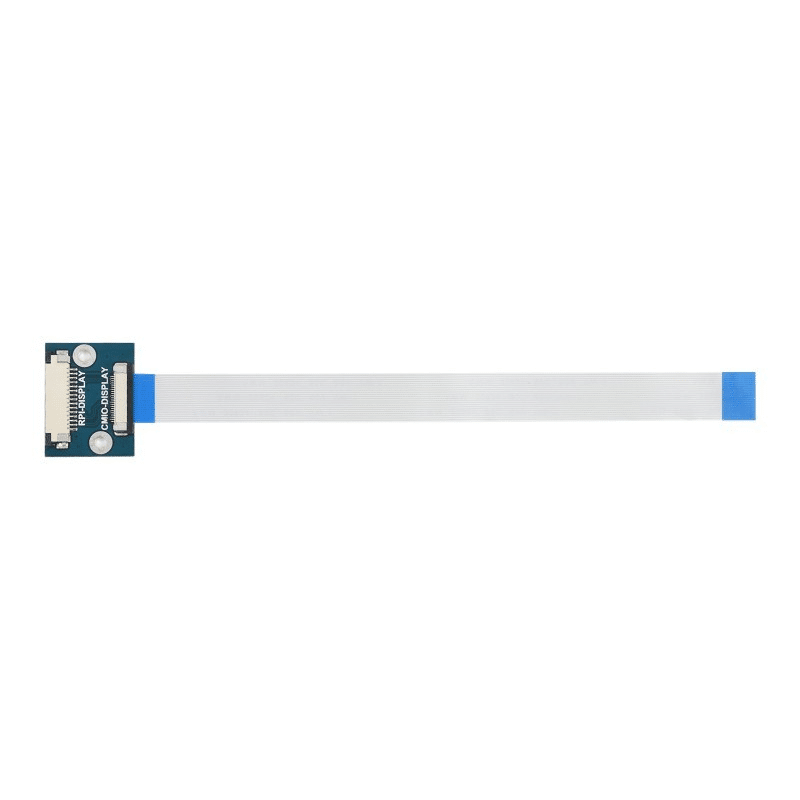

1 × Waveshare Compute Module DSI Display Adapter, 22PIN to 15PIN
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Pin Count | 22-pin |
| SKU | AI7542 |
| Weight | 0.06 kg |
| Availability | In Stock |
Applications & Use Cases
The Waveshare Compute Module DSI Display Adapter, 22PIN To 15PIN is a versatile interface connector used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
